CP45NEO配件手册.pdf - 第33页

X-Ball Scre w Ass'y - 31 - 5 3 4 7 8 6 1 2

X-Frame Ass'

y

NO. PART NO. PART NAME Q'TY TYPE REMARK

1 J7154087B LM PLATE1

1

J7154087B

2 J7154094A END BRACKET-X

1

0133-631044-M3

3 J7054091B BRACKET CABLE CHAIN-Y

1

J7054091B

4 J7154109B CABLE TIE-DOWN

3

J7154109B

5 J7154091B GUIDE CABLE CHAIN-X

1

J7154091B

6 J6102004A CABLE CHAIN

1

MP3005-R70-15LINK+8SHELF

7 J7254009B CUSHION CABLE CHAIN-X

1

J7254009B

8 J3212022A LIMIT SENSOR

3

EE-SX674

9 J7154092C X FRAME

1

J7154092C

10 J7154095A END PLATE-X

1

0133-631044-1M3

11 J7054088B SENSOR DOG-Y

2

J7054088B

12 J7254008A CUSHION-X

1

0133-631273-1M3

13 J7154088B LM PLATE2

1

J7154088B

14 J7054090B SENSOR DOG-X

2

J7054090B

15 J7154096C HEAD BASE

1

J7154096C

16 J6607028A LM GUIDE 2 LWL15C2R0880BT1P

17 J7154097A BRACKET CUSHION-X 1 0133-631273-2M3

18

19

20

21

22

23

24

25

26

27

- 30 -

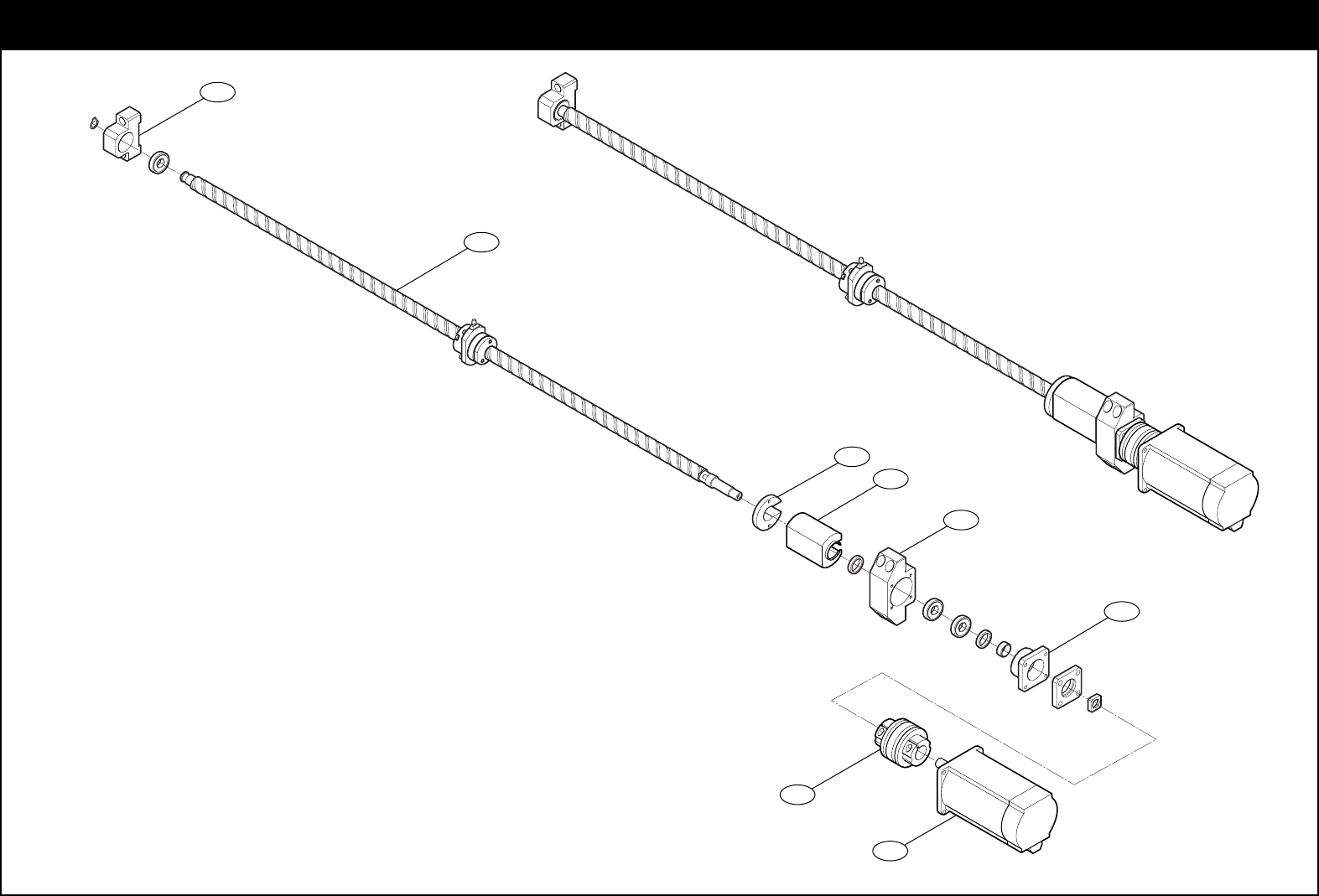

X-Ball Screw Ass'y

- 31 -

5

3

4

7

8

6

1

2

X-Ball Screw Ass'

y

NO. PART NO. PART NAME Q'TY TYPE REMARK

1 J3108039A SERVO MOTOR[MSMA042A1A]

1

MSMA042A1A

2 J6612020A COUPLING

1

SFC-040DA(A TYPE)

3 J6601086A SUPPORT UNIT [FK12]

1

FK12

4 J7154089B BEARING BRACKET-X

1

J7154089B

5 J6606018A BALL SCREW

1

16EF 1Q32-931C5F

6 J7154090B BEARING SUPPORT-X 1 J7154090B

7 J7154123B BRACKET CUSHION-X 1 J7154123B

8 J7254023A CUSHION-Y(TSUBAKI) 1 ALX50-12(MISUMI)

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

- 32 -
