Conveyor 2 Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J1301706 HANDLE 1 80-HANDLE 2 J7053208B HANDLE SHAFT 1 J7053208B 3 J1300678 SPROCKET 1 0131-641083 4 J7053217B BRACKET - SHAFT 1 J7053217B 5 J6601083A …

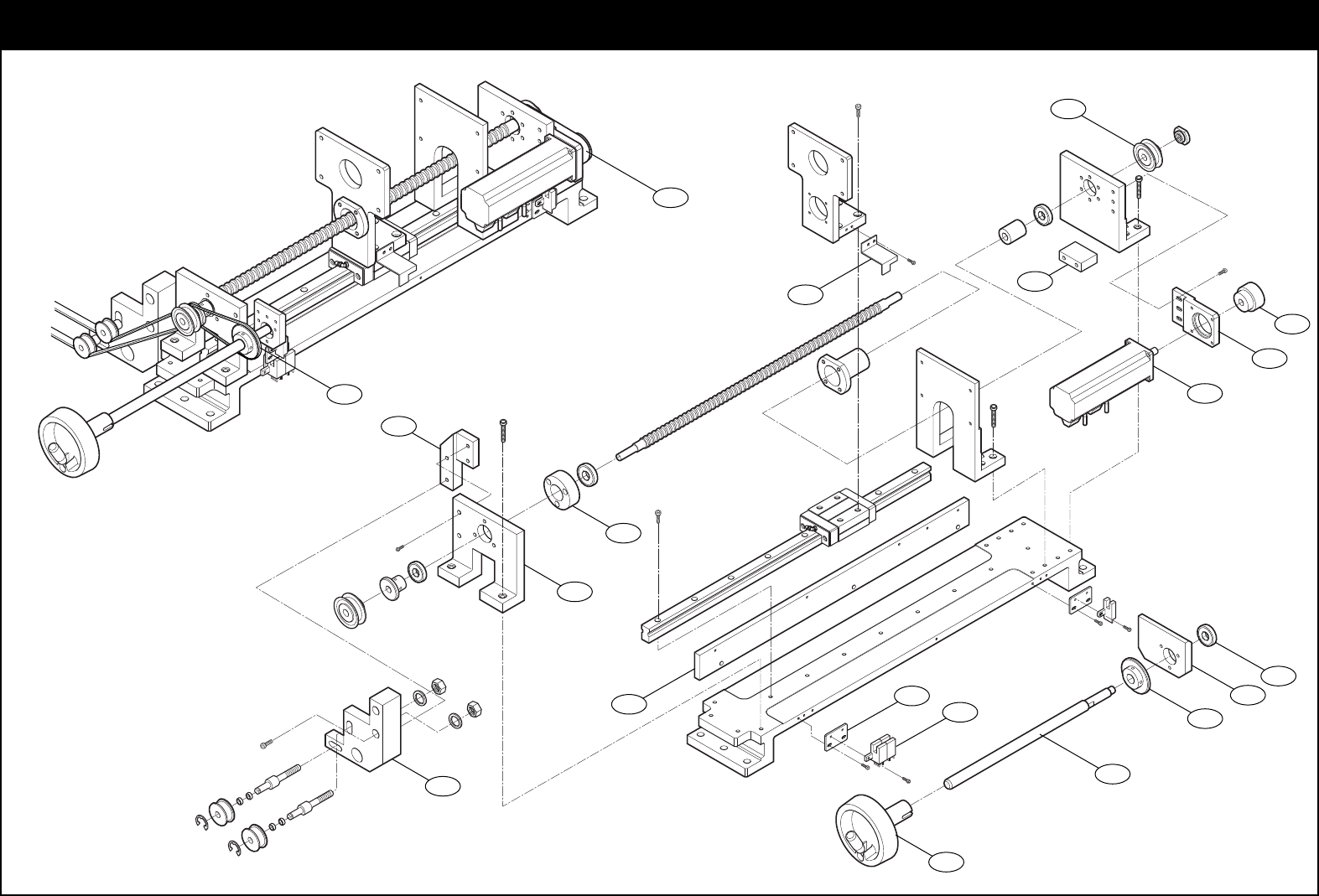

Conveyor 2 Ass'y
- 62 -
19
20
18
15
12
11
9
10
1
2
3
6
22
21
7
14
16
4
13
8
5
17
Conveyor 2 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J1301706 HANDLE 1 80-HANDLE
2
J7053208B HANDLE SHAFT 1 J7053208B
3
J1300678 SPROCKET 1 0131-641083
4
J7053217B BRACKET - SHAFT 1 J7053217B
5
J6601083A BEARING 1 628ZZ
6
J7053214C BRACKET1 - SENSOR 1 J7053214C
7
J1300094 PHOTO SENSOR 3 EE-SX672A
8
J2102046 COVER SUPPORT 2 1 0135-641127
9
J3108008A AC SERVO MOTOR 1 P30B04010DXS00
10
J6609015B PULLEY - MOTOR 1 J6609015B
11
J7053213A BRACKET - MOTOR 1 0145-641139
12
J6609014B PULLEY - SHAFT 1 J6609014B
13
J7153117A STOPPER-FRONT 1 J7153117A
MANUAL
14
J7053216A DOG - SENSOR 1 J7053216A
15
J7153117A STOPPER-FRONT 1 J7153117A
16
J7053199A FIX STAND (RIGHT) 1 0145-641012
17
J2101744 SPROCKET 1 0135-641017-P1
18
J2101747 SPROCKET PLATE(R) 1 0135-641020
19
J6603003A CHAIN 1 #25-54 LINK
20
J6602030A BELT 1 258 - 3M - 9(UNITTA)
AUTO
21
J7053244A DOG ADJUST 1 J7053244A
AUTO
22 J7053245A STOPPER
1
J7053245A AUTO
23
24
25
26
27
- 63 -
R_Conveyor 2 Ass'y
- 64 -
19
20
16
18
1
2
3
4
11
9
10
15
6
7
8
14
13
21
12
5
