CP45NEO配件手册.pdf - 第7页
Co ver 2 Ass'y - 5 - 4 7 12 8 11 2 10 6 1 5 13 3 9
Cover 1 Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
J6119007A STAYS 1 B-40-1-L(TAKIGEN)
29
J6409003A STAYS 1 B-20-1-R(TAKIGEN)
30
J6409004A CATCHE 4 SM111(SHIMONISH)
31
DOOR SENSOR 2
32
DOOR KEY 2
33
J6402002A HANDLE 2 RA-10.100.04(ROHDE)
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
- 4 -

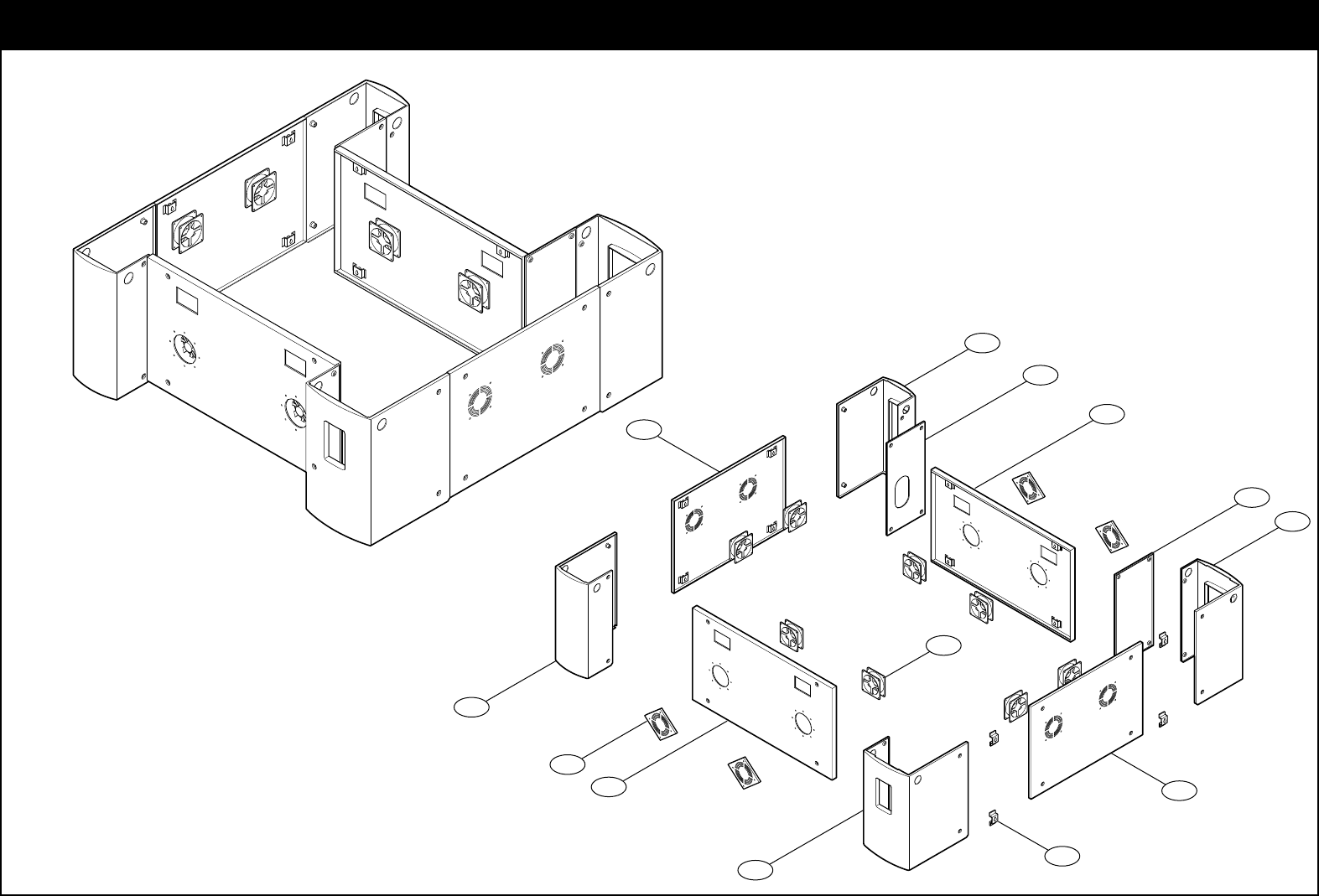

Cover 2 Ass'y
- 5 -
4
7
12
8
11
2
10
6
1
5
13
3
9
Cover 2 Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7070020A DOOR-LOWER(FRONT) 1 J7070020A
2
J7070021A DOOR-LOWER(REAR) 1 J7070021A
3
J7070022A COVER L/M LOWER 1 J7070022A
4
J7070023A COVER R/M LOWER 1 J7070023A
5
J7070032A COVER-L.F.L 1 J7070032A
6
J7070033A COVER-R.F.L 1 J7070033A
7
J7070034A COVER-L.R.L 1 J7070034A
8
J7070035A COVER-R.R.L 1 J7070035A
9 J7070084A
COVER LOWER BKT 4
J7070084A
10 J7052310A
COVER-B/L/L 1
0133-612106-M3
11 J7052311A COVER-B/L/R
1
0133-612116-M3
12 FAN
13 FAN FILTER
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 6 -
