DeltaTherm IR Cure Module
Revision B / February 2020
Page 26 of 41
Conveyor Speed

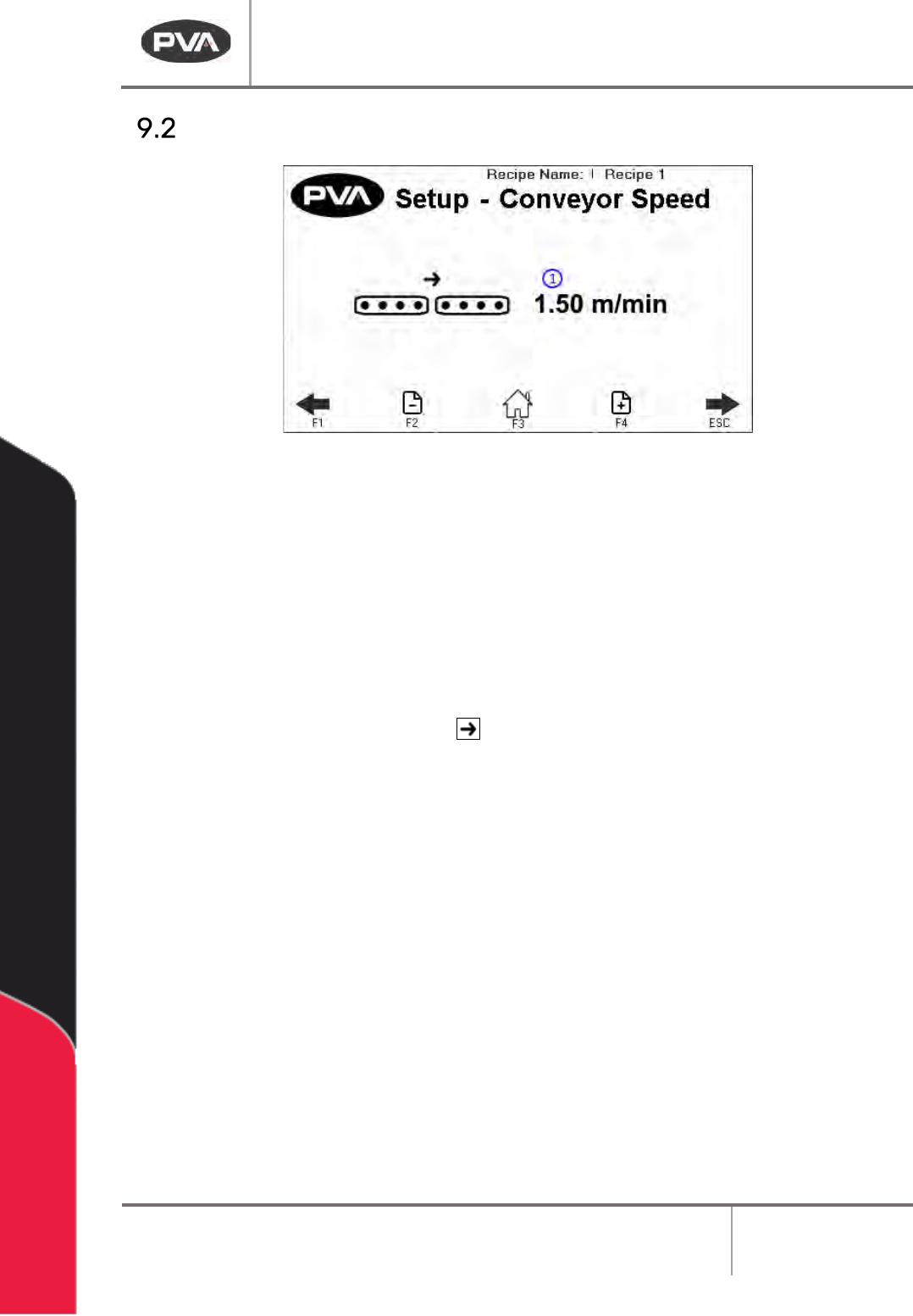

Figure 19: Conveyor Options
1. To change the conveyor speed while in Auto Cycle, select the Speed box. The
keypad will be shown.
• Enter the necessary value. The minimum speed is 0 feet per minute or 0
meters per minute, the maximum speed is 60 feet per minute or 19 meters
per minute.
• Press “ENT” to save the value and close the keypad.
• Select the arrow button to toggle the oven between left to right or right
to left conveyor direction.
DeltaTherm IR Cure Module
Revision B / February 2020
Page 27 of 41
Conveyor Width
This is an optional setting. Not all modules will have this option.
• Use the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Conveyor Adjust screen.
• Select the indicator to toggle this feature on and off.
• Place the board on the conveyor.

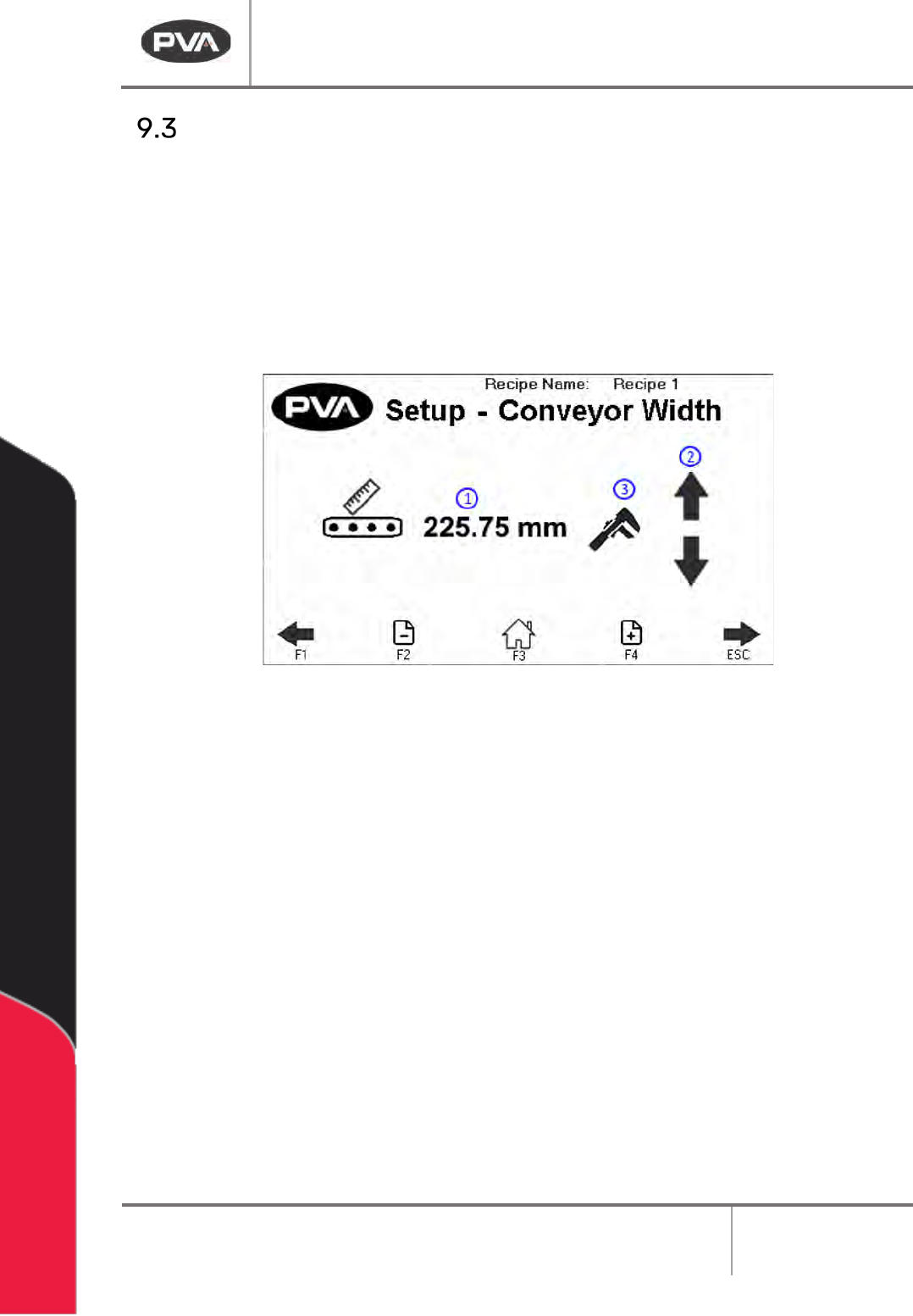

Figure 20: Conveyor Adjust
1. The screen displays the Target Recipe Width. If the width value is known, press the
value to manually enter the width setpoint. A keypad will be shown.
• Enter the necessary value. The metric unit range is from 50–500 mm (1.97-
19.69 in).
• Select “Save” to keep and use the new value.
2. If the width value is unknown, press the arrows to use the Auto Adjust Conveyor
Width. This will jog the conveyor in a negative or positive direction.
3. Once the target recipe width is correct, press the wrench icon to set the target
recipe width to the Current Conveyor Width.
Note: The clear board sequence will not run prior to jog.
Note: The conveyor width setpoint will not update during manual jog.
DeltaTherm IR Cure Module
Revision B / February 2020
Page 28 of 41
Rename Recipe
• Use the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Settings screen.

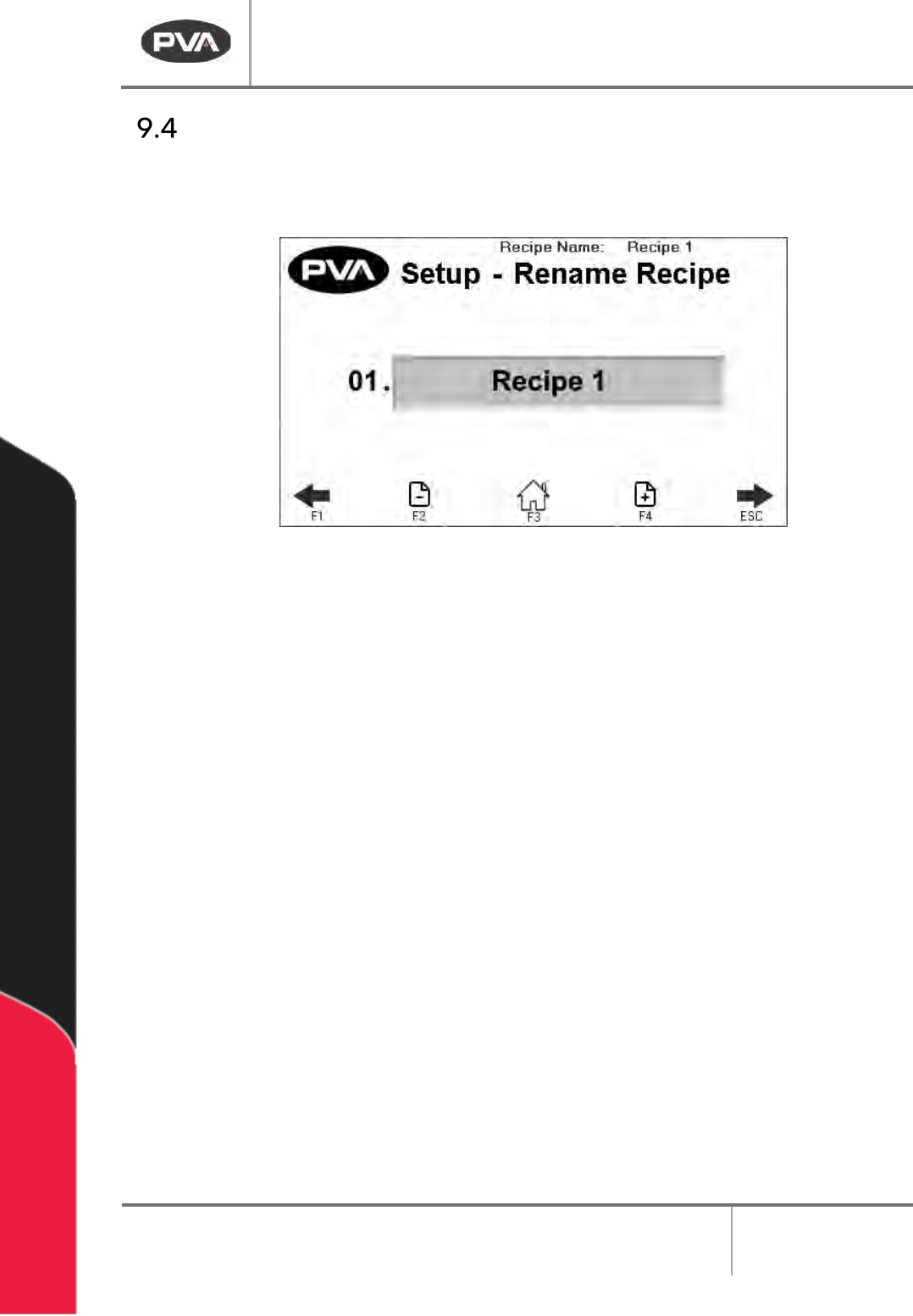

Figure 21: Setup - Rename Profile
• Use the + - Page icons or the F2 and F4 keys to scroll through the recipe names.
• You can have a maximum of 30 profiles.
• Select the name you want to change in the text box.
• The keyboard will be shown, type the new name and select enter. The new name will
be saved. Recipe names are limited to 15 characters.
