- - 4. B ASE FRAME ELEC T R I C AP P ARATUS COMPONENTS ( 3) 1 5 3 4 2 6 1 0 1 2 1 1 1 8 1 9 1 3 1 4 1 5 2 0 1 6 1 9 2 0 1 8 9 2 1 2 2 2 3 3 2 2 4 3 0 3 1 7 8 1 7 2 9 2 6 2 7 2 8 2 5
- -

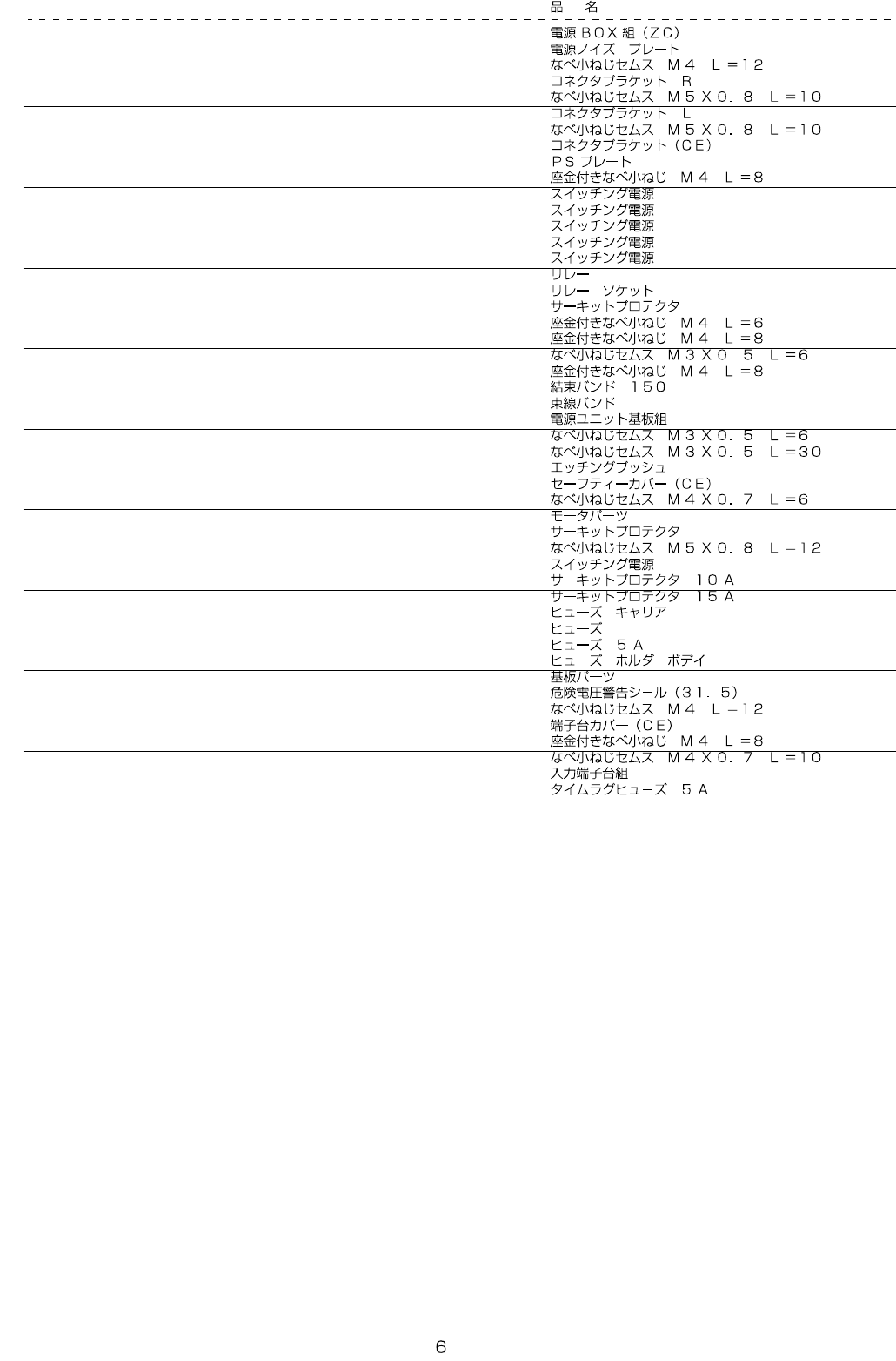

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1601-725-AB0 POWER SUPPLY BOX ASM.(ZC) 1
2 E1601-715-000 POWER SUPPLY NOISE PLATE (2)
3 SL-4041291-SC SCREW M4 L=12 (4)
4 E1602-725-000 CONECTOR BRACKET R (1)
5 SL-4051091-SC SCREW M5X0.8 L=10 (2)
6 E1603-725-000 CONECTOR BRACKET L (1)
7 SL-4051091-SC SCREW M5X0.8 L=10 (2)
8 E1112-725-000 CONNECTOR BRACKET(CE) (1)
9 E1604-725-000 PS PLATE (2)
10 SL-4040891-SC SCREW M4 L=8 (4)
11 HX-0048400-00 SWITCH POWER SUPPLY (5V/250W) (1)
12 KX-0000000-90 SWITCH POWER SUPPLY (6V/100W) (1)
13 HX-0048300-00 SWITCH POWER SUPPLY (12V/25W) (1)
14 HX-0042300-00 SWITCH POWER SUPPLY (12V/50W) (1)
15 HX-0048200-00 SWITCH POWER SUPPLY (24V/500W) (1)
16 HB-0006300-00 RELAY (1)
17 HB-0006300-10 RELAY SOCKET (1)
18 HA-0045600-0A PROTECTOR (1)
19 SL-4040691-SC SCREW M4 L=6 (2)
20 SL-4040891-SC SCREW M4 L=8 (2)
21 SL-4030691-SC SCREW M3X6 (4)
22 SL-4040891-SC SCREW M4 L=8 (7)
23 EA-9500B02-00 CABLE BAND 150 (5)
24 EA-9500B01-00 CABLE BAND (22)
25 E8602-725-0A0 POWER SUPPLY UNIT PWB ASM. (1)
26 SL-4030691-SC SCREW M3X6 (11)
27 SL-4033091-SC SCREW M3 L=30 (3)
28 M9649-110-000 EDGE BUSHING (0.56)
29 E1113-725-000 SAFRTY COVER (CE) (1)
30 SL-4040681-SC COMBINATION SCREW M4 X 8 (2)
31 HM-0009000-20 FINGER GUARD (1)
32 HA-0045600-00 PROTECTOR (1)
33 SL-4051291-SC SCREW M5X0.8 L=12 (4)
34 HX-0049900-00 SWITCH POWER SUPPLY (24V/75W) (1)
35 HA-0038000-0B CIRCUIT PROTECTOR 10A (1)
36 HA-0038000-0C PROTECTOR 15A (2)
37 HF-0049163-PA FUSE CARRIER (4)
38 HF-0015030-P0 FUSE (1)
39 HF-0015050-P0 FUSE (1)
40 HF-0049163-P0 FUSE HOLDER BODY (4)
41 HX-0033900-0B BOARD PARTS 4
42 CM-3001000-01 LABEL 1
43 SL-4041291-SC SCREW M4 L=12 4
44 E1162-721-000 TERMINAL COVER 1
45 SL-4040891-SC SCREW M4 L=8 2
46 SL-4041091-SC SCREW M4 L=10 2
47 E9512-721-0A0 TERMINAL BASE ASM. 1
48 HF-0014005-00 TIME LAG FUSE 5A 1
- -

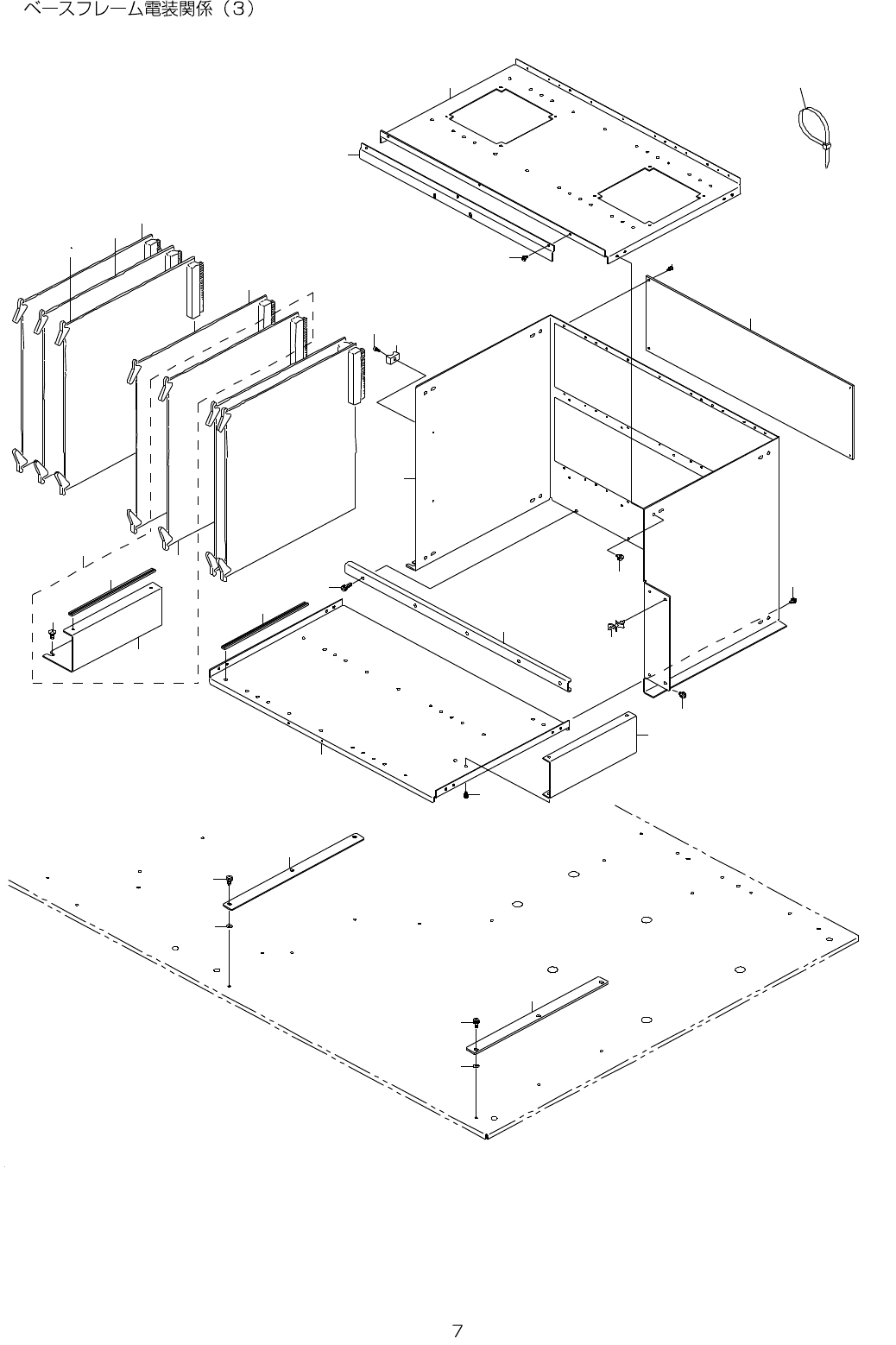

4. BASE FRAME ELECTRIC APPARATUS COMPONENTS (3)
1
5
3
4
2
6
1 0
1 2
1 1
1 8
1 9
1 3
1 4
1 5
2 0
1 6
1 9
2 0
1 8
9
2 1
2 2
2 3 3 2
2 4
3 0
3 1
7
8
1 7
2 9
2 6
2 7
2 8
2 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1605-725-000 CONTROL BOTTOM COVER 1
2 SL-4040891-SC SCREW M4 L=8 4
3 SL-4030891-SC SCREW M3X8 5
4 E1607-725-000 CONTROL TOP COVER 1
5 SL-4040891-SC SCREW M4 L=8 4
6 E1606-725-000 CONTROL SIDE COVER 1
7 HX-0029400-00 FIXED BASE 2
8 SM-6030602-TN HEX SCREW M3 X 6 2
9 EA-9500B02-00 CABLE BAND 150 2
10 E1609-725-000 CONTROL PWB STOPPER 1
11 SL-4030891-SC SCREW M3X8 3
12 HX-0002600-0A BASE PARTS 25
13 E1608-721-000 CONTROL PWB BRACKET 1
14 SL-4040891-SC SCREW M4 L=8 2
15 E1608-725-000 BACK BOARD REINFORCING PLATE 2
16 SL-4031481-SC SCREW M3 X 14 10
17 HX-0011500-0A PCB SUPPORT 4
18 E1004-725-000 ELECTRIC APPARATUS HOLDER 4
19 WP-0641601-SC WASHER 7
20 SL-4041291-SC SCREW M4 L=12 12
21 E8601-721-0B0 SUB CPU PWB SET 1
22 E8602-721-0A0 AC SERVO CONTROL PWB ASM. 1
23
#01
E8601-725-0A0 CONTROL PWB ASM. 1
24 E8604-721-0B0 I/O CONTROL PWB SET 1
25 400-23546 IMG MAINTENANCE ASM FOR 750/76 1
26 400-28225 IP-X PCB ASM FOR KE750/760 (1)
27 400-23403 IPX ADOPTER PLATE (1)
28 ST-0051051-SN SCREW (2)
29 HX-0002600-0A BASE PARTS (1)
30 E8620-721-0A0 BACK BOARD PWB ASM. 1
31 SL-4860891-SC SCREW M2.6X8 37
32
#02
E8601-725-AA0 CONTROL PWB ASM. 1
