- - 9. C ABLE COM P ONEN T S ( 2)( CE) 1 5 0 2 5 1 3 4 5 4 5 6 7 8 1 0 1 1 1 3 1 4 1 2 1 6 1 7 3 3 4 1 1 8 2 0 4 6 2 2 9 5 2 2 4 2 0 2 6 5 3 2 7 3 4 3 0 4 3 3 5 4 4 2 3 2 8 4 8 2 9 5 4 4 7 2 5 3 2 3 1 2 1 1 5 4 9 1 9 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9201-721-0A0 AC SERVO X POWER CABLE ASM. 1
2 E9202-725-0A0 AC SERVO FG CABLE ASM. 1
3 E9203-721-0A0 SERVO ON CABLE ASM. 1
4 E9204-725-0A0 CONV. UNIT AC POWER CABLE ASM. 1
5 E9205-725-0A0 FEEDER UNIT POWER CABLE ASM. 1
6 E9206-725-0A0 BASE UNIT POWER CABLE ASM. 1
7 E9207-725-0A0 VI MONITOR POWER CABLE 1 ASM. 1
8 E9208-725-0A0 OPERA. PANEL POWER CABLE ASM. 1
9 E9209-725-0A0 POWER CABLE ASM. 1
10 E9210-725-0A0 CONTROLLER UNIT FAN CABLE ASM. 1
11 E9211-725-0A0 BASE R FAN CABLE ASM. 1
12 E9212-725-0A0 BASE L FAN CABLE ASM. 1
13 E9213-725-0A0 CONTROL UNIT POWER CABLE ASM. 1
14 E9220-725-0A0 SCM POWER CABLE 1 ASM. 1
15 E9222-725-0A0 MTC POWER CABLE ASM. 1
16 E9224-721-0A0 AC SERVO CONNECT. CABLE 1 ASM. 1
17 E9225-721-0A0 AC SERVO CONNECT. CABLE 2 ASM. 1
18 E9226-721-0A0 AC SERVO YL POWER CABLE ASM. 1
19 E9227-721-0A0 AC SERVO YR POWER CABLE ASM. 1
20
#05
E9229-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
21 E9230-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
22 E9231-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
23
#05
E9232-725-0A0 X AXIS SERVO POWER CABLE ASM. 1
24 E9233-725-0A0 SERVO POWER CABLE ASM. 1
25 E9234-725-0A0 SERVO POWER CABLE ASM. 1
26
#01
E9239-725-0A0 MOTOR DRIVER POWER CABLE ASM. 1
27 E9242-721-0A0 YR HOME POSITION CABLE 1 ASM. 1
28 E9251-725-0A0 SERVO CONTROLLER CABLE ASM. 1
29 E9252-725-0A0 SERVO CONTROLLER CABLE ASM. 1
30 E9291-725-0A0 ENCO. CABLE ASM. 1
31 E9292-725-0A0 ENCO. CABLE ASM. 1
32 E9293-725-0A0 ENCO. CABLE ASM. 1
33
#05
E9256-725-0A0 X LIMITER CABLE 2 ASM. 1
34 E9257-725-0A0 Y LIMITER CABLE 1 ASM. 1
35 E9258-725-0A0 YR PIVOT CABLE 2 ASM. 1
36 E9488-725-0A0 PLUS X LIMIT SENSOR ASM. 1
37 E9489-725-0A0 MINUS X LIMIT SENSOR ASM. 1
38 E9490-725-0A0 X PIVOT SENSOR ASM. 1
39 E9491-725-0A0 +Y SENSOR 1 ASM. 1
40 E9492-725-0A0 +Y SENSOR 2 ASM. 1
41 E9493-725-0A0 MINUS Y SENSOR ASM. 1
42 E9494-725-0A0 YL PIVOT SENSOR ASM. 1
43 E9496-725-0A0 Y LIMIT CABLE 2 ASM. 1
44 E9259-725-0A0 SAFETY CABLE ASM. 1
45
#05
E9260-725-0A0 SERIAL PARALLEL CABLE 1 ASM. 1
46
#03
E9229-725-AA0 SERVO ENCO. CABLE 1 ASM. 1
47
#03
E9232-725-AA0 X AXIS SERVO POWER CABLE ASM. 1
48
#03
E9256-725-AA0 X LIMITER CABLE 2 ASM. 1
49
#03
E9260-725-AA0 SERIAL PARALLEL CABLE 1 ASM. 1
50
#04
E9498-725-0A0 SHORT CONNECTOR ASM. 1
51
#04
E9497-725-0A0 SHORT CONNECTOR ASM. 1
52
#02
E9240-725-0A0 MOTOR DRIVER POWER CABLE ASM. 1
- -

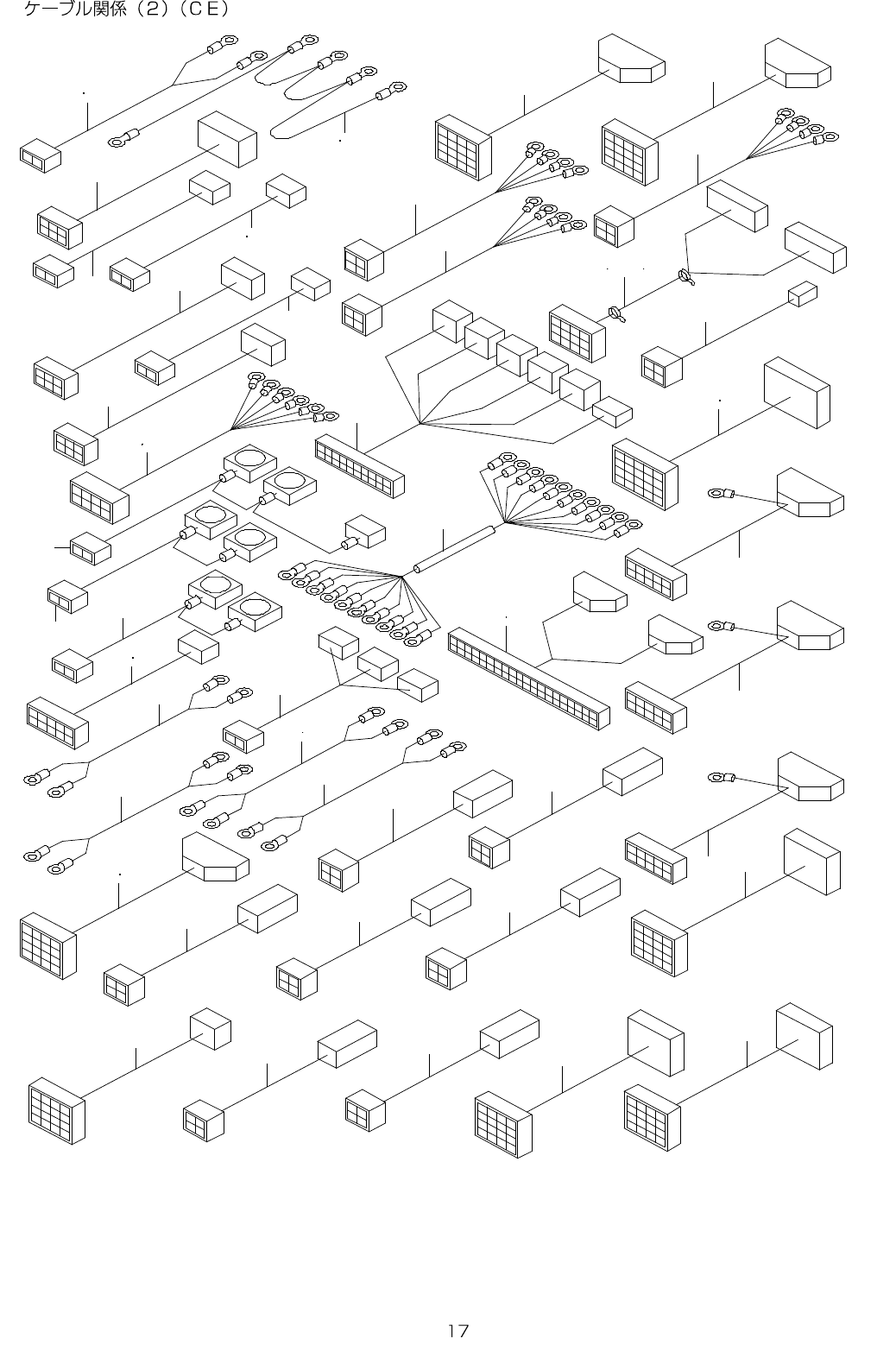

9. CABLE COMPONENTS (2)(CE)
1 5 0
2 5 1
3
4
5 4 5
6
7
8
1 0
1 1
1 3
1 4
1 2
1 6
1 7 3 3
4 1
1 8
2 0 4 6
2 2
9 5 2
2 4
2 0 2 6 5 3
2 7
3 4
3 0
4 3
3 5
4 4
2 3 2 8
4 8
2 9 5 4
4 7
2 5
3 2
3 1
2 1
1 5 4 9
1 9
3 6
3 7
3 8
4 0
3 9
4 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9201-721-0A0 AC SERVO X POWER CABLE ASM. 1
2 E9202-725-0A0 AC SERVO FG CABLE ASM. 1
3 E9203-721-0A0 SERVO ON CABLE ASM. 1
4 E9204-725-0A0 CONV. UNIT AC POWER CABLE ASM. 1
5 E9205-725-0A0 FEEDER UNIT POWER CABLE ASM. 1
6 E9206-725-0A0 BASE UNIT POWER CABLE ASM. 1
7 E9207-725-0A0 VI MONITOR POWER CABLE 1 ASM. 1
8 E9208-725-0A0 OPERA. PANEL POWER CABLE ASM. 1
9 E9209-725-0A0 POWER CABLE ASM. 1
10 E9210-725-0A0 CONTROLLER UNIT FAN CABLE ASM. 1
11 E9211-725-0A0 BASE R FAN CABLE ASM. 1
12 E9212-725-0A0 BASE L FAN CABLE ASM. 1
13 E9213-725-0A0 CONTROL UNIT POWER CABLE ASM. 1
14 E9220-725-0A0 SCM POWER CABLE 1 ASM. 1
15 E9222-725-0A0 MTC POWER CABLE ASM. 1
16 E9224-721-0A0 AC SERVO CONNECT. CABLE 1 ASM. 1
17 E9225-721-0A0 AC SERVO CONNECT. CABLE 2 ASM. 1
18 E9226-721-0A0 AC SERVO YL POWER CABLE ASM. 1
19 E9227-721-0A0 AC SERVO YR POWER CABLE ASM. 1
20
#02
E9507-725-0A0 Z THETA POWER OUTPUT CABLE ASM 1
21 E9230-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
22 E9231-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
23
#02
E9251-725-AA0 X AXIS SERVO CONTROL CABLE ASM 1
24 E9233-725-0A0 SERVO POWER CABLE ASM. 1
25 E9234-725-0A0 SERVO POWER CABLE ASM. 1
26 E9239-725-0A0 MOTOR DRIVER POWER CABLE ASM. 1
27 E9242-721-0A0 YR HOME POSITION CABLE 1 ASM. 1
28 E9251-725-0A0 SERVO CONTROLLER CABLE ASM. 1
29 E9252-725-0A0 SERVO CONTROLLER CABLE ASM. 1
30 E9291-725-0A0 ENCO. CABLE ASM. 1
31 E9292-725-0A0 ENCO. CABLE ASM. 1
32 E9293-725-0A0 ENCO. CABLE ASM. 1
33
#01
E9510-725-0A0 POWER CABLE ASM. 1
34 E9257-725-0A0 Y LIMITER CABLE 1 ASM. 1
35 E9258-725-0A0 YR PIVOT CABLE 2 ASM. 1
36 E9488-725-0A0 PLUS X LIMIT SENSOR ASM. 1
37 E9489-725-0A0 MINUS X LIMIT SENSOR ASM. 1
38 E9490-725-0A0 X PIVOT SENSOR ASM. 1
39 E9491-725-0A0 +Y SENSOR 1 ASM. 1
40 E9492-725-0A0 +Y SENSOR 2 ASM. 1
41 E9493-725-0A0 MINUS Y SENSOR ASM. 1
42 E9494-725-0A0 YL PIVOT SENSOR ASM. 1
43 E9496-725-0A0 Y LIMIT CABLE 2 ASM. 1
44 E9259-725-0A0 SAFETY CABLE ASM. 1
45 E9205-725-AA0 POWER CABLE ASM. 1
46 E9229-725-AA0 SERVO ENCO. CABLE 1 ASM. 1
47 E9232-725-AA0 X AXIS SERVO POWER CABLE ASM. 1
48 E9256-725-AA0 X LIMITER CABLE 2 ASM. 1
49 E9222-725-AA0 MTC POWER CABLE ASM. 1
50
#01
E9509-725-0A0 XY SERVO POWER CABLE ASM. 1
51
#01
E9202-725-AA0 XY SERVO FG CABLE ASM. 1
52 E9209-725-AA0 POWER CABLE ASM. 1
53
#01
E9506-725-0A0 POWER CABLE ASM. 1
54 E9252-725-AA0 SERVO CONTOROL CABLE ASM. 1
