- - 47.S YS T EM DIS K COM PO N E NT S 1 1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3800-725-0A0 OCC ASM. 1
2 E3801-725-0A0 CAMERA UNIT ASM. (2)
3 E3802-725-000 CAMERA BRACKET U (1)
4 400-10386 CCD CAMERA (1)
5 E9618-721-000 OCC LENS (1)
6 E3853-715-000 CCD CAMERA BLOCK (1)
7 SM-6020752-TP SCREW (4)
8 SL-6041092-TN SCREW (4)
9 E3803-721-000 LENS HOLDER (1)
10 E3804-721-000 OCC SHIM A (1)
11 E3805-721-000 OCC SHIM B (1)
12 E3806-721-000 OCC SHIM C (1)
13 E3807-721-000 OCC SHIM D (1)
14 SL-6041092-TN SCREW (2)
15 E3808-721-000 LENS HOLD PLATE (1)
16 SL-6030692-TN BOLT (2)
17 E3809-725-000 CAMERA BRACKET D (1)
18 E3858-715-000 SEAL (1)
19 SL-6030692-TN BOLT (2)
20 SL-6030892-TN SCREW (2)
21 SL-6040892-TN BOLT (8)
22 E3811-725-0A0 LIGHT UNIT L ASM. (1)
23 E3812-725-000 LIGHT UNIT SUPPORT L (1)
24 E3813-725-0A0 MIRROR BOX SUPPORT ASM. (1)
25 E3852-725-000 MIRROR BOX SUPPORT (1)
26 E3860-725-000 FILTER BASE (1)
27 SM-1030601-SC SCREW M3 L=6 (4)
28 400-50604 MIRROR BOX (1)
29 SL-6030592-TN SCREW M3 L=5 (4)
30 118-04606 RUBBER PLUG (14)
31 E3855-721-000 BEAM SPLITTER (1)
32 E3856-721-000 A CLOTHES PAPER (1)
33 E8612-725-0A0 OCC LIGHT CIRCUIT BOARD A ASM. (1)
34 HX-0033500-0D SPACER (4)
35 SL-6031292-TN BOLT (4)
36 E3857-725-000 UNDER COVER (1)
37 SM-4030401-SC SCREW M3X0.5 L=4 (2)
38 E3858-725-000 OCC LENS DIFFEUSER (1)
39 SM-1030501-SC SCREW M3 L=5 (2)
40 E3862-721-000 FILTER HOLDER (1)
41 400-50606 LENS FILTER (1)
42 400-50605 LIGHT DIFFUSER (1)
43 HX-0028800-00 FLAT WASHER FOR INSULATION (4)
44 SM-0020401-SC SCREW M2 L=4 (4)
45 SM-8030312-TP SCREW M3 L=3 (1)
46 E3864-721-000 OCC LIGHT LABEL (1)
47 SL-6041092-TN SCREW (2)
48 E3821-725-0A0 LIGHT UNIT R ASM. (1)
49 E3822-725-000 LIGHT UNIT SUPPORT R (1)
50 E3823-725-000 LIGHT UNIT SUPPORT (1)
51 SM-1030601-SC SCREW M3 L=6 (4)
52 HX-0033500-0E SPACER (4)
53 SL-6031492-TN SCREW (4)
54 E8624-715-AA0 BOC LIGHT A CIRCUIT BOARD ASM. (1)
55 SL-6041092-TN SCREW (2)
- -

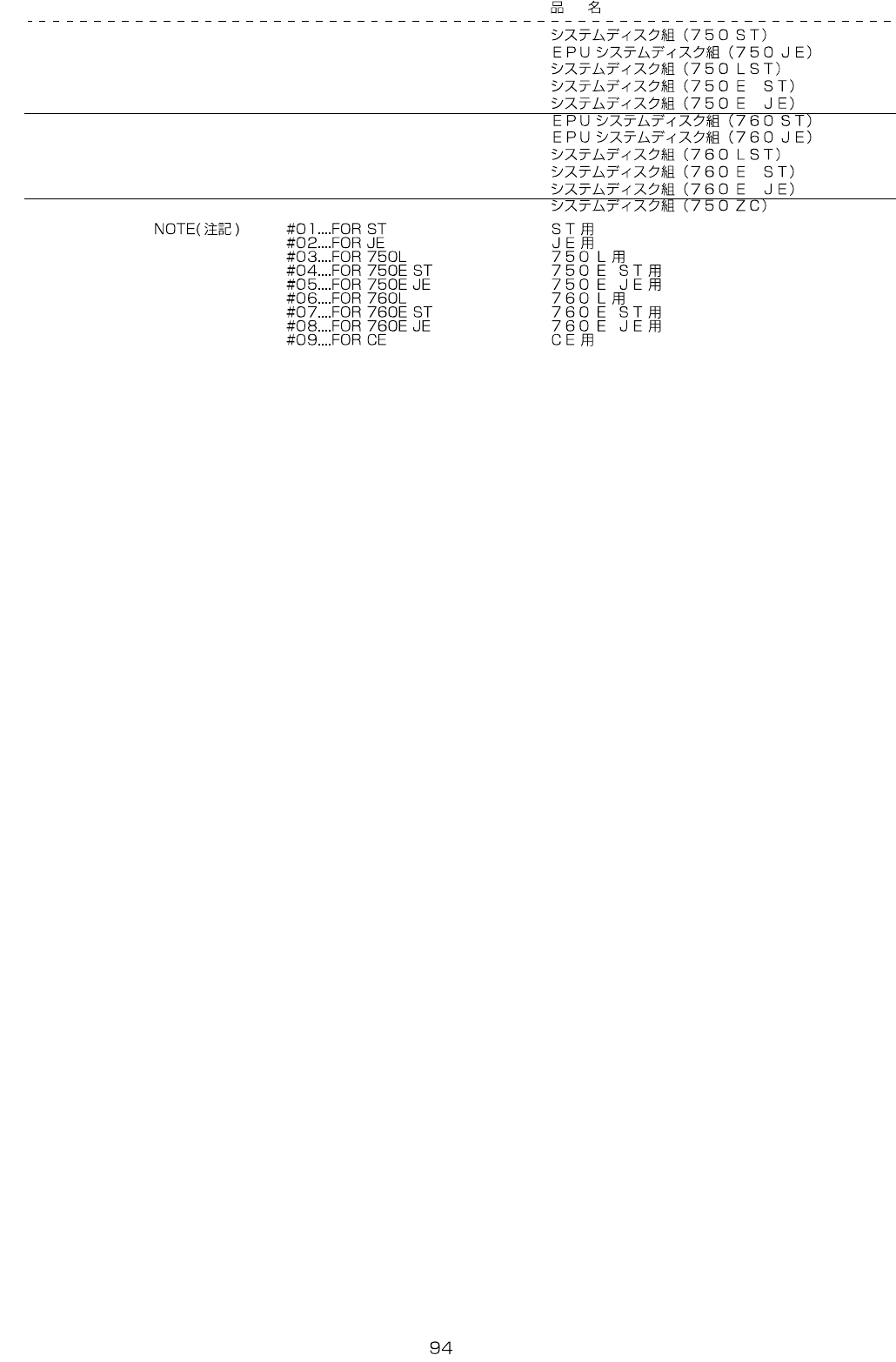

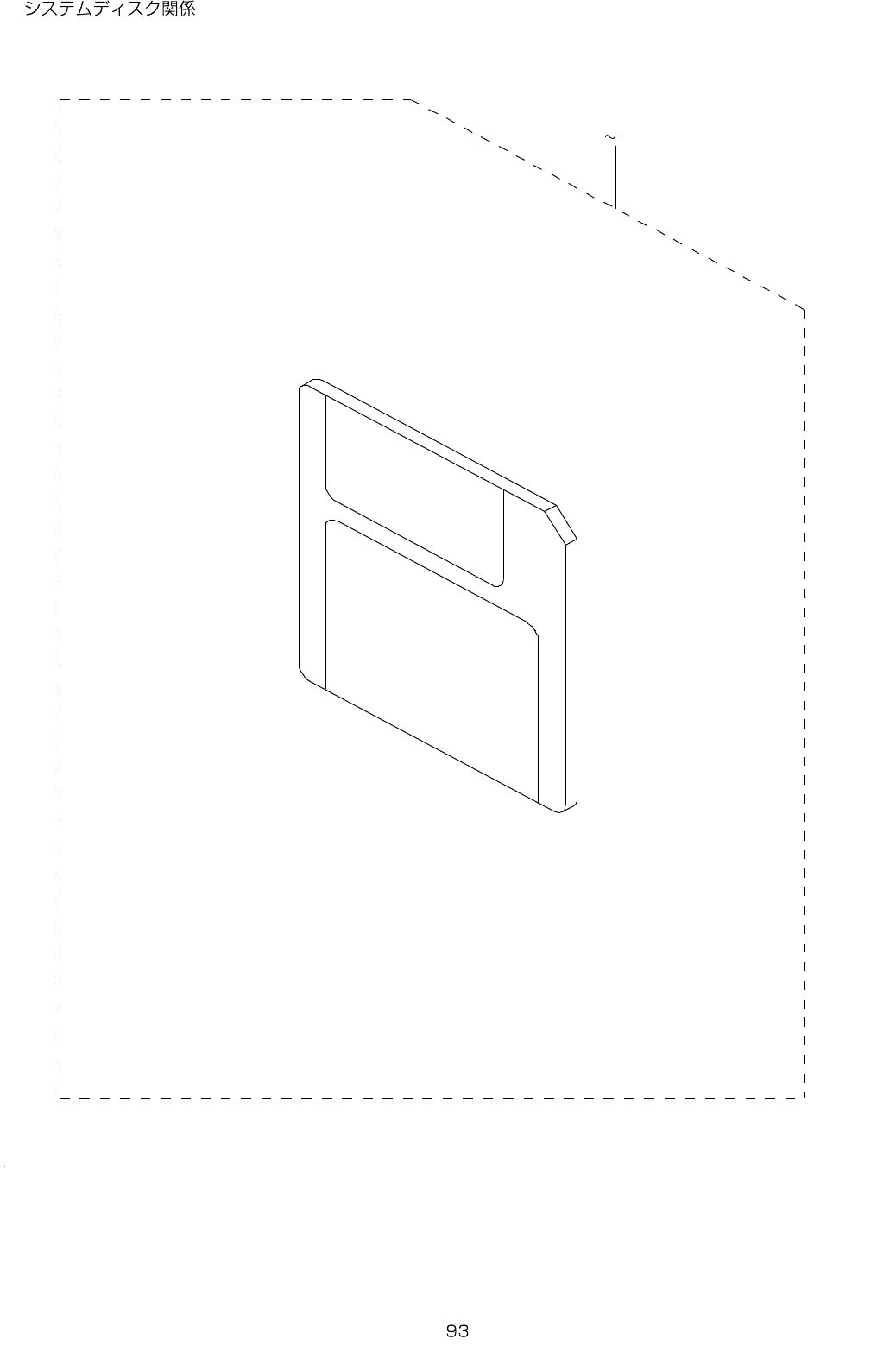

47.SYSTEM DISK COMPONENTS
1 1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E6002-725-0A0 SYSTEM DISK ASM.(750ST) 1
2
#02
E6004-725-0A0 SYSTEM DISK ASM.(750JE) 1
3
#03
E4802-725-AA0 SYSTEM DISK ASM.(750LST) 1
4
#04
E4802-725-BA0 SYSTEM DISK ASM.(750E ST) 1
5
#05
E4804-725-BA0 SYSTEM DISK ASM.(750E JE) 1
6
#01
E6001-725-0A0 SYSTEM DISK ASM.(760ST) 1
7
#02
E6003-725-0A0 SYSTEM DISK ASM.(760JE) 1
8
#06
E4801-725-AA0 SYSTEM DISK ASM.(760LST) 1
9
#07
E4801-725-BA0 SYSTEM DISK ASM.(760EST) 1
10
#08
E4803-725-BA0 SYSTEM DISK ASM.(760EJE) 1
11
#09
E4806-725-BA0 SYSTEM DISK ASM.(750ZC) 1
