- - 6. B ASE FRAME ELEC T R I C AP P ARATUS COMPONENTS ( 5) 1 8 2 6 3 5 4 7 9 1 1 1 2 1 3 1 4 1 7 2 0 2 2 2 3 1 9 3 4 3 3 2 7 1 0 2 1 1 8 2 4 1 4 1 3 A B A B 3 0 2 8 2 8 2 9 1 2 3 1 3 2 1 5 1 6 2 7 1 9 3 4 2 6 2 5 3 5 …
- -

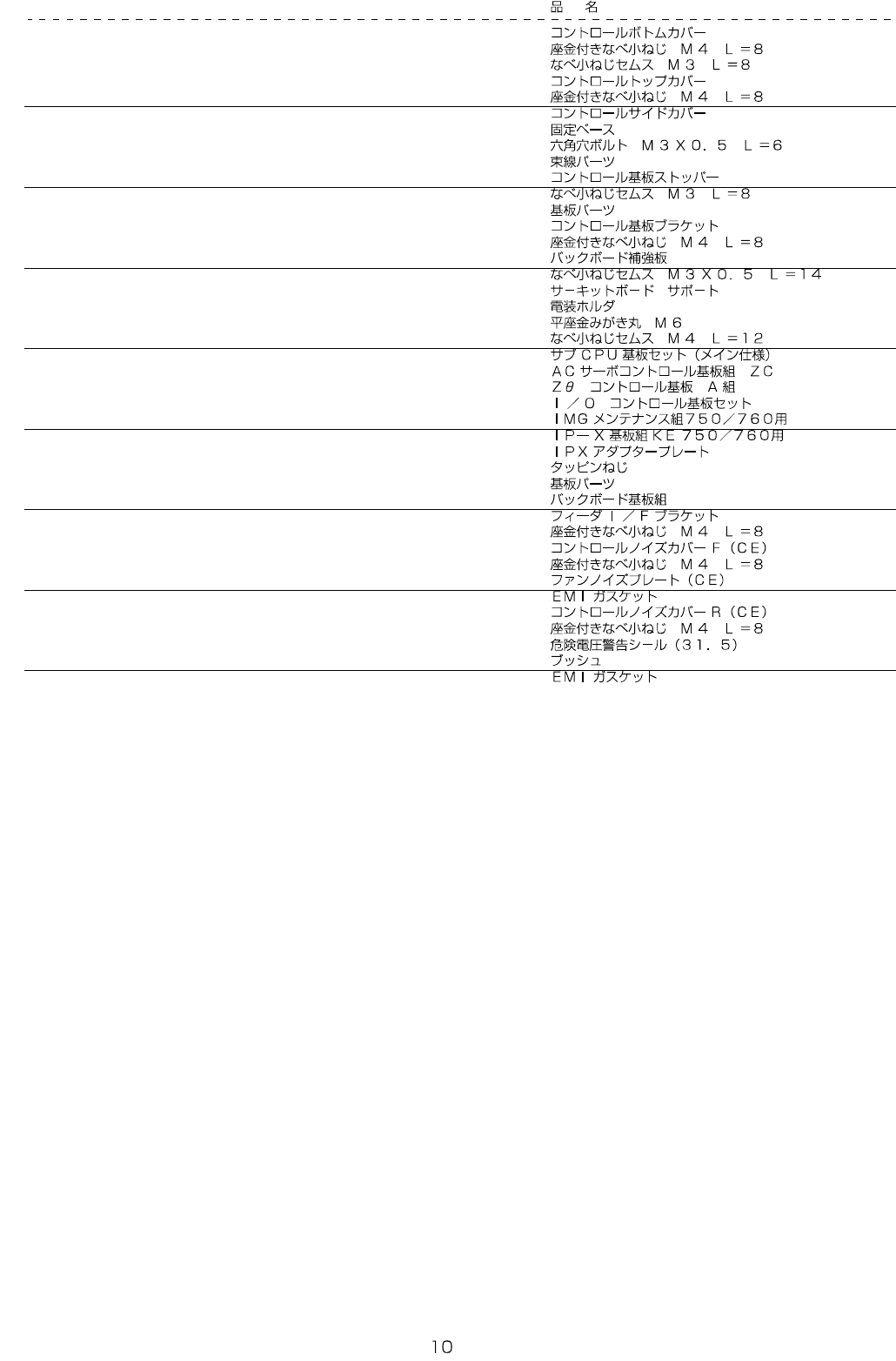

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1115-725-000 CONTOROL BOTTOM COVER 1
2 SL-4040891-SC SCREW M4 L=8 4
3 SL-4030891-SC SCREW M3X8 5
4 E1117-725-000 CONTOROL TOP COVER 1
5 SL-4040891-SC SCREW M4 L=8 4
6 E1116-725-000 CONTOROL SIDE COVER 1
7 HX-0029400-00 FIXED BASE 2
8 SM-6030602-TN HEX SCREW M3 X 6 2
9 HX-0036300-00 CABLE PART 2
10 E1119-725-000 CONTOROL PWB STOPPER 1
11 SL-4030891-SC SCREW M3X8 2
12 HX-0002600-0A BASE PARTS 19
13 E1608-721-000 CONTROL PWB BRACKET 2
14 SL-4040891-SC SCREW M4 L=8 4
15 E1118-725-000 BACK BOARD REINFORCING PLATE 2
16 SL-4031481-SC SCREW M3 X 14 12
17 HX-0011500-0A PCB SUPPORT 4
18 E1004-725-000 ELECTRIC APPARATUS HOLDER 4
19 WP-0641601-SC WASHER 7
20 SL-4041291-SC SCREW M4 L=12 12
21 E8601-721-0B0 SUB CPU PWB SET 1
22 E8602-721-AA0 AC SERVO CONTOROL PWB ASM. 1
23 E8601-725-AA0 CONTROL PWB ASM. 1
24 E8604-721-0B0 I/O CONTROL PWB SET 1
25 400-23546 IMG MAINTENANCE ASM FOR 750/760 1
26 400-28225 IP-X PCB ASM FOR KE750/760 (1)
27 400-23403 IPX ADOPTER PLATE (1)
28 ST-0051051-SN SCREW (2)
29 HX-0002600-0A BASE PARTS (1)
30 E8620-725-0A0 BACK BOARD PWB ASM. 1
31 E1120-725-000 FEEDER I/F BRACKET 1
32 SL-4040891-SC SCREW M4 L=8 2
33 E1121-725-000 CONTOROL NOISE COVER F (CE) 1
34 SL-4040891-SC SCREW M4 L=8 5
35 E1124-725-000 FAN NOISE PLATE (CE) 2
36 HX-0050100-00 EMI GASKET 1.5
37 E1122-725-000 CONTOROL NOISE COVER R (CE) 1
38 SL-4040891-SC SCREW M4 L=8 4
39 CM-3001000-01 LABEL 1
40 HX-0036700-0A BUSH 0.39
41 HX-0050300-00 EMI GASKET 1.8
- -

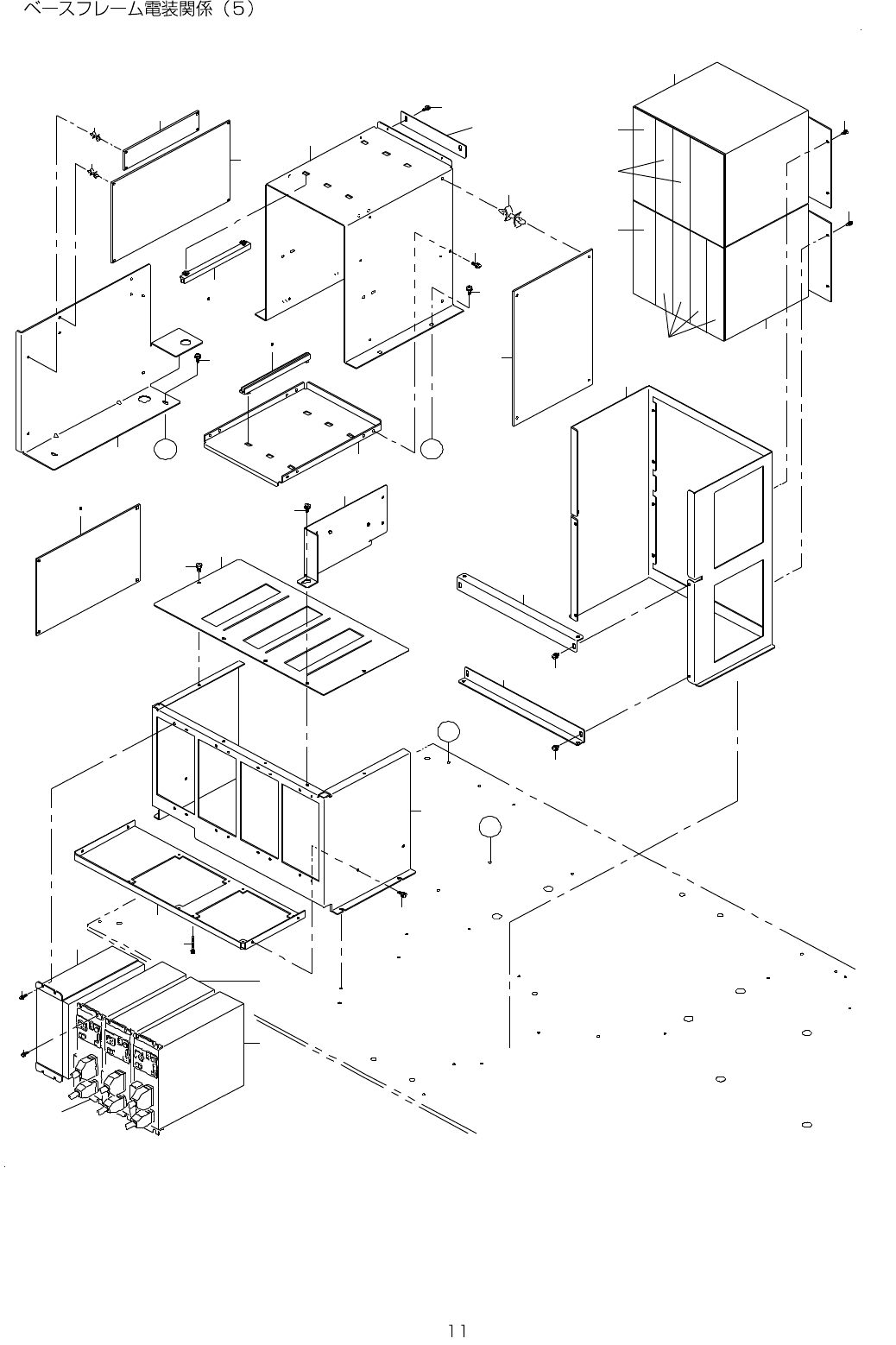

6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (5)
1
8
2 6
3
5
4
7
9
1 1
1 2
1 3
1 4
1 7
2 0
2 2
2 3
1 9 3 4
3 3
2 7
1 0
2 1
1 8
2 4
1 4
1 3
A
B
AB
3 0
2 8
2 8
2 9
1 2
3 1
3 2
1 5
1 6
2 7
1 9 3 4
2
6
2 5
3 5
3 5
3 7 3 8
3 6
3 6
- -

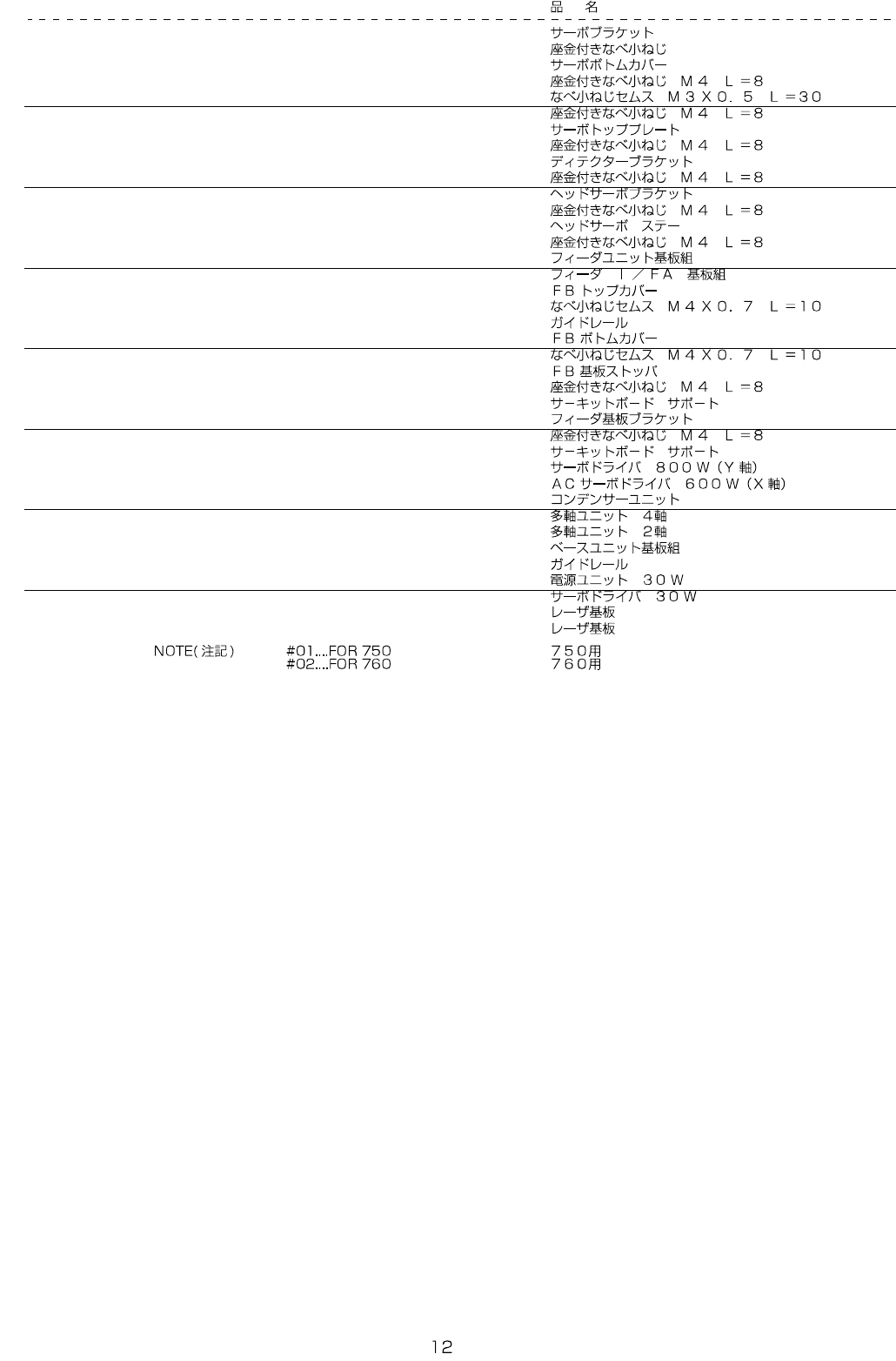

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1610-725-000 SERVO BRACKET 1
2 SL-4043591-SC SCREW 6
3 E1611-725-000 SERVO BOTTOM COVER 1
4 SL-4040891-SC SCREW M4 L=8 4
5 SL-4033091-SC SCREW M3 L=30 8
6 SL-4040891-SC SCREW M4 L=8 4
7 E1612-725-000 SERVO TOP PLATE 1
8 SL-4040891-SC SCREW M4 L=8 5
9 E1613-725-000-A DETECTOR BRACKET 3
10 SL-4040891-SC SCREW M4 L=8 12
11 E1614-725-000 HEAD SERVO BRACKET 1
12 SL-4040891-SC SCREW M4 L=8 8
13 E1615-725-000 HEAD SERVO STAY 2
14 SL-4040891-SC SCREW M4 L=8 4
15 E8614-725-0A0 FEEDER UNIT PWB ASM. 1
16 E8619-721-0A0 FEEDER I/FA PWB ASM. 2
17 E1620-721-000 FB TOP COVER 1
18 SL-4041091-SC SCREW M4 L=10 4
19
#01
HX-0043400-00 GUIDE RAIL 6
20 E1622-721-000 FB BOTTOM COVER 1
21 SL-4041091-SC SCREW M4 L=10 4
22 E1621-721-000 FB PWB STOPPER 1
23 SL-4040891-SC SCREW M4 L=8 2
24 HX-0011500-0A PCB SUPPORT 4
25 E1619-725-000 FEEDER PWB BRACKET 1
26 SL-4040891-SC SCREW M4 L=8 2
27 HX-0011500-0A PCB SUPPORT 8
28 KM-0000000-30 SERVO DRIVER 800W(Y AXIS) 2
29 E9612-721-000 AC SERVO DRIVER 600W(X AXIS) 1
30 E9619-721-000 CONDENSER UNIT 1
31 KM-0000000-70 MANY SHAFT UNIT 4 SHAFT 1
32
#01
KM-0000000-80 MANY SHAFT UNIT 2 SHAFT 1
33 E8606-725-0A0 BASE UNIT PWB ASM.
1
34
#02
HX-0043400-00 GUIDE RAIL 4
35 KM-0000000-50 POWER SUPPLY UNIT 30W 2
36 KM-0000000-60 SERVO DRIVER 30W 6
37
#01
E9632-721-000 PCB 1
38
#02
E9637-721-000 PCB 1
