- - REF.NO N OTE P ART N O D E S C R I P T I O N Qty 1 E3700-725 -0 B0 VCS (0 .4 BG A) ASM. 1 2 E3701-725 -0 A0 9 01 0 VCD CAMERA UNIT ASM (1) 3 SL-604149 2 -TN SCREW (2) 4 400-10386 CCD CAMERA (1) 5 E3723-700 -0 00 T …
- -
72.VCS (0.4BGA) COMPONENTS
5
4
3 4
1 5
8
7
6
9
1 6
1 8
1 9
2 0
2 2
2 2
2 5
2 4
1 7
1 3
1 1
1 2
2 3
2 6
2 7
2 5
1 0
1 4
2 9
2 8
3 0
3 1
3
2 1
3 3
3 2
1
2
- -

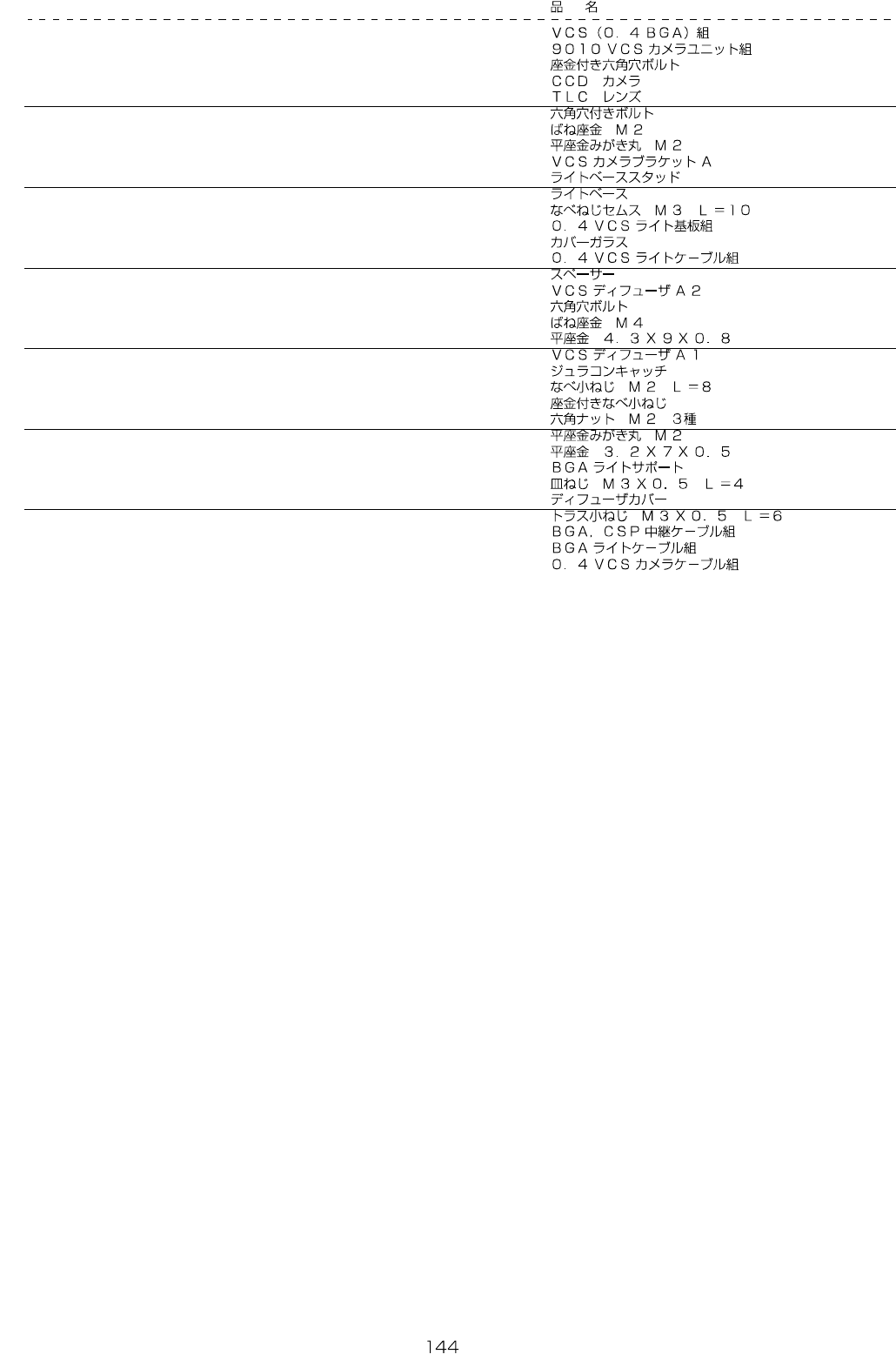

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3700-725-0B0 VCS (0.4BGA) ASM. 1
2 E3701-725-0A0 9010 VCD CAMERA UNIT ASM (1)
3 SL-6041492-TN SCREW (2)
4 400-10386 CCD CAMERA (1)
5 E3723-700-000 TLC LENS (1)
6 SM-6020752-TP SCREW (4)
7 WS-0210002-KN SPRING WASHER M2 (4)
8 WP-0220301-SC WASHER M2 (4)
9 E3701-725-000 VCS CAMERA BRACKET A (1)
10 E3702-725-000 LIGHT BASE STUD (6)
11 E3703-721-000 LIGHT BASE (1)
12 SL-4031081-SC SCREW M3 X 10 (6)
13 E8615-721-0A0 0.4 VCS LIGHT BASE ASM. (1)
14 E3704-721-000 COVER GLASS (1)
15 E9455-725-0A0 0.4 VCS LIGHT CABLE ASM. (1)
16 HX-0033400-0C SPACER (4)
17 E3707-721-000 VCS DIFFUSER A2 (1)
18 SM-6043002-TN BOLT (4)
19 WS-0410002-KN SPRING WASHER (4)
20 WP-0430801-SC WASHER 4.3X9X0.8 (4)
21 E3706-725-000 VCS DIFFUSER A1 (1)
22 E3705-721-000 CATCH (2)
23 SM-4020801-SC SCREW M2 X 8 (4)
24 SL-4021091-SC SCREW M2 L=10 (4)
25 NM-6020003-SC NUT (8)
26 WP-0220301-SC WASHER M2 (4)
27 WP-0320501-SC WASHER M3 (4)
28 E3708-725-000 BGA LIGHT SUPPORT (4)
29 SM-1030401-SE SCREW M3 L=4 (4)
30 E3709-725-000 DIFFUSER COVER (1)
31 SM-0030601-SC SCREW M3X0.5 L=6 (4)
32 E9593-725-0A0 BGA,CSP TRUNK CABLE ASM. (1)
33 E9583-725-0A0 BGA LIGHT CABLE ASM. (1)
34 E9456-725-0A0 0.4 VCS CAMERA CABLE ASM. (1)
- -
73.FEEDER FLOAT SENSOR COMPONENTS
2
7
9
2
2
6
4
2
5
8
1
3
3
3
3
