- - REF.NO N OTE P ART N O D E S C R I P T I O N Qty 1 E1610-725 -0 00 SERVO B RACKET 1 2 SL-404089 1 -SC SC REW M4 L=8 12 3 E1611-725 -0 00 SERVO B OTTOM COVER 1 4 SL-404089 1 -SC SC REW M4 L=8 4 5 SL-403309 1 -SC SC …
- -

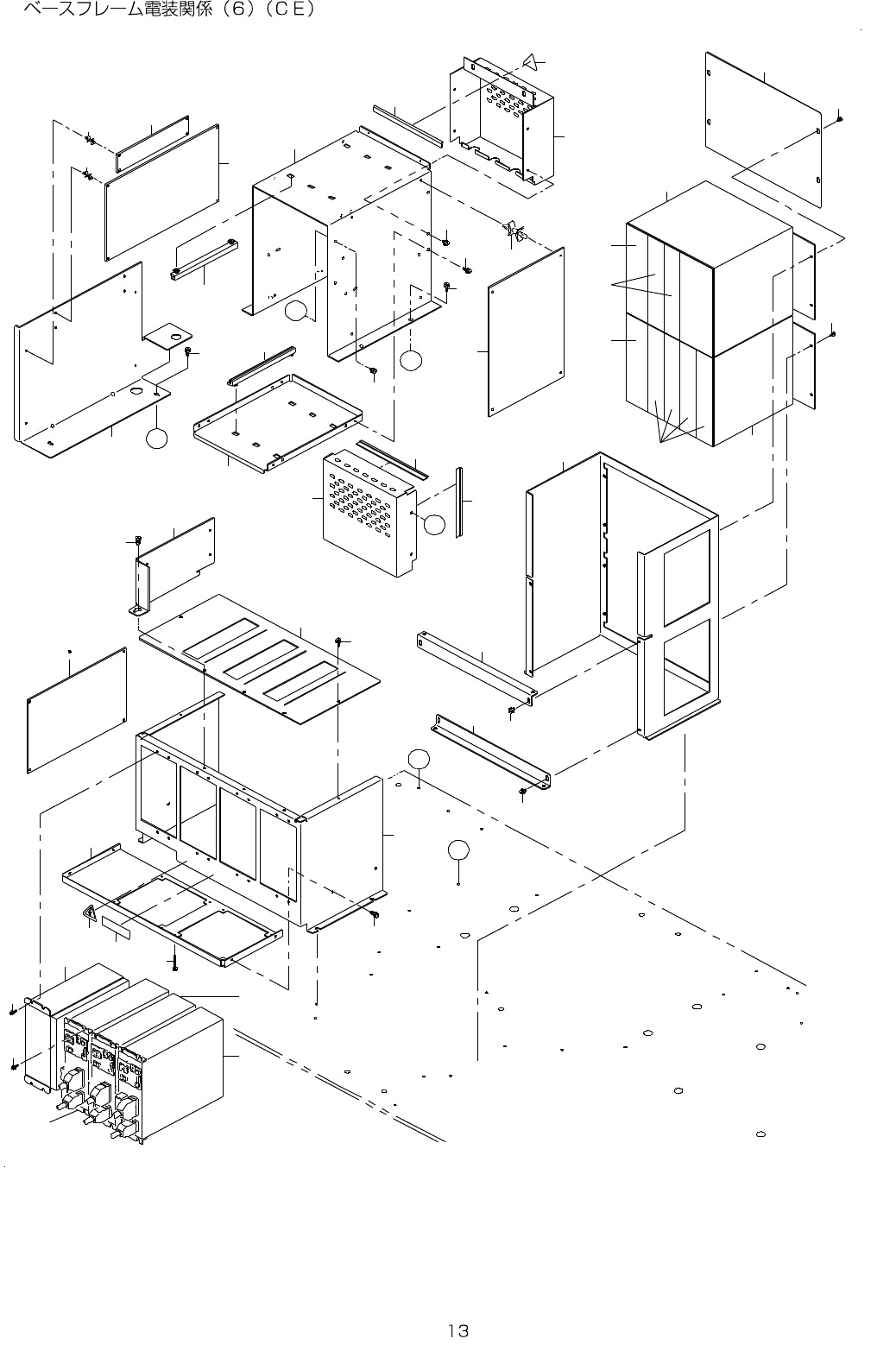

7. BASE FRAME ELECTRIC APPARATUS COMPONENTS (6)(CE)
1
8
2 6
3
5
4
7
9
1 1
1 2
1 3
1 4
1 7
2 0
1 9
3 3
2 7
1 0
2 1
1 8
2 4
1 4
1 3
A
B
A
B
3 0
2 8
2 8
2 9
3 1
3 2
1 5
1 6
2 7
1 9
2
6
2 2
3 4
3 6
3 5
2 3
C
2 5
C
3 7
3 7
3 8
3 6
3 6
1 2
3 9
4 0 4 1
4 2
4 3
4 2
4 3
- -

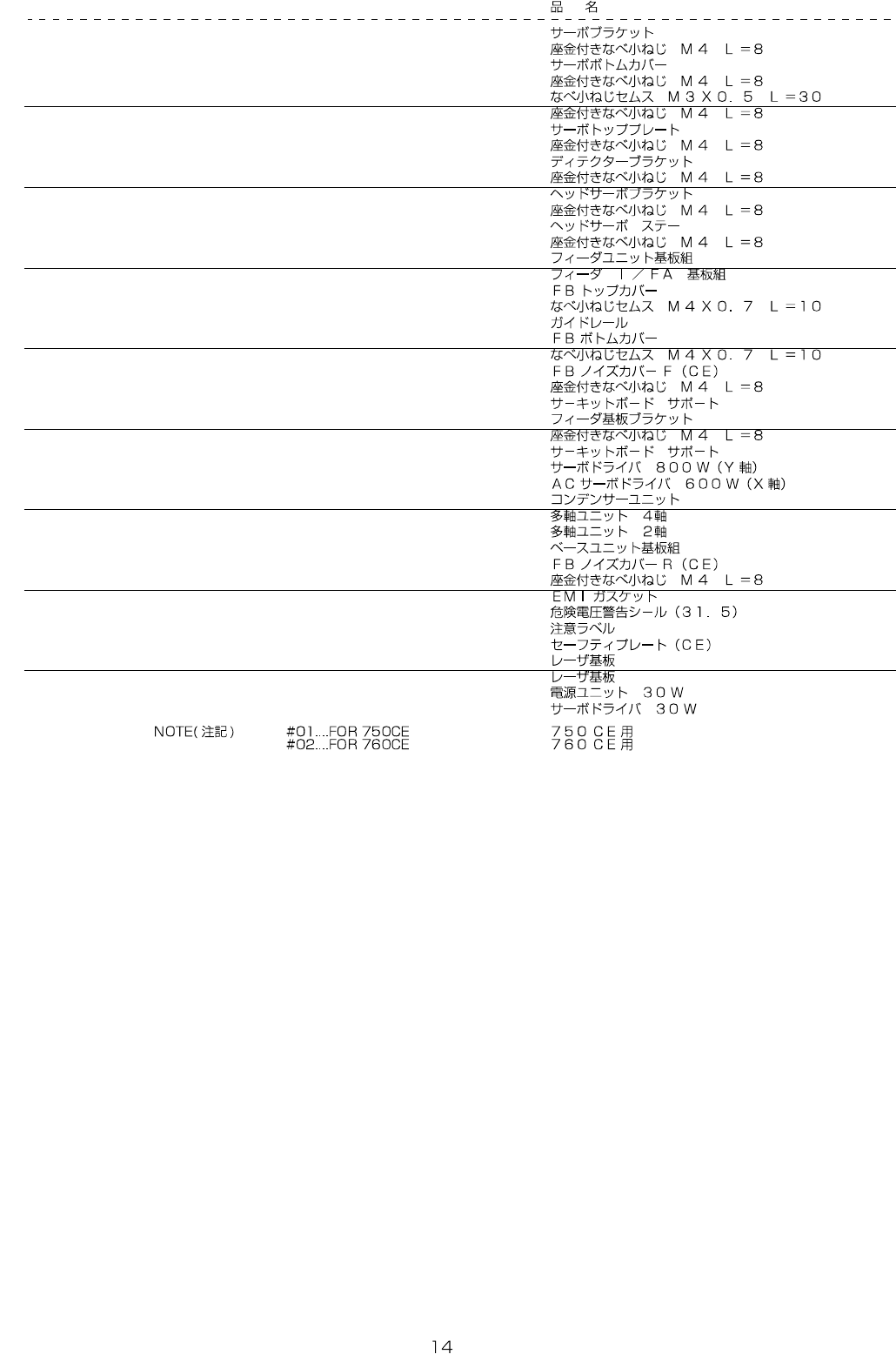

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1610-725-000 SERVO BRACKET 1
2 SL-4040891-SC SCREW M4 L=8 12
3 E1611-725-000 SERVO BOTTOM COVER 1
4 SL-4040891-SC SCREW M4 L=8 4
5 SL-4033091-SC SCREW M3 L=30 8
6 SL-4040891-SC SCREW M4 L=8 4
7 E1612-725-000 SERVO TOP PLATE 1
8 SL-4040891-SC SCREW M4 L=8 5
9 E1613-725-000 DETECTOR BRACKET 3
10 SL-4040891-SC SCREW M4 L=8 12
11 E1614-725-000 HEAD SERVO BRACKET 1
12 SL-4040891-SC SCREW M4 L=8 8
13 E1615-725-000 HEAD SERVO STAY 2
14 SL-4040891-SC SCREW M4 L=8 4
15 E8614-725-0A0 FEEDER UNIT PWB ASM. 1
16 E8619-721-0A0 FEEDER I/F PWB ASM. 2
17 E1620-721-000 FB TOP COVER 1
18 SL-4041091-SC SCREW M4 L=10 4
19 HX-0043400-00 GUIDE RAIL 6
20 E1622-721-000 FB BOTTOM COVER 1
21 SL-4041091-SC SCREW M4 L=10 4
22 E1128-725-000 FB NOISE COVER F (CE) 1
23 SL-4040891-SC SCREW M4 L=8 6
24 HX-0011500-0A PCB SUPPORT 4
25 E1619-725-000 FEEDER PWB BRACKET 1
26 SL-4040891-SC SCREW M4 L=8 2
27 HX-0011500-0A PCB SUPPORT 8
28 KM-0000000-30 SERVO DRIVER 800W(Y AXIS) 2
29 E9612-721-000 AC SERVO DRIVER 600W(X AXIS) 1
30 E9619-721-000 CONDENSER UNIT 1
31 KM-0000000-70 MANY SHAFT UNIT 4 SHAFT 1
32
#01
KM-0000000-80 MANY SHAFT UNIT 2 SHAFT 1
33 E8606-725-0A0 BASE UNIT PWB ASM. 1
34 E1129-725-000 FB NOISE COVER R (CE) 1
35 SL-4040891-SC SCREW M4 L=8 4
36 HX-0050300-00 EMI GASKET 1.2
37 CM-3001000-01 LABEL 4
38 CM-5000000-02 CAUTION LABEL 3
39
#02
E1111-725-000 SAFETY PLATE (CE) 1
40
#01
E9632-721-000 PCB 1
41
#02
E9637-721-000 PCB 1
42 KM-0000000-50 POWER SUPPLY UNIT 30W 2
43 KM-0000000-60 SERVO DRIVER 30W 6
- -

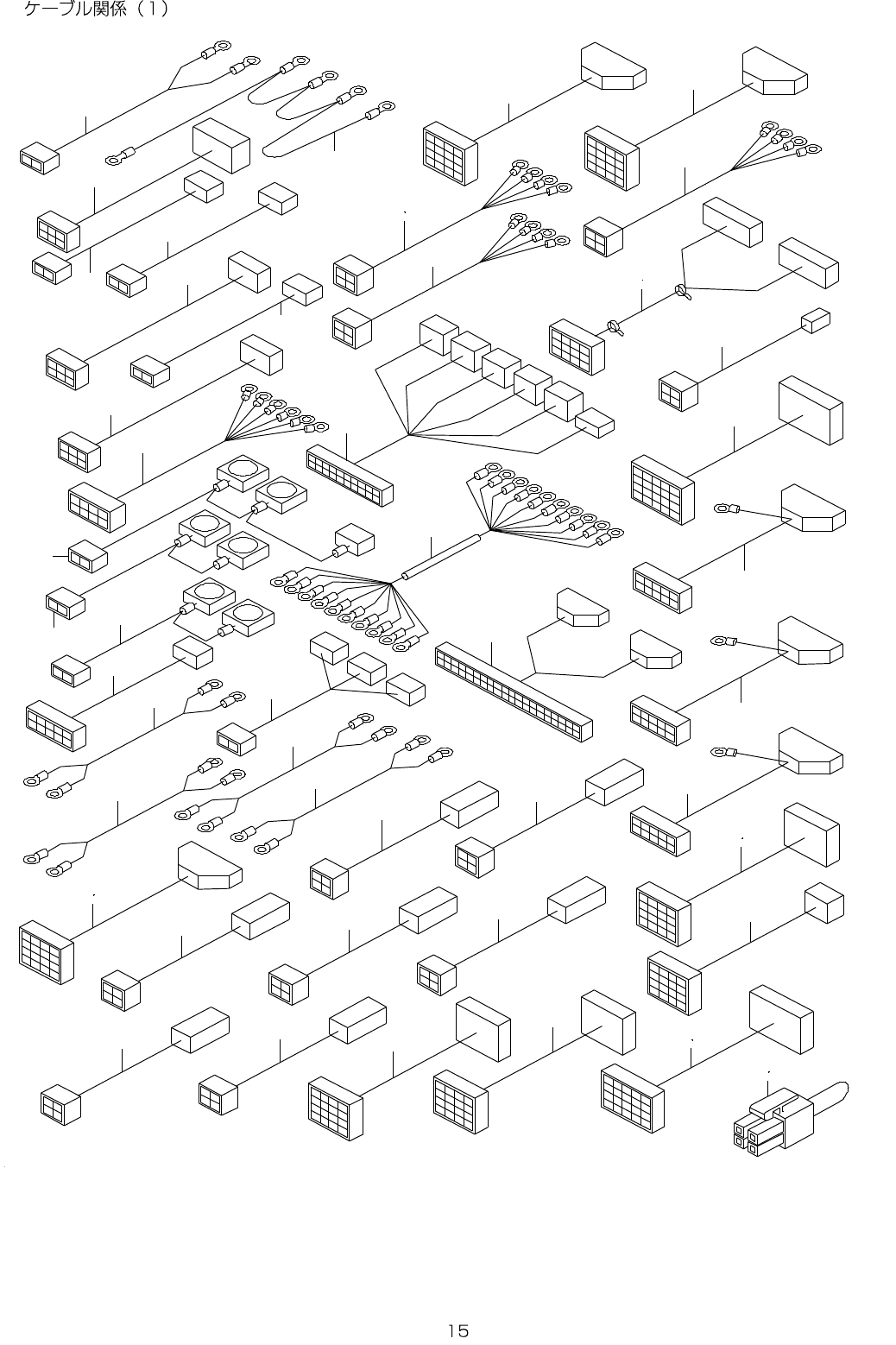

8. CABLE COMPONENTS (1)
1
2
3
4
5
6
7
8
1 0
1 1
1 3
1 4
1 2
1 6
1 7
4 1
1 8
2 0 4 6
2 2
9
2 4
2 6 5 2
2 7
3 4
3 0
4 3
3 5
4 4
2 8
4 5 4 9
3 3 4 8
2 9
2 3 4 7
2 5
3 1
2 1
1 5
1 9
3 6
3 7
3 8
4 0
3 9
4 2
5 0 5 1
3 2
