- - RE F . N O NOTE PART NO D E S C R I P T I O N Qty 1 #01 E290 0 - 72 5- 0A 0 AI R A S M.(ST A ) 1 2 #02 E290 0 - 72 5- F A0 AI R A S M.(ST B ) 1 3 S L-60820 92- TN BO L T (2) 4 E 940 3- 725-0A0 PRESSURE S E N S O R …
- -

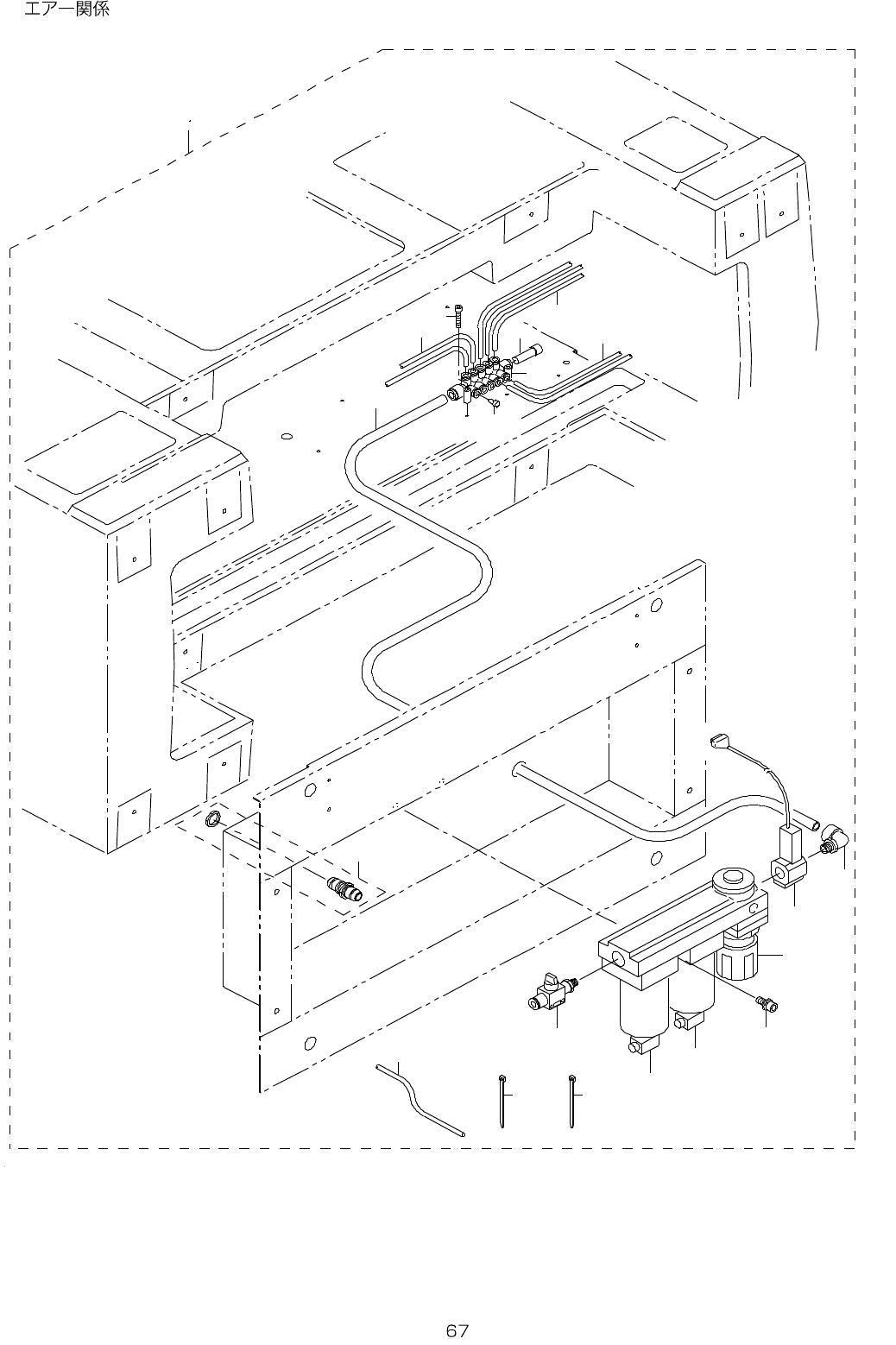

34.AIR COMPONENTS
8
9
1 2
1 2
1 2
1 3
1 0
3
1 4 1 5
1 7
5
4
6
7
1 1
1 2
1 6
1 8
1 9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2900-725-0A0 AIR ASM.(STA) 1
2
#02
E2900-725-FA0 AIR ASM.(STB) 1
3 SL-6082092-TN BOLT (2)
4 E9403-725-0A0 PRESSURE SENSOR CABLE ASM. (1)
5 PJ-3041053-01 ELBOW UNION (1)
6 PV-0153020-00 FINGER VALVE (1)
7 PJ-3091000-02 MANIFOLD (1)
8 SM-6042502-TN SCREW M4X0.7 L=25 (2)
9 PX-9500040-00 PLUG (1)
10 E2619-760-000 CAP (4)
11 BT-1000651-EB POLYURETHANE TUBE (1)
12 BT-0600400-EC TUBE HOSE, BLUE (30)
13 BT-0400251-EA TUBE HOSE, BLUE (10)
14 EA-9500B02-00 CABLE BAND 150 (98)
15 EA-9500B01-00 CABLE BAND (84)
16
#01
PJ-2300062-00 UNION (1)
17 PF-0553020-A0 AIR COMBINATION (1)
18 PF-9010060-00 FILTER ELEMENT (1)
19 PF-9010020-00 FILTER ELEMENT A (1)
- -
35.LAHD HEAD COMPONENTS (1)
3 4
3 5
3 6
4 1
6 6
3 8
4 2
5 4
5 4
4 4
4 5
4 6
4 8
4 7
4 9
5 0
5 1
5 2
5 3
5 3
5 5
3 7
4 3
A
5 1
5 2
4 2
5
3 2
6
1 0
8
9
1 3
1 9
1 8
2 0
2 1
2 2
2 3
2 8
2 6
2 4
2 7
2 5
7
1 5
4
1 6
3 9
4 0
7 5
6 0
5 7
5 8
5 9
6 1
6 2
6 3
6 4
7 1
6 9
6 8
1 2
A
3 1
1 4
7 9
8 0
7 8
7 2
7 3
7 4
3 3
8 3
8 4
8 5
8 7
7 0
1 7
6 5
3 0
8 1
7 7
7 6
3
8 2
5 6
1 2
3 1
2 9
8 8
1 1
6 7
8 9
8 6
