- - 43.ATC CO M PONE N TS ( 2) (FO R KE-760,7620) 1 2 3 9 3 4 0 4 1 8 6 7 1 8 1 0 1 1 2 9 1 7 1 6 2 7 2 8 2 8 2 5 2 6 2 1 2 2 1 2 4 2 3 1 2 3 2 4 1 9 2 0 9 1 3 1 4 3 3 3 4 3 6 3 5 3 2 A A 4 5 5 4 3 7 3 0 1 5 3 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3400-725-AA0 ATC ASM.(750) 1
2
#02
E3400-725-CA0 ATC ASM. 1
3 SL-6082592-TN BOLT (4)
4 HX-0029400-00 FIXED BASE (2)
5 SM-6030602-TN HEX SCREW M3 X 6 (2)
6
#01
E3403-721-000 ATC STUD (2)
7
#02
E3421-725-000 ATC STUD (7520) (2)
8 SL-6061292-TN SCREW (4)
9 E3401-721-0A0 ATC UNIT ASM. (730) (1)
10 E3405-721-000 ATC BASE (730) (1)
11 E3406-721-000 ATC PIN A (19)
12 SL-4020691-SC SCREW M2 L=6 (19)
13 PA-0601011-A0 AIR CYLINDER (1)
14 SL-6030892-TN SCREW (2)
15 PC-0105080-00 SPEED CONTROLLER (2)
16 E3407-721-000 SLIDE PLATE (730) (1)
17 E3410-721-000 ATC LABEL A (1)
18 E3411-721-000 ATC LABEL B (1)
19 E3403-715-000 GUIDE SPACER (2)
20 E3404-700-000 THRUST WASHER (4)
21 SL-6041042-TN BOLT (2)
22 WP-0451016-SP WASHER 4.5X20X1 (2)
23 E3408-721-000 ATC ANGLE (1)
24 SL-6040642-TN BOLT (2)
25 B2423-280-00C MOVING KNIFE WASHER C (1)
26 E3412-721-000 SLIDER (2)
27 E3409-721-000 ATC JOINT (1)
28 400-58586 C.S.SCREW (2)
29 SL-6051492-TN BOLT (4)
30 E3413-725-000 CHIP BOX STAY (1)
31 SL-6041292-TN SCREW (2)
32 SM-6030602-TN HEX SCREW M3 X 6 (2)
33 WP-0320500-SC WASHER M3 (4)
34 WP-0330516-SC WASHER 3.3X8X0.5 (4)
35 E9353-725-0A0 ATC CLOSE SENSOR ASM. (1)
36 E9354-725-0A0 TAC OPEN SENSOR ASM. (1)
37 E3402-725-000 BASE BRIDGE (750) (1)
38
#01
E3404-721-000 ATC SUPPORT ANGLE (1)
39
#02
E3423-725-000 ATC SUPPORT ANGLE (7520) (1)
40 E4868-760-000 BU SPACER (4)
- -

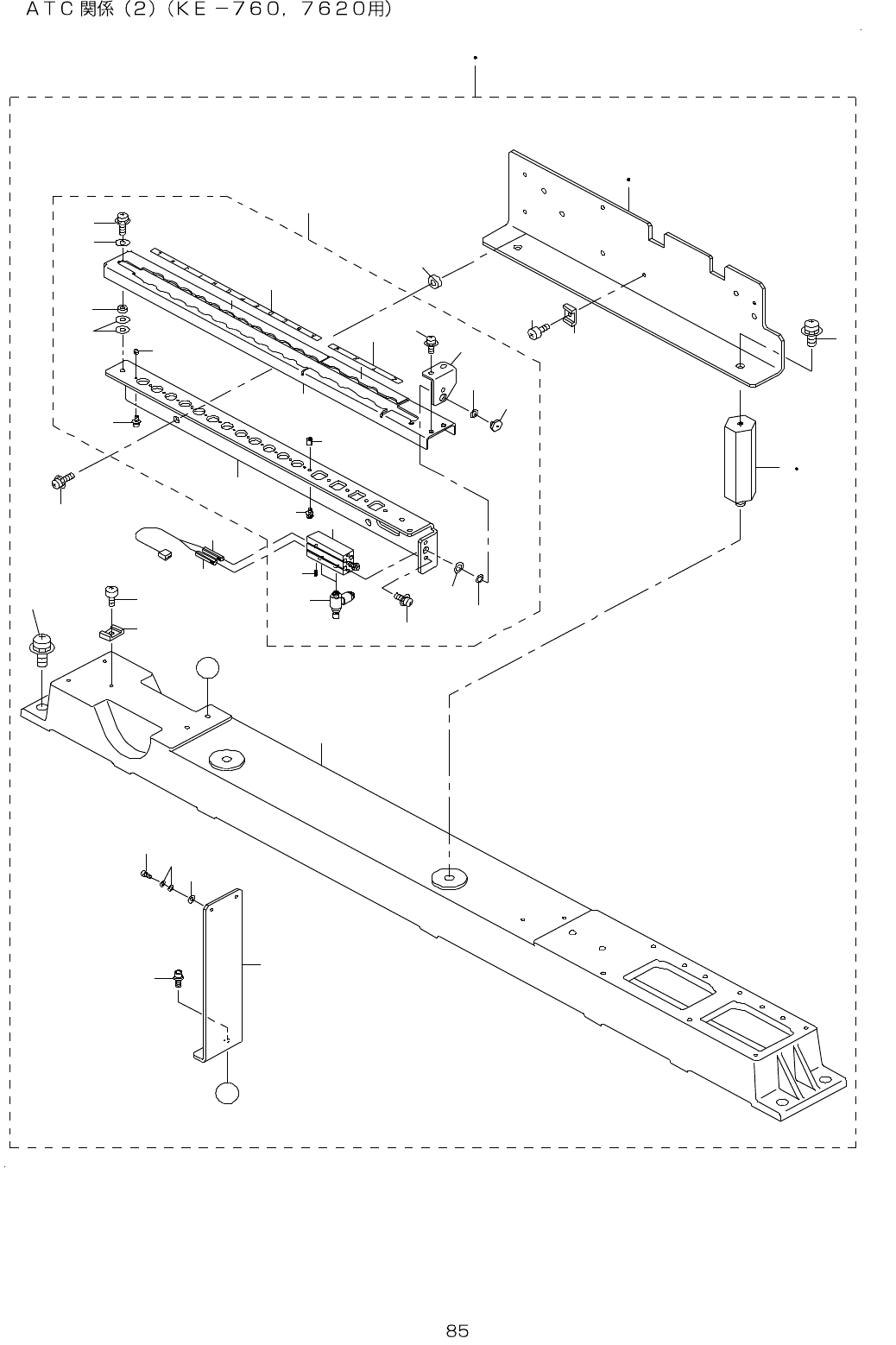

43.ATC COMPONENTS (2) (FOR KE-760,7620)
1 2
3 9
3
4 0 4 1
8
6 7
1 8
1 0
1 1
2 9
1 7
1 6
2 7
2 8
2 8
2 5
2 6
2 1
2 2
1 2
4 2
3 1
2 3
2 4
1 9
2 0
9
1 3
1 4
3 3
3 4
3 6
3 5
3 2
A
A
4
5
5
4
3 7
3 0
1 5
3 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3400-725-BA0 ATC ASM.(760) 1
2
#02
E3400-725-DA0 ATC ASM.(7620) 1
3 SL-6082592-TN BOLT (4)
4 HX-0029400-00 FIXED BASE (2)
5 SM-6030602-TN HEX SCREW M3 X 6 (2)
6
#01
E3403-721-000 ATC STUD (2)
7
#02
E3422-725-000 ATC STUD (2)
8 SL-6061292-TN SCREW (4)
9 E3451-721-0A0 ATC UNIT ASM. (740) (1)
10 E3453-721-000 ATC BASE (740) (1)
11 E3406-721-000 ATC PIN A (13)
12 SL-4020691-SC SCREW M2 L=6 (13)
13 E3454-721-000 ATC PIN B (5)
14 SL-4030891-SC SCREW M3X8 (5)
15 PA-0601011-A0 AIR CYLINDER (1)
16 SL-6030892-TN SCREW (2)
17 PC-0105080-00 SPEED CONTROLLER (2)
18 E3455-721-000 SLIDE PLATE (740) (1)
19 E3410-721-000 ATC LABEL A (1)
20 E3456-721-000 ATC LABEL C (1)
21 E3403-715-000 GUIDE SPACER (2)
22 E3404-700-000 THRUST WASHER (4)
23 SL-6041042-TN BOLT (2)
24 WP-0451016-SP WASHER 4.5X20X1 (2)
25 E3408-721-000 ATC ANGLE (1)
26 SL-6040642-TN BOLT (2)
27 B2423-280-00C MOVING KNIFE WASHER C (1)
28 E3412-721-000 SLIDER (2)
29 E3409-721-000 ATC JOINT (1)
30 400-58586 C.S.SCREW (2)
31 SL-6051492-TN BOLT (4)
32 E3413-725-000 CHIP BOX STAY (1)
33 SL-6041292-TN SCREW (2)
34 SM-6030602-TN HEX SCREW M3 X 6 (2)
35 WP-0320500-SC WASHER M3 (4)
36 WP-0330516-SC WASHER 3.3X8X0.5 (4)
37 E9353-725-0A0 ATC CLOSE SENSOR ASM. (1)
38 E9354-725-0A0 ATC OPEN SENSOR ASM. (1)
39 E3452-725-000 BASE BRIDGE (760) (1)
40
#01
E3454-725-000 ATC SUPPORT ANGLE (760) (1)
41
#02
E3424-725-000 ATC SUPPORT ANGLE (7620) (1)
42 E4868-760-000 BU SPACER (4)
