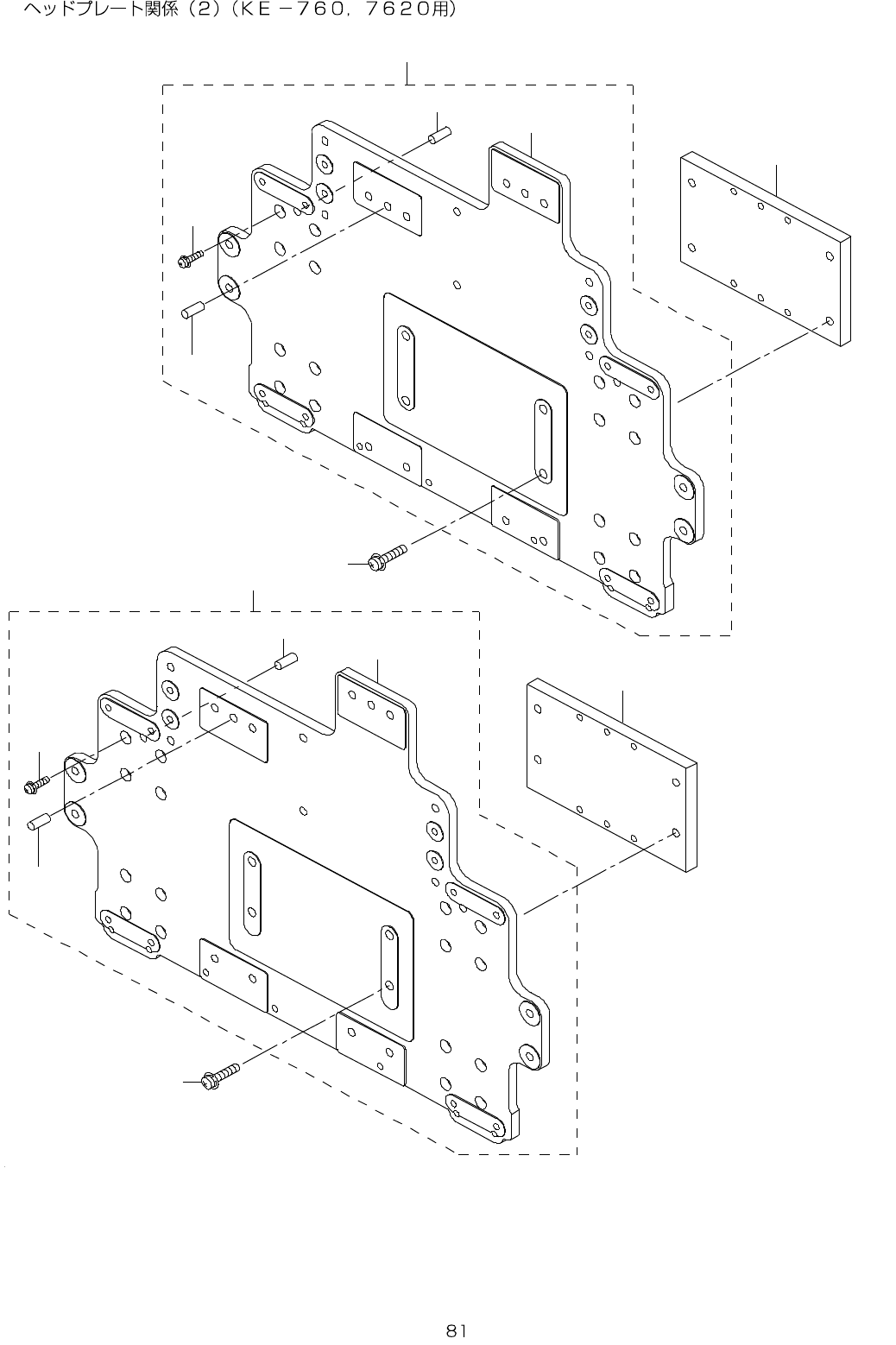

41.HEAD PLATE COMPONENS (2)(FOR KE-760,7620)
2
1
5
3
4
3
9
1 0
9
1 1
7
8
6
1 2
- -

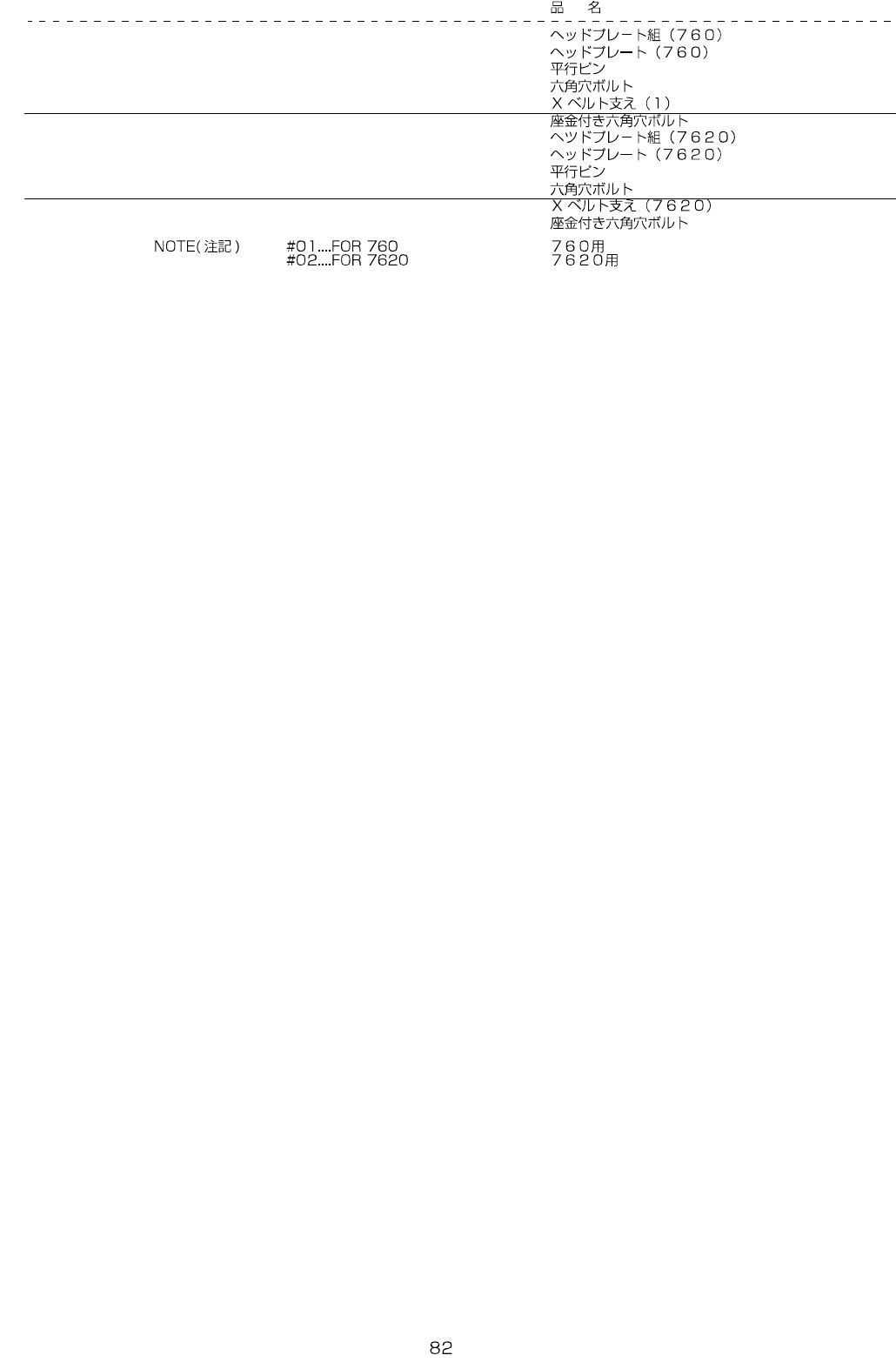

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3304-725-0A0 HAED PLATE ASM.(760) 1
2 E3306-725-000 HAED PLATE (760) (1)
3 PH-0500122-C0 PIN (4)
4 SM-6041002-TN BOLT (16)
5 E2426-725-000 X BELT SUPPORT (1) 1
6 SL-6051442-TN BOLT 4
7
#02
E3324-725-0A0 HAED PLATE ASM.(7620) 1
8 E3326-725-000 HAED PLATE (7620) (1)
9 PH-0500122-C0 PIN (4)
10 SM-6041002-TN BOLT (16)
11 E2452-725-000 X BELT SUPPORT (7620) 1
12 SL-6051442-TN BOLT 4
- -

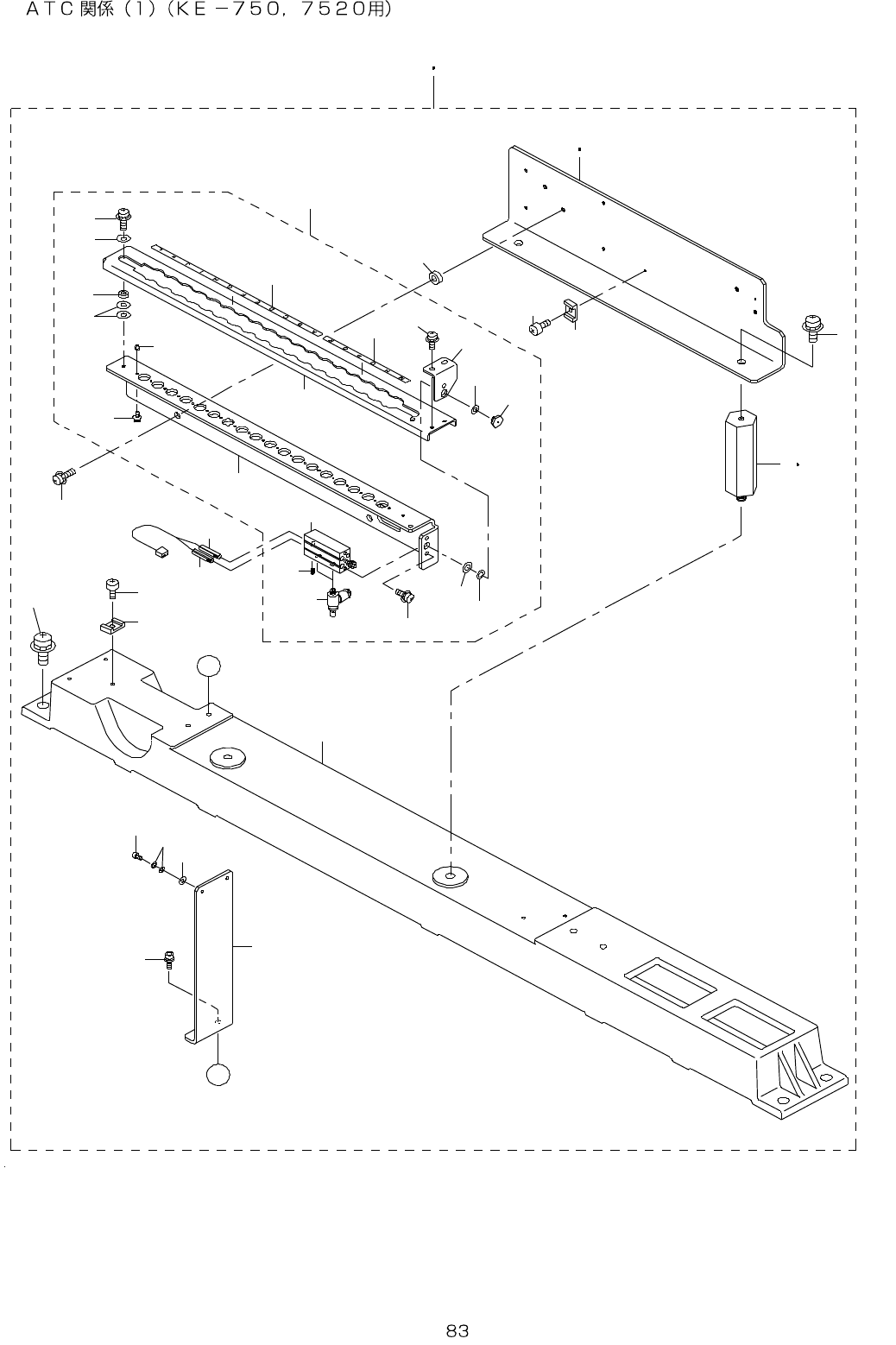

42.ATC COMPONENTS (1) (FOR KE-750,7520)
1 2
3 7
3
3 8 3 9
8
6 7
1 6
1 0
1 1
2 7
1 4
2 5
2 6
2 6
2 3
2 4
1 9
2 0
1 2
4 0
2 9
2 1
2 2
1 7
1 8
9
3 0
5
4
3 1
3 2
3 4
3 3
A
A
4
5
1 3
1 5
2 8
3 5
3 6
