- - 10.CAB LE COM P O N EN T S (3) 3 9 5 6 5 3 3 0 3 1 6 7 3 8 5 5 5 2 4 5 4 3 4 4 4 2 1 4 5 8 1 9 3 4 4 8 3 6 2 0 2 6 3 2 3 3 3 5 4 7 4 0 4 1 5 1 2 9 3 7 5 4 4 6 5 0 4 9 2 7 2 8
- -

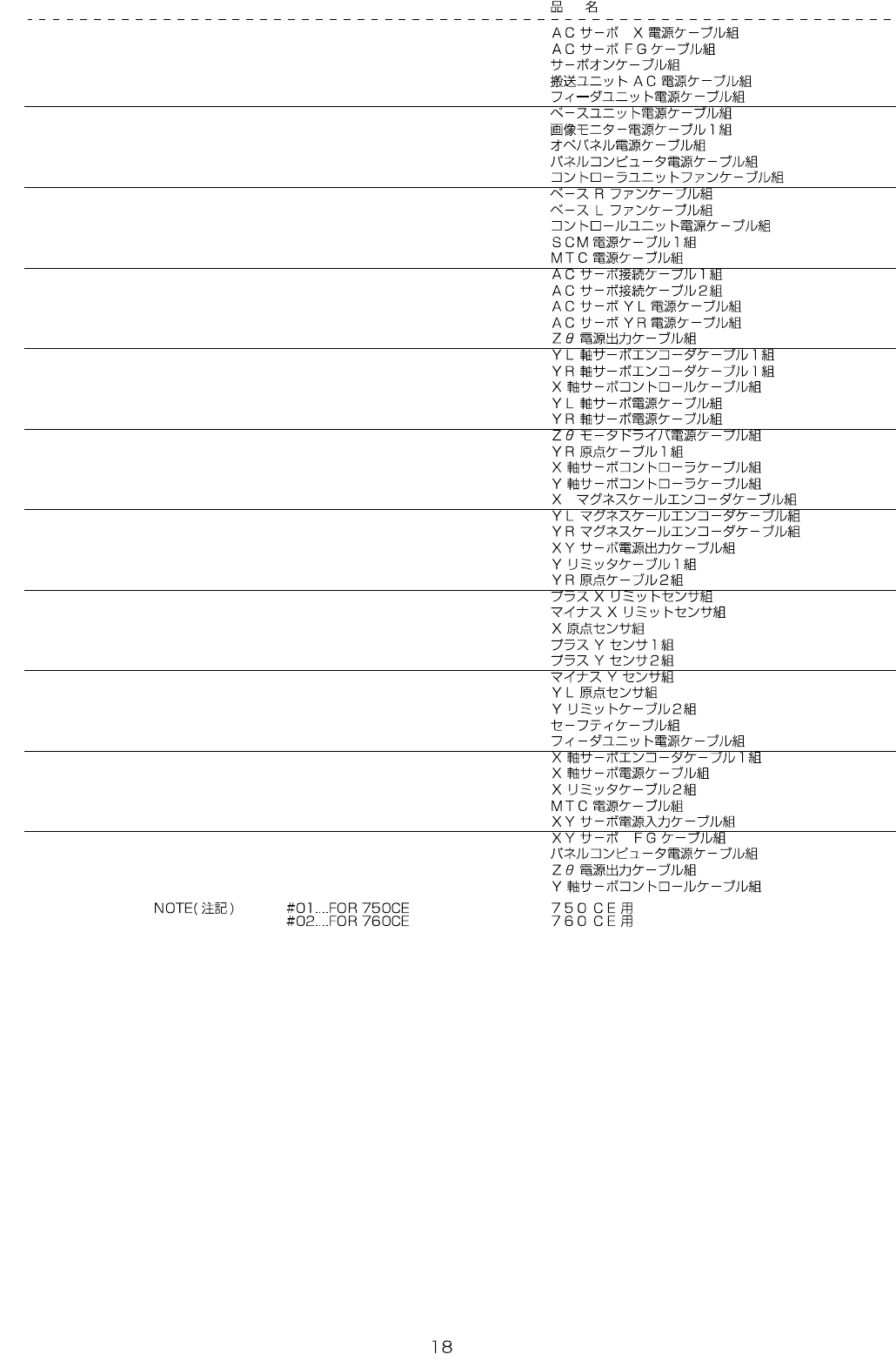

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9201-721-0A0 AC SERVO X POWER CABLE ASM. 1
2 E9202-725-0A0 AC SERVO FG CABLE ASM. 1
3 E9203-721-0A0 SERVO ON CABLE ASM. 1
4 E9204-725-0A0 CONV. UNIT AC POWER CABLE ASM. 1
5 E9205-725-0A0 FEEDER UNIT POWER CABLE ASM. 1
6 E9206-725-0A0 BASE UNIT POWER CABLE ASM. 1
7 E9207-725-0A0 VI MONITOR POWER CABLE 1 ASM. 1
8 E9208-725-0A0 OPERA. PANEL POWER CABLE ASM. 1
9 E9209-725-0A0 POWER CABLE ASM. 1
10 E9210-725-0A0 CONTROLLER UNIT FAN CABLE ASM. 1
11 E9211-725-0A0 BASE R FAN CABLE ASM. 1
12 E9212-725-0A0 BASE L FAN CABLE ASM. 1
13 E9213-725-0A0 CONTROL UNIT POWER CABLE ASM. 1
14 E9220-725-0A0 SCM POWER CABLE 1 ASM. 1
15 E9222-725-0A0 MTC POWER CABLE ASM. 1
16 E9224-721-0A0 AC SERVO CONNECT. CABLE 1 ASM. 1
17 E9225-721-0A0 AC SERVO CONNECT. CABLE 2 ASM. 1
18 E9226-721-0A0 AC SERVO YL POWER CABLE ASM. 1
19 E9227-721-0A0 AC SERVO YR POWER CABLE ASM. 1
20
#02
E9507-725-0A0 Z THETA POWER OUTPUT CABLE ASM 1
21 E9230-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
22 E9231-725-0A0 SERVO ENCO. CABLE 1 ASM. 1
23
#02
E9251-725-AA0 X AXIS SERVO CONTROL CABLE ASM 1
24 E9233-725-0A0 SERVO POWER CABLE ASM. 1
25 E9234-725-0A0 SERVO POWER CABLE ASM. 1
26 E9239-725-0A0 MOTOR DRIVER POWER CABLE ASM. 1
27 E9242-721-0A0 YR HOME POSITION CABLE 1 ASM. 1
28 E9251-725-0A0 SERVO CONTROLLER CABLE ASM. 1
29 E9252-725-0A0 SERVO CONTROLLER CABLE ASM. 1
30 E9291-725-0A0 ENCO. CABLE ASM. 1
31 E9292-725-0A0 ENCO. CABLE ASM. 1
32 E9293-725-0A0 ENCO. CABLE ASM. 1
33
#01
E9510-725-0A0 POWER CABLE ASM. 1
34 E9257-725-0A0 Y LIMITER CABLE 1 ASM. 1
35 E9258-725-0A0 YR PIVOT CABLE 2 ASM. 1
36 E9488-725-0A0 PLUS X LIMIT SENSOR ASM. 1
37 E9489-725-0A0 MINUS X LIMIT SENSOR ASM. 1
38 E9490-725-0A0 X PIVOT SENSOR ASM. 1
39 E9491-725-0A0 +Y SENSOR 1 ASM. 1
40 E9492-725-0A0 +Y SENSOR 2 ASM. 1
41 E9493-725-0A0 MINUS Y SENSOR ASM. 1
42 E9494-725-0A0 YL PIVOT SENSOR ASM. 1
43 E9496-725-0A0 Y LIMIT CABLE 2 ASM. 1
44 E9259-725-0A0 SAFETY CABLE ASM. 1
45 E9205-725-AA0 POWER CABLE ASM. 1
46 E9229-725-AA0 SERVO ENCO. CABLE 1 ASM. 1
47 E9232-725-AA0 X AXIS SERVO POWER CABLE ASM. 1
48 E9256-725-AA0 X LIMITER CABLE 2 ASM. 1
49 E9222-725-AA0 MTC POWER CABLE ASM. 1
50
#01
E9509-725-0A0 XY SERVO POWER CABLE ASM. 1
51
#01
E9202-725-AA0 XY SERVO FG CABLE ASM. 1
52 E9209-725-AA0 POWER CABLE ASM. 1
53
#01
E9506-725-0A0 POWER CABLE ASM. 1
54 E9252-725-AA0 SERVO CONTOROL CABLE ASM. 1
- -

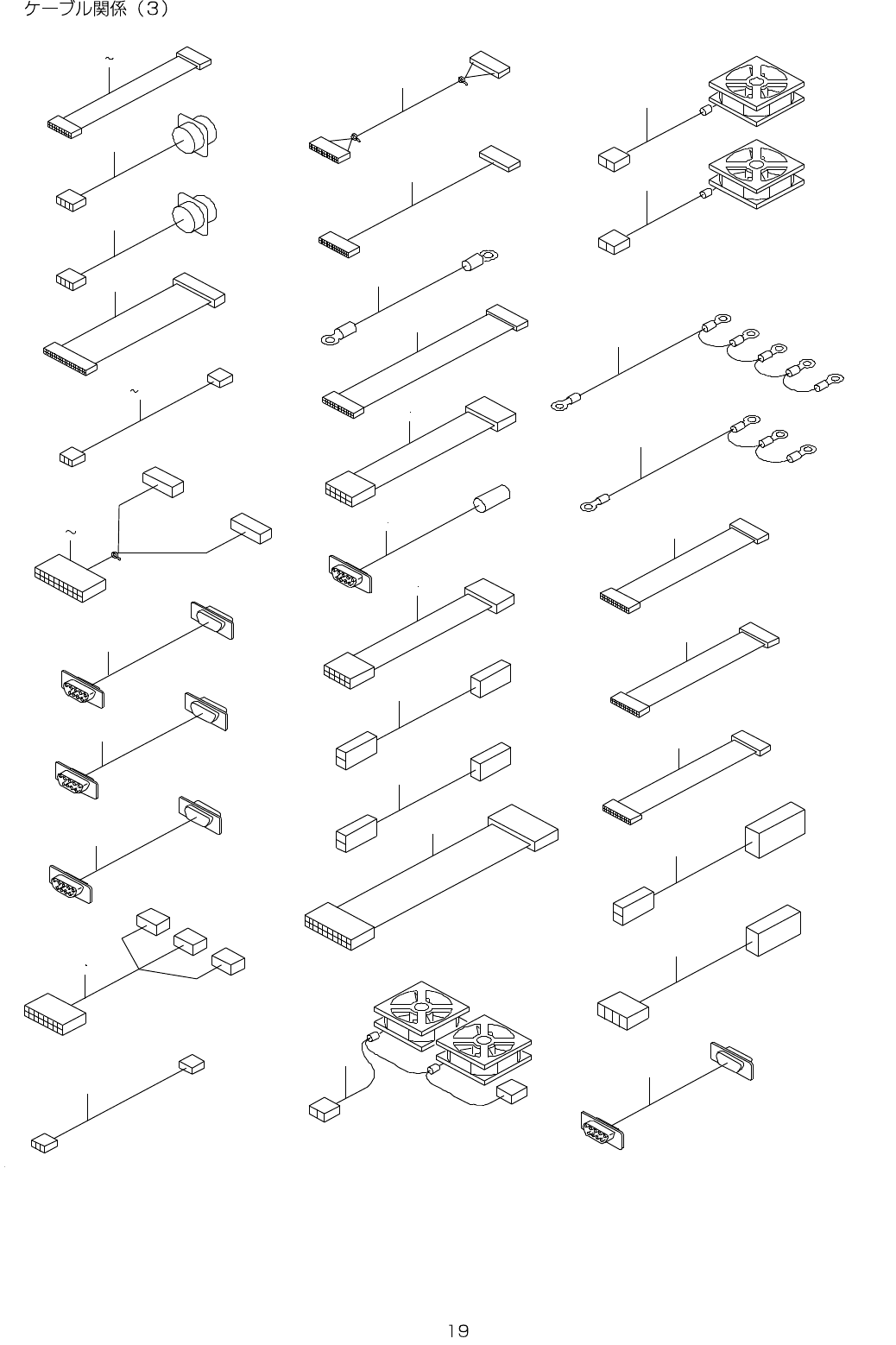

10.CABLE COMPONENTS (3)
3 9 5 6
5 3
3 0 3 1
6
7
3 8 5 5
5 2
4 5
4 3
4 4
4 2
1 4
5
8 1 9
3 4
4 8
3 6
2 0 2 6
3 2
3 3
3 5
4 7
4 0
4 1
5 1
2 9
3 7 5 4
4 6
5 0
4 9
2 7
2 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9261-725-0A0 SERIAL PARALLEL CABLE 2 ASM. 1
2 E9262-725-0A0 SERIAL PARALLEL CABLE 3 ASM. 1
3 E9263-725-0A0 SERIAL PARALLEL CABLE 4 ASM. 1
4 E9264-725-0A0 SERIAL PARALLEL CABLE 5 ASM. 1
5 E9265-725-0A0 SMEMA CABLE R ASM. 1
6 E9266-725-0A0 SMEMA CABLE L ASM. 1
7 E9267-725-0A0 MTC I/F CABLE ASM. 1
8
#02
E9269-725-0A0 LZ MOTOR CABLE ASM. 1
9
#01
E9270-725-0A0 CZ MOTOR CABLE ASM. 1
10
#02
E9271-725-0A0 RZ MOTOR CABLE ASM. 1
11
#02
E9272-725-0A0 MOTOR CABLE ASM. 1
12
#01
E9273-725-0A0 MOTOR CABLE ASM. 1
13
#02
E9274-725-0A0 MOTOR CABLE ASM. 1
14
#04
E9269-725-AA0 LZ MOTOR CABLE ASM. 1
15
#03
E9270-725-AA0 CZ MOTOR CABLE ASM. 1
16
#04
E9271-725-AA0 RZ MOTOR CABLE ASM. 1
17
#04
E9272-725-AA0 MOTOR CABLE ASM. 1
18
#03
E9273-725-AA0 MOTOR CABLE ASM. 1
19
#04
E9274-725-AA0 MOTOR CABLE ASM. 1
20
#02
E9275-725-0A0 MOTOR ENCODER CABLE ASM. 1
21
#01
E9276-725-0A0 MOTOR ENCODER CABLE ASM. 1
22
#02
E9277-725-0A0 MOTOR ENCODER CABLE ASM. 1
23
#04
E9275-725-AA0 MOTOR ENCODER CABLE ASM. 1
24
#03
E9276-725-AA0 MOTOR ENCODER CABLE ASM. 1
25
#04
E9277-725-AA0 MOTOR ENCODER CABLE ASM. 1
26
#06
E9330-725-0A0 MOTOR ENCODER CABLE ASM. 1
27 E9281-725-0A0 LA I/F CABLE 1 ASM. 1
28 E9282-725-0A0 LA I/F CABLE 2 ASM. 1
29
#05
E9283-725-0A0 LA I/F CABLE 3 ASM. 1
30
#05
E9284-725-0A0 SCM ENCODER CABLE 1 ASM. 1
31
#06
E9285-725-0A0 SCM ENCODER CABLE 2 ASM. 1
32 E9286-725-0A0 ARCNET I/F CABLE ASM. 1
33 E9288-725-0A0 ENCODER CABLE 1 ASM. 1
34
#05
E9289-725-0A0 CONTROL ENCODER CABLE ASM. 1
35 E9290-721-0A0 5-24 GND SHORT CIRCUIT CABLE 1
36 E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
37
#02
E9451-725-0A0 OCC LIGHT RELAY CABLE ASM. 1
38
#02
E9452-721-0A0 OCC RELAY CABLE ASM. 1
39
#02
E9458-725-0A0 BOC LIGHT RELAY CABLE ASM. 1
40 E9246-725-0A0 BASE R FAN RELAY CABLE ASM. 1
41 E9247-725-0A0 BASE FAN RELAY CABLE ASM. 1
42 E9268-725-0A0 SERIAL PARALLEL CABLE 6 ASM. 1
43 E9248-725-0A0 AC SERVO FAN CABLE ASM. 1
44 E9249-725-0A0 YL MOTOR FAN CABLE ASM. 1
45 E9250-725-0A0 YR MOTOR FAN CABLE ASM. 1
46 E9296-725-0A0 DRIVER FG CABLE 1 ASM. 1
47
#05
E9297-725-0A0 DRIVER FG CABLE 2 ASM. 1
48 E9298-725-0A0 DRIVER CONTROL CABLE 1 ASM. 1
49 E9299-725-0A0 DRIVER CONTROL CABLE 2 ASM. 1
50
#05
E9301-725-0A0 DRIVER CONTROL CABLE 3 ASM. 1
51 E9389-725-0A0 FEEDER DETECT SENSOR 1 ASM. 1
52 E9390-725-0A0 FEEDER DETECT SENSOR 2 ASM. 1
53 E9580-725-0A0 TRACK BALL RELAY CABLE ASM. 1
54
#04
E9451-725-AA0 OCC LIGHT RELAY CABLE ASM. 1
55
#04
E9452-725-AA0 OCC RELAY CABLE ASM. 1
56
#04
E9458-725-AA0 BOC LIGHT RELAY CABLE ASM. 1
