- - RE F . N O NOTE PART NO D E S C R I P T I O N Qty 1 E 375 0- 725-0B0 VCS( C S P) A SM. 1 2 E 376 1- 725-000 CS P CAMERA B R A C KET (1) 3 S L-60414 92- TN SC R E W (2) 4 4 00-10386 CC D CAMERA (1) 5 E 372 3- 700-00…
- -
71.VCS (CSP) COMPONENTS
8
7
6
3
5
4
1 4
1 5
1 6
1 7
1
2 2
1 3
1 2
1 1
2
1 0
1 8
1 9
2 0
9
2 1
- -

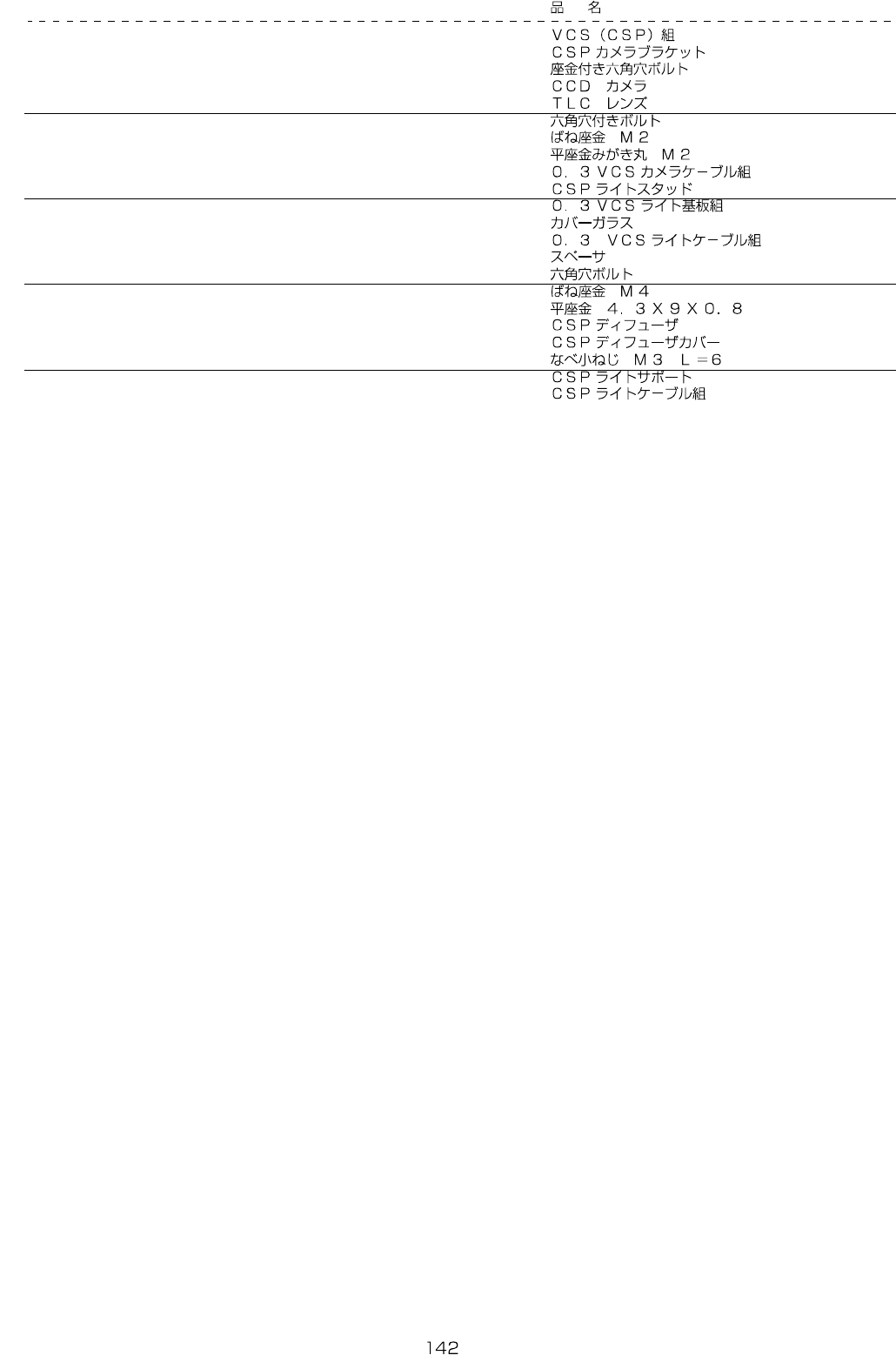

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3750-725-0B0 VCS(CSP) ASM. 1
2 E3761-725-000 CSP CAMERA BRACKET (1)
3 SL-6041492-TN SCREW (2)
4 400-10386 CCD CAMERA (1)
5 E3723-700-000 TLC LENS (1)
6 SM-6020752-TP SCREW (4)
7 WS-0210002-KN SPRING WASHER M2 (4)
8 WP-0220301-SC WASHER M2 (4)
9 E9579-725-0A0 0.3 VCS CAMERA CABLE ASM. (1)
10 E3762-725-000 CSP LIGHT STUD (4)
11 E8652-721-0A0 0.3 VCS LIGHT BASE ASM. (1)
12 E3704-721-000 COVER GLASS (1)
13 E9578-725-0A0 0.3 VCS LIGHT CABLE ASM. (1)
14 HX-0033400-0D SPACER (4)
15 SM-6043002-TN BOLT (4)
16 WS-0410002-KN SPRING WASHER (4)
17 WP-0430801-SC WASHER 4.3X9X0.8 (4)
18 E3763-725-000 CSP DIFFUSER (1)
19 E3764-725-000 CSP DIFFUSER COVER (1)
20 SM-4030601-SD SCREW (8)
21 E3765-725-000 CSP LIGHT SUPPORT (4)
22 E9584-725-0A0 CSP LIGHT CABLE ASM. (1)
- -
72.VCS (0.4BGA) COMPONENTS
5
4
3 4
1 5
8
7
6
9
1 6
1 8
1 9
2 0
2 2
2 2
2 5
2 4
1 7
1 3
1 1
1 2
2 3
2 6
2 7
2 5
1 0
1 4
2 9
2 8
3 0
3 1
3
2 1
3 3
3 2
1
2
