- - 44 . N OZZLE COMPO N EN T S 1 6 1 7 1 8 1 3 1 4 1 5 1 1 1 2 2 5 2 8 2 6 2 7 2 4 3 5 3 8 3 6 3 7 3 4 1 2 9 1 0 5 6 7 8 3 4 2 0 2 3 2 1 2 2 1 9 2 9 3 0 3 3 3 1 3 2
- -

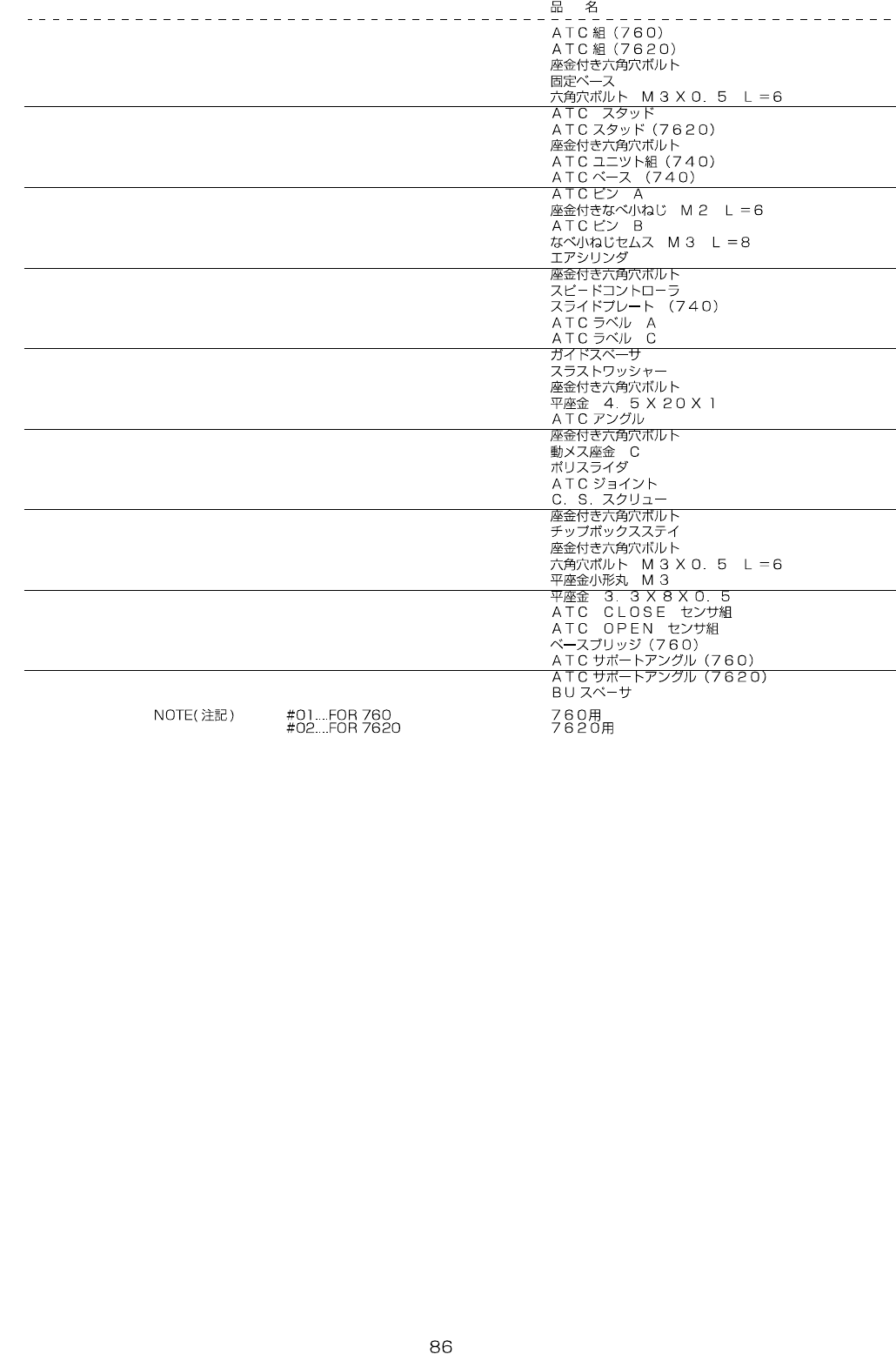

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3400-725-BA0 ATC ASM.(760) 1
2
#02
E3400-725-DA0 ATC ASM.(7620) 1
3 SL-6082592-TN BOLT (4)
4 HX-0029400-00 FIXED BASE (2)
5 SM-6030602-TN HEX SCREW M3 X 6 (2)
6
#01
E3403-721-000 ATC STUD (2)
7
#02
E3422-725-000 ATC STUD (2)
8 SL-6061292-TN SCREW (4)
9 E3451-721-0A0 ATC UNIT ASM. (740) (1)
10 E3453-721-000 ATC BASE (740) (1)
11 E3406-721-000 ATC PIN A (13)
12 SL-4020691-SC SCREW M2 L=6 (13)
13 E3454-721-000 ATC PIN B (5)
14 SL-4030891-SC SCREW M3X8 (5)
15 PA-0601011-A0 AIR CYLINDER (1)
16 SL-6030892-TN SCREW (2)
17 PC-0105080-00 SPEED CONTROLLER (2)
18 E3455-721-000 SLIDE PLATE (740) (1)
19 E3410-721-000 ATC LABEL A (1)
20 E3456-721-000 ATC LABEL C (1)
21 E3403-715-000 GUIDE SPACER (2)
22 E3404-700-000 THRUST WASHER (4)
23 SL-6041042-TN BOLT (2)
24 WP-0451016-SP WASHER 4.5X20X1 (2)
25 E3408-721-000 ATC ANGLE (1)
26 SL-6040642-TN BOLT (2)
27 B2423-280-00C MOVING KNIFE WASHER C (1)
28 E3412-721-000 SLIDER (2)
29 E3409-721-000 ATC JOINT (1)
30 400-58586 C.S.SCREW (2)
31 SL-6051492-TN BOLT (4)
32 E3413-725-000 CHIP BOX STAY (1)
33 SL-6041292-TN SCREW (2)
34 SM-6030602-TN HEX SCREW M3 X 6 (2)
35 WP-0320500-SC WASHER M3 (4)
36 WP-0330516-SC WASHER 3.3X8X0.5 (4)
37 E9353-725-0A0 ATC CLOSE SENSOR ASM. (1)
38 E9354-725-0A0 ATC OPEN SENSOR ASM. (1)
39 E3452-725-000 BASE BRIDGE (760) (1)
40
#01
E3454-725-000 ATC SUPPORT ANGLE (760) (1)
41
#02
E3424-725-000 ATC SUPPORT ANGLE (7620) (1)
42 E4868-760-000 BU SPACER (4)
- -

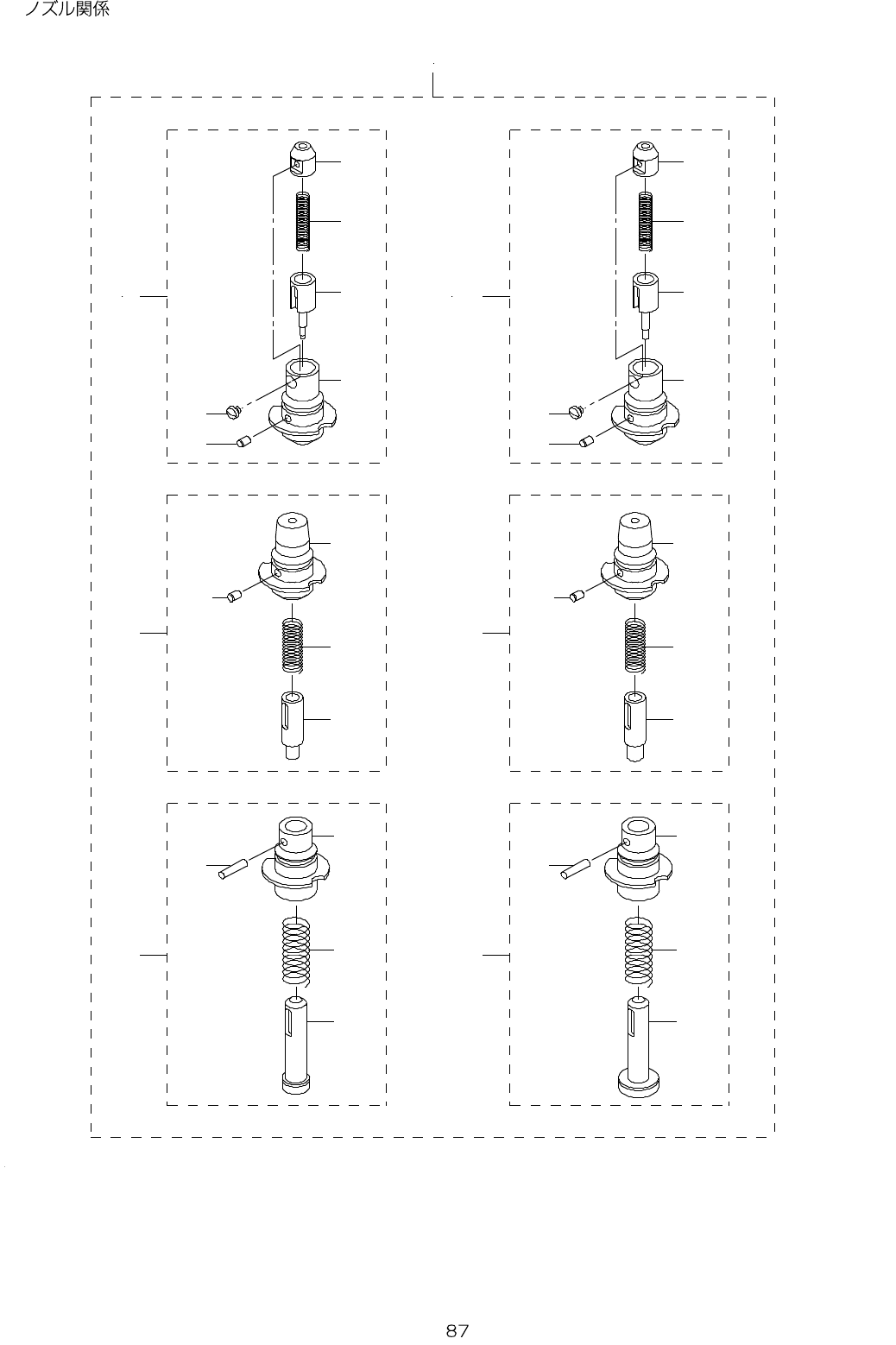

44.NOZZLE COMPONENTS
1 6
1 7
1 8
1 3
1 4
1 5
1 1 1 2
2 5
2 8
2 6
2 7
2 4
3 5
3 8
3 6
3 7
3 4
1 2
9
1 0
5
6
7
8
3 4
2 0
2 3
2 1
2 2
1 9
2 9
3 0
3 3
3 1
3 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3500-721-0A0 NOZZLE ASM.(730) 1
2
#02
E3550-721-0A0 NOZZLE ASM.(730) 1
3 E3501-721-0A0 NOZZLE ASM. 101 (3)
4
#02
E3501-721-0A0 NOZZLE ASM. 101 (2)
5 E3521-721-000 NOZZLE SLIDER 101 (1)
6 E3083-700-000 NOZZLE SPRING 1 (1)
7 E3076-700-000 NOZZLE INNER CAP (1)
8 E3520-721-000 DUMPER SCREW (12)
9 E3511-721-000 NOZZLE INNER 101 (1)
10 E3519-721-000 NOZZLE INNER PIN (12)
11
#01
E3502-721-0A0 NOZZLE ASM. 102 (3)
12
#02
E3502-721-0A0 NOZZLE ASM. 102 (2)
13 E3083-700-000 NOZZLE SPRING 1 (1)
14 E3076-700-000 NOZZLE INNER CAP (1)
15 E3520-721-000 DUMPER SCREW (12)
16 E3511-721-000 NOZZLE INNER 101 (1)
17 E3519-721-000 NOZZLE INNER PIN (12)
18 E3522-721-000 NOZZLE SLIDER 102 (1)
19 E3503-721-0A0 NOZZLE ASM. 103 (1)
20 E3514-721-000 NOZZLE INNER 104 (1)
21 E3519-721-000 NOZZLE INNER PIN (12)
22 E3523-721-000 NOZZLE SLIDER 103 (1)
23 E3544-721-000 NOZZLE SPRING 104 (1)
24 E3504-721-0A0 NOZZLE ASM. 104 (1)
25 E3514-721-000 NOZZLE INNER 104 (1)
26 E3519-721-000 NOZZLE INNER PIN (12)
27 E3524-721-000 NOZZLE SLIDER 104 (1)
28 E3544-721-000 NOZZLE SPRING 104 (1)
29 E3505-721-0A0 NOZZLE ASM. 105 (1)
30 E3515-721-000 NOZZLE INNER 105 (1)
31 E3075-700-000 NOZZLE INNER PIN 5 (1)
32 E3087-700-000 NOZZLE SLIDER 6 (1)
33 E3086-700-000 NOZZLE SPRING 5 (1)
34 E3506-721-0A0 NOZZLE ASM. 106 (1)
35 E3515-721-000 NOZZLE INNER 105 (1)
36 E3075-700-000 NOZZLE INNER PIN 5 (1)
37 E3001-705-000 NOZZLE SLIDER 7 (1)
38 E3086-700-000 NOZZLE SPRING 5 (1)
39
#02
E3553-721-0A0 NOZZLE ASM. 203 (1)
40
#02
E3563-721-000 NOZZLE INNER 203 (1)
41
#02
E3075-700-000 NOZZLE INNER PIN 5 (1)
42
#02
E3573-721-000 NOZZLE SLIDER 203 (1)
43
#02
E3086-700-000 NOZZLE SPRING 5 (1)
