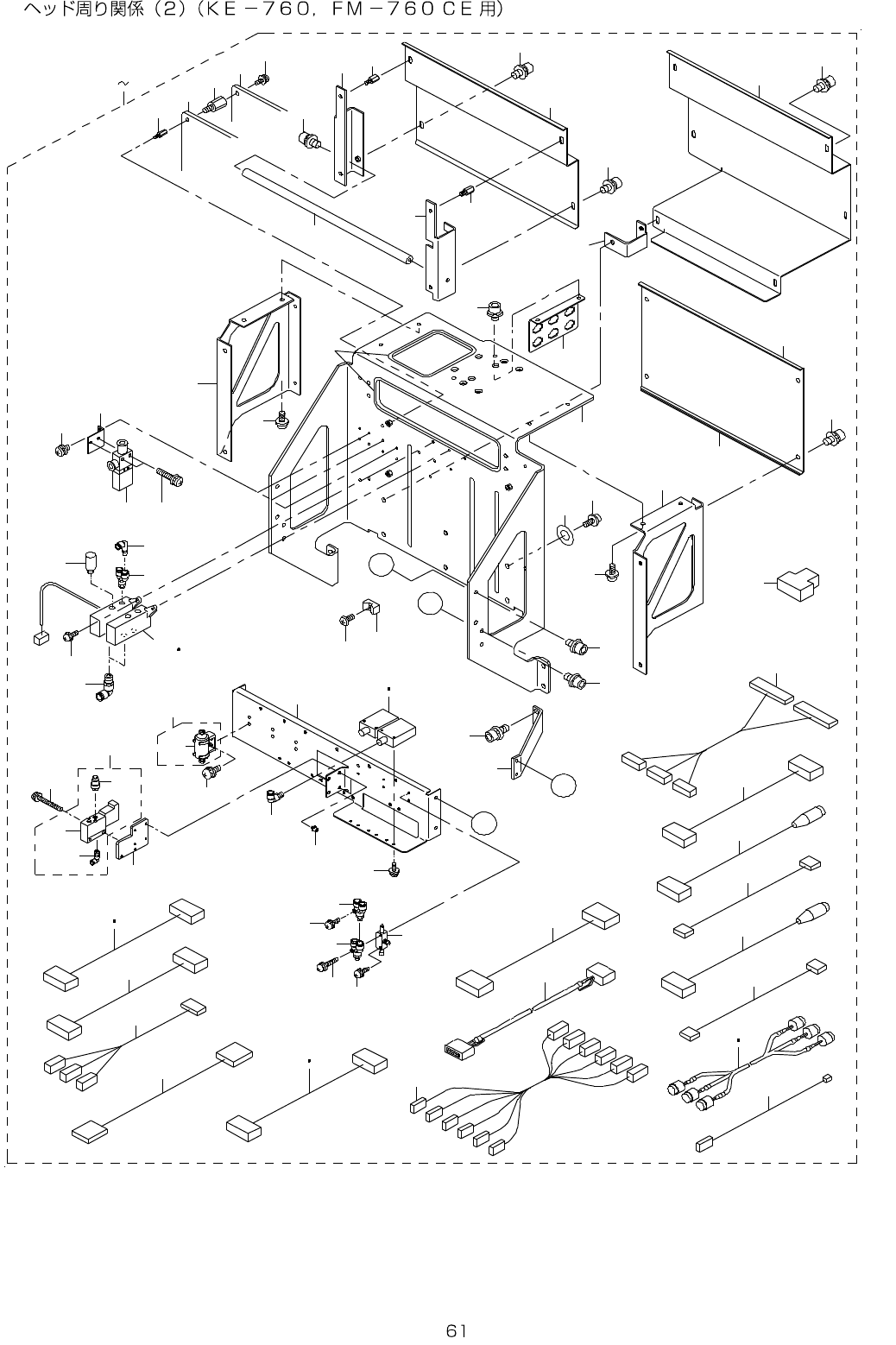

- - 31 . H EAD RE L A TE D COMPONEN T S (2)(FOR KE-760,FM-760 C E) 2 5 3 6 3 5 2 0 1 7 1 9 1 3 1 4 9 1 0 1 1 1 6 5 5 1 2 A B 6 1 7 9 8 0 5 2 5 3 5 4 5 6 5 7 5 1 5 8 6 2 5 9 6 0 6 4 4 5 6 3 2 9 5 0 2 6 2 4 6 9 3 0 2 7 2…
- -

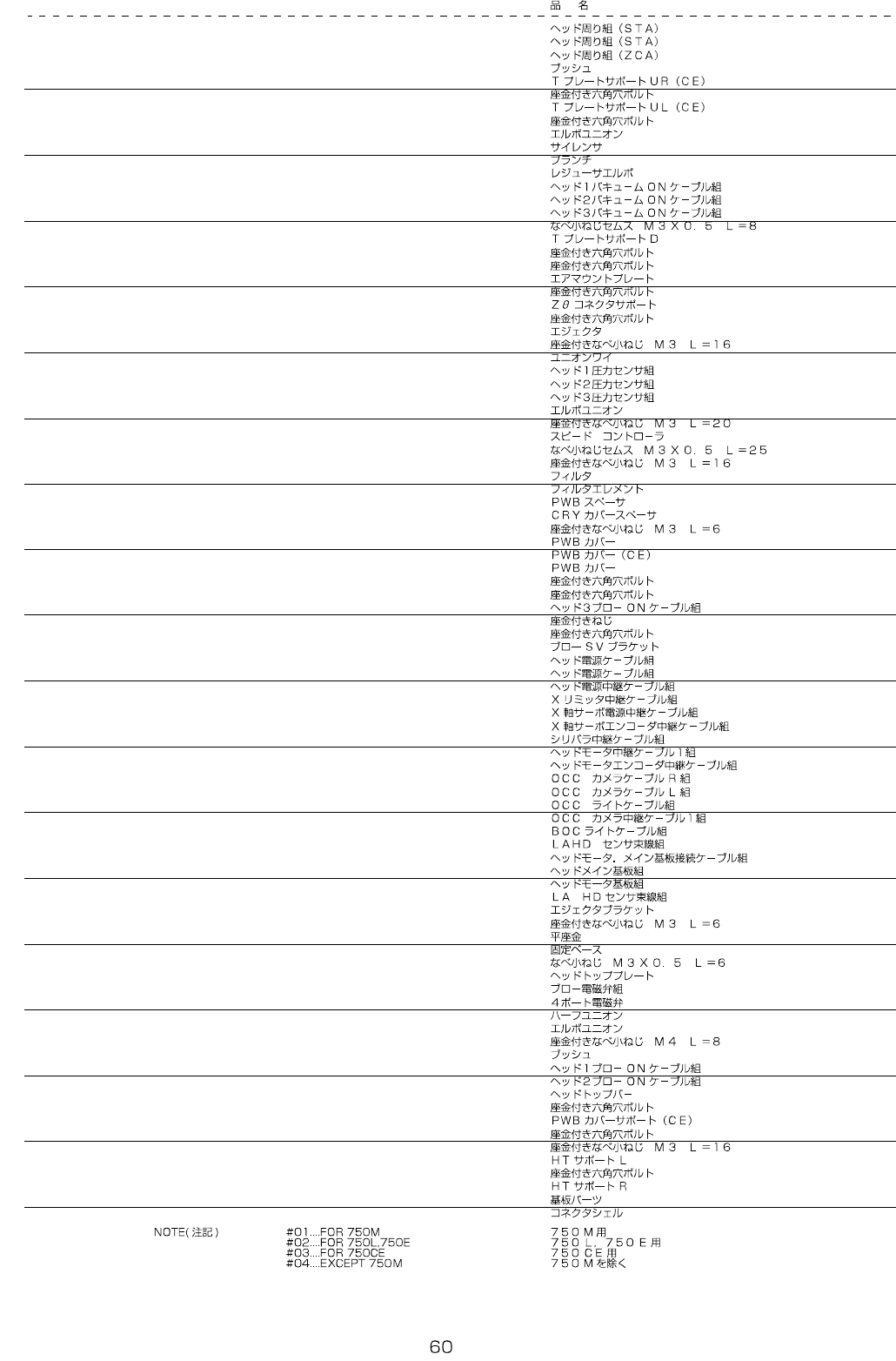

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2500-725-0A0 HEAD COMPONENTS ASM.(STA) 1
2 #02 E2500-725-AA0 HEAD COMPONENTS ASM.(STA) 1
3
#03
E2500-725-BA0 HEAD COMPONENTS ASM. (ZCA) 1
4 HX-0036700-0A BUSH (1)
5 E1161-725-000 T PLATE SUPPORT UR (CE) (1)
6 SL-6040642-TN BOLT (4)
7 E1162-725-000 T PLATE SUPPORT UL (CE) (1)
8 SL-6040892-TN BOLT (4)
9 PJ-3040405-05 ELBOW (3)
10 PX-0580010-00 SILENCER (3)
11 PJ-3080651-01 BRANCH (3)
12 PJ-3040400-04 ELBOW (3)
13 E9314-725-0A0 HEAD 1 VACUUM ON CABLE ASM. L (1)
14 E9317-725-0A0 HEAD 2 VACUUM ON CABLE ASM. R (1)
15 E9320-725-0A0 HEAD 3 VACUUM ON CABLE ASM. C (1)
16 SL-4030881-SC SCREW M3X8 (6)
17 E2504-725-000 T PLATE SUPPORT D (2)
18 SL-6040892-TN BOLT (4)
19 SL-6041092-TN SCREW (4)
20 E2501-725-000 AIR MOUNT PLATE (1)
21 SL-6040892-TN BOLT (4)
22 E2507-725-000 CONNECTOR SUPPORT (1)
23 SL-6040892-TN BOLT (2)
24 E3066-700-000 EJECTOR (3)
25 SL-4031691-SC SCREW M3 L=16 (6)
26 PJ-3080400-06 UNION (6)
27 E9315-725-0A0 HEAD 1 PRESSURE SENSOR ASM. (600MM) L (1)
28 E9318-725-0A0 HEAD 2 PRESSURE SENSOR ASM. (750MM) R (1)
29 E9321-725-0A0 HEAD 3 PRESSURE SENSOR ASM. (720MM) C (1)
30 PJ-3040405-04 ELBOW UNION (3)
31 SL-4032081-SC SCREW M3 L=20 (6)
32 PC-0124010-00 SPEED CONTROLLER (3)
33 SL-4032591-SC SCREW M3X25 (3)
34 SL-4031691-SC SCREW M3 L=16 (3)
35 E7916-725-0A0 FILTER (3)
36 E7917-725-000 FILTER ELEMENT (1)
37 E2509-725-000 PWB SPACER (4)
38 E2027-715-000 CRY COVER SPACER (4)
39 SL-4030681-SC SCREW M3 L=6 (4)
40 E2512-725-000 PWB COVER (1)
41
#03
E1163-725-000 PWB COVER (CE) (1)
42 E7904-725-000 PWB COVER (1)
43 #03 SL-6040892-TN BOLT (6)
44 SL-6040892-TN BOLT (4)
45 E9319-725-0A0 HEAD 3 BLOW ON CABLE ASM. (1)
46 SL-4034091-SC SCREW M3X40 (2)
47 SL-6030592-TN SCREW M3 L=5 (4)
48 E2510-725-000 BLOW SV BRACKET (1)
49
#04
E9326-725-AA0 HEAD POWER SOURCE CABLE ASM. (1)
50
#01
E9326-725-0A0 HEAD POWER SOURCE CABLE ASM. (1)
51 E9327-725-0A0 TRUNK CABLE ASM. (1)
52 E9331-725-0A0 X LIMITER TRUNK CABLE ASM. (1)
53 E9332-725-0A0 TRUNK CABLE ASM. (1)
54 E9333-725-0A0 SERVO ENCODER TRUNK CABLE ASM. (1)
55 E9334-721-0A0 TRUNK CABLE ASM. (1)
56 E9335-725-0A0 HEAD MOTOR TRUNK CABLE 1 ASM. (1)
57 E9336-725-0A0 MOTOR ENCODER TRUNK CABLE ASM. (1)
58 E9339-725-0A0 OCC CAMERA CABLE R ASM. (1)
59 E9340-725-0A0 OCC CAMERA CABLE L ASM. (1)
60 E9341-725-0A0 OCC LIGHT CABLE ASM. (1)
61 E9342-725-0A0 OCC CAMERA TRUNK CABLE 1 ASM. (1)
62 E9457-725-0A0 BOC LIGHT CABLE ASM. (1)
63 #01 E9343-725-0A0 LAHD SENSOR HARNESS ASM. (1)
64 E9346-725-0A0 HEAD MOTOR CONNECT CABLE ASM. (1)
65 E8607-721-0A0 HEAD MAIN BASE ASM. (1)
66 E8605-725-0A0 HEAD MOTOR BASE ASM. (1)
67
#04
E9343-725-AA0 LA HD SENSOR HARNESS ASM. (1)
68 E2508-725-000 EJECTOR BRACKET (3)
69 SL-4030681-SC SCREW M3 L=6 (6)
70 WP-0651646-SC WASHER (10)
71 HX-0029400-00 FIXED BASE (1)
72 SM-4030601-SC SCREW M3 X 6 (1)
73 E2502-725-000 HEAD TOP PLATE (1)
74 E2511-725-0A0 ELECTROMAGNETIC VALVE ASM. (3)
75 PV-1405070-00 4-WAY ELECTROMAGNETIC VALVE (1)
76 PJ-2100043-00 UNION (2)
77 PJ-3040405-11 ELBOW UNION (2)
78 SL-4040891-SC SCREW M4 L=8 (6)
79 HX-0036700-00 BUSH (0.3)
80 E9313-725-0A0 HEAD 1 BLOW ON CABLE ASM. (1)
81 E9316-725-0A0 HEAD 2 BLOW ON CABLE ASM. (1)
82 E1164-725-000 HEAD TOP BAR (1)
83 SL-6040892-TN BOLT (2)
84 #03 E1165-725-000 PWB COVER SUPPORT (CE) (1)
85 SL-6051692-TN SCREW (10)
86 SL-4031691-SC SCREW M3 L=16 (3)
87 E7902-725-000 HT SUPPORT L (1)
88 SL-6040892-TN BOLT (2)
89 E7903-725-000 HT SUPPORT R (1)
90 HX-0033900-00 STUD (2)
91 HK-0163900-9B CONNECTOR SHELL (3)
- -
31.HEAD RELATED COMPONENTS (2)(FOR KE-760,FM-760CE)
2 5
3 6
3 5
2 0
1 7
1 9
1 3 1 4
9
1 0
1 1
1 6
5 5
1 2
A
B
6 1
7 9 8 0
5 2
5 3
5 4
5 6
5 7
5 1
5 8
6 2
5 9
6 0
6 4
4 5 6 3
2 9 5 0
2 6
2 4
6 9
3 0
2 7 2 8
6 8
3 1
4 7
3 2
3 3
7 7
2 6
7 1
7 2
7 4
4 6
4 8
7 3
7 5
3 4
6 7
5
8
7
6 6
3 8
6 5
3 7
4 4
4 1
2 3
2 2
4 9
1 5
1 3
7 6
7 0
4 2
3 9
6
4
1 8
B
2 1
A
7 8
4 0
8 6
8 1
8 3
8 2
8 2
8 5
8 4
8 4
8 8
4 3
8 7
- -

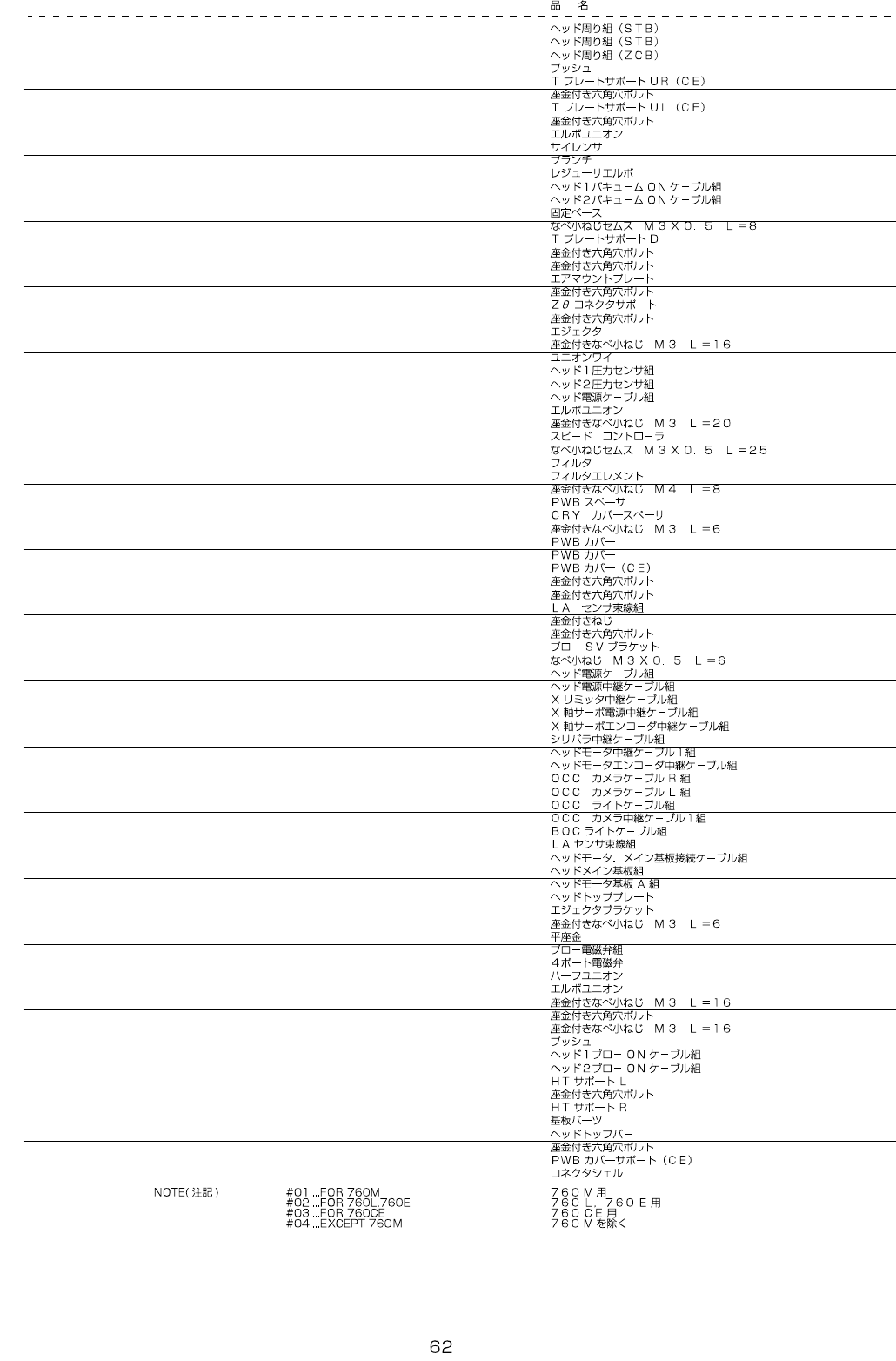

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2500-725-FA0 HEAD COMPONENTS ASM.(STB) 1
2 #02 E2500-725-GA0 HEAD COMPONENTS ASM.(STB) 1
3
#03
E2500-725-HA0 HEAD COMPONENTS ASM.(ZCB) 1
4 HX-0036700-0A BUSH (1)
5 E1161-725-000 T PLATE SUPPORT UR (CE) (1)
6 SL-6040642-TN BOLT (4)
7 E1162-725-000 T PLATE SUPPORT UL (CE) (1)
8 SL-6040892-TN BOLT (4)
9 PJ-3040405-05 ELBOW (2)
10 PX-0580010-00 SILENCER (2)
11 PJ-3080651-01 BRANCH (2)
12 PJ-3040400-04 ELBOW (2)
13 E9314-725-0A0 HEAD 1 VACUUM ON CABLE ASM. (1)
14 E9317-725-0A0 HEAD 2 VACUUM ON CABLE ASM. (1)
15 HX-0029400-00 FIXED BASE (1)
16 SL-4030881-SC SCREW M3X8 (4)
17 E2504-725-000 T PLATE SUPPORT D (2)
18 SL-6040892-TN BOLT (4)
19 SL-6041092-TN SCREW (4)
20 E2501-725-000 AIR MOUNT PLATE (1)
21 SL-6040892-TN BOLT (4)
22 E2507-725-000 CONNECTOR SUPPORT (1)
23 SL-6040892-TN BOLT (2)
24 E3066-700-000 EJECTOR (2)
25 SL-4031691-SC SCREW M3 L=16 (4)
26 PJ-3080400-06 UNION (4)
27 E9315-725-0A0 HEAD 1 PRESSURE SENSOR ASM. (600MM) L (1)
28 E9318-725-0A0 HEAD 2 PRESSURE SENSOR ASM. (750MM) R (1)
29
#04
E9326-725-AA0 HEAD POWER SOURCE CABLE ASM. (1)
30 PJ-3040405-04 ELBOW UNION (2)
31 SL-4032081-SC SCREW M3 L=20 (4)
32 PC-0124010-00 SPEED CONTROLLER (3)
33 SL-4032591-SC SCREW M3X25 (3)
34 E7916-725-0A0 FILTER (2)
35 E7917-725-000 FILTER ELEMENT (2)
36 SL-4040891-SC SCREW M4 L=8 (4)
37 E2509-725-000 PWB SPACER (4)
38 E2027-715-000 CRY COVER SPACER (4)
39 SL-4030681-SC SCREW M3 L=6 (4)
40 E2512-725-000 PWB COVER (1)
41 E7904-725-000 PWB COVER (1)
42
#03
E1163-725-000 PWB COVER (CE) (1)
43 #03 SL-6040892-TN BOLT (6)
44 SL-6040892-TN BOLT (4)
45
#04
E9344-725-AA0 LA SENSOR HARNESS ASM. (1)
46 SL-4034091-SC SCREW M3X40 (2)
47 SL-6030592-TN SCREW M3 L=5 (4)
48 E2510-725-000 BLOW SV BRACKET (1)
49 SM-4030601-SC SCREW M3 X 6 (1)
50
#01
E9326-725-0A0 HEAD POWER SOURCE CABLE ASM. (1)
51 E9327-725-0A0 TRUNK CABLE ASM. (1)
52 E9331-725-0A0 X LIMITER TRUNK CABLE ASM. (1)
53 E9332-725-0A0 TRUNK CABLE ASM. (1)
54 E9333-725-0A0 SERVO ENCODER TRUNK CABLE ASM. (1)
55 E9334-721-0A0 TRUNK CABLE ASM. (1)
56 E9335-725-0A0 HEAD MOTOR TRUNK CABLE 1 ASM. (1)
57 E9336-725-0A0 MOTOR ENCODER TRUNK CABLE ASM. (1)
58 E9339-725-0A0 OCC CAMERA CABLE R ASM. (1)
59 E9340-725-0A0 OCC CAMERA CABLE L ASM. (1)
60 E9341-725-0A0 OCC LIGHT CABLE ASM. (1)
61 E9342-725-0A0 OCC CAMERA TRUNK CABLE 1 ASM. (1)
62 E9457-725-0A0 BOC LIGHT CABLE ASM. (1)
63 #01 E9344-725-0A0 LA SENSOR HARNESS ASM. (1)
64 E9346-725-0A0 HEAD MOTOR CONNECT CABLE ASM. (1)
65 E8607-721-0A0 HEAD MAIN BASE ASM. (1)
66 E8605-725-AA0 HEAD MOTOR BASE A ASM (1)
67 E2502-725-000 HEAD TOP PLATE (1)
68 E2508-725-000 EJECTOR BRACKET (2)
69 SL-4030681-SC SCREW M3 L=6 (6)
70 WP-0651646-SC WASHER (6)
71 E2511-725-0A0 ELECTROMAGNETIC VALVE ASM. (2)
72 PV-1405070-00 4-WAY ELECTROMAGNETIC VALVE (1)
73 PJ-2100043-00 UNION (2)
74 PJ-3040405-11 ELBOW UNION (2)
75 SL-4031691-SC SCREW M3 L=16 (3)
76 SL-6051692-TN SCREW (10)
77 SL-4031691-SC SCREW M3 L=16 (3)
78 HX-0036700-00 BUSH (0.3)
79 E9313-725-0A0 HEAD 1 BLOW ON CABLE ASM. (1)
80 E9316-725-0A0 HEAD 2 BLOW ON CABLE ASM. (1)
81 E7902-725-000 HT SUPPORT L (1)
82 SL-6040892-TN BOLT (2)
83 E7903-725-000 HT SUPPORT R (1)
84 HX-0033900-00 STUD (2)
85 E1164-725-000 HEAD TOP BAR (1)
86 SL-6040892-TN BOLT (2)
87
#03
E1165-725-000 PWB COVER SUPPORT (CE) (1)
88 HK-0163900-9B CONNECTOR SHELL (3)
