- - REF.NO N O TE PART NO D E S C R I P T I O N Q ty 1 #01 E23 0 2-725-AA0 Y AX I S F RAME R ASM. ( L) 1 2 #02 E23 0 2-725-BA0 Y AX I S F RAME R ASM.(E) 1 3 #01 E23 5 2-725-000 Y AX I S FRAME R (L ) (1) 4 #02 E23 8 2-7…
- -

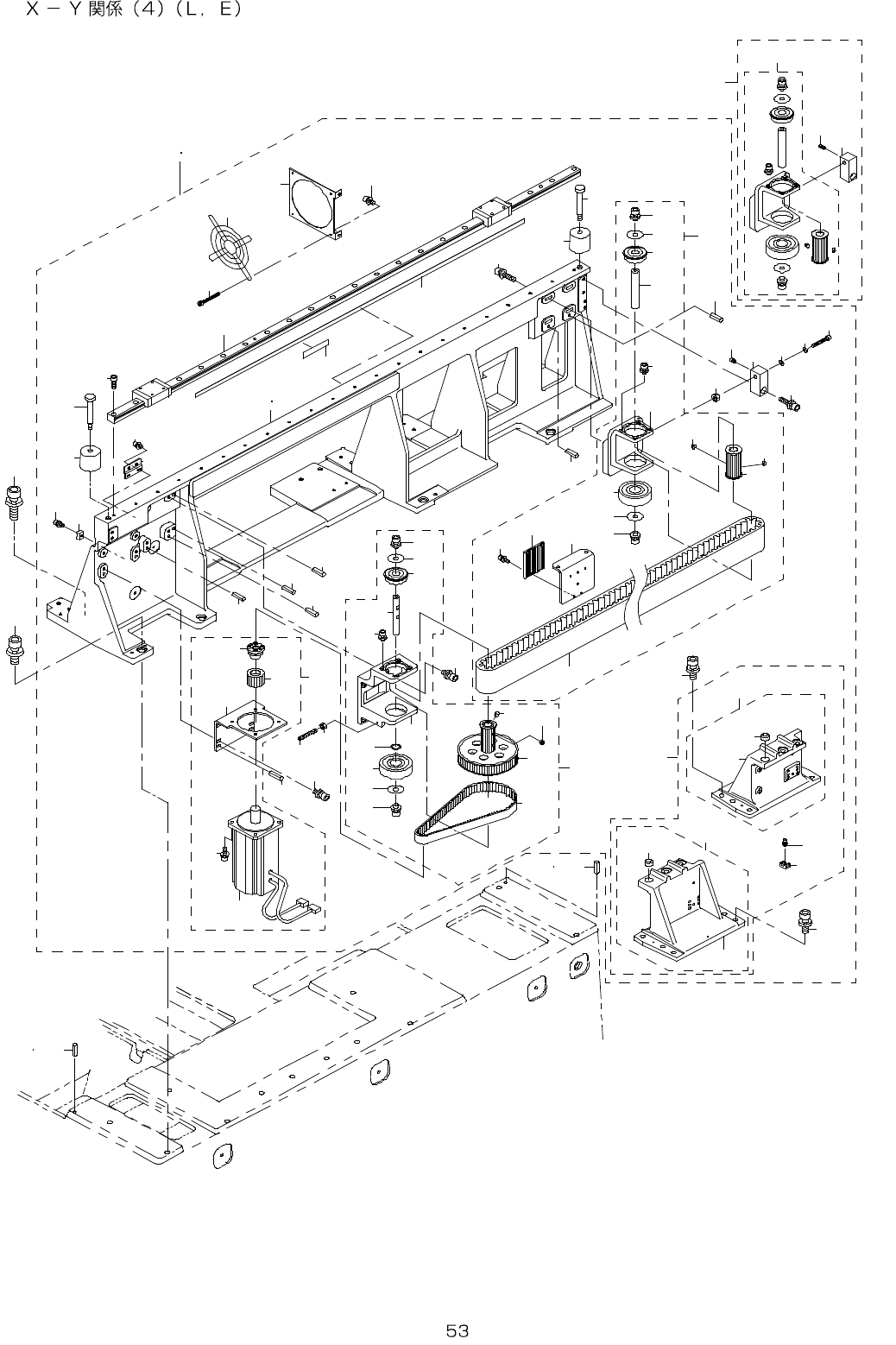

27.X-Y COMPONENTS (4)(L,E)
4 0
5 6
6 1
5 8
5 9
5 7
6 5
6 3
6 4
6 5
6 2
6 0
7 8 7 9
7 8 7 9
1 0
7 0
7 1
1 1
2 5
7 7
7 6
2 1
4 2
4 3
2 4
2 3
2 3
2 4
3 5
2 0
3 8
3 6
3 8
3 9
3 9
2 2
3 7
3 0
1 2
6 8
6 9
6 7
9
1 2
4 4
1 6
1 8
1 9
5 0
1 4
7 4
2 8
2 7
2 9
3 2
1 8
3 3
3 3
3 4
5 1
7 2
7 3
7 2
7 2
4 6
4 8
5 0
4 9
4 9
5 5
5 2
5 3
5 4
1 7
7 2
1 5
4 1
8
3 1
3 4
1 3
6 6
4 5
6 7
7 2
7 2
5
2 6
8 2
8 1
8 0
8 3
4 7
7 5
- -

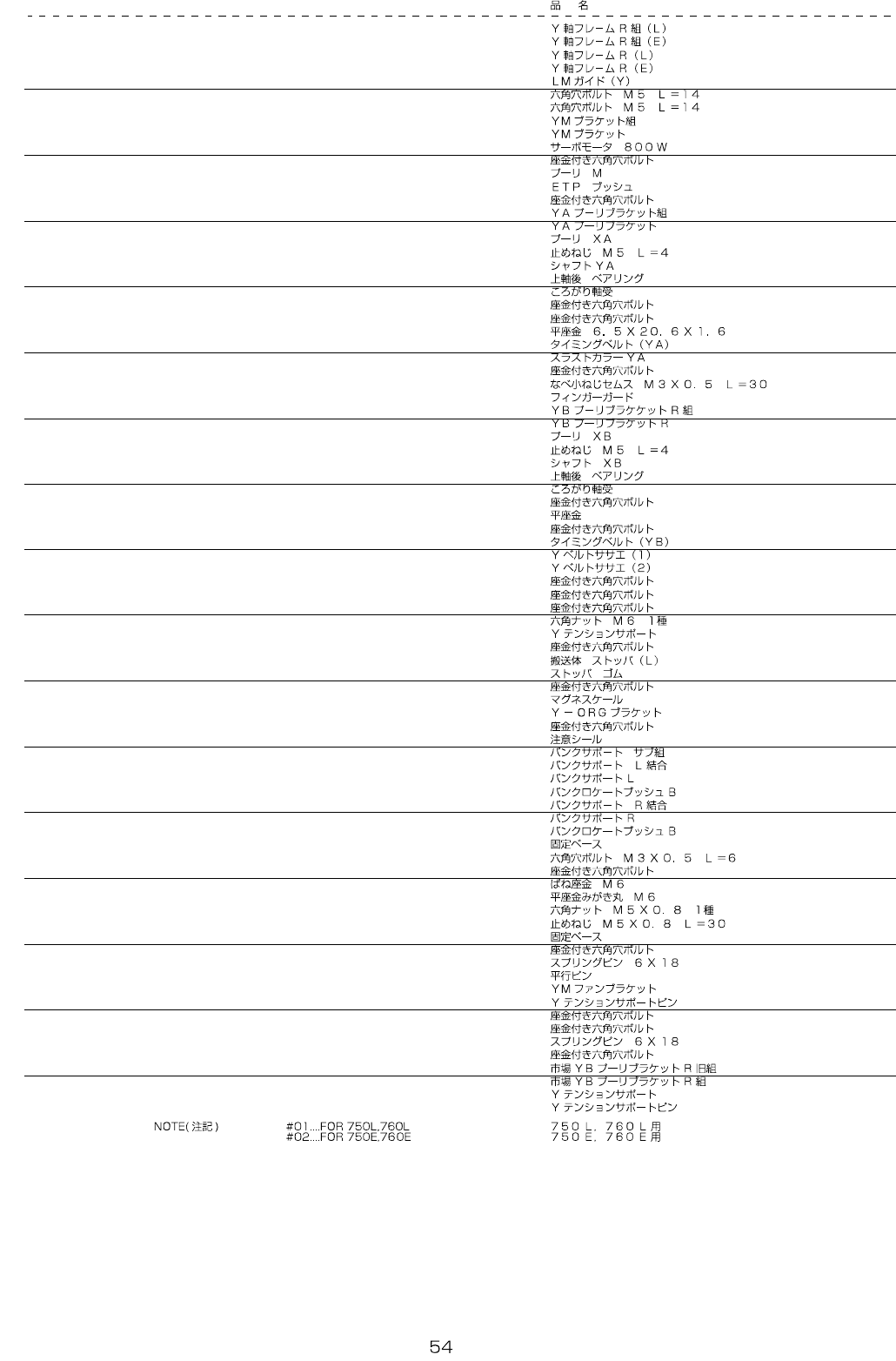

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2302-725-AA0 Y AXIS FRAME R ASM. (L) 1
2 #02 E2302-725-BA0 Y AXIS FRAME R ASM.(E) 1
3
#01
E2352-725-000 Y AXIS FRAME R (L) (1)
4
#02
E2382-725-000 Y AXIS FRAME R(E) (1)
5 E2353-725-000 LM GUIDE (Y) (1)
6
#01
SM-6051402-TN HEXAGONAL-HOLE BOLT M5 L=14 (21)
7 #02 SM-6051402-TN HEXAGONAL-HOLE BOLT M5 L=14 (22)
8 E2305-725-0A0 YM BRACKET ASM. (1)
9 E2305-725-000 YM BRACKET (1)
10 KM-0000000-20 SERVO MOTOR 800W (1)
11 SL-6051492-TN BOLT (4)
12 E2409-725-000 PULLEY M (1)
13 E2322-721-000 ETP BUSH (1)
14 SL-6061642-TN BOLT (4)
15 E2307-725-0A0 YA PULLEY BRACKET ASM. (1)
16 E2307-725-000 YA PULLEY BRACKET (1)
17 E2410-725-000 PULLEY XA (1)
18 SM-8050412-TP SCREW M5 L=4 (4)
19 E2325-725-000 SHAFT YA (1)
20 G1216-870-000 UPPER SHAFT REAR BEARING (1)
21 SB-1150012-00 BEARING (1)
22 SL-6051092-TN SCREW (4)
23 SL-6061042-TN BOLT (2)
24 WP-0651646-SR WASHER (2)
25 E2306-725-000 TIMING BELT (YA) (1)
26 E2326-725-000 THRUST COLLAR YA (1)
27 SL-6051042-TN SCREW (2)
28 SL-4033091-SC SCREW M3 L=30 (4)
29 HM-0003300-20 FINGER GUARD (1)
30 E2311-725-AA0 YB PULLEY BRACKET R ASM. (1)
31 E2311-725-000-A YB PULLEY BRACKET R (1)
32 E2413-725-000 PULLEY XB (1)
33 SM-8050412-TP SCREW M5 L=4 (2)
34 E2414-725-000 SHAFT XB (1)
35 G1216-870-000 UPPER SHAFT REAR BEARING (1)
36 SB-1150012-00 BEARING (4)
37 SL-6051092-TN SCREW (1)
38 WP-0651646-SR WASHER (2)
39 SL-6061042-TN BOLT (2)
40 E2308-725-000 TIMING BELT (YB) (1)
41 E2313-725-000 Y BELT STAY (1) (1)
42 E2314-725-000 Y BELT STAY (2) (1)
43 SL-6041242-TN BOLT (6)
44 SL-6062592-TN SCREW (4)
45 SL-6065092-TN BOLT (1)
46 NM-6060001-SC NUT M6 (1)
47 E2315-725-000-A Y TENSION SUPPORT (1)
48 SL-6062542-TN SCREW (1)
49 E2368-700-000 CONVEYOR STOPPER (L) (2)
50 E2321-721-000 STOPPER RUBBER (2)
51 SL-6062592-TN SCREW (4)
52 E9609-721-A00 MAGNET SCALE (1)
53 E2323-725-000 Y-ORG BRACKET (1)
54 SL-6041092-TN SCREW (2)
55 E2333-715-000 CAUTION SEAL (1)
56 E2621-721-0A0 BANK SUPPORT SUB ASM. (1)
57 E2621-721-0B0 BANK SUPPORT L LINK (1)
58 E2621-721-000 BANK SUPPORT L (1)
59 E2623-721-000 BANK LOCATE BUSH B (1)
60 E2622-721-0A0 BANK SUPPORT R LINK (1)
61 E2622-721-000 BANK SUPPORT R (1)
62 E2623-721-000 BANK LOCATE BUSH B (1)
63 HX-0029400-00 FIXED BASE (4)
64 SM-6030602-TN HEX SCREW M3 X 6 (4)
65 SL-6082592-TN BOLT (8)
66 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (1)
67 WP-0641601-SC WASHER (1)
68 NM-6050001-SC NUT M5 (1)
69 SM-8053002-TP SCREW M5 L=30 (1)
70 HX-0029400-00 FIXED BASE (1)
71 SL-6041042-TN BOLT (1)
72 PS-0600182-KP SPRING PIN (8)
73 PH-0600202-C0 PARALLEL PIN (2)
74 E2323-721-000 YM FAN BRACKET (1)
75 E2316-725-000 Y TENSION SUPPORT PIN (1)
76 SL-6103042-TN BOLT 5
77 SL-6104042-TN BOLT 3
78
#01
PS-0600182-KP SPRING PIN 4
79 #02 SL-6061642-TN BOLT 4
80 E2311-725-0C0 YB PULLEY BRACKET R ASM. 1
81 E2311-725-0B0 YB PULLEY BRACKET R ASM. (1)
82 E2315-725-000-A Y TENSION SUPPORT (1)
83 E2316-725-000 Y TENSION SUPPORT PIN (1)
- -
