- - 39.F M L A HEAD COM P O N EN T S (2) 3 4 4 2 3 8 3 9 4 3 5 5 5 5 4 5 4 6 4 7 4 9 4 8 5 0 5 1 5 2 5 3 5 4 5 4 5 6 4 4 3 5 3 6 A A 5 3 5 2 4 3 5 3 2 6 1 0 9 8 8 9 1 4 1 3 1 9 1 8 2 0 2 1 2 2 2 3 2 6 2 4 2 7 2 5 7 1 5…
- -

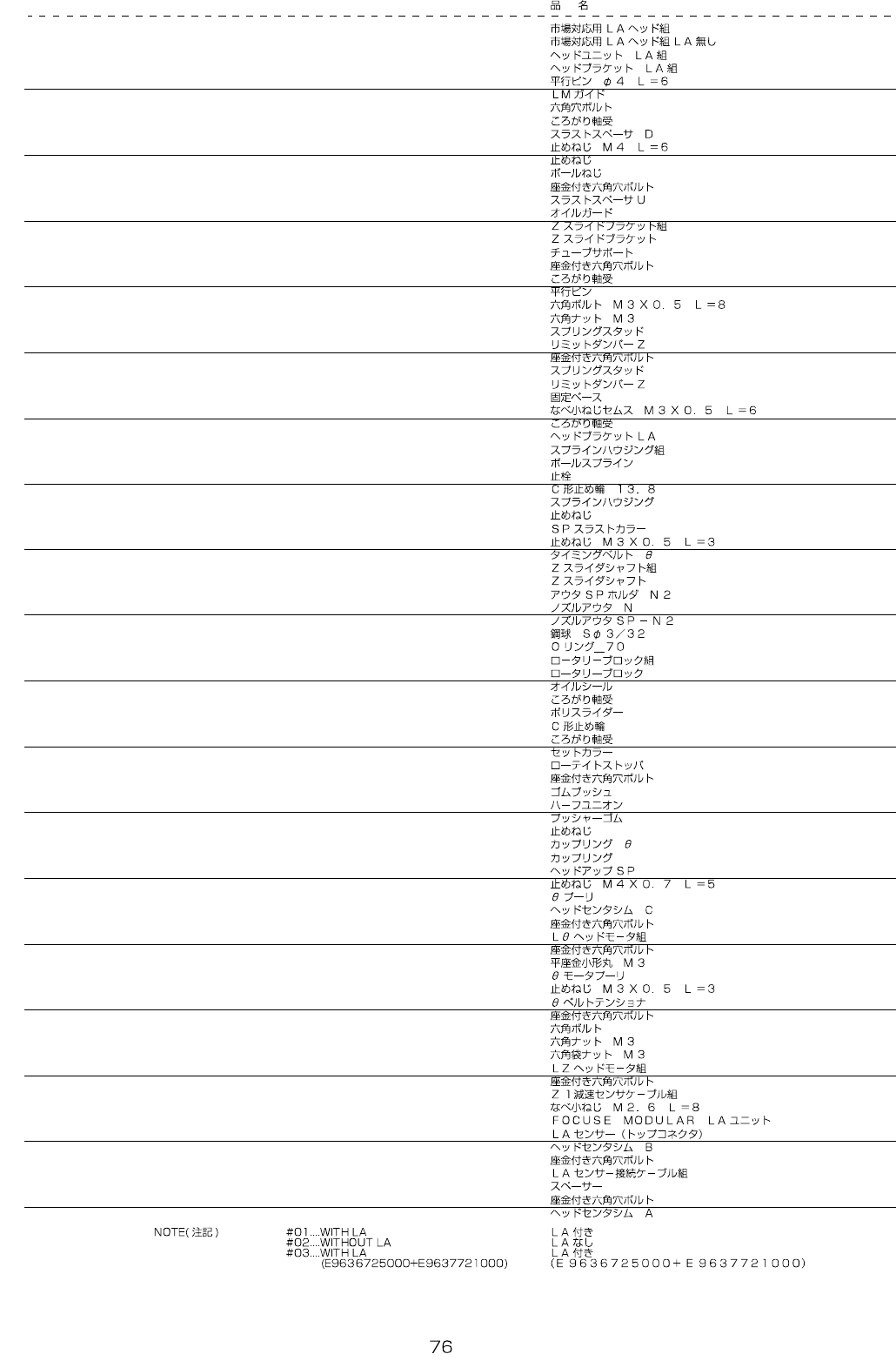

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3101-725-AA0 LA HEAD ASM. 1
2 #02 E3101-725-0AB LA HEAD ASM. 1
3 E3102-725-0A0 HAED UNIT LA ASM. (1)
4 E3103-725-0A0 HAED BRACKET LA ASM. (1)
5 PH-0400062-C0 PIN (6)
6 E3019-725-000 LM GUID (1)
7 SM-6030802-TN BOLT (7)
8 SB-1100017-00 BEARING (1)
9 E3006-721-000 THRUST SPACER D (1)
10 SM-8040642-TP SCREW (2)
11 SM-8040412-TP SET SCREW M3X3 (2)
12 E3020-725-000 BALL SCREW (1)
13 SL-6040842-TN SCREW M4 L=8 (4)
14 E3005-721-000 THRUST SPACER U (1)
15 E3028-721-000 OIL GUARD (1)
16 E3004-725-0A0 Z SLIDER BRACKET ASM. (1)
17 E3012-725-000 Z SLIDER BRACKET (1)
18 E3016-725-000 TUBE SUPPORT (1)
19 SL-6030642-TN SCREW M3 L=6 (1)
20 SB-1120006-00 BEARING (1)
21 PH-0400082-C0 PIN (2)
22 SM-9030803-SC SCREW M3X0.5 L=8 (1)
23 NM-6030003-SC NUT M3 (1)
24 E3017-725-000 SPRING STUD (2)
25 E3018-725-000 LIMIT DAMPER Z (1)
26 SL-6031092-TN SCREW (8)
27 E3017-725-000 SPRING STUD (2)
28 E3018-725-000 LIMIT DAMPER Z (1)
29 HX-0029400-00 FIXED BASE (1)
30 SL-4030691-SC SCREW M3X6 (1)
31 SB-1150008-00 ROLLING SHAFT HOLDER (2)
32 E3111-725-000 HAED BRACKET LA (1)
33 E3005-725-0A0 SPLINE HOUSING ASM. (1)
34 E3015-725-000 BALL SPLINE (1)
35 TA-1050504-R0 RUBBER PLUG (1)
36 RC-0150001-KP RETAINING RING 13.8 (1)
37 E3014-725-000 SPLINE HOUSING (1)
38 SM-8030802-TP SCREW M3X0.5 L=8 (2)
39 E3022-725-000 SP THRUST COLLAR (1)
40 SM-8030302-TP SCREW M3X0.5 L=3 (2)
41 E3023-725-000 TIMING BELT THETA (1)
42 E3006-725-0A0 Z SLIDE SHAFT ASM. (1)
43 E3013-725-000 Z SLIDE SHAFT (1)
44 E3029-725-000 OUTER SP HOLDER N2 (1)
45 E3029-721-000 NOZZLE OUTER N (1)
46 E3028-725-000 NOZZLE OUTER SP-N2 (1)
47 E4228-760-000 STEEL BALL (3)
48 400-42257 O_RING_70 (1)
49 E3035-721-0A0 ROTARY BLOCK ASM. (1)
50 E3035-721-000 ROTARY BLOCK (1)
51 E3025-721-000 OIL SEAL (2)
52 SB-1120012-00 BEARING (2)
53 E3026-721-000 SLIDER (2)
54 RC-1200001-KP C-SHAPED SNAP RING (4)
55 SB-1120006-00 BEARING (1)
56 E3027-721-000 SET COLLA (1)
57 E3024-725-000 STOPPER (1)
58 SL-6030642-TN SCREW M3 L=6 (1)
59 HX-0005500-0G RUBBER BUSH (1)
60 PJ-3010405-05 HALF UNION (1)
61 E3009-721-000 PUSHER RUBBER (1)
62 SM-8040602-TP SCREW M4X0.7 L=6 (1)
63 E3025-725-000 COUPLING THETA (1)
64 E3023-721-000 COUPLING (1)
65 E3026-725-000 HAED UP SP (2)
66 SM-8040502-TP SCREW M4X0.7 L=5 (2)
67 E3021-725-000 THETA PILLEY (1)
68 E3021-721-000 HAED CENTER SHIM C (2)
69 SL-6051242-TN SCREW (4)
70 E9306-725-0A0 L THETA HEAD MOTOR ASM. (1)
71 SL-6030842-TN SCREW M3 L=8 (4)
72 WP-0320500-SC WASHER M3 (4)
73 E3013-721-000 THETA MOTOR PULLEY (1)
74 SM-8030302-TP SCREW M3X0.5 L=3 (2)
75 E3027-725-000 THETA BELT TENSIONER (1)
76 SL-6030892-TN SCREW (4)
77 SM-9031403-SC BOLT (1)
78 NM-6030003-SC NUT M3 (1)
79 NM-7030510-SA NUT M3 (1)
80 E9307-725-0A0 LZ HEAD MOTOR ASM. (1)
81 SL-6031042-TN SCREW (4)
82 E9322-725-0A0 SENSOR CABLE ASM. (1)
83 SM-4860801-SC SCREW M2.6 L=8 (1)
84 #03 E9635-725-000 FOCUSE MODULAR LA UNIT (1)
85 E9636-725-000 LA SENSOR (TOP CONNECTOR) (1)
86 E3020-721-000 HAED CENTER SHIM B (2)
87 SL-6041042-TN BOLT (4)
88 E9345-721-0A0 CABLE ASM. (1)
89 HX-0033400-0C SPACER (1)
90 SL-6042542-TN BOLT (1)
91 E3019-721-000 HAED CENTER SHIM A (2)
- -

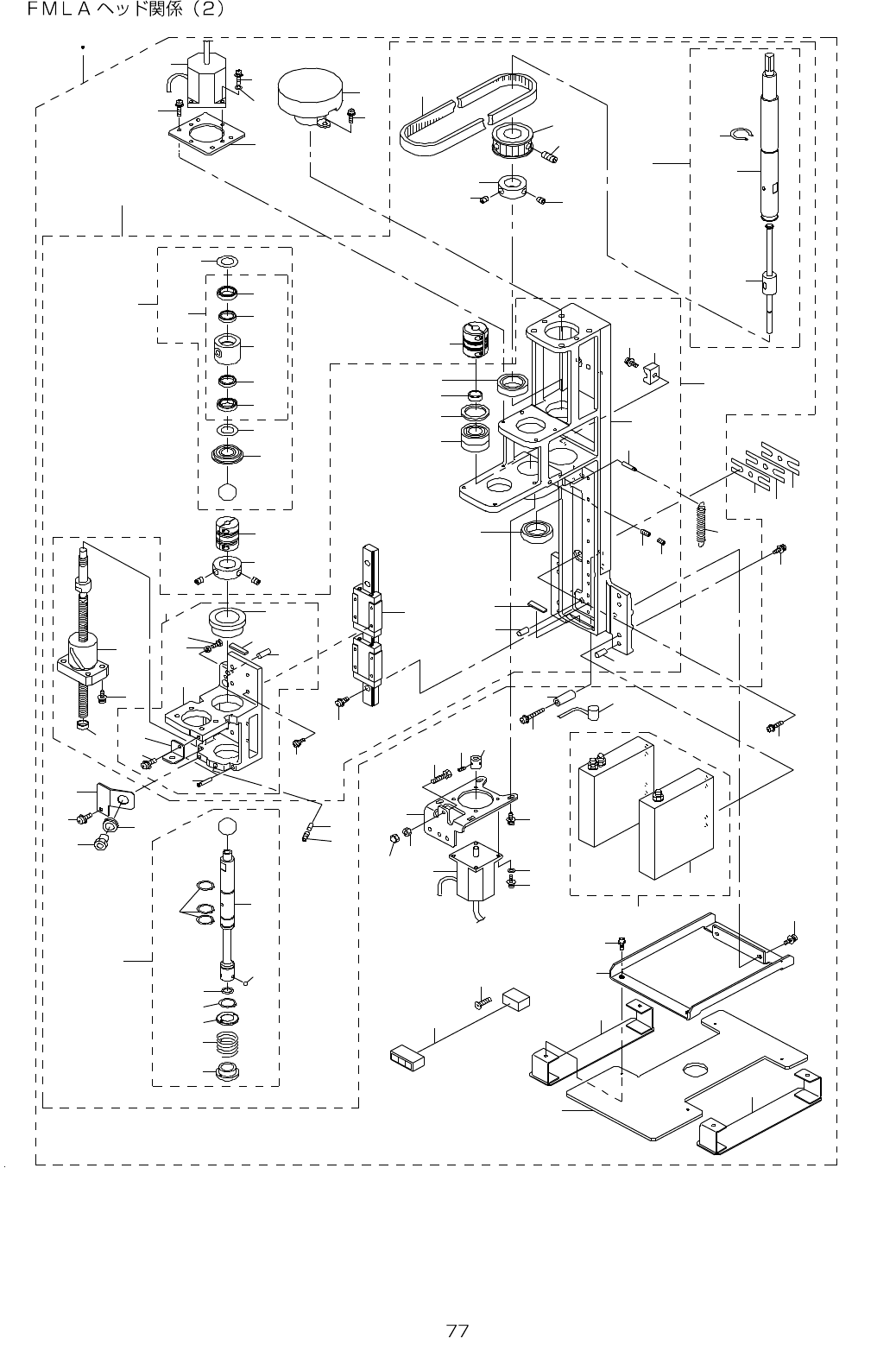

39.FMLA HEAD COMPONENTS (2)
3 4
4 2
3 8
3 9
4 3
5 5
5 5
4 5
4 6
4 7
4 9
4 8
5 0
5 1
5 2
5 3
5 4
5 4
5 6
4 4
3 5
3 6
A
A
5 3
5 2
4 3
5
3 2
6
1 0
9 8
8
9
1 4
1 3
1 9
1 8
2 0
2 1
2 2
2 3
2 6
2 4
2 7
2 5
7
1 5
2 9
1 6
4 0
4 1
7 8
6 1
5 8
5 9
6 0
6 2
6 3
6 4
6 5
3 7
7 3
9 2
7 1
8 2
8 3
8 1
7 5
7 6
7 7
3 3
8 8
8 9
1 7
3 1
8 4
8 0
7 9
8 5
5 7
1 2
7 2
1 1
5
4
3 0
3 1
4 1
8 7
9 7
9 4
9 5
2 8
9 3
7 0
8 6
6 7
7 4
6 6
6 8
9 9
9 9
9 6
1 2
3
9 1
9 0
6 9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 #01 E3201-725-0AA LAIC HEAD ASM. 1
2 #02 E3201-725-0AB LAIC HEAD ASM. 1
3 E3202-725-0A0 HAED UNIT IC ASM. (1)
4 E3203-725-0A0 HAED BRACKET IC ASM. (1)
5 PH-0400062-C0 PIN (6)
6 E3019-725-000 LM GUID (1)
7 SM-6030802-TN BOLT (7)
8 SB-1100017-00 BEARING (1)
9 E3006-721-000 THRUST SPACER D (1)
10 SM-8040642-TP SCREW (2)
11 SM-8040412-TP SET SCREW M3X3 (2)
12 E3020-725-000 BALL SCREW (1)
13 SL-6040842-TN SCR EW M4 L=8 (4)
14 E3005-721-000 THRUST SPACER U (1)
15 E3028-721-000 OIL GUARD (1)
16 E3004-725-0A0 Z SLID ER BRACKET ASM. (1)
17 E3012-725-000 Z SL IDER BRACKET (1)
18 E3016-725-000 TUBE SUPPORT (1)
19 SL-6030642-TN SCR EW M3 L=6 (1)
20 SB-1120006-00 BEARING (1)
21 PH-0400082-C0 PIN (2)
22 SM-9030803-SC SCREW M3X0.5 L=8 (1)
23 NM-6030003-SC NUT M3 (1)
24 E3017-725-000 SPRING STUD (2)
25 E3018-725-000 LIMIT DAMPER Z (1)
26 SL-6031092-TN SCR EW (8)
27 E3017-725-000 SPRING STUD (2)
28 E3018-725-000 LIMIT DAMPER Z (1)
29 HX-0029400-00 FIXED BASE (1)
30 SM-4030601-SC SCREW M3 X 6 (1)
31 SB-1150008-00 ROLLING SHAFT HOLDER (2)
32 E3211-725-000 HAED BRAC KET IC ASM. (1)
33 E3205-725-0A0 SPLINE HOUSING IC ASM. (1)
34 E3015-725-000 BALL SPLINE (1)
35 RC-0150001-KP RETAINING RING 13.8 (1)
36 E3218-725-000 SPRING HOUSING IC (1)
37 E3026-725-000 HAED UP SP (2)
38 E3021-725-000 THET A PILLEY (1)
39 SM-8030802-TP SCREW M3X0.5 L=8 (2)
40 E3022-725-000 SP THRUST COLLAR (1)
41 SM-8030302-TP SCREW M3X0.5 L=3 (2)
42 E3023-725-000 TIMIN G BELT THETA (1)
43 E3206-725-0A0 Z SLID E SHAFT IC ASM. (1)
44 E3013-725-000 Z SL IDE SHAF T (1)
45 E3029-725-000 OUTER SP HOLDER N2 (1)
46 E3213-721-000 NOZ ZLE OUTER (1)
47 E3028-725-000 NOZ ZLE OUTER SP-N2 (1)
48 E4228-760-000 STEEL BALL (3)
49 400-42257 O_RING_70 (1)
50 E3035-721-0A0 ROTARY BLOCK ASM. (1)
51 E3035-721-000 ROT ARY BLOCK (1)
52 E3025-721-000 OIL SEAL (2)
53 SB-1120012-00 BEARING (2)
54 E3026-721-000 SLIDER (2)
55 RC-1200001-KP C-SHAPED SNAP RING (4)
56 SB-1120006-00 BEARING (1)
57 E3027-721-000 SET COLLA (1)
58 E3024-725-000 STOPPER (1)
59 SL-6030642-TN SCR EW M3 L=6 (1)
60 HX-0005500-0G RUBBER BUSH (1)
61 PJ-3010405-05 HALF UNION (1)
62 E3009-721-000 PUSHER RUBBER (1)
63 SM-8040602-TP SCREW M4X0.7 L=6 (1)
64 E3025-725-000 COUPLING TH ETA (1)
65 E3023-721-000 COUPLING (1)
66 SL-6042542-TN SCR EW (1)
67 E3213-725-000 DIF FUSER (1)
68 SL-6031092-TN SCR EW (4)
69 E3214-725-000 DIF FUSER SUPPORT (1)
70 SL-6040892-TN BOLT (2)
71 E3019-721-000 HAED CENTER SH IM A (2)
72 E3020-721-000 HAED CENTER SH IM B (2)
73 E3021-721-000 HAED CENTER SH IM C (2)
74 SL-6051242-TN SCR EW (4)
75 E9308-725-0A0 R THET A HAED MOTOR ASM. (1)
76 SL-6030842-TN SCR EW M3 L=8 (4)
77 WP-0320500-SC WASHER M3 (4)
78 E3013-721-000 THET A MOTOR PULLEY (1)
79 SM-8030302-TP SCREW M3X0.5 L=3 (2)
80 E3027-725-000 THET A BELT TENSIONER (1)
81 SL-6030892-TN SCR EW (4)
82 SM-9031403-SC SCREW (1)
83 NM-6030003-SC NUT M3 (1)
84 NM-7030510-SA NUT M3 (1)
85 E9309-725-0A0 RZ HAED MOTOR ASM. (1)
86 SL-6030842-TN SCR EW M3 L=8 (4)
87 WP-0320500-SC WASHER M3 (4)
88 E9323-725-0A0 SENSOR CABLE ASM. (1)
89 SM-4860801-SC SCREW M2.6 L=8 (1)
90
#03
E9635-725-000 FOC USE MODULAR LA UNIT (1)
91 E9636-725-000 LA SENSOR (TOP CONNECTOR) (1)
92 HX-0033400-0C SPAC ER (1)
93 E9345-721-0A0 CABLE ASM. (1)
94 E3217-725-000 Z MOTOR BASE (1)
95 SL-6030892-TN SCR EW (4)
96 KD-0000000-10 18000P EN COD ER (1)
97 SL-6030892-TN SCR EW (2)
98 SL-6041042-TN BOLT (4)
99 E3219-725-0A0 WOOLEN PAPER BASE ASM. (2)
