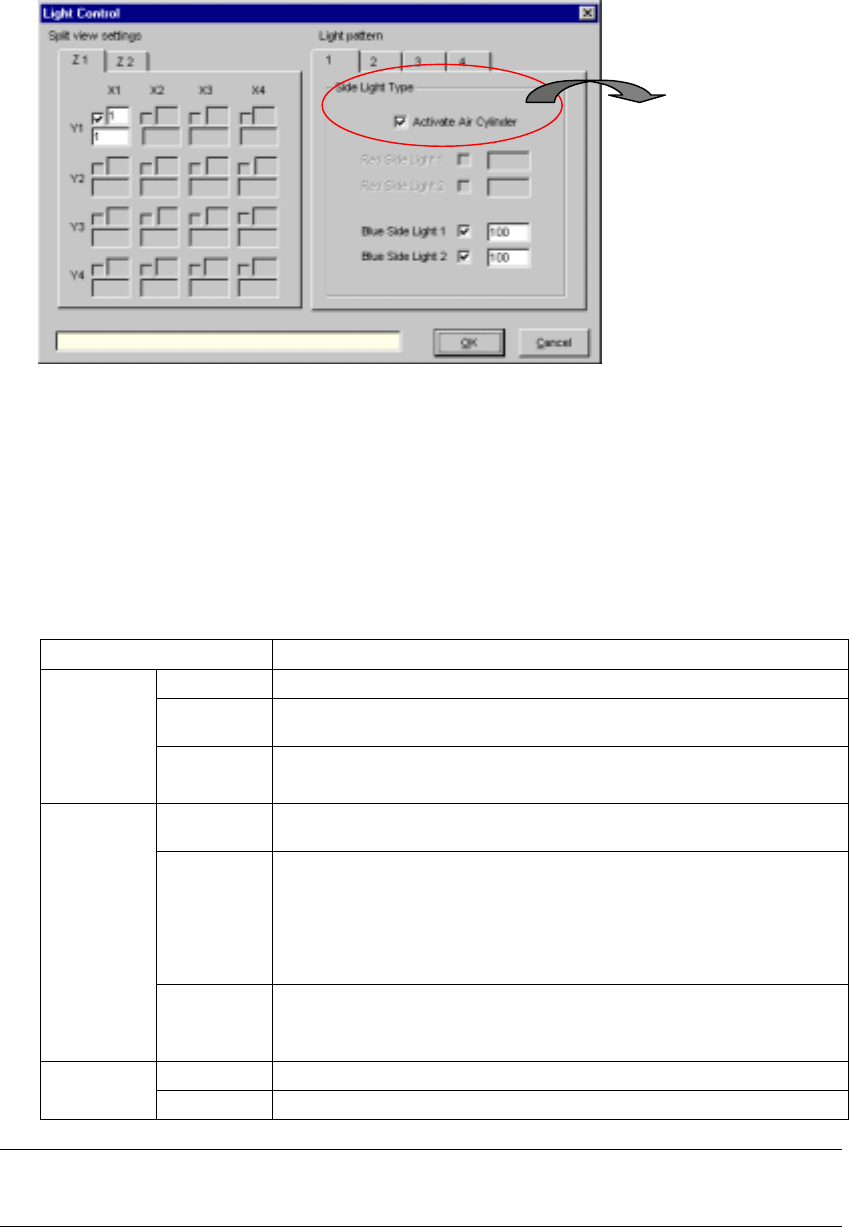

▼ When “Side Lights” is selected from the “Light Type” combo box, and “Blue
side light equipped with a pop-up light” is selected from the sub type combo
box
- When you select “Red side light” as the sub type on the “Vision Control”
screen, the setting items “Red Side Light 1 and 2” become available, and the
setting items “Blue Side Light 1 and 2” become unavailable.
♦ When you click the <OK> button, data is set. When you click the <Cancel>
button, data setting is canceled.
• Detailed description of each item
Item Description
Check box Check this check box to perform a specific division of image.
Pattern
name link
Enter the number of a light pattern to which a specific pattern is linked.
Split view
settings
Index Displays the order the specific division is illuminated with the light.
You cannot change this order.
Activate Air
Cylinder
Check this check box if you use a cylinder with turning it upward.
Light check
boxes
Check the light enabled by settings of the “Light Type” and sub type to use it.
Bottom Light Type: Half-Mirror (coaxial light), Bottom Light 1 and 2, Red
Side Light 1 and 2
Back Light Type: Front/Rear, Left/Right, Red Side Light 1 and 2
Side Light Type: Red Side Light 1 and 2, Blue Side Light 1 and 2
Light
pattern
Control
level
Enter the control level of the light enabled by settings of the “Light Type” and
sub type.
Input range: 10 % to 200 %
OK Sets the entered data.
Cancel Cancels the entered data.
Note:
When a lead or ball is not displayed clearly, change the default value of the light.
* When you do not select the light
equipped with a pop-up light as
the sub type on the “Vision
Control” screen, the “Activate Air
Cylinder” check box is not
checked.
5 − 78
青サイド照明1
青サイド照明2
赤サイド照明1
赤サイド照明2
ハーフミラー
同軸照明
VCS下方照明1
VCS下方照明2
赤色デフューザ
QFP、SOP、CONN、PLCC....ETC
(ｴｱｼﾘﾝﾀﾞﾀﾞｳﾝ時の相対部品高さ)
エアシリンダ
UP
DOWN
PBGA、PBGA_ALL
(ｴｱｼﾘﾝﾀﾞｱｯﾌﾟ時の相対部品高さ)

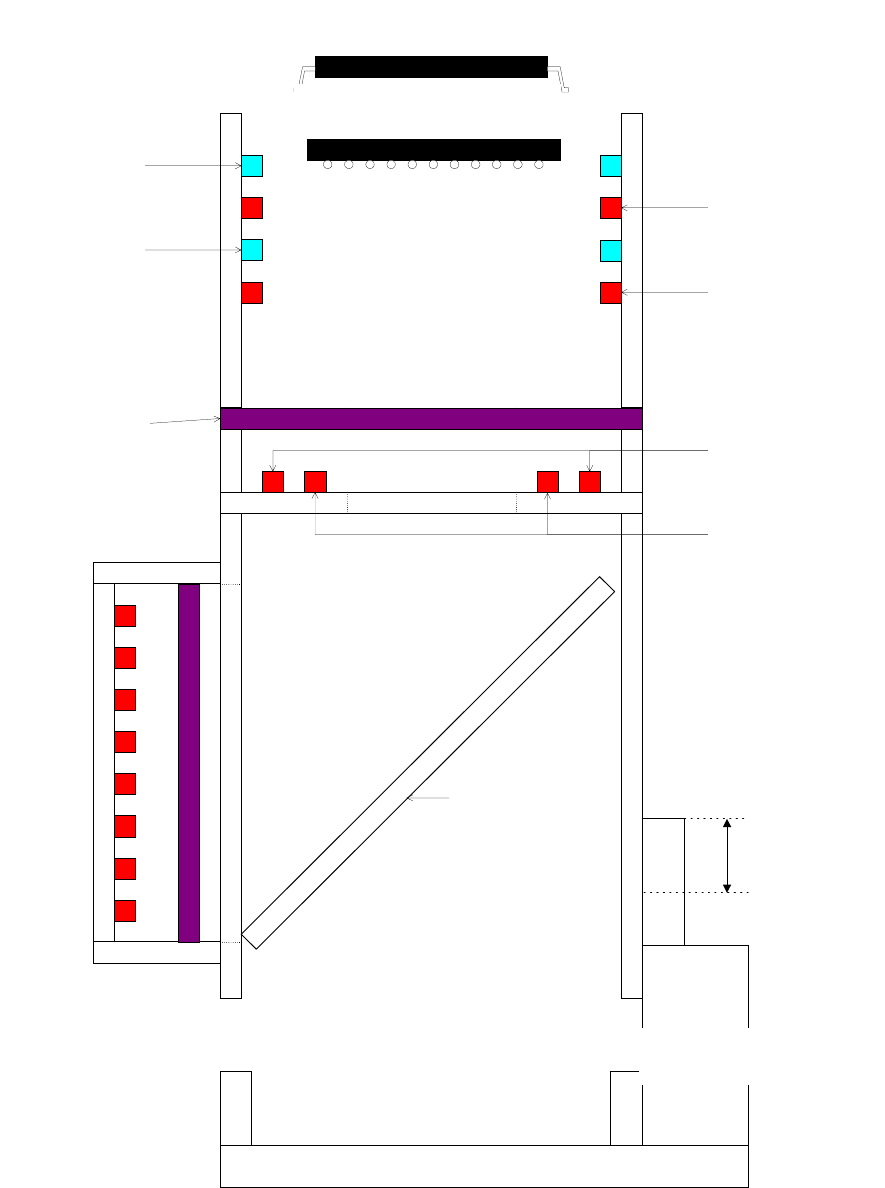

Figure 5.2.6.1 Bottom and side light units
(Relative component height when
the air c
y
linder is moved down
)
(Relative component height
when the air c
y
linder is moved
Blue side light 1
Blue side light 2
Red diffuser
Coaxial light
Air cylinder
Half mirror
Red side light 1
Red side light 2
VCS bottom light 1
VCS bottom light 2
5 − 79

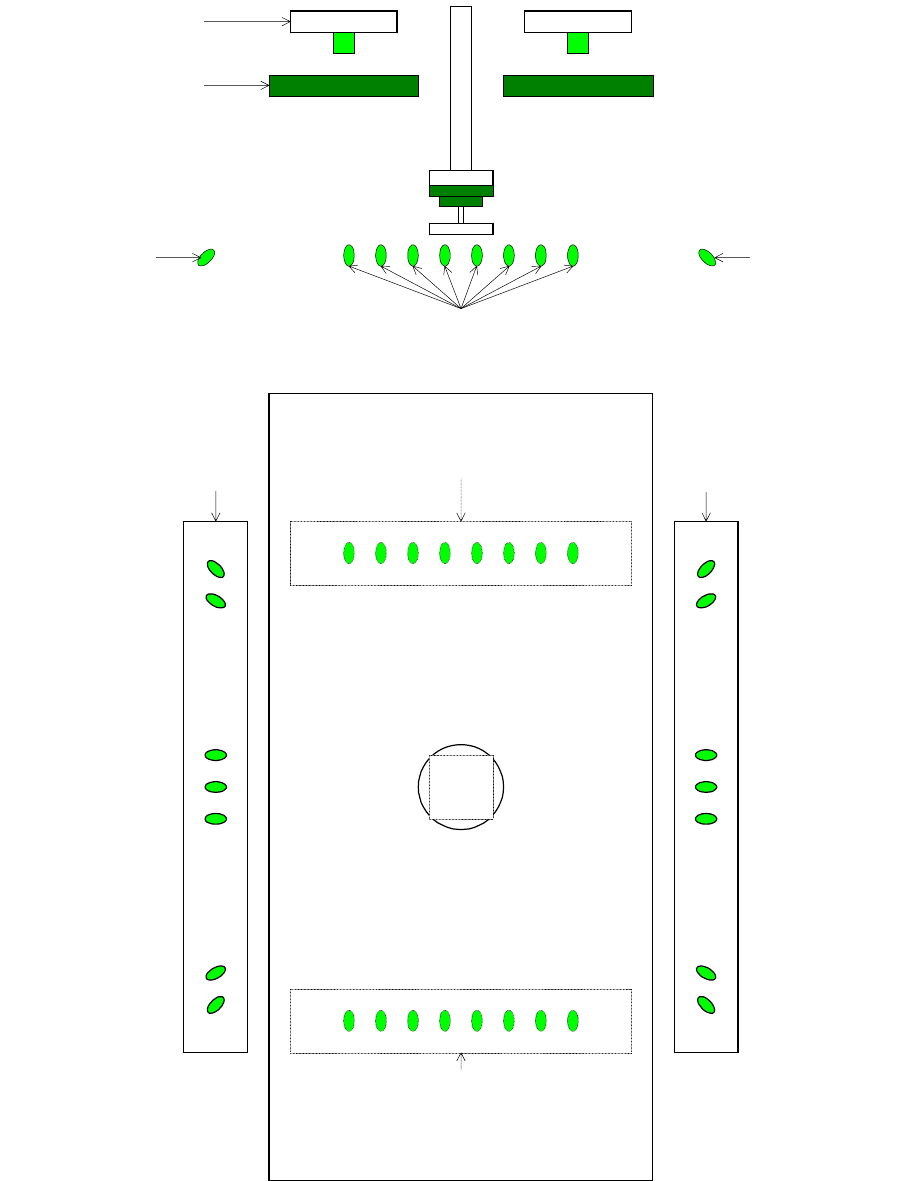

Figure 5.2.6.2 Back light unit
Top View
VCS透過照明前後
後
VCS透過照明前後
前
VCS透過照明左右
左
VCS透過照明左右
右
Side View
VCS透過照明前後
VCS透過照明左右
左
VCS透過照明左右
右
ヘッド透過照明
緑色デフューザ
Head back light
Green diffuser
VCS back lights
left and right
Left
VCS back lights
left and right
L
e
f
t
VCS back lights front and rear
VCS back lights
left and right
Right
VCS back lights front and rear
Front
VCS back lights
left and right
Right
VCS back lights
front and rear
Rear
