00197714-01_IM_REQUIRED_STEPS_BEFORE_USING_SUPPORT_MEDIA_2.0_EN.pdf - 第12页
Required Steps be fore using Suppor t Media 2.0 12/2014 Edition 12 Figure 3-5 : Workgroup changed to SIPLACE ► Click the More… bu tton. Now you hav e t he possibili ty to verify/change the DNS suffix. Figure 3-6 : Cha ng…
Required Steps before using Support Media 2.0 12/2014 Edition
11
The following window appears.
Figure 3-4: Computer Name/Domain Changes window
► First, verify/change the Computer name.
► Second, ensure the Workgroup radio button is selected and enter the correct
workgroup name. For SIPLACE computers the workgroup is SIPLACE.
NOTICE
Different Workgroup Names complicate Network Browsing
Although it shouldn’t make a functional difference if you choose different
workgroup names for the SIPLACE computers in your network, it complicates
finding your computers in network environment.
Required Steps before using Support Media 2.0 12/2014 Edition
12

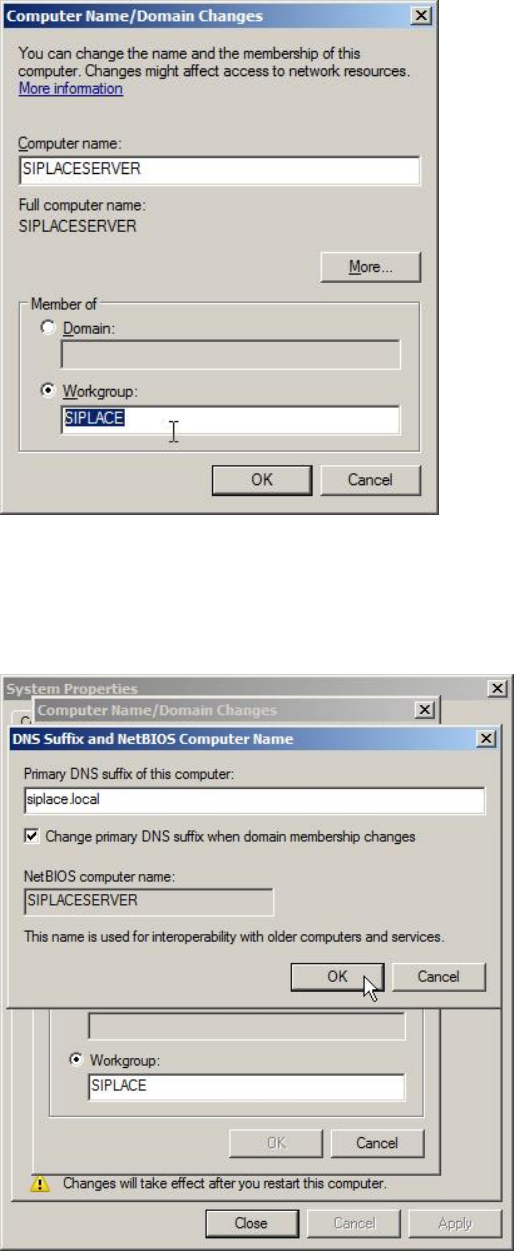

Figure 3-5: Workgroup changed to SIPLACE
► Click the More… button.
Now you have the possibility to verify/change the DNS suffix.
Figure 3-6: Changing the DNS suffix
► Ensure you have the correct DNS suffix. For SIPLACE computers, the suffix is
siplace.local.
► Click the OK button in both open windows to apply the changes.
Required Steps before using Support Media 2.0 12/2014 Edition
13
If you changed the Workgroup, a welcome message like the following will appear.

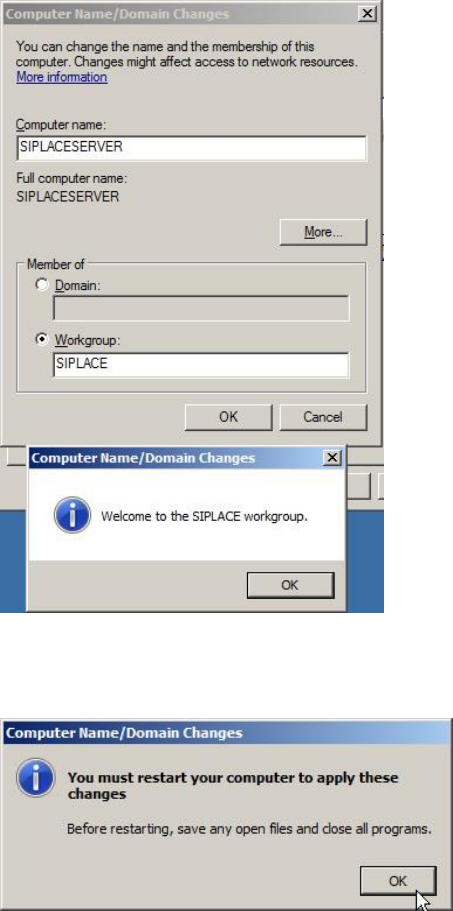

Figure 3-7: Workgroup welcome message
After changing the settings, the Operating System will request a reboot.
Figure 3-8: OS requests restart after changing settings
► Click the OK button.
