Required Steps before using Support Media 2.0 12/2014 Edition
35
► Click on Start.
► Right-click on Network and select Properties.
NOTICE
Alternative Ways to Network Settings
If you don’t have such an entry, open Control Panel – Network and Internet –
Network and Sharing Center (Windows 7)
The following window appears.
Figure 8-8: Network and Sharing Center – clicking Change adapter settings
► Click on Change adapter settings to view the network adapters.
The following window appears.
Figure 8-9: Network Connections window
► If the menu bar with options like File, Edit, etc. is missing, press the ALT key to
display it again.
Required Steps before using Support Media 2.0 12/2014 Edition
36
The window should look like the following.
Figure 8-10: Network Connections window with ALT key pressed and “Advanced” selected
► Click the item Advanced in the menu bar.
Figure 8-11: Selecting Advanced Settings from Network Connections
► Click the Advanced Settings… option.
Required Steps before using Support Media 2.0 12/2014 Edition
37
A window similar to the following opens.

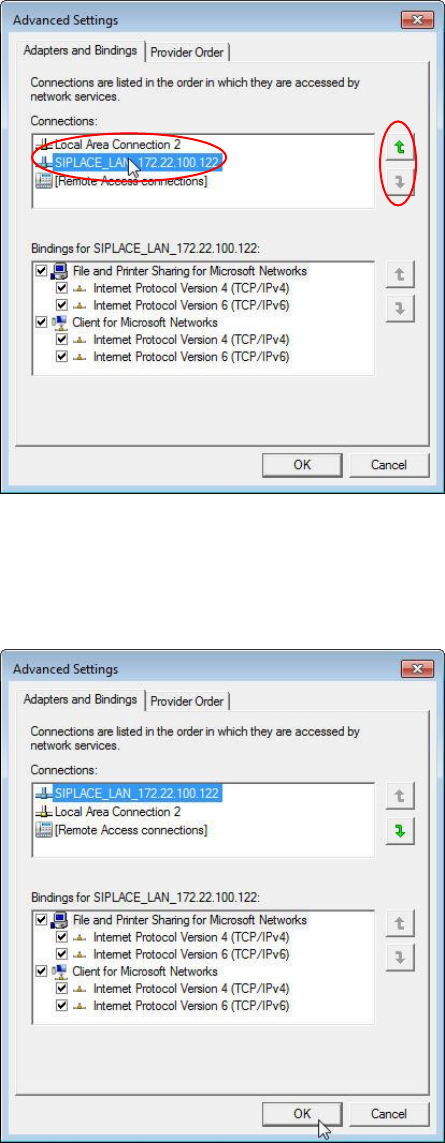

Figure 8-12: Advanced Network Settings with SIPLACE_LAN network connection selected
► In the upper area, select the network connection for which you want to change the
order.
► Click the appropriate arrow button to move the connection up/down in the order.
Figure 8-13: Advanced Network Settings with Network Connections order changed
► After you changed the order complying with your wishes, click the OK button to apply
the setting.
