Required Steps be fore using Suppor t Media 2.0 12/2014 Edition 35 ► Click on Start . ► Right-click on Ne twork and sel ect Properties . NOTICE A lternative Ways to Net work Settings If you don’t hav e such an ent ry, op…
Required Steps before using Support Media 2.0 12/2014 Edition
34
8.2.2 Uniform Time and Date
For authentication and communication, it is very important to ensure all involved
computers having the same
1
date and time.
Additionally some SIPLACE Products (like OIS), requires time zone to be identical.
8.2.3 Order of Network Adapters when using Vision Teach Station
At the SIPLACE Pro Server computer, make sure the network card communicating with
the Vision Teach Station is the first in order. Otherwise the Vision Teach Station cannot
communicate with the SIPLACE Pro Server.
NOTICE
Listed Network Connections are Examples
This chapter describes the general way of changing the order of network
connections. The network connections on your SIPLACE Pro Server computer
may differ from the connections in these screenshots. You have to identify the
appropriate connection which is communicating with Vision Teach Station by
yourself.
To change the order of network connections:
Figure 8-7: Opening Network Settings
1
For Windows authentication (using NTLMv2) to work correctly, system time must not
differ too much (<36 h) from the client.
For information on NTLMv2:
http://support.microsoft.com/?scid=kb%3Ben-us%3B823659&x=12&y=9
Required Steps before using Support Media 2.0 12/2014 Edition
35
► Click on Start.
► Right-click on Network and select Properties.
NOTICE
Alternative Ways to Network Settings
If you don’t have such an entry, open Control Panel – Network and Internet –
Network and Sharing Center (Windows 7)
The following window appears.
Figure 8-8: Network and Sharing Center – clicking Change adapter settings
► Click on Change adapter settings to view the network adapters.
The following window appears.
Figure 8-9: Network Connections window
► If the menu bar with options like File, Edit, etc. is missing, press the ALT key to
display it again.
Required Steps before using Support Media 2.0 12/2014 Edition
36
The window should look like the following.

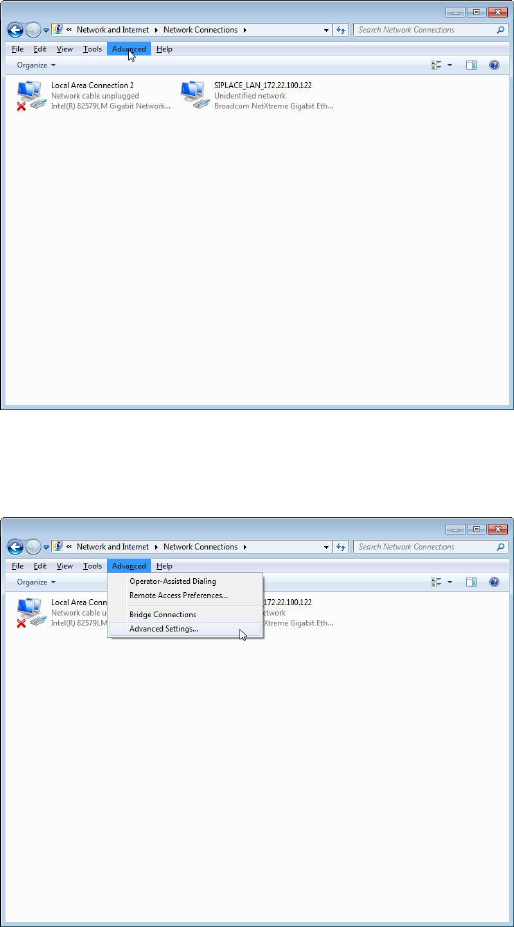

Figure 8-10: Network Connections window with ALT key pressed and “Advanced” selected
► Click the item Advanced in the menu bar.
Figure 8-11: Selecting Advanced Settings from Network Connections
► Click the Advanced Settings… option.
