Required Steps before using Support Media 2.0 12/2014 Edition
27
The following window appears.
Figure 7-2: Network and Sharing Center – clicking Change adapter settings
► Click on Change adapter settings to view the network adapters.
Figure 7-3: Selecting Adapter Properties
► Select the appropriate adapter, right- click on it and select Properties.
NOTICE
Network Adapter Identification by Connection Name
If you already performed the previous chapters, your network adapter(s) should
already contain a custom connection name indicating its usage.
Required Steps before using Support Media 2.0 12/2014 Edition
28

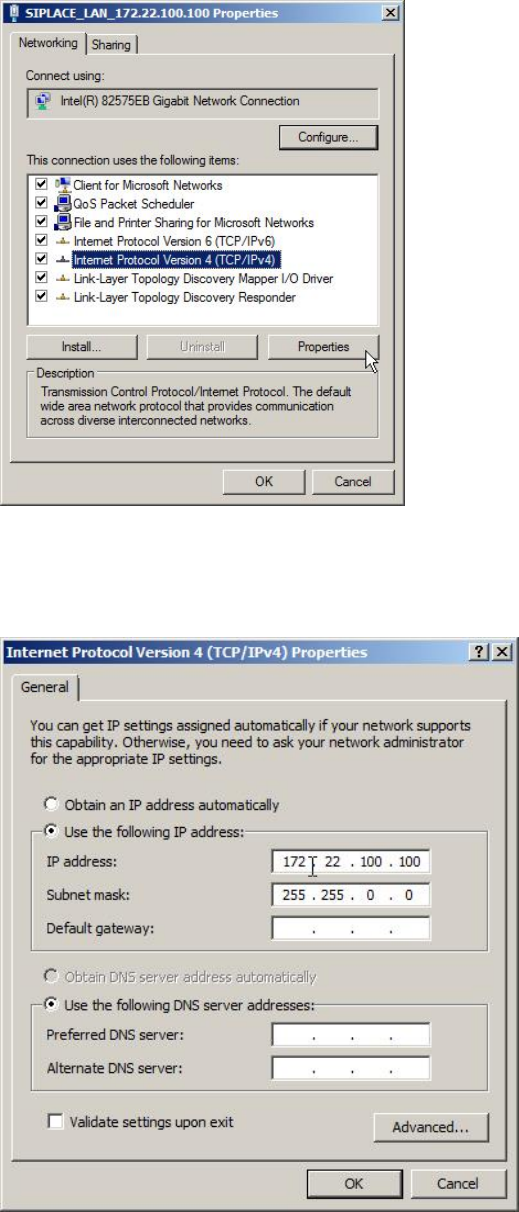

Figure 7-4: Adapter Properties
► Select the entry Internet Protocol Version 4 (TCP/IPv4) (don’t uncheck the checkbox!)
► Click on Properties.
Figure 7-5: TCP/IP Properties
► Verify your TCP/IP settings. If you don’t have a valid default gateway, don’t enter one.
► Click OK when done.
Required Steps before using Support Media 2.0 12/2014 Edition
29
You should also disable not used network adapters to avoid conflicts. To do this:

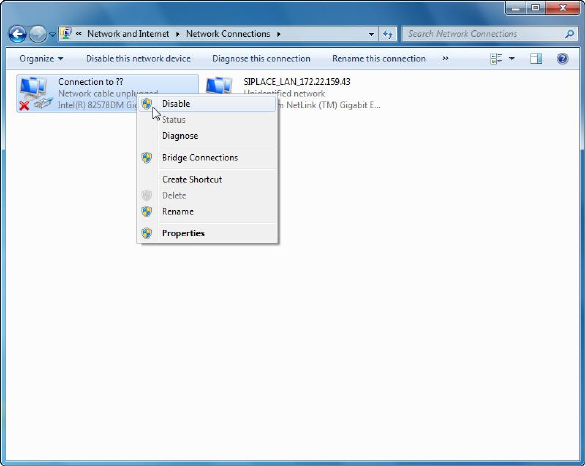

Figure 7-6: Disabling a network adapter
► Right-click on the appropriate (not used) network adapter and select Disable.
