2 General

2.2 Module Description

User Manual SIPLACE Glue Feeder 05/2020 13

2.2 Module Description

2.2.1 Overview

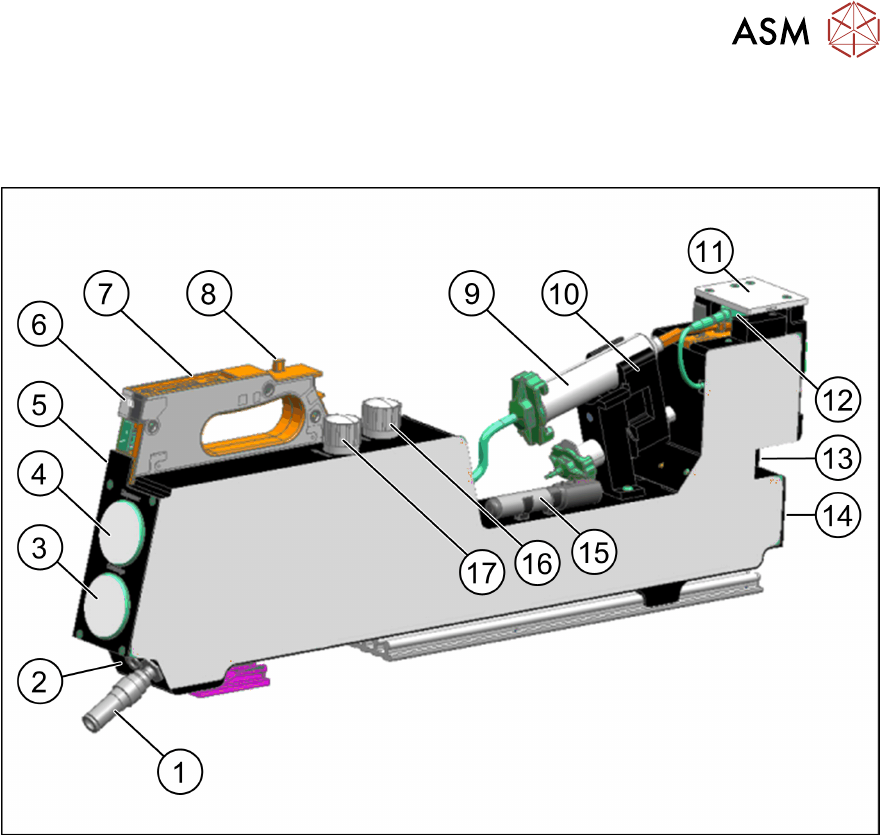

Fig.2: Overview of Glue Feeder

1. Connection for external compressed air

supply

10. Cartridge holder for 10 ml-/ 30 ml cart-

ridges

2. Connection to machine safety circuit

3. Manometer for current pressure at the

cartridge

11. Nozzle

12. Nozzle heating

4. Manometer for current pressure at the jet

valve

13. Setting screw for the spring pre-tension at

the jet valve

5. Removal handle

6. Status display LED 14. EDIF energy and data interface

7. Control panel 15. Special tool

8. Back centering pin 16. Pressure reducer for pressure at jet valve

of dispenser nozzle

9. Glue cartridge

17. Pressure reducer for pressure at cartridge

Item no. 03088129-xx

2 General

2.2 Module Description

14 User Manual SIPLACE Glue Feeder 05/2020

2.2.2 Displays and Controls

1. 7 segment display 1/2

2. 7 segment display 3/4

3. Button to increase value

4. Button to decrease value

5. Button to save set value

6. Button to change to submenu

7. Status display LED

The Glue Feeder has a main menu and submenu for setting the nominal temperature. After switch-

on, the main menu is automatically shown.

To switch over to the submenu, press the gray button. The nominal temperature can be set using

the arrow buttons (3, 4). The main menu is automatically shown again 60 seconds after the last

press of a button.

Overview of 7 segment displays for individual operating states (with error states)

Operating state 7 segment display

No. Display value/symbol

Main menu is active, the Glue Feeder is ready for opera-

tion, the temperature is in the working range.

1/2 Actual temperature

3/4 Nominal temperature

The menu for setting the nominal temperature of the glue

has been selected.

1/2 t E (temperature)

3/4 Nominal temperature

All temperatures are shown in °C. The resolution is 1°C.

Status display LED

The status display LED shows the various operating states.

OFF The Glue Feeder is not needed for the current product or has no electricity supply.

GREEN The Glue Feeder is needed for the current product and there is no error present.

RED An error has occurred which requires action by the operator.

ORANGE Warning (e.g. the safety cover is fitted at the front, on the Glue Feeder, over the

nozzle)

The Glue Feeder always switches the status display LED to ORANGE if the safety cover is on the

jet valve. The station software may overwrite the Glue Feeder display if the machine cover is

closed although the safety cover is still on the jet valve.

For further information about the error displays, see section 6 "Troubleshooting " [}93].

2 General

2.2 Module Description

User Manual SIPLACE Glue Feeder 05/2020 15

2.2.3 Technical Data

Operating pressure of Glue Feeder

Connection to the machine:

External connection:

max. 5.6 bar

max. 7.5 bar

The manufacturer's information on the operating medium

also apply.

Pay attention to the compressed air specifications for the

placement machine.

Length 584.9 mm

Height 199.5 mm

Width 57.6 mm, corresponds to 5 tracks, each with 8mm

Weight 4.6 kg

Diameter

smallest possible single dot *

0.7 - 0.8 mm (+/- 0.1mm)

Diameter

dot made with 5 shots *

1.0 mm (+/- 0.2 mm)

Height

single dot *

0.15 mm (+/- 0.02 mm)

Height

dot made with 5 shots *

0.2–0.3mm

* for 100 µm nozzle diameter and use of glue Heraeus PD205A-Jet(at53°C) or Loc-

tite3621(at53°C)

Manufacturer's data for the jet valve (not for the overall system)

Valve type 16 NC

Dosage volume 10 – 200 nl per cycle

Viscosity range 50 - 200,000 mPas (thixotrope)

Dosage accuracy > 99 % (dosage tolerance < 1 %)

Dosage frequency Typically 15 - 20 ms or 50 - 67 Hz, maximum 150 Hz

Materials which touch fluid Stainless steel, non-corrosive 1.4305; hard metal K10 (WC

+Co); NBR

Operating medium Filtered compressed air, unoiled, filtration fineness 40µm

Operating pressure 2 ..... 8bar

Switching time < 1 ms

Control 24 V, SPS compatible

Service life >10

switching cycles

Weight 270 g

Ambient temperature -5 ..... +40°C

Max. heating temperature 70°C
