4.1.2 Enabling/Disabling Gluing in the Component Object Properties
This is a global setting which specifies whether the component may be glued during placement or
not.

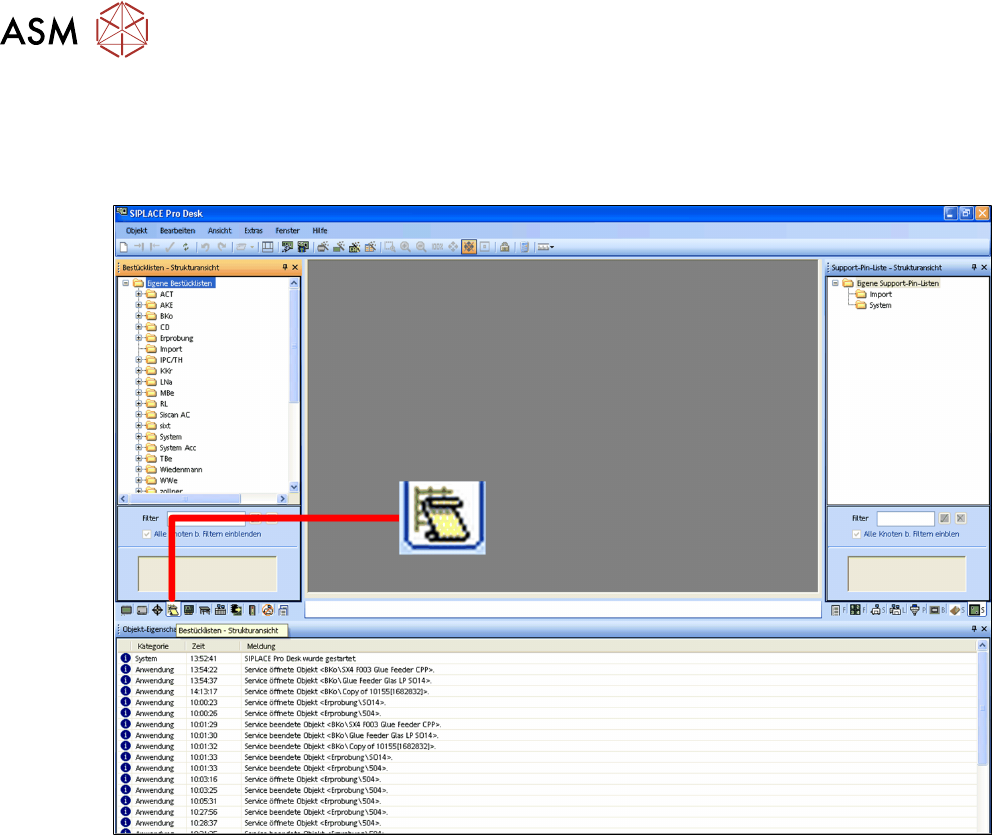

► Switch over to the main window.
► Click on the Components – tree view icon.
The component tree view will be shown.
► Select the component to be processed.
4 Operation
4.1 Settings in SIPLACE Pro 10.1 and Higher
User Manual SIPLACE Glue Feeder 05/2020 39
The object properties for the selected component will be shown.

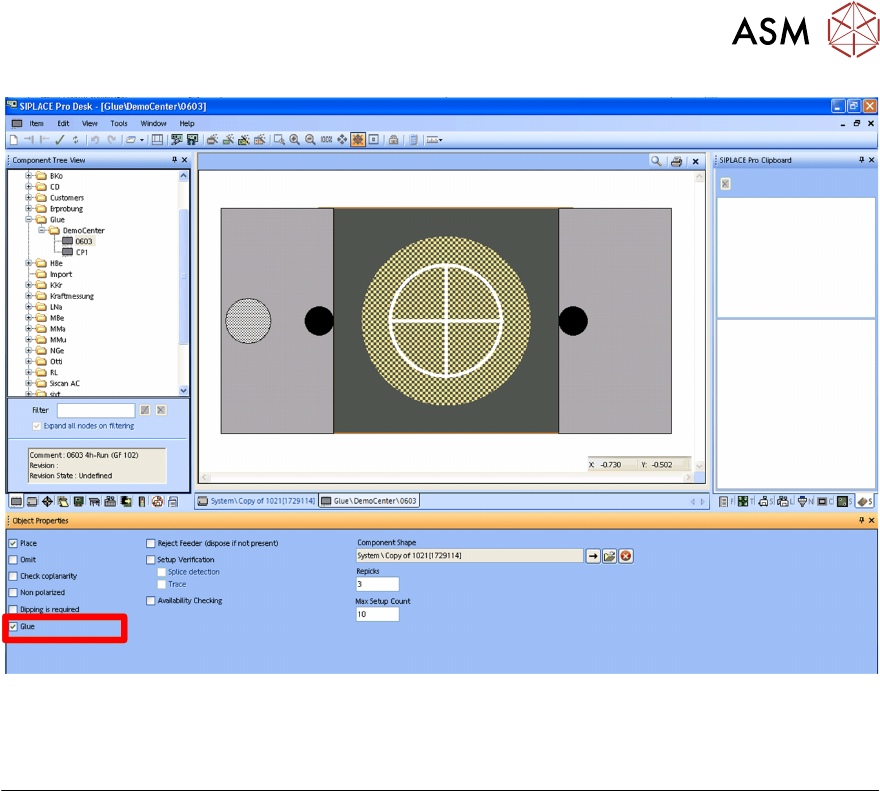

The diagram shows the option Glue marked.
Gluing
If this option is enabled, the selected component will be released for gluing during the placement
process. You can then define in the placement list whether this component is actually to be glued
or not.
4 Operation
4.1 Settings in SIPLACE Pro 10.1 and Higher
40 User Manual SIPLACE Glue Feeder 05/2020
4.1.3 Enabling Gluing in the Placement List
Any one component can occur multiple times on a single board. This is where you define in the
placement list the positions on the board at which a component is to be glued and those positions
at which a component should not be glued.
► Switch over to the main window.
► Click on the Placement list – tree view icon.
The placement list tree view will be shown.
► Select the placement list to be processed.
