5 Cleaning and Maintenance 5.6 Guide Bushing and Actuator O-Ring 90 User Manual SIPLACE Glue Feeder 05/2020 ► Turn the corrugated handle anticlockwise to open the clamping nut. ► Loosen the screws fastening the top guide…
5 Cleaning and Maintenance
5.6 Guide Bushing and Actuator O-Ring
User Manual SIPLACE Glue Feeder 05/2020 89

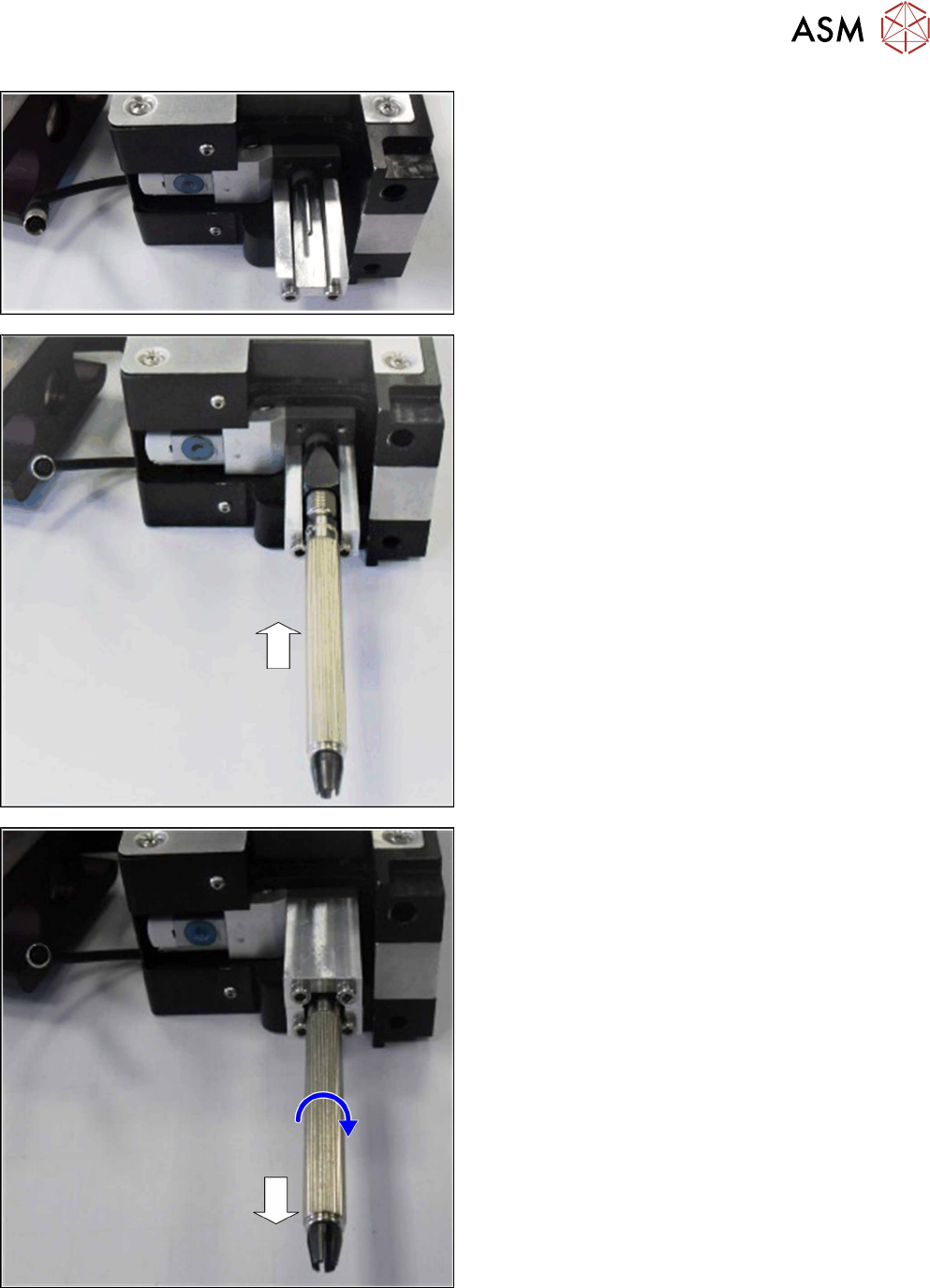

► Fit one of the guide profiles with the open side
pointing upwards (inner), using the screws
provided.
► Place the tool holder with the square nut onto the
guide profile.
Make sure that the square nut is fitted onto the smaller
(narrower) clamping insert.
► Push the tool holder up to the end stop on the
plunger.
► Fit the second guide profile with the open side
pointing downwards (inner), using the screws
provided.
► Turn the corrugated handle clockwise to tighten
the clamping nut.
► Pull the plunger straight out of the jet valve.
The heads of the screws fastening the guide profiles
prevent the tool holder from being pulled completely
out of the guide and possibly bent.
5 Cleaning and Maintenance
5.6 Guide Bushing and Actuator O-Ring
90 User Manual SIPLACE Glue Feeder 05/2020

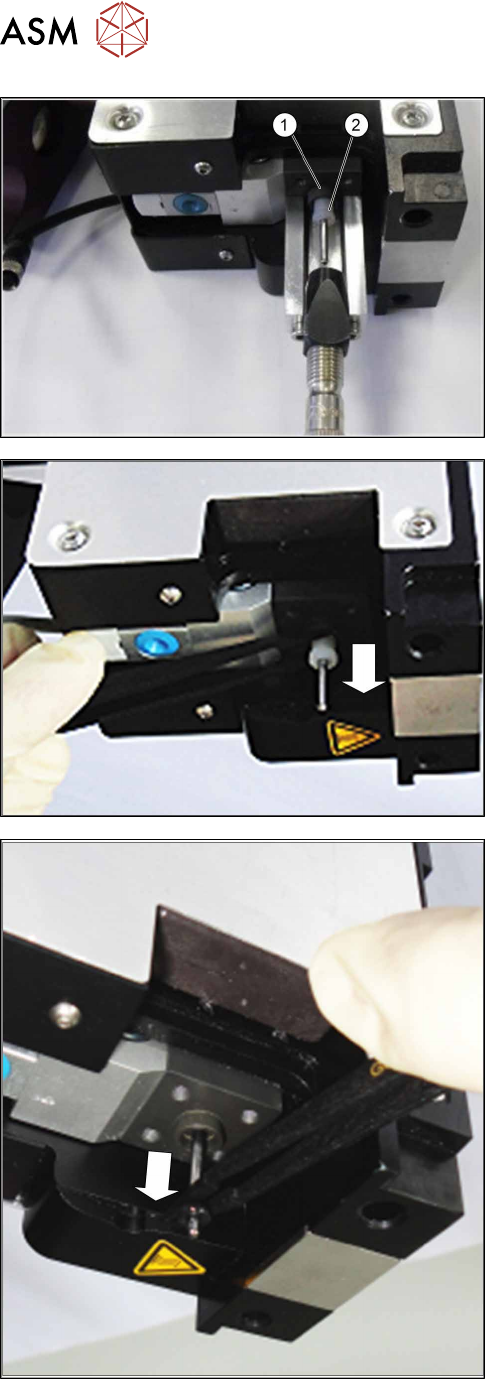

► Turn the corrugated handle anticlockwise to open
the clamping nut.
► Loosen the screws fastening the top guide profile
and remove the profile.
ð The guide sleeve (2) can be seen in the hous-
ing of the jet valve. The actuator O-ring be-
hind it (1)
is still in the housing.
► Remove the tool holder.
► Loosen the screws fastening the bottom guide
profile and remove the profile.
► Use the antistatic tweezers to pull the guide
sleeve forwards and off the plunger.
► Only if the actuator O-ring is not accessible:
use your thumb and index finger to pull the plun-
ger slightly out, until the actuator O-ring can be
seen.
► Use the antistatic tweezers to pull the actuator O-
ring forwards and off the plunger.
► Clean the guide bushing and exchange the actuator O-ring (item no. 03101821-xx).
► If the guide bushing (item no. 03100695-xx) is badly soiled or if it is defective, replace it.
To grease the actuator O-ring, we can recommend using Kluebersynth AR 34-401(special
grease for actuator O-rings, item no. 03102068-xx).
5 Cleaning and Maintenance
5.6 Guide Bushing and Actuator O-Ring
User Manual SIPLACE Glue Feeder 05/2020 91

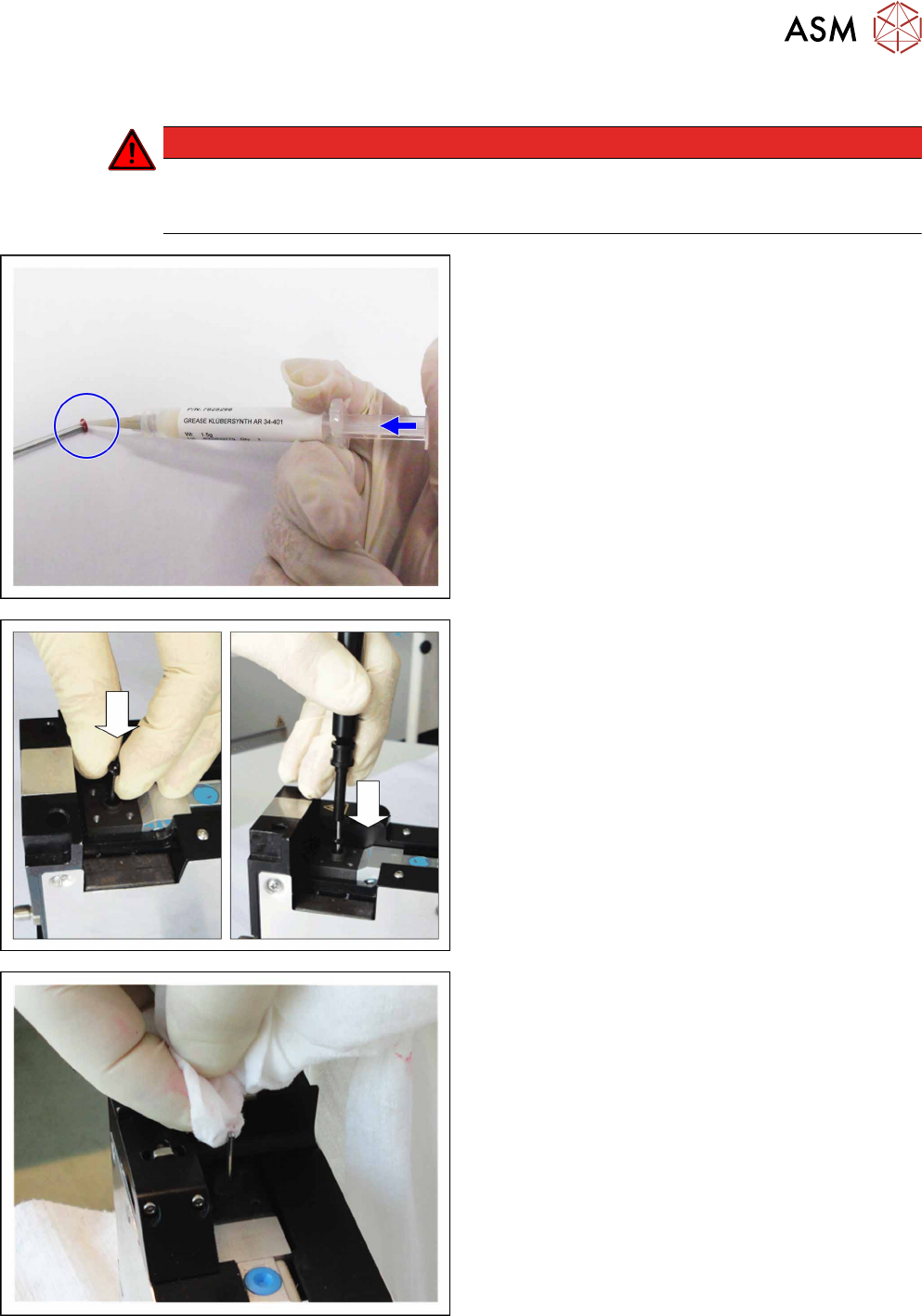

5.6.2 Inserting the Actuator O-Ring and Guide Bushing
DANGER
Risk of damage
Never exert side forces against the jet plunger. The valve could be seriously damaged by
this. This would cause the Glue Feeder to malfunction.
► Coat the actuator O-ring (item no 03101821-xx)
with a some special grease ( Kleubersynth AR
34-401, item no. 03102068-xx).
► From above, fit the actuator O-ring onto the jet
plunger.
► From above, fit the O-ring service tool vertically
onto the jet plunger and push the actuator O-ring
as far as possible (end stop) onto the jet plunger.
► Remove the O-ring service tool.
► Clean the jet plunger with a cleansing tissue.
Make sure not to bend the jet plunger.
