5 Cleaning and Maintenance
5.1 Maintenance Kit
User Manual SIPLACE Glue Feeder 05/2020 67
5 Cleaning and Maintenance
WARNING
Protective clothing
Wear your personal protective clothing (protective goggles and gloves) for all work using or
on the Glue Feeder.
5.1 Maintenance Kit
To clean and service the Glue Feeder, use the service kit for Glue Feeder dispenser, item no.
03095882-xx. All service kit parts can be ordered separately.

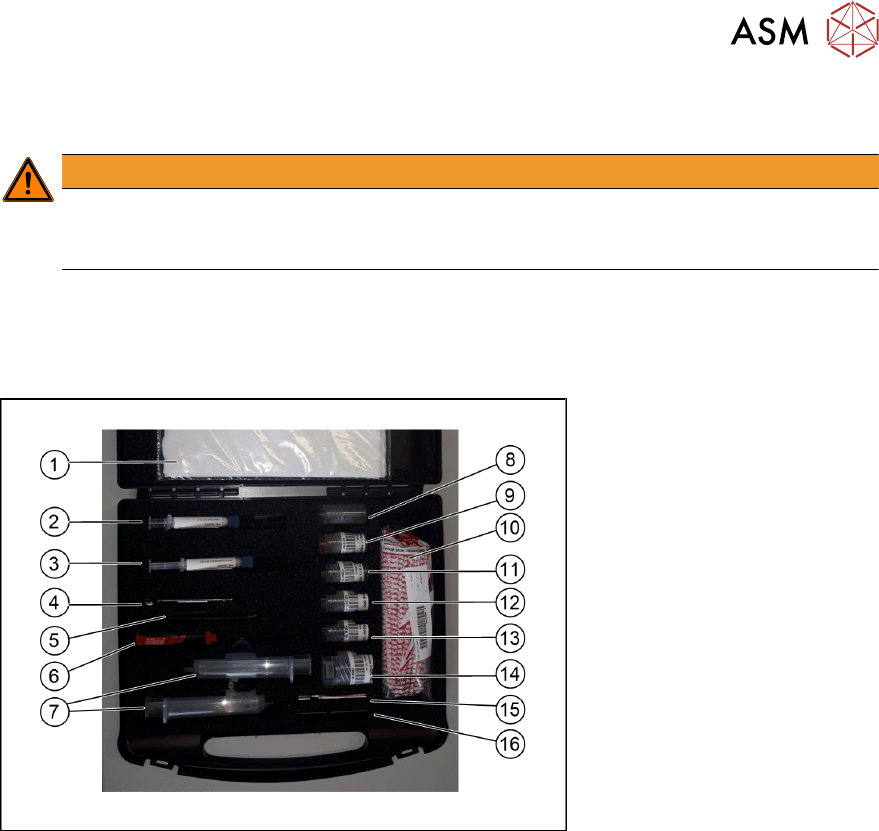

The service kit contains the following items:
1. 10 cleansing tissues, KM wipe, item no. 03082092-xx
2. Turmotemp II/400 CL 2 (0.5g grease for O-ring NBR inner), item no. 03095880-xx
3. Kluebersynth AR 34-401 (special grease for actuator O-rings), item no. 03102068-xx
4. Double wrench, small size 8, item no. 03095872-xx
5. Antistatic tweezers, item no. 00377394-xx
6. Hexagon screwdriver with handle, size 2.5, item no. 00320491-xx
7. 2 disposable syringes Omnifix 30ml, item no. 03095875-xx
8. 5 guide sleeves V (for jet valve), item no. 03100695-01
9. 10 actuator O-rings (plunger seal NBR inside 2x1.7 PS583/NBR70), item no. 03101821-xx
10. 1 pack of 80 pipe cleaners, lint-free, item no. 00315262-xx
11. 50 O-rings for plunger (NBR TF 2x1.5, item no. 03094179-xx
12. Seal for nozzle heating (NBR, item no. 03122031-xx )
13. 10 O-rings for optimum adapter 10 ccm, item no. 03094186-xx
14. 10 O-rings for optimum adapter 30 ccm, item no. 03094185-xx
15. O-ring tool, item no. 03101816-xx
16. Extraction tool set for plunger jet valve, item no. 03216329-xx
17. Cleaning spray ZESTRON HC, item no. 03095878-xx (not in case)
Optional recommendations, not included in the maintenance kit:
●
Brush set, 10 x , item no. 00370771-xx
●
Brush, item no. 00378523-xx
5 Cleaning and Maintenance
5.2 Equipment Required
68 User Manual SIPLACE Glue Feeder 05/2020
5.2 Equipment Required
You also need the following items for cleaning and maintenance work:
You need the following protective clothing items:
●
Protective gloves, item no. 00372972-xx
●
Protective goggles, item no. 003095990-xx,
supplied with the Glue Feeder.
Optional recommendations, not included in the main-
tenance kit:
1. Ultrasound bath SONOREX SUPER RK 510,
Bandelin item no.: 327
2. Clip-on basket K 10, item no. Bandelin: 359
3. Handle adjustment GV 10 for baskets (1 pair),
item no. Bandelin: 092
4. Cover D 510, item no. Bandelin: 3008
●
If the adhesive producer does not recommend
any special cleaning agent, you can use Vigon
SC 210 by Zestron, for example, to remove ad-
hesive from dispensation nozzles and fluidics.
The ultrasound bath and accessories can be ordered from Bandelin at:
www.bandelin.com
.
NOTICE
Cleaning solution
This ultrasound bath and accessories is also recommended for cleaning ceramic nozzles
and pressure control valves. However, if you are also using this ultrasound device for
cleaning nozzles, make sure that you never use the nozzle cleaning solution for cleaning
the Glue Feeder!
NOTICE
Do not use alcohol
Alcohol may NOT be used as a cleaning agent. Using alcohol with epoxy resin glues can
initiate hardening of the glue, making it impossible to clean the nozzle afterwards.
5 Cleaning and Maintenance
5.3 Maintenance Overview
User Manual SIPLACE Glue Feeder 05/2020 69
5.3 Maintenance Overview
Fig.4: Seals at the jet valve
1. Jet plunger
2. Jet block
3. O-ring for plunger, item no. 03094179-xx
4. O-ring for plunger, item no. 03094179-xx
5. Guide bushing, item no. 03100695-xx
6. Actuator O-rings (plunger seal NBR inside 2x1.7 PS83NBR70), item no. 03101821-xx
Cleaning intervals
Cleaning, inspecting the gluing unit and exchanging the o-ring for the plun-
ger:
Daily
Exchange the actuator O-ring and inspect guide bushing: Monthly
Cleaning the gluing unit during operation
●
If the opening of the dispenser nozzle is dirty when measured, the machine will be stopped.
► To clean the nozzle, wipe off the glue residues with a dry, lint-free cloth.
●
If the dispensed glue dots do not have the correct shape or size and if you can find no other
cause of this (such as incorrect pressure or temperature settings), you will need to remove
and clean the nozzle.
► Follow the instructions in section 5.4 "Cleaning and Inspecting the Gluing Unit" [}70].
