5 Cleaning and Maintenance 5.4 Cleaning and Inspecting the Gluing Unit 70 User Manual SIPLACE Glue Feeder 05/2020 Cleaning the gluing unit after operation The recommended cleaning cycle for the gluing unit depends on you…
5 Cleaning and Maintenance
5.3 Maintenance Overview
User Manual SIPLACE Glue Feeder 05/2020 69
5.3 Maintenance Overview
Fig.4: Seals at the jet valve
1. Jet plunger
2. Jet block
3. O-ring for plunger, item no. 03094179-xx
4. O-ring for plunger, item no. 03094179-xx
5. Guide bushing, item no. 03100695-xx
6. Actuator O-rings (plunger seal NBR inside 2x1.7 PS83NBR70), item no. 03101821-xx
Cleaning intervals
Cleaning, inspecting the gluing unit and exchanging the o-ring for the plun-
ger:
Daily
Exchange the actuator O-ring and inspect guide bushing: Monthly
Cleaning the gluing unit during operation
●
If the opening of the dispenser nozzle is dirty when measured, the machine will be stopped.
► To clean the nozzle, wipe off the glue residues with a dry, lint-free cloth.
●
If the dispensed glue dots do not have the correct shape or size and if you can find no other
cause of this (such as incorrect pressure or temperature settings), you will need to remove
and clean the nozzle.
► Follow the instructions in section 5.4 "Cleaning and Inspecting the Gluing Unit" [}70].
5 Cleaning and Maintenance
5.4 Cleaning and Inspecting the Gluing Unit
70 User Manual SIPLACE Glue Feeder 05/2020
Cleaning the gluing unit after operation
The recommended cleaning cycle for the gluing unit depends on your usage and the type of glue
used. All the following instructions apply for SMT glues based on epoxy resin but not for anaerobe,
snap cure or UV-curing glues.
●
If the Glue Feeder is used continuously during a production recipe, a shift or during two con-
secutive shifts, you will need to clean the gluing unit once a day or after approx. 24 hours.
●
If small recipe sizes are produced and the Glue Feeder is only used for a few hours, you can
store it uncleaned at room temperature (up to 25°C) until it is needed for the next recipe. How-
ever, if the overall time (production time + storage time) exceeds 24 hours, you will need to
clean the gluing unit.
●
When the Glue Feeder is used on a daily basis, the actuator O-ring and the guide bushing
need to be inspected and cleaned once a month or, if the Glue Feeder is only used occasion-
ally, inspect and clean the actuator O-ring and guide bushing after approx. 30 days of use. It
is important that the gluing unit is also cleaned under the guide bushing and actuator O-ring.
The jet plunger must be freely movable and not subjected to any major friction.
NOTICE
Follow the instructions
When performing cleaning and assembly work, follow all the instructions in section 5.4
"Cleaning and Inspecting the Gluing Unit" [}70].
5.4 Cleaning and Inspecting the Gluing Unit
CAUTION
Poisonous and hazardous substances
To avoid direct contact with the glue and cleaning agents, always wear protective gloves
during cleaning work.
5.4.1 Dismantling the Gluing Unit
5.4.1.1 Removing the Cartridge
► Place the Glue Feeder down on a firm surface.
► Hold the cartridge tightly with one hand.
► Turn the cartridge adapter anticlockwise by about
90°.
5 Cleaning and Maintenance
5.4 Cleaning and Inspecting the Gluing Unit
User Manual SIPLACE Glue Feeder 05/2020 71

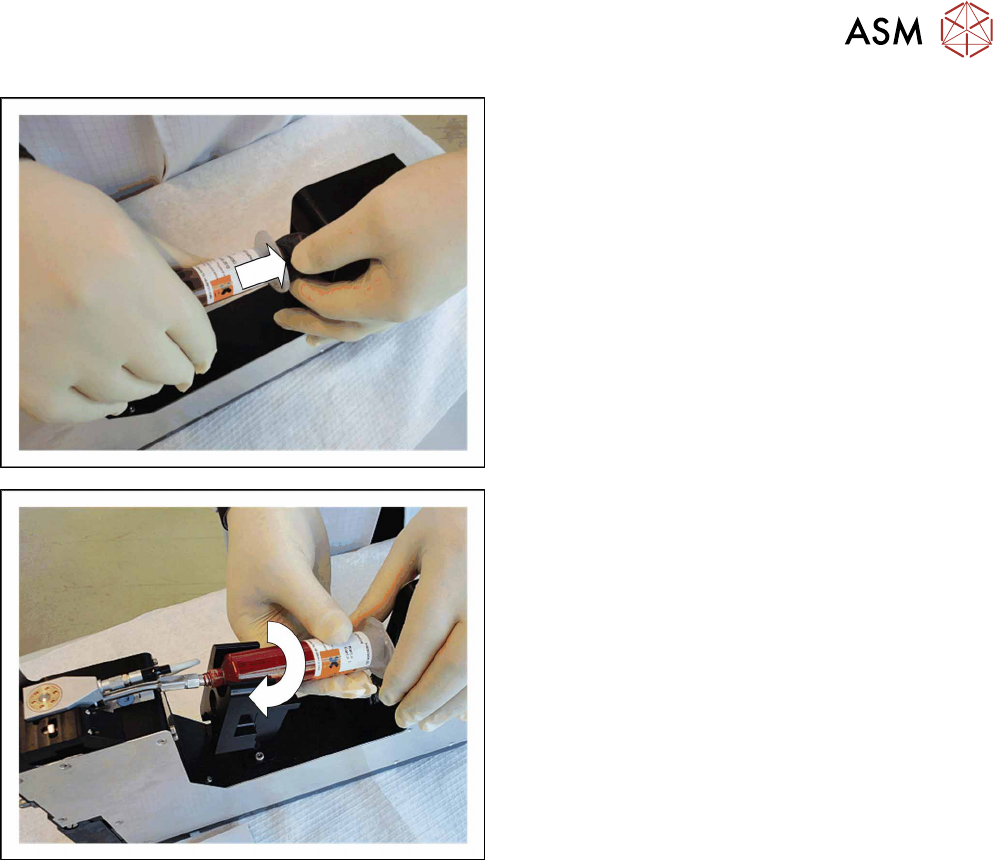

► Press the cartridge adapter towards the back and
pull it off.
► Unscrew the cartridge from the cartridge pipe
thread.
