Installation
Hardware Installation Motorola MC70/MC75 1D/2D barcode scanner
24 Installation Manual SIPLACE Setup Center 5.0

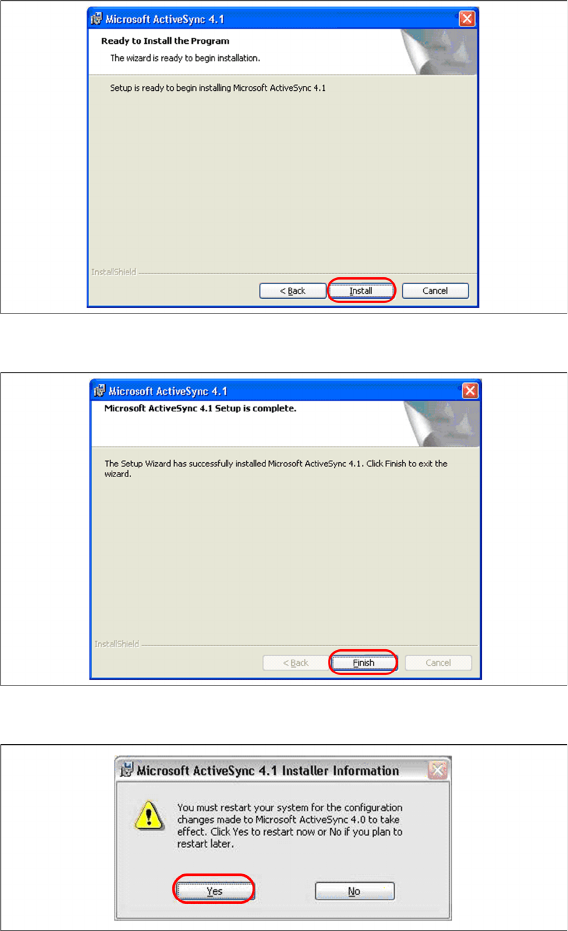

► Select "Install" to start with the installation of Microsoft ActiveSync.
► Click on "Finish" to terminate the Microsoft ActiveSync Installation.
► In case that a restart is necessary please select "Yes".
► Please start MC70 Prerequisite installation from CD after the restart.
See also
4.2.3.3.2 Step 2: AppCenter [ ➙ 26]
Installation
Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 5.0 25
Windows Vista: Mobile Device Center

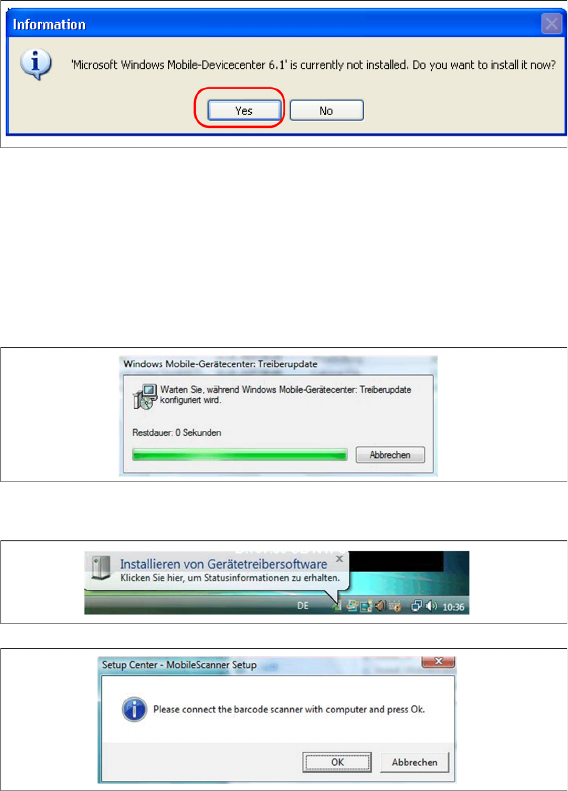

If Windows Mobile Device Center is not installed on the system, the following message box appears.
► Select “Yes” to start the installation of Mobile Device Center. Make sure that the scanner is not yet
connected to the basic station.
If Windows Mobile Device Center is not installed on the system, the installation of Mobile Device Center
will be executed. Make sure that the scanner is not yet connected to the basic station.
Install Mobile Device Center
► The installation of Mobile Device Center is beginning.
► Confirm with "OK".
See also
4.2.3.3.2 Step 2: AppCenter [ ➙ 26]
Installation
Hardware Installation Motorola MC70/MC75 1D/2D barcode scanner
26 Installation Manual SIPLACE Setup Center 5.0
Step 2: AppCenter
Steps on Setup Center computer

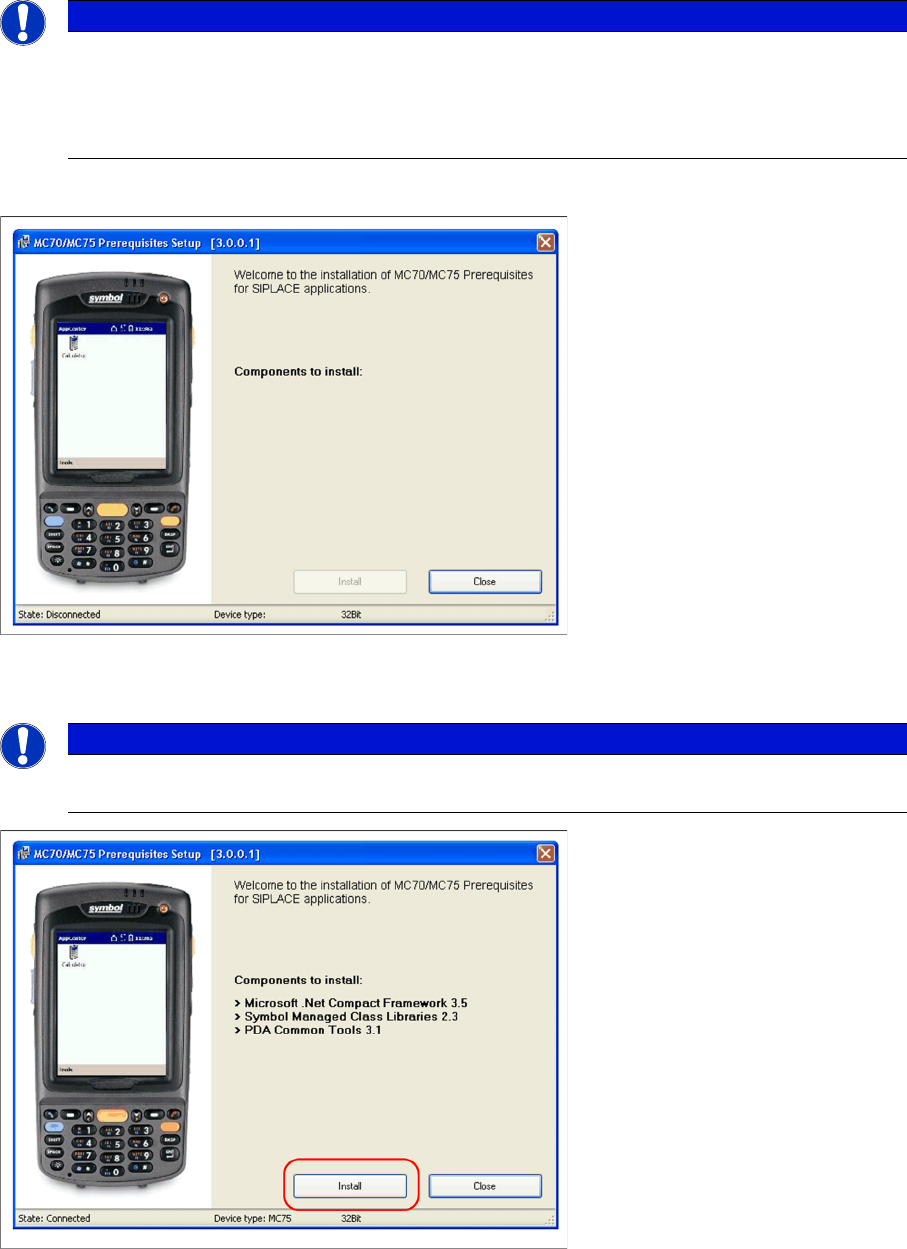

Place the scanner in its cradle if this has not already been done. The installation program automatically
detects the scanner type (Device type) and lists the necessary software packages for the installation.
► Click on Install to start the installation of the software packages.
► Please put the scanner into cradle, and press Continue to start the installation of Symbol AppCenter.
NOTICE
In case of an upgrade installation exit the Symbol AppCenter before you start with the installa-
tion procedure.
► Exit AppCenter with "Tools → Exit…".
► Enter the defined AppCenter password, to confirm exit (default value is "odyssey").
NOTICE
The installation program checks if the firmware version of the scanner complies with the mini-
mum requirement. If this is not the case, update your scanner firmware first.
