Installation Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration 88 Installation Manual SIPLACE Setup Center 5.0 ► Right click on a barcode t o open the context menu: ⇨ Edit : Additional…
Installation
Motorola / Symbol MC70/MC75 Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 5.0 87
You can change the following scan parameters here:
▪ Aiming Duration (ms):
Sets the time, how long a user is able to target a barcode with target laser.
▪ Focus Position:
– Far: You have to focus a barcode in scan range of about 23 cm (9 inches).
– Near: You have to focus a barcode in scan range of about 13 cm (5 inches).
▪ Allow poor printed 1D barcodes (slow rate scanning):
Use this setting, if most of your barcodes cannot be read in case of light damage.
► Press Ok or Apply to save the settings.
Setting 1D or 2D barcodes for MC70 Scanner
► Choose the allowed 1D barcodes for your MC70 Scanner here.
NOTICE
This setting is depending on barcode size. If you have problems to read your 1D barcodes with
small size, change the setting to “Near”.
Installation
Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration
88 Installation Manual SIPLACE Setup Center 5.0

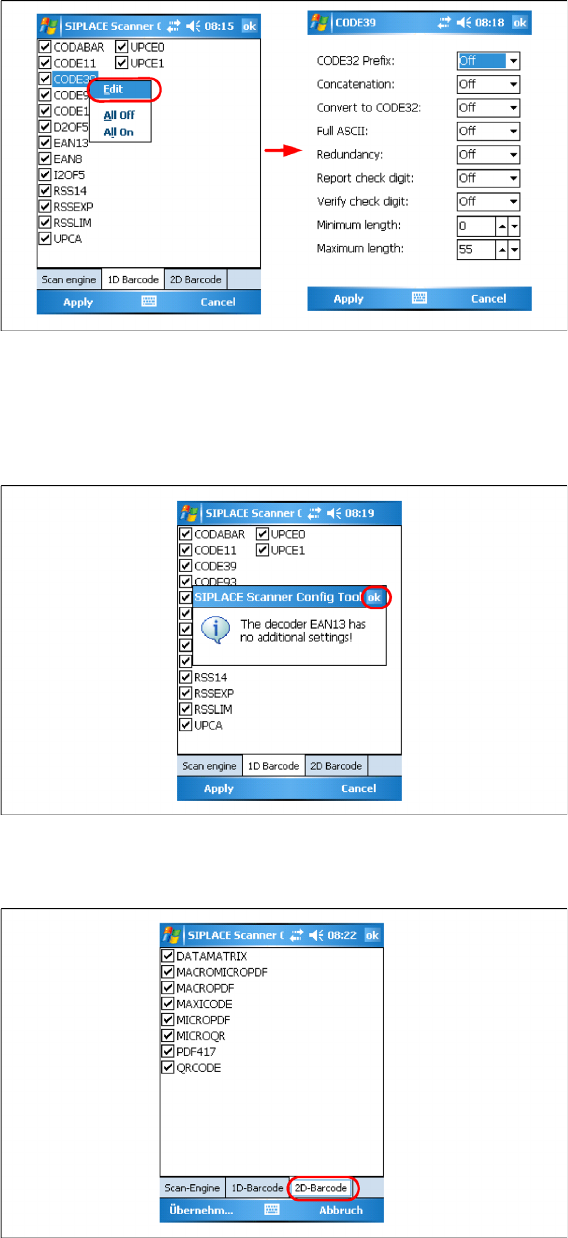

► Right click on a barcode to open the context menu:
⇨ Edit: Additional barcode settings
⇨ All Off: Select none of the barcodes in the list
⇨ All On: Select all the barcodes in the list
► If there is no addional settings for this barcode available, press Ok to close the window.
► Press Ok or Apply to save the settings.
► Choose the allowed 2D barcodes for your MC70 Scanner here.
Installation
SIPLACE Setup Center Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 5.0 89

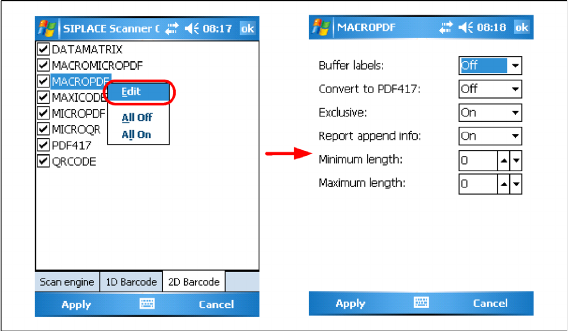

► Right Click on a barcode to open the context menu:
⇨ Edit: Further barcode configuration
⇨ All Off: Select all the barcodes in the list
⇨ All On: Select none of the barcodes in the list
► Press Ok or Apply to save the settings.
4.4.5 SIPLACE Setup Center Configuration
Setup Center GUI requires to be configured before it can be used. The configuration can be found via
the main menu Options → Settings. For detailed information, please refer to User Guide SIPLACE Setup
Center 5.0.
4.4.6 Settings on the SIPLACE Pro
In order to use Setup Center you should make settings on the programming system SIPLACE Pro. For
detailed information, please refer to User Guide SIPLACE Setup Center 5.0.
4.4.7 Barcode Label Wizard
The Barcode Label Wizard enables you to print out barcodes needed for the operation of the SIPLACE
Setup Center. For detailed information, please refer to User Guide SIPLACE Setup Center 5.0 .
