Installation Optional: Docking Station Hardware Installation Installation Manual SIPLACE Setup Center 5.0 33 Step 2 ► Actually there is no thing to select / de- select, all listed fea tures are mandatory. ► Click Install…

Installation

Hardware Installation Optional: Docking Station

32 Installation Manual SIPLACE Setup Center 5.0

► Open the Setup Center Computer housing according to the manufacturer's instructions.

► Select a free PCI slot in your Setup Center Computer for installing the CAN card.

► Plug the CAN card into the selected PCI slot.

► Close the Setup Center Computer housing according to the manufacturer's instructions.

► The drivers for the CAN card are contained on the Setup Center software installation CD. These

need to be installed separately. For a detailed description, please see Section " Installing the CAN

Bus driver and API".

4.2.4.2 Installing the CAN Bus driver and API

► Open the folder \3rdparty installer\Sontheim\CAN-Bus Driver\7.4.14.0 and select the application Set-

up.exe on the Setup Center installation CD.

Step 1

► Select the language you want.

► Click OK.

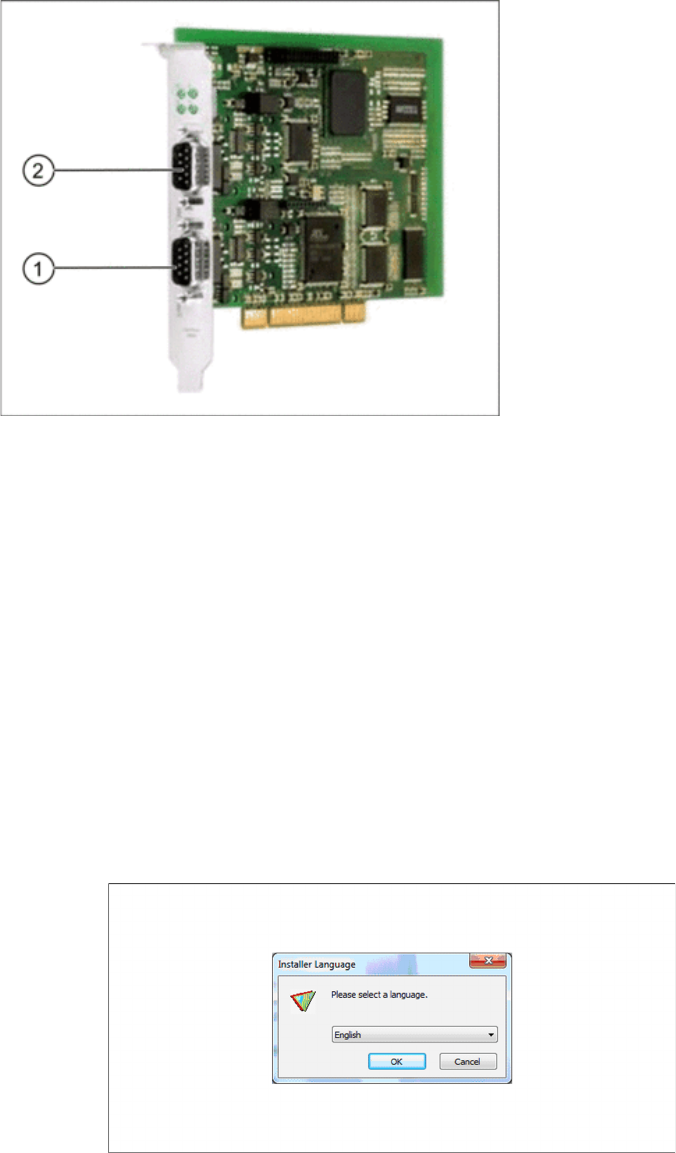

CAN Card - Power CAN PCI COM 168 V2

1. Bus 1

2. Bus 2

Installation

Optional: Docking Station Hardware Installation

Installation Manual SIPLACE Setup Center 5.0 33

Step 2

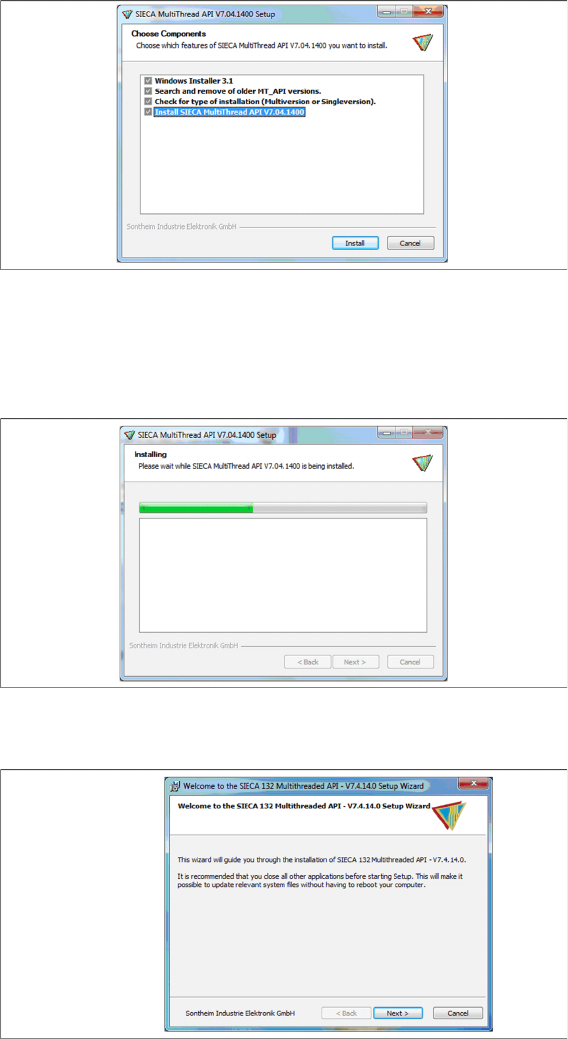

► Actually there is nothing to select / de-select, all listed features are mandatory.

► Click Install.

Step 3

The installation package will be extracted.

Step 4

► Click Next.

Installation

Hardware Installation Optional: Docking Station

34 Installation Manual SIPLACE Setup Center 5.0

Step 5

► Read the license agreement relating to use of this software and select I accept the terms in the Li-

cense Agreement to accept the license agreement.

► Click Next.

Step 6

► Click Next.

Step 7

► The “Systemcheck” window displays the status of all checks they have carried out.

► Click Install.
