Installation Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration 86 Installation Manual SIPLACE Setup Center 5.0 ► Choose the language from list. ► Press Continue to proceed .
Installation
Motorola / Symbol MC70/MC75 Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 5.0 85
4.4.4.4 SIPLACE Scanner Config Tool
Scanning problems with 1D barcodes
If the MC70/MC75 is unable to scan most of your 1D barcodes, use the following configuration utility, to
resolve the problems.
► Please exit all running applications on scanner and Symbol AppCenter to continue.
Legend
1. MC 70
2. MC 75

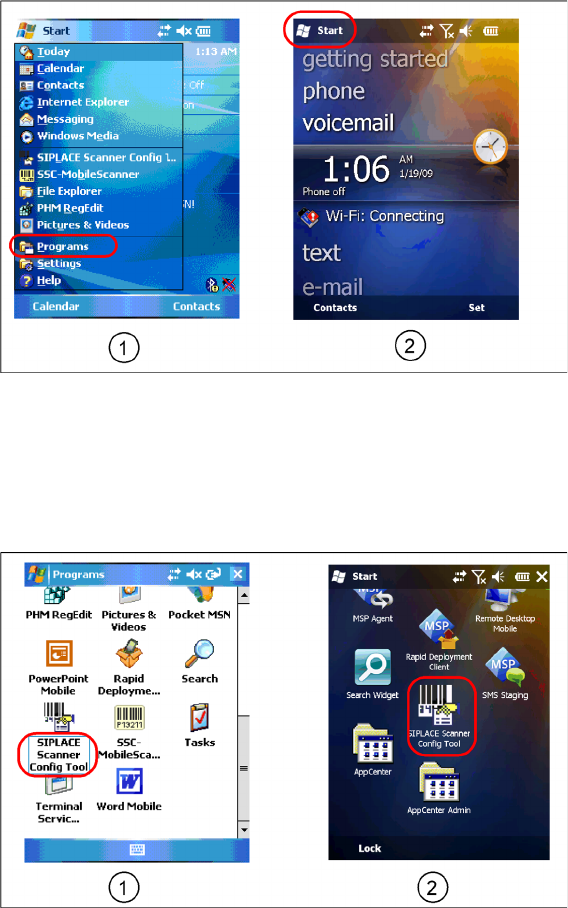

► Select Start->Programs to show present applications on scanner.
Legend
1. MC 70
2. MC 75
► Select SIPLACE Scanner Config Tool to continue.
Installation
Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration
86 Installation Manual SIPLACE Setup Center 5.0

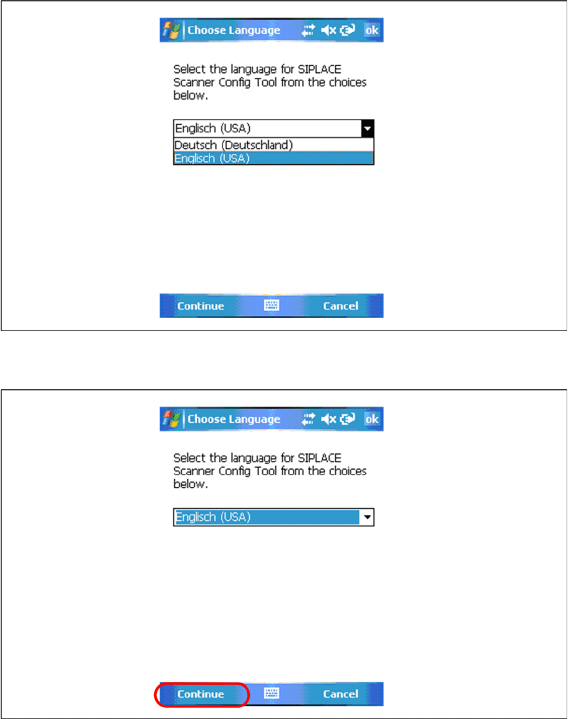

► Choose the language from list.
► Press Continue to proceed.
Installation
Motorola / Symbol MC70/MC75 Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 5.0 87

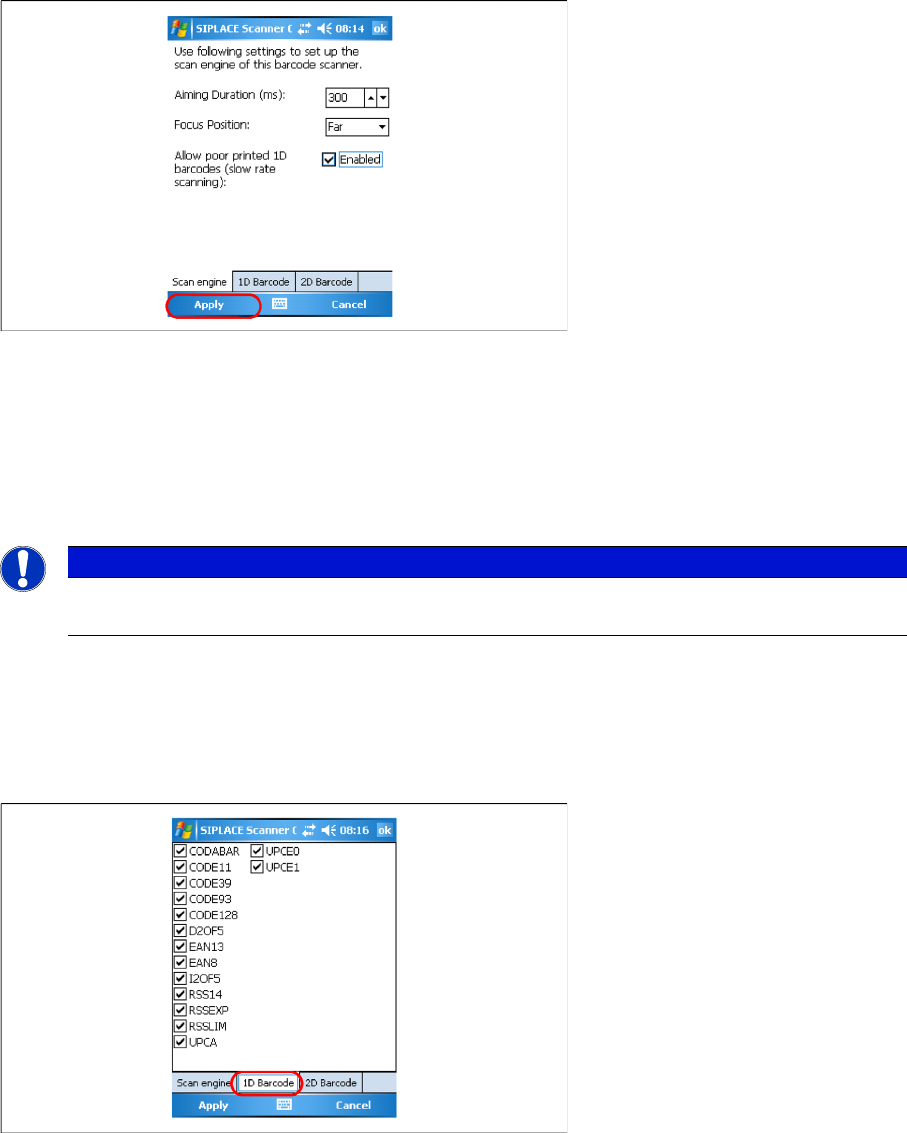

You can change the following scan parameters here:
▪ Aiming Duration (ms):
Sets the time, how long a user is able to target a barcode with target laser.
▪ Focus Position:
– Far: You have to focus a barcode in scan range of about 23 cm (9 inches).
– Near: You have to focus a barcode in scan range of about 13 cm (5 inches).
▪ Allow poor printed 1D barcodes (slow rate scanning):
Use this setting, if most of your barcodes cannot be read in case of light damage.
► Press Ok or Apply to save the settings.
Setting 1D or 2D barcodes for MC70 Scanner
► Choose the allowed 1D barcodes for your MC70 Scanner here.
NOTICE
This setting is depending on barcode size. If you have problems to read your 1D barcodes with
small size, change the setting to “Near”.
