Installation Hardware Installation Optional: Docking Station 38 Installation Manual SIPLACE Setup Center 5.0 Connection Example 1 1. Docking Station X or SX NOTICE The integrated terminal resistor ca n be connected and s…
Installation
Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 5.0 37
► Connect the CAN cable to the CAN card on the PC (CAN Bus 1 or 2).
See the connection scenarios below for CAN Bus cable connection.

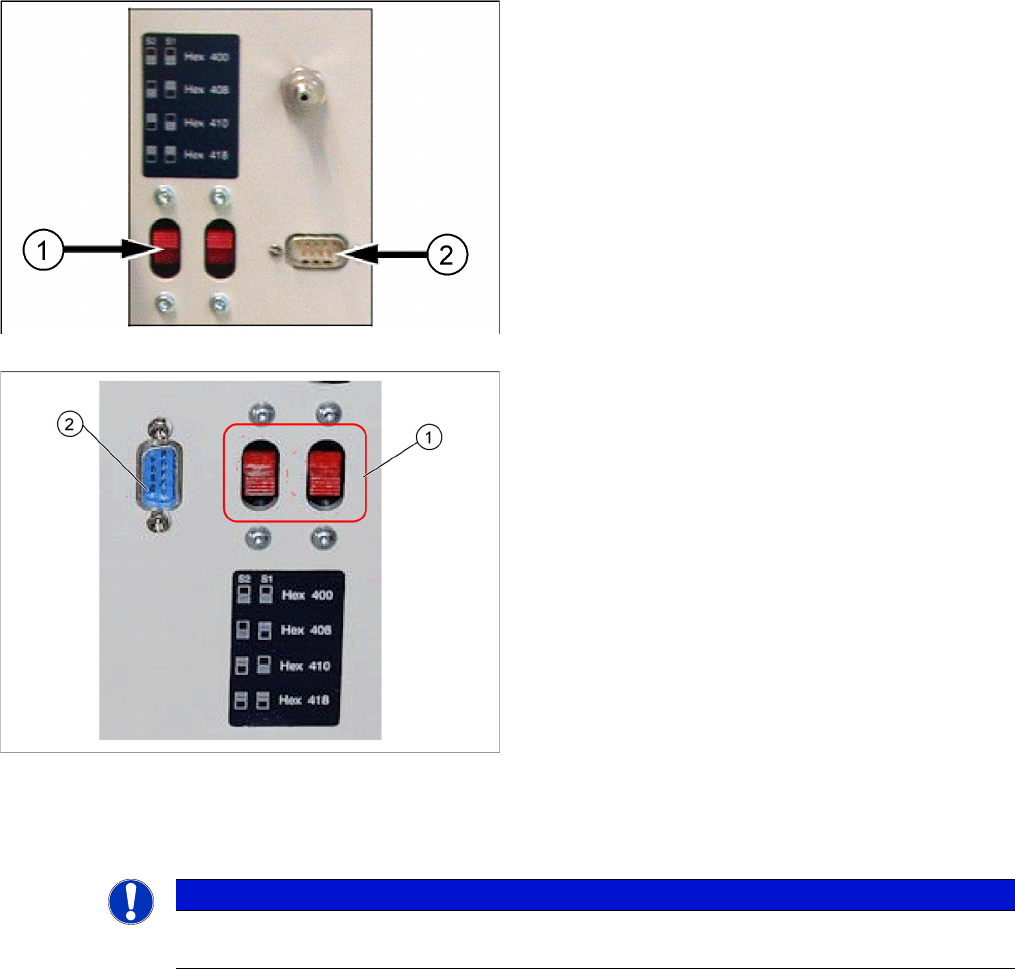

CAN Bus Cable Connection Examples
Docking Station X
1. CAN Bus Address Switch
2. CAN Connection
Docking Station SX
1. CAN Bus Address Switch
2. CAN Connection
NOTICE
The first and the last terminating resistor must always be switched ON and the other switched
OFF independent of the number of docking stations.
Installation
Hardware Installation Optional: Docking Station
38 Installation Manual SIPLACE Setup Center 5.0

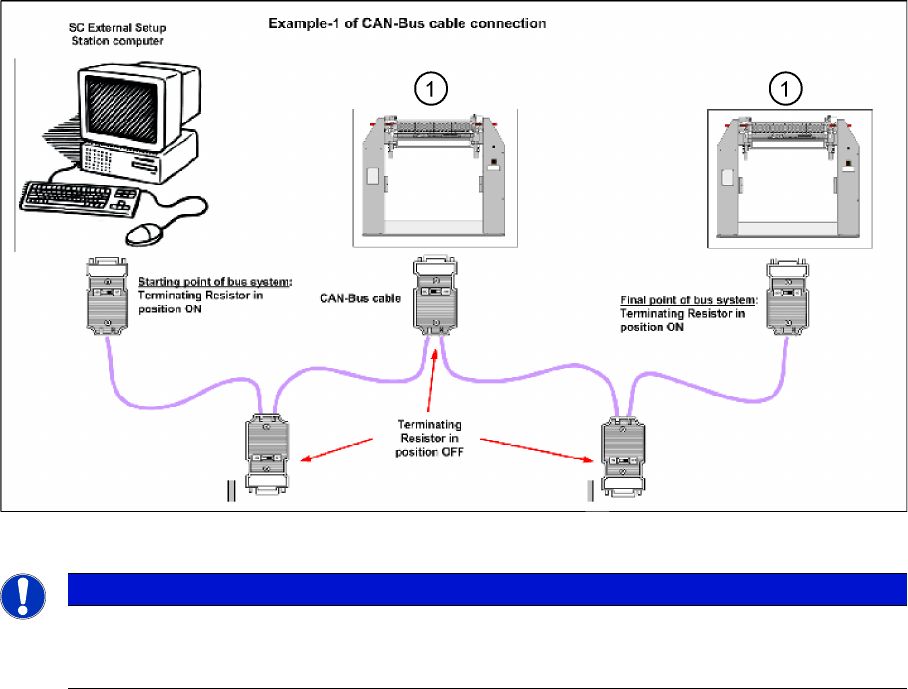

Connection Example 1
1. Docking Station X or SX
NOTICE
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
Installation
Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 5.0 39
Connection Example 2
1. Docking Station X or SX
Connection Example 1 and 2
NOTICE
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
