19 06.2007 14 Accessories To obtain IP 67 use Marking plate Typ-Nr. 704.609.9 Continuation see ne xt page To obtain IP 67 use Marking plate Typ-Nr. 704.609.9 Continuation see ne xt page To obtain IP 67 use Marking plate …
14
Devices flush mounting
18
06.2007
Continuation see next page
Further information in the Technical Data and Typical Applications
Terminals: S1 = Soldering terminal (also pluggable 2.8 x 0.5 mm)
Mounting dimensions from page 37, Technical drawing from page 38, Circuit drawing from page 48
Buzzer, flush mounting
Front protection
Front cap
Terminals
Ø 35 mm
Typ-Nr.
Mounting dimensions
Technical drawing
Circuit drawing
e
Buzzer, flush mounting
Operation voltage : 24 VDC
IP 40 Aluminium black S1 14-810.910 1 21 1 0.016
Aluminium natural S1 14-810.918 1 21 1 0.016
19
06.2007
14
Accessories
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
Front
Lens plastic
Lens
Ø 29 mm
Typ-Nr.
e
Lens plastic black opaque flush 704.602.0 0.001
blue transparent flush 704.602.6 0.001
colourless transparent flush 704.602.7 0.001
green transparent flush 704.602.5 0.001
red transparent flush 704.602.2 0.001
yellow transparent flush 704.602.4 0.001
Lens raised, plastic
Lens
Ø 29 mm
Typ-Nr.
e
Lens raised, plastic colourless transparent flush 704.611.7 0.002
green transparent flush 704.611.5 0.002
red transparent flush 704.611.2 0.002
yellow transparent flush 704.611.4 0.002
Lens metal with window
Lens
Ø 29 mm
Typ-Nr.
e
Lens metal with window Aluminium black flush 704.601.01 0.001
Aluminium blue flush 704.601.61 0.001
Aluminium green flush 704.601.51 0.001
Aluminium natural flush 704.601.81 0.001
Aluminium red flush 704.601.21 0.001
Aluminium yellow flush 704.601.41 0.001
Stainless-steel natural flush 704.601.91 0.001
Lens metal
Lens
Ø 29 mm
Typ-Nr.
e
Lens metal Aluminium black flush 704.601.0 0.001
Aluminium blue flush 704.601.6 0.001
Aluminium green flush 704.601.5 0.001
Aluminium natural flush 704.601.8 0.001
Aluminium red flush 704.601.2 0.001
Aluminium yellow flush 704.601.4 0.001
Stainless-steel natural flush 704.601.9 0.001
20
06.2007
14
Accessories
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
To obtain IP 67 use Marking plate Typ-Nr. 704.609.9
Continuation see next page
Continuation see next page
Continuation see next page

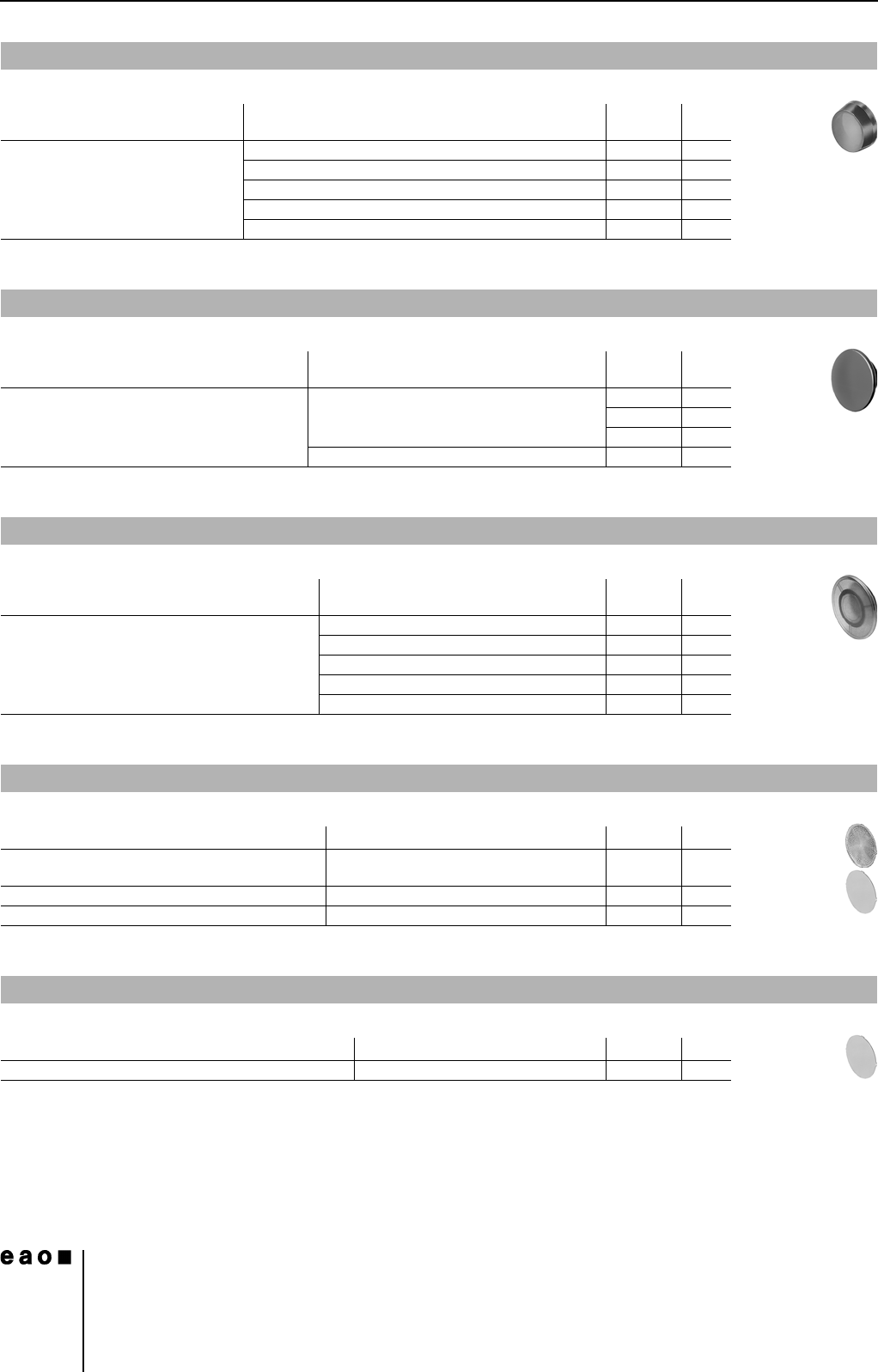

Lens cap
Lens
Ø 29 mm
Typ-Nr.
e
Lens cap Plastic blue transparent 704.603.6 0.003
Plastic colourless transparent 704.603.7 0.003
Plastic green transparent 704.603.5 0.003
Plastic red transparent 704.603.2 0.003
Plastic yellow transparent 704.603.4 0.003
Mushroom-head cap
Mushroom had cap
Ø 40 mm
Typ-Nr.
e
Mushroom-head cap Plastic 4/8 opaque 704.604.2 0.001
704.604.4 0.001
704.604.5 0.001
Plastic black opaque 704.604.0 0.001
Mushroom-head cap illuminated
Mushroom had cap
Ø 40 mm
Typ-Nr.
e
Mushroom-head cap illuminated Plastic blue transparent 704.614.6 0.007
Plastic colourless transparent 704.614.7 0.007
Plastic green transparent 704.614.5 0.007
Plastic red transparent 704.614.2 0.007
Plastic yellow transparent 704.614.4 0.007
Marking plate for Lens plastic and metal
Marking plate Typ-Nr.
e
Marking plate for Lens plastic and metal
-
Plastic colourless transparent ribbed 704.609.7 0.001
LED an Filament lamp Plastic white translucent 704.609.9 0.001
non-illuminative Plastic black opaque 704.609.0 0.001
Marking plate for Mushroom-head cap
Marking plate Typ-Nr.
e
Marking plate for Mushroom-head cap Plastic white translucent 704.609.9 0.001
