14 Marking 34 06.2007 0 Continuation see next page > Symbols for marking plates and marking caps for Indicator and Illuminated Pushbut tons
14
Marking
33
06.2007
All dimensions in mm
0
0
The gap between 2 words results in each case a letter less.
0
Engraving legend plates
Dimension Devices mounting style Height of letters
h
Number of lines Number of (target value) letters
per line
30 x 50 round, raised 3 2 12 B1
30 x 50 round, raised 4 1 7 B1
30 x 50 round, raised 8 1 4 B1
35 x 57.5 round, flush 3 2 12 B2
35 x 57.5 round, flush 4 1 7 B2
35 x 57.5 round, flush 8 1 4 B2

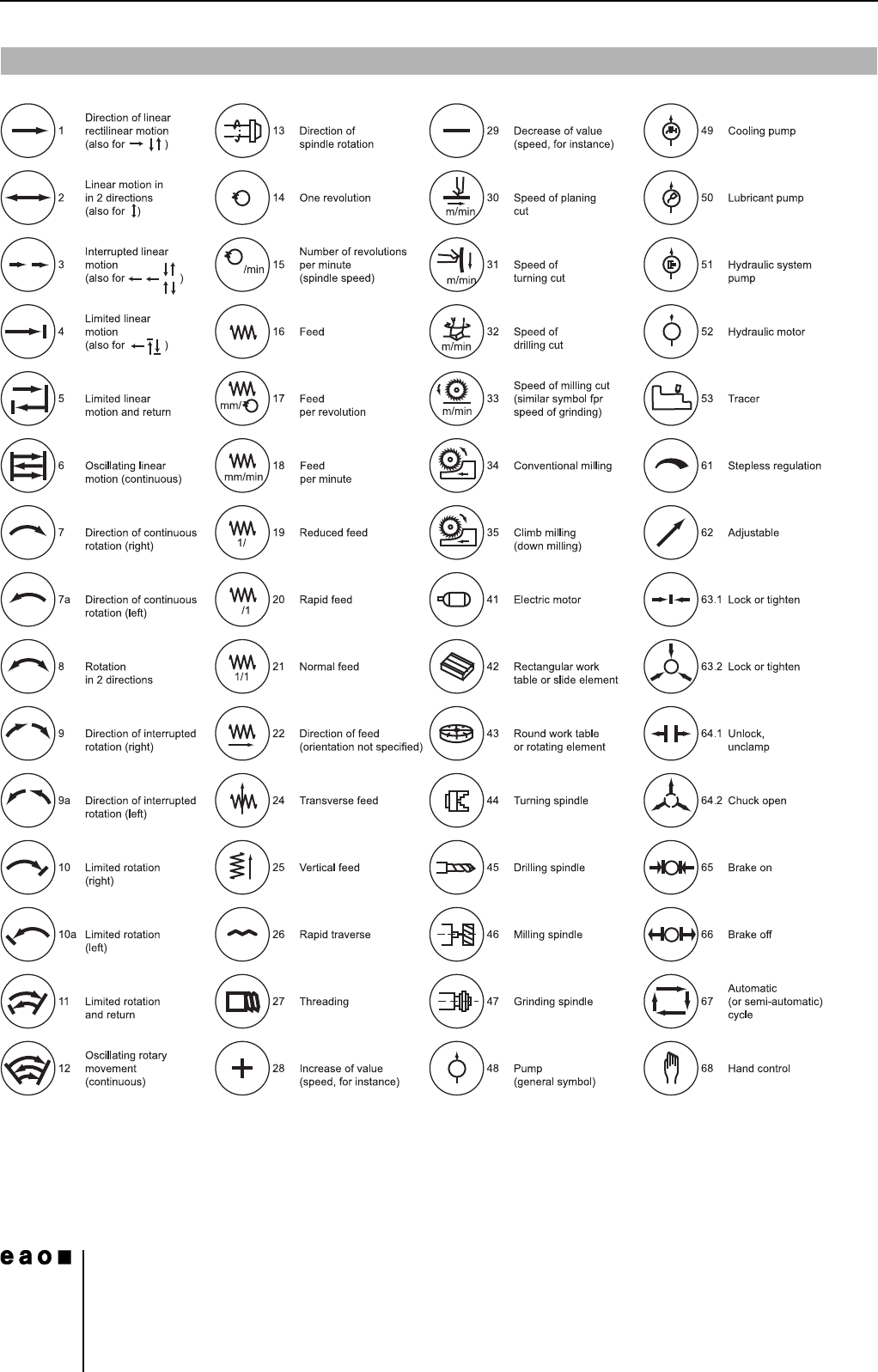

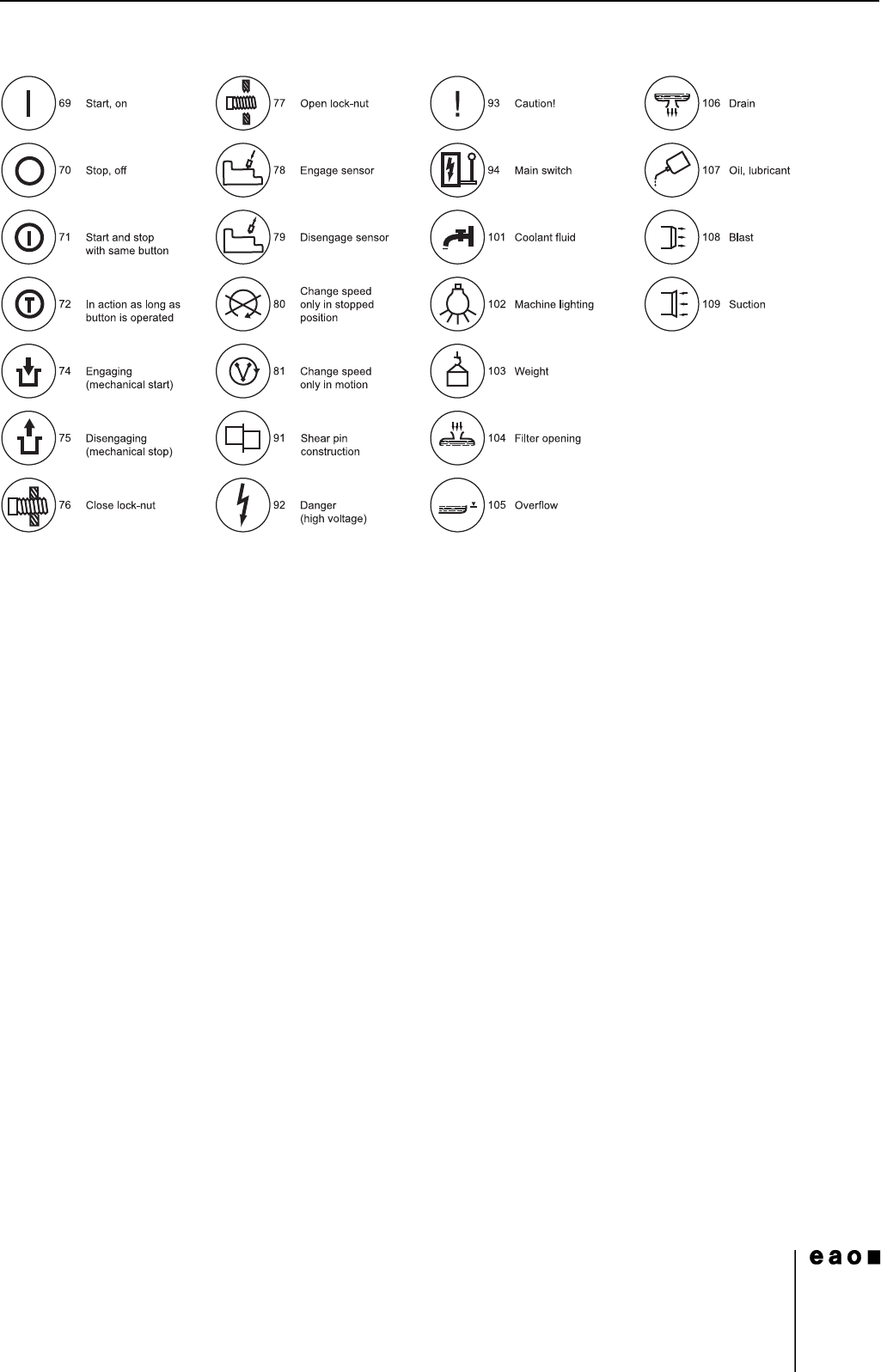

Standard texts for marking plates and marking caps for Indicator and Illuminated Pushbuttons
B2B1
50
h
30
57.5
35
Ø25
Ø30.5
14
Marking
34
06.2007
0
Continuation see next page
>
Symbols for marking plates and marking caps for Indicator and Illuminated Pushbuttons
14
Marking
35
06.2007
Continued from previous page
