26 06.2007 14 Accessories for fitting with series resistors Continuation se e next page Continuation se e next page Mounting dimensions from page 37 Continuation se e next page Devices 22.5 mm dia. in mounting hole size …

100%1 / 57
25
06.2007
14
Accessories
Continuation see next page
Continuation see next page
Illumination
Filament lamp
Socket Operating voltage/-current Typ-Nr.
e
Filament lamp T5.5 12 VAC/DC, 100 mA 10-1109.1329 0.001
12 VAC/DC, 50 mA 10-1109.1279 0.001
24 VAC/DC, 25 mA 10-1112.1199 0.001
24 VAC/DC, 50 mA 10-1112.1279 0.001
28 VAC/DC, 40 mA 10-1113.1249 0.001
30 VAC/DC, 40 mA 10-1114.1249 0.001
36 VAC/DC, 35 mA 10-1116.1229 0.001
48 VAC/DC, 25 mA 10-1119.1199 0.001
6 VAC/DC, 200 mA 10-1106.1369 0.001
Single-LED
Socket Light colour Operating voltage/-current Typ-Nr.
e
Single-LED T5.5 blue 12 VAC/DC, 7/14 mA 10-2109.1066 0.001
24 VAC/DC, 7/14 mA 10-2112.1066 0.001
28 VAC/DC, 7/14 mA 10-2113.1066 0.001
48 VAC/DC, 4/8 mA 10-2119.1046 0.001
6 VDC, 15 mA 10-2106.3146 0.001
green 12 VAC/DC, 7/14 mA 10-2109.1065 0.001
24 VAC/DC, 7/14 mA 10-2112.1065 0.001
28 VAC/DC, 7/14 mA 10-2113.1065 0.001
48 VAC/DC, 4/8 mA 10-2119.1045 0.001
6 VDC, 15 mA 10-2106.3145 0.001
red 12 VAC/DC, 7/14 mA 10-2109.1062 0.001
24 VAC/DC, 7/14 mA 10-2112.1062 0.001
28 VAC/DC, 7/14 mA 10-2113.1062 0.001
48 VAC/DC, 4/8 mA 10-2119.1042 0.001
6 VDC, 15 mA 10-2106.3142 0.001
white diffuse 12 VAC/DC, 7/14 mA 10-2109.1069 0.001
24 VAC/DC, 7/14 mA 10-2112.1069 0.001
28 VAC/DC, 7/14 mA 10-2113.1069 0.001
48 VAC/DC, 4/8 mA 10-2119.1049 0.001
6 VDC, 15 mA 10-2106.3149 0.001
yellow 12 VAC/DC, 7/14 mA 10-2109.1064 0.001
24 VAC/DC, 7/14 mA 10-2112.1064 0.001
28 VAC/DC, 7/14 mA 10-2113.1064 0.001
48 VAC/DC, 4/8 mA 10-2119.1044 0.001
6 VDC, 15 mA 10-2106.3144 0.001

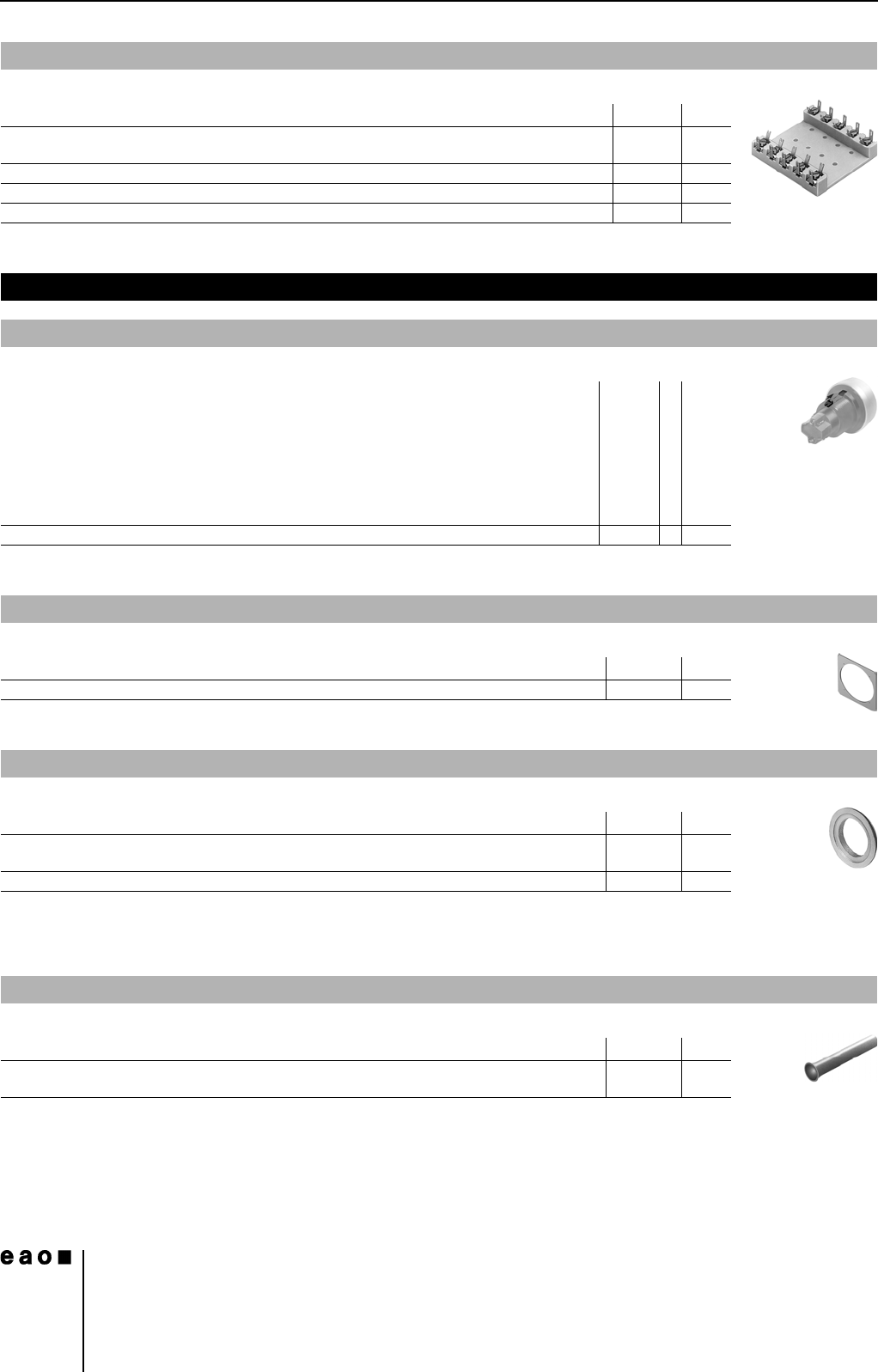

26
06.2007
14
Accessories
for fitting with series resistors
Continuation see next page
Continuation see next page
Mounting dimensions from page 37
Continuation see next page
Devices 22.5 mm dia. in mounting hole size 30.5 mm dia.
Continuation see next page
With the metal bayonet flange you can use one reduction ring. If you have a plastic bayonet flange you need to install two
reduction rings.
Continuation see next page
Terminal plate empty
Typ-Nr.
e
Terminal plate empty
10 spaces 125 x 60 x 15 mm
02-912.2 0.045
15 spaces 187.5 x 60 x 15 mm 02-912.3 0.090
20 spaces 250 x 60 x 15 mm 02-912.4 0.095
5 spaces 62.5 x 60 x 15 mm 02-912.1 0.025
Assembling
Positioning insert
Typ-Nr.
Mounting dimensions
e
Positioning insert 14-910 3 0.001
Anti-twist ring, flush mounting
Typ-Nr.
e
Anti-twist ring, flush mounting 704.954.0 0.002
Reducing ring
Typ-Nr.
e
Reducing ring
Aluminium black
704.960.0 0.004
Aluminium natural 704.960.8 0.004
Lens plug for round lens, flush mounting
Typ-Nr.
e
Lens plug for round lens, flush mounting
for mounting and dismantling of Lens round, flush mounting
700.006.0 0.003
27
06.2007
14
Accessories
Continuation see next page
CAUTION
A switching process might be released when replacing the Lamp/LED !
Grey similar RAL 7035; cover lead-sealable
Continuation see next page
Openings for cable gland M16 or M20
Protection class IP 66
Technical drawing from page 38
Continuation see next page
with traction relief; protection degree IP 68
Lamp remover
Typ-Nr.
e
Lamp remover 02-906 0.002
Enclosure
Dimension Typ-Nr.
Technical drawing
e
Enclosure
with mounting hole 1 x 22.5 mm dia., with anti-twist device
L 94 mm, W 94 mm, H 81 mm 704.945.1 11 0.211
with mounting hole 2 x 22.5 mm dia., with anti-twist device L 130 mm, W 94 mm, H 81 mm 704.945.2 12 0.251
with mounting hole 3 x 22.5 mm dia., with anti-twist device L 180 mm, W 94 mm, H 81 mm 704.945.3 13 0.313
with mounting hole 4 x 22.5 mm dia., with anti-twist device L 180 mm, W 182 mm, H 110 mm 704.945.4 14 0.572
with mounting hole 6 x 22.5 mm dia., with anti-twist device L 180 mm, W 182 mm, H 110 mm 704.945.5 15 0.568
Cable gland
Typ-Nr.
e
Cable gland
M16, Plastic grey
61-9481.6 0.007
M20, Plastic grey 704.945.6 0.011
