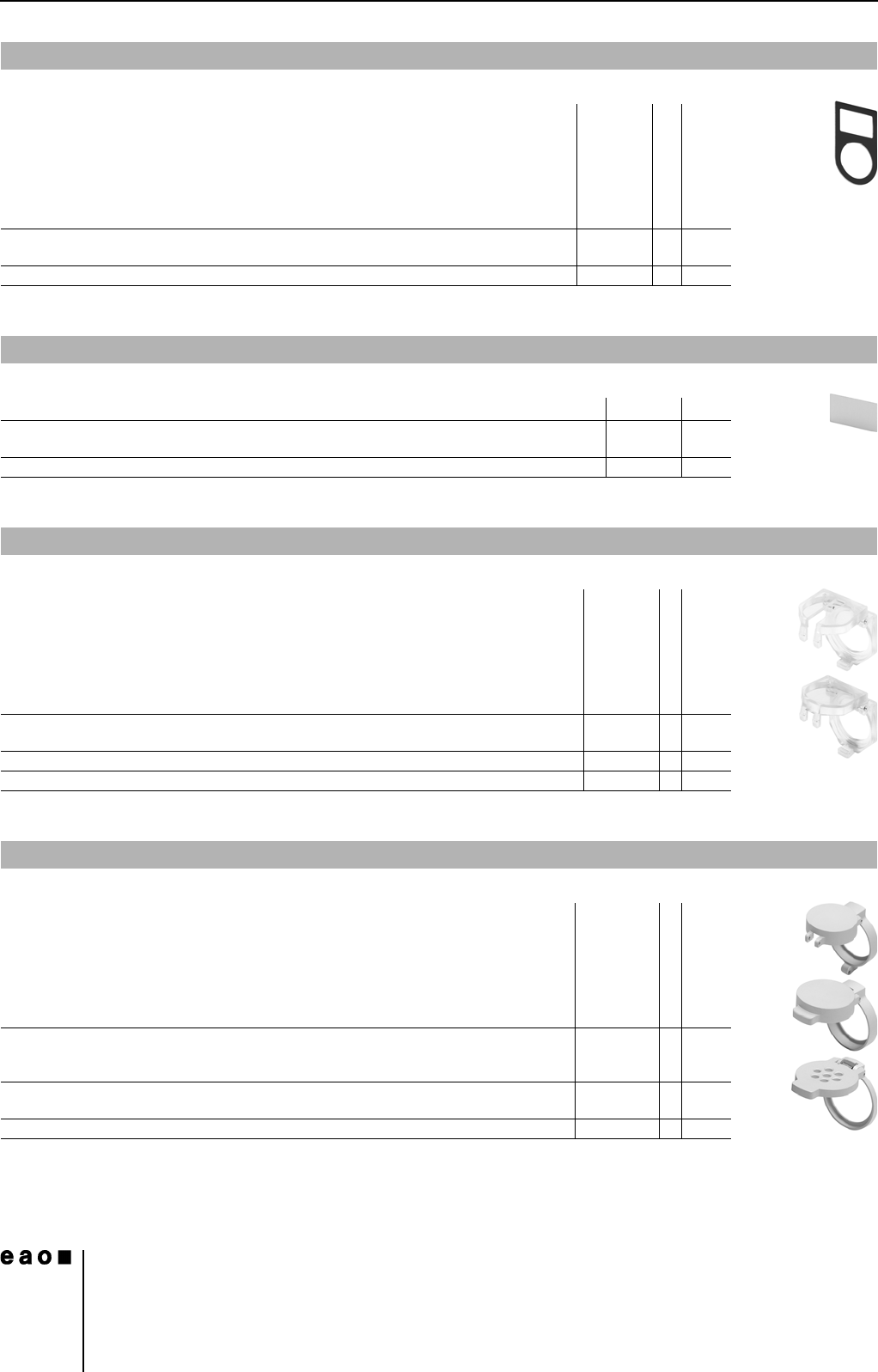

23 06.2007 14 Accessories for Pushbutton | Illuminated pushbutton for protection IP 67 for heavy environmenta l conditions Continuation see ne xt page for Pushbutton | Illuminated pushbutton with front illumination Conti…
22
06.2007
14
Accessories
adhesive, Aluminium black
Continuation see next page
Technical drawing from page 38
for Legend frame 704.968.2 and 704.968.3
Continuation see next page
Continuation see next page
Technical drawing from page 38
Continuation see next page
Technical drawing from page 38
Legend frame
Typ-Nr.
Technical drawing
e
Legend frame
30 x 50 mm for raised mounting
704.968.2 9 0.001
35 x 57.5 mm for flush mounting 704.968.3 10 0.001
Legend plate insert
Typ-Nr.
e
Legend plate insert
14.5 x 23.5 mm, adhesive, Aluminium black
704.968.1 0.001
14.5 x 23.5 mm, adhesive, Aluminium natural 704.968.0 0.001
Protective cover, raised mounting
Ø 29 mm
Typ-Nr.
Technical drawing
e
Protective cover, raised mounting
hinged, transparent, with means for sealing in base position, for Selector switch
704.925.2 6 0.007
hinged, transparent, with means for sealing, for Pushbutton 704.925.0 4 0.007
hinged, transparent, with means for sealing, with spring fitted, for Pushbutton 704.925.3 4 0.007
Protective cover, flush mounting
Ø 35 mm
Typ-Nr.
Technical drawing
e
Protective cover, flush mounting
hinged, with means for sealing, Aluminium natural, for Pushbutton and Selector switch short
lever
704.928.38 8 0.002
hinged, with means for sealing, Aluminium natural, spring fitted, for Pushbutton and Selector
switch short lever
704.928.28 5 0.019
hinged, with window, Aluminium natural, spring fitted, for Pushbutton 704.928.18 7 0.019
23
06.2007
14

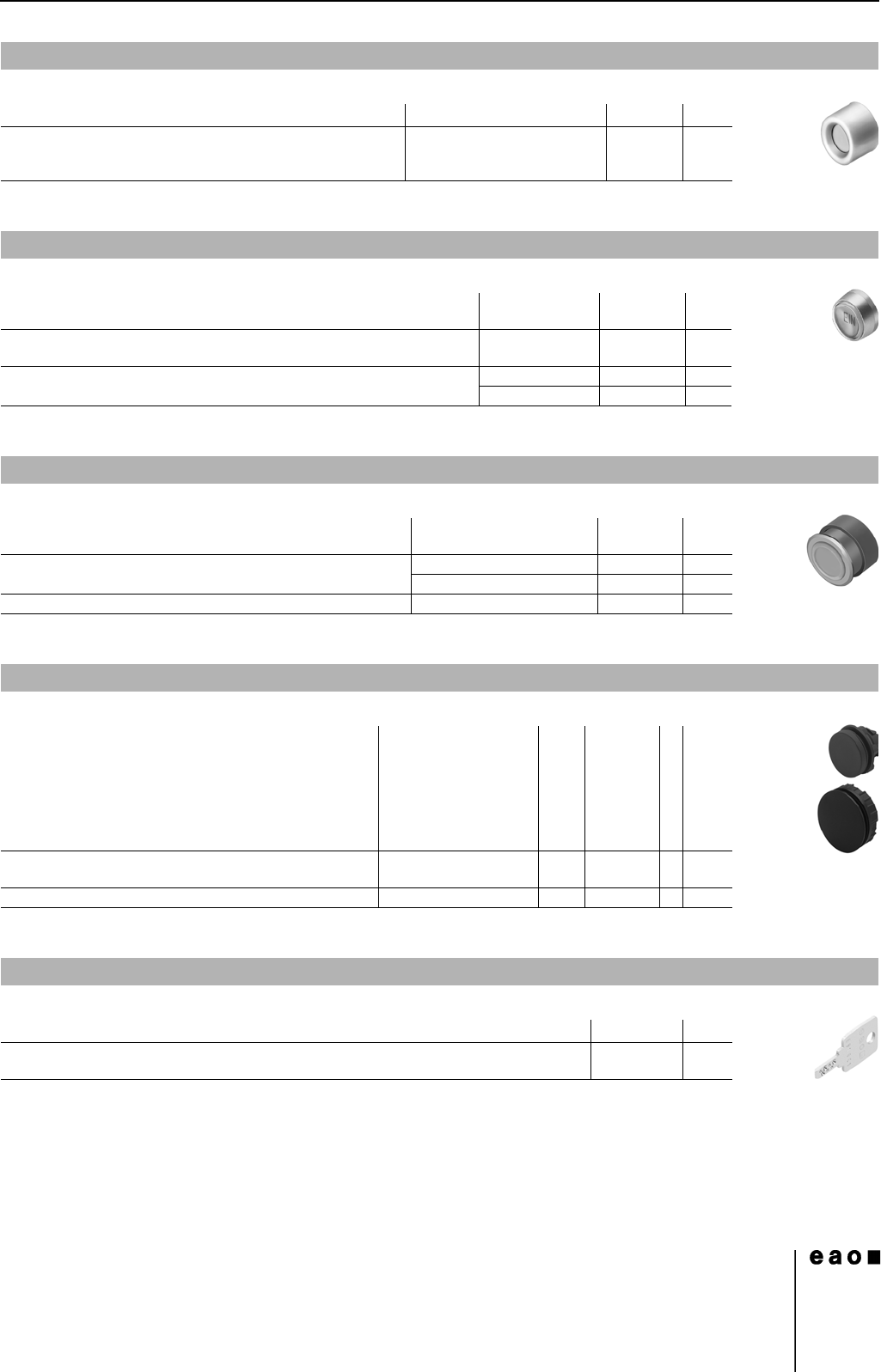

Accessories
for Pushbutton | Illuminated pushbutton for protection IP 67 for heavy environmental conditions
Continuation see next page
for Pushbutton | Illuminated pushbutton with front illumination
Continuation see next page
for Pushbuttons | Illuminated pushbuttons
Continuation see next page
Continuation see next page
Technical drawing from page 38
Continuation see next page
Other lock numbers on request
Front protective cap
Front protective cap Typ-Nr.
e
Front protective cap
only together with Lenses 704.602.X, 704.601.X and Front rings
704.600.X
Silicone colourless transparent 704.953.0 0.002
Front protective ring
Front protective
ring
Ø 29 mm
Typ-Nr.
e
Front protective ring
with transparent Pebax membrane, temperature resistance -40 °C ... +85 °C
Aluminium natural 704.600.5/A 0.005
with transparent silicone membrane (extent resistant to sea water),
temperature resistance -40 °C ... +85 °C
Aluminium natural 704.600.3 0.005
Chromed brass 704.600.2 0.005
Front bezel with protective membrane, flush mounting
Front bezel
Ø 35 mm
Typ-Nr.
e
Front bezel with protective membrane, flush mounting
with transparent silicone membrane
Aluminium black 704.955.4 0.016
Aluminium natural 704.955.3 0.016
with transparent silicone membrane, resistant to sea water Stainless steel natural 704.955.9E 0.047
Blind plug
Blind plug
Front protection
Typ-Nr.
Technical drawing
e
Blind plug
Size 28 mm dia., for mounting hole 22.5 mm dia.
Plastic black IP 65 704.960.4 2 0.004
Size 36 mm dia., for mounting hole 30.5 mm dia. Plastic black IP 65 704.964.8 3 0.007
Spare key
Typ-Nr.
e
Spare key
Standard lock 1001 (KABA)
14-987.1001 0.006
24
06.2007
14
Accessories
Continuation see next page
PCB plug-in base Pins right-angle : With the extendable mounting the distance between plug-in base and PCB can be
varied up to 3 mm
Component layout from page 36
Continuation see next page
Continuation see next page
Continuation see next page
Backside
PCB plug-in base
Typ-Nr.
Component layout
e
PCB plug-in base
16.4 mm dia. x 9.8 mm for Low level switching element, Pins axial
31-940 2 0.002
17.8 x 12.9 mm x 9.8 mm for Snap-action switching element 2.8 mm, Pins axial 31-942 4 0.002
17.9 x 17.9 x 8.4 mm for Low level switching element, Pins bent at right-angle 31-941 3 0.004
Flat receptacle
Typ-Nr.
e
Flat receptacle
2.0 x 0.5 mm for Universal terminal
31-945 0.001
2.8 x 0.5 mm for Plug-in terminal 31-946 0.001
Insulation sleeve
Typ-Nr.
e
Insulation sleeve
Cover Plug-in terminals for snap-action switching element 2.8 mm
01-928 0.001
for Flat receptacle 31-945 31-928 0.001
for Flat receptacle 31-946 31-929 0.001
Terminal cover
Typ-Nr.
e
Terminal cover 01-929 0.010
