5OM-1603 1-10 Pneumatic and Mounting Diagrams 1 102-003A(04100) Positioning Unit (Pneumatic Diagram) A B Pipe φ ６ ６００ mm φ ４ ４０ mm φ ４ ４０ mm φ ４ ２６００ mm φ ４ ２６００ mm Positioning U/D Positioning Unit Lowering Prevention Pi…
5OM-1603
1-9
Pneumatic and Mounting Diagrams
1102-001
5OM-1603
1-10
Pneumatic and Mounting Diagrams
1102-003A(04100)

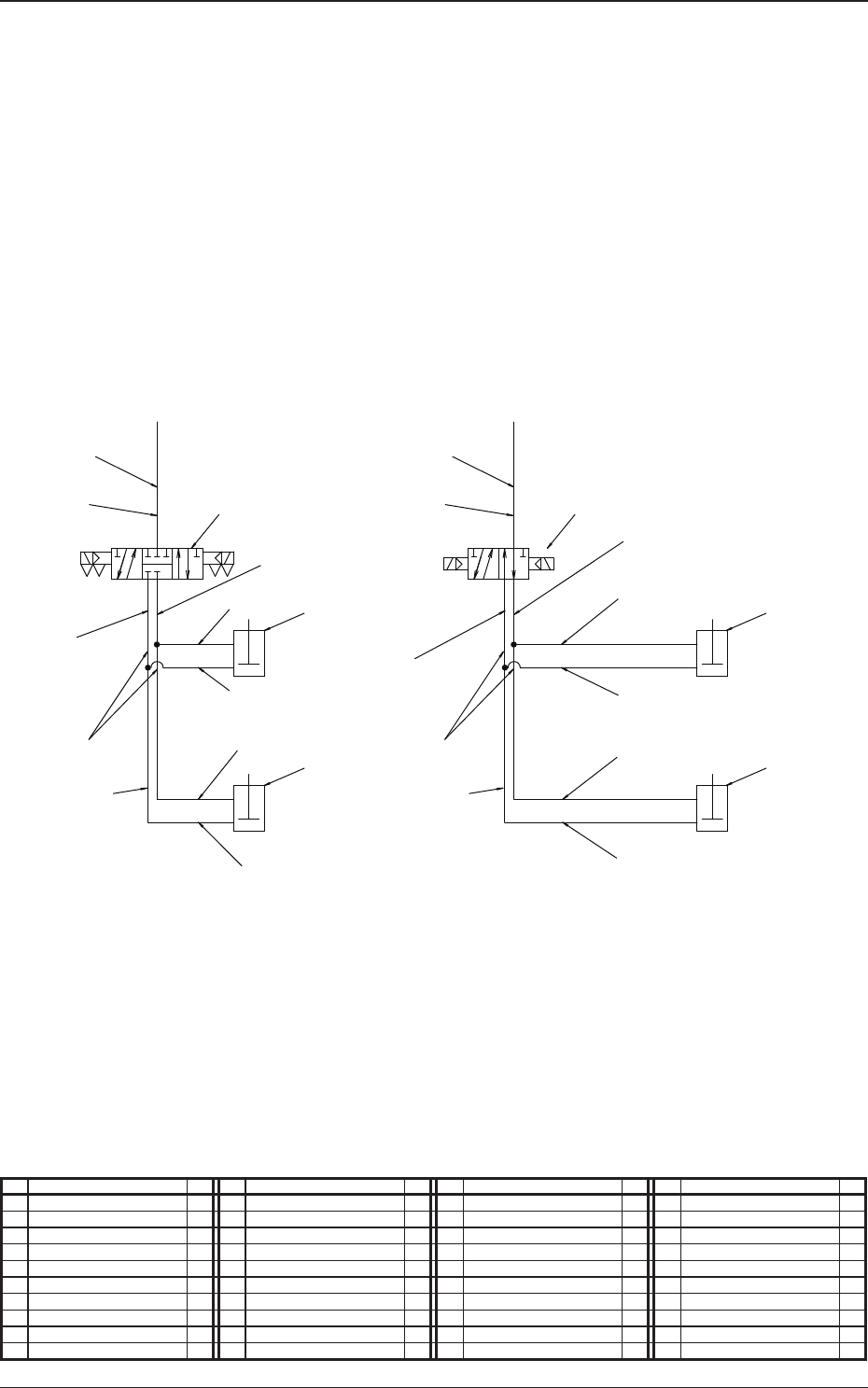

Positioning Unit (Pneumatic Diagram)
A
B
Pipe
φ
６
６００mm
φ４
４０mm
φ４
４０mm
φ４
２６００mm
φ４
２６００mm
Positioning U/D Positioning Unit Lowering Prevention
Pipe
φ
８
９００mm
φ６
１５０mm
φ６
２００mm
φ６
４００mm
φ６
３５０mm
φ６
２５００mm
φ６
２４００mm
A
B
Left Side Cylinder
Right Side Cylinder
Left Side Cylinder
Right Side Cylinder
φ４
１７０mm
φ４
１４０mm
B
A
A
B
B
A
B
A
EA
EB
P
EB
P
EA
2
1
3
7
9
9
2
5
4
8
10
10
From Main Body From Main Body
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
6 1
2 Tube
φ
8 1
3 Union Y 2
4 Union Y 2
5 Tube
φ
4 1
7 Solenoid Valve 1
8 Solenoid Valve 1
9 Cylinder 2
10 Cylinder 2
5OM-1603
1-11
Pneumatic and Mounting Diagrams
1102-004A(04100)

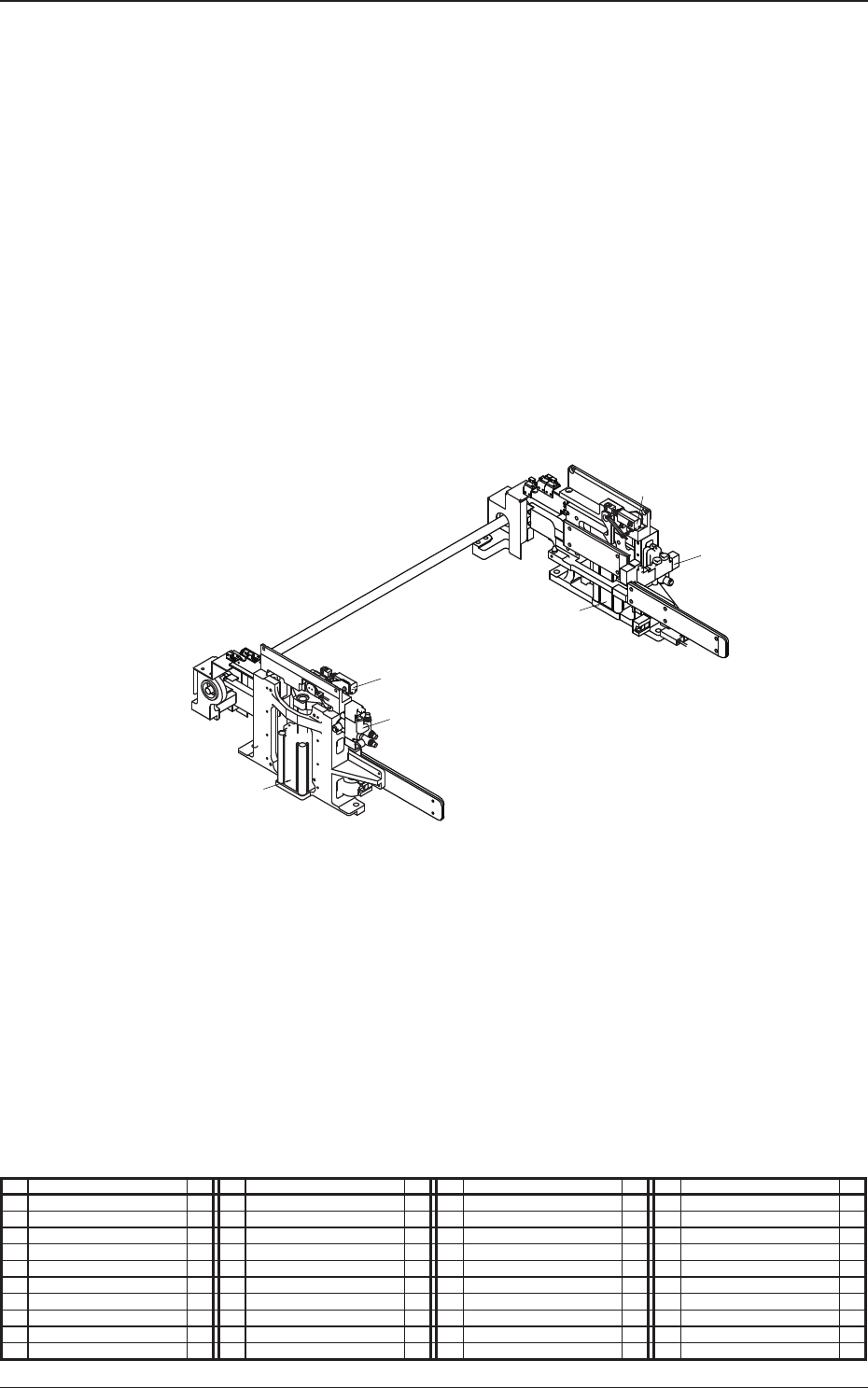

Positioning Unit (Mounting Diagram)
10
8
9
9
10
7
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Solenoid Valve 1
8 Solenoid Valve 1
9 Cylinder 2
10 Cylinder 2
