5OM-1603 2-6 Sensor and Load Layout 1003-003 Feeder Cart Layout Y6913 B6302 M63 B6914,B6910 Cutter Feeder Base Symbol Name Symbol Name M63 Cutter Axis Motor B6302 Cutter Origin (-) Y6913 Feeder Clamp B6914 Feeder Clamp L…
5OM-1603
2-5
Sensor and Load Layout
0908-002

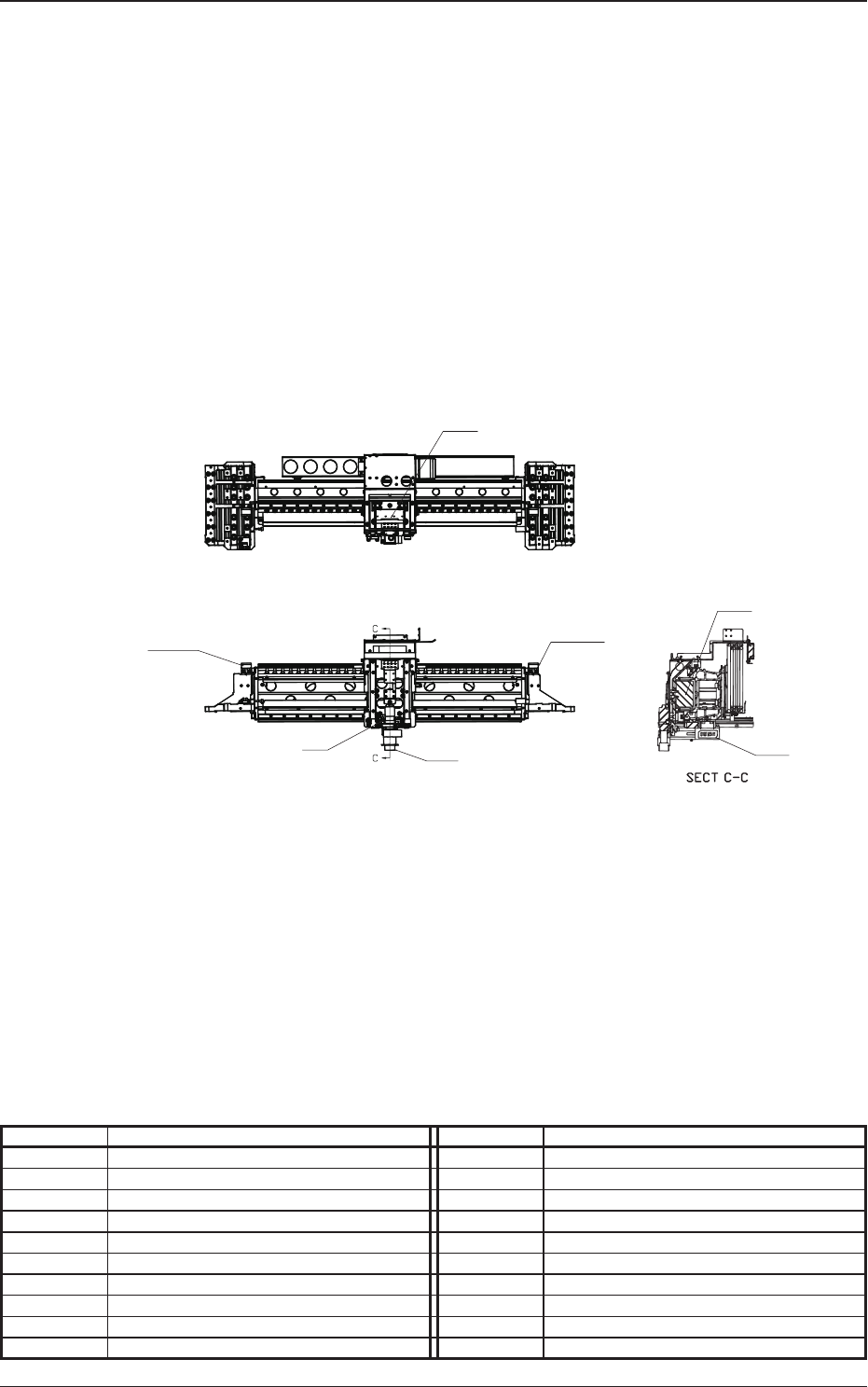

Beam X-Axis Layout
U21
B2101
B2102
B36
E39
U21
M21
Symbol Name Symbol Name
M21 X1-Axis Motor
U21 Linear Scale Head (Converter)
B2101 X-Axis Limit (+)
B2102 X-Axis Limit (-)
B36 PEC Recognition Camera
E39 PEC Recognition Lighting
5OM-1603
2-6
Sensor and Load Layout
1003-003

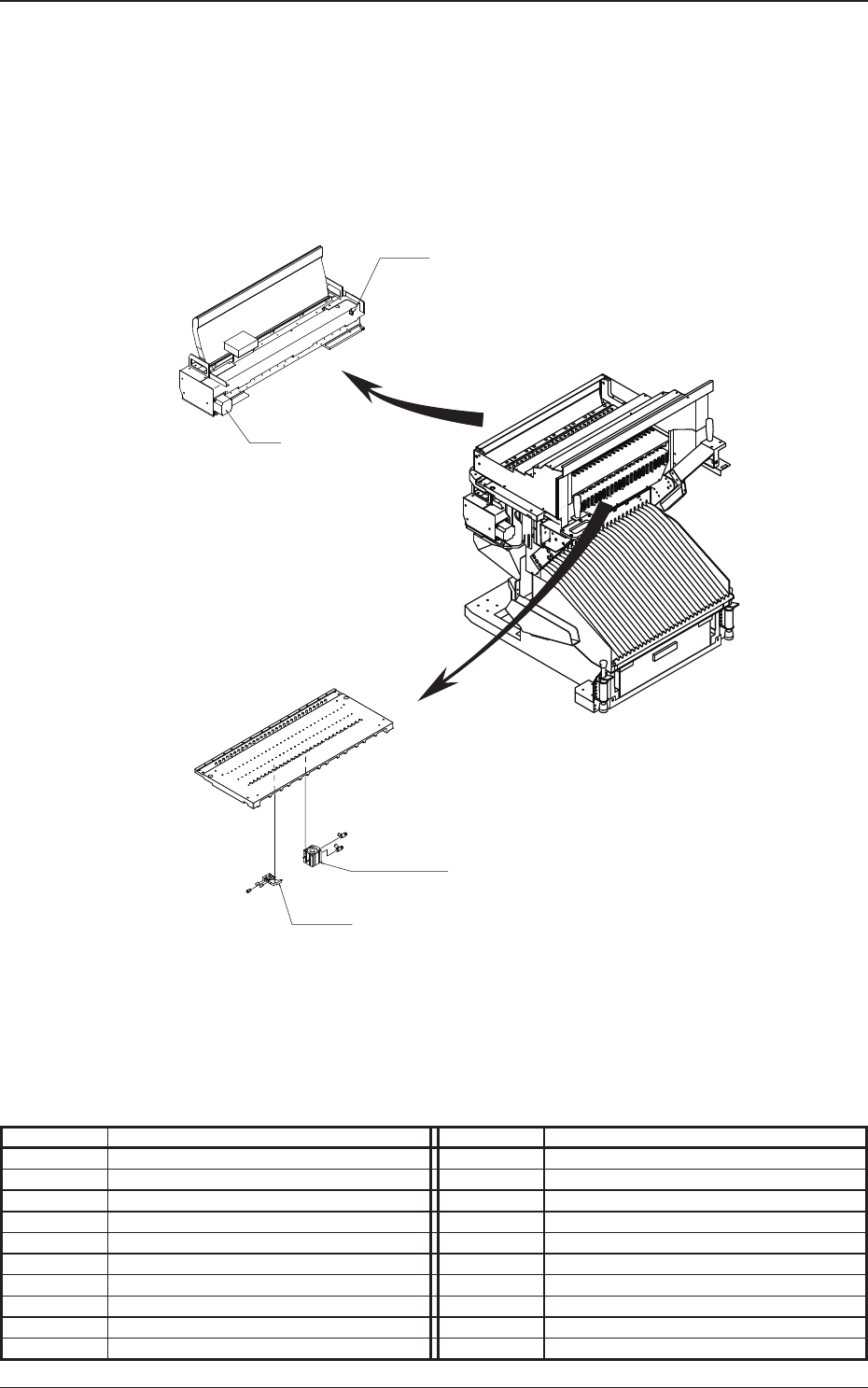

Feeder Cart Layout
Y6913
B6302
M63
B6914,B6910
Cutter
Feeder Base
Symbol Name Symbol Name
M63 Cutter Axis Motor
B6302 Cutter Origin (-)
Y6913 Feeder Clamp
B6914 Feeder Clamp Lower Limit (Clamping)
B6910 Feeder Clamp Upper Limit (Unclamping)
5OM-1603
2-7
Sensor and Load Layout
1102-004

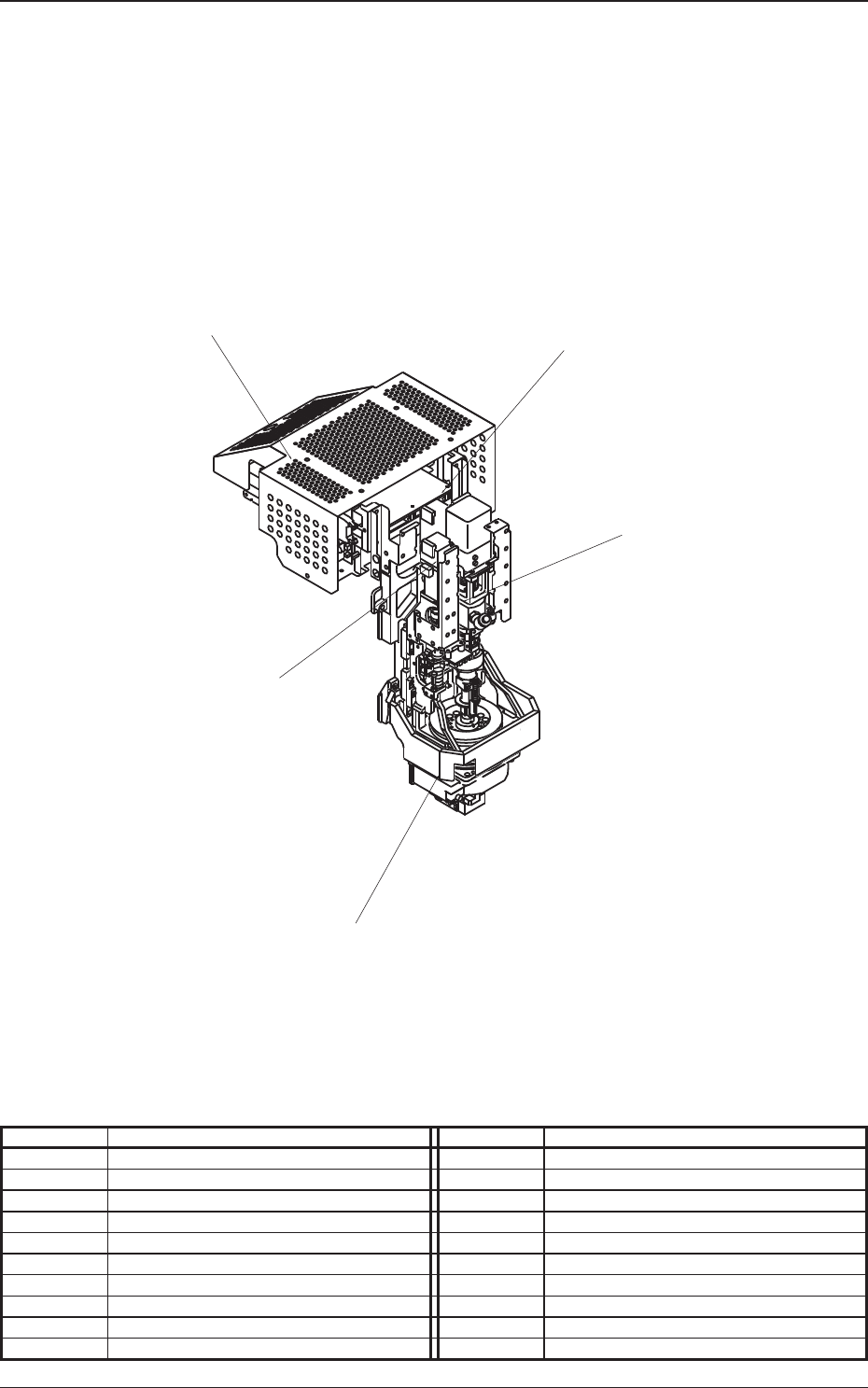

Head Section Layout (General View)
Symbol Name Symbol Name
Electric Box Inside
Head Rotation Section
Head U/D Section
Nozzle U/D Section
Nozzle Selection Section
