EQUIPMENT REQUIRED Soldering Systems(s) 1 or 2 Soldering handpieces Single or dual shaft blade tip MATERIALS Solder braid Flux Cleaner PROCEDURE This technique uses a blade tip with solder braid to draw old solder off th…
NOTES
IPC-7711A
Number: 4.3.1
Revision:
Date: 2/98
Subject: SMT Land Tinning
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
EQUIPMENT REQUIRED
Soldering Systems(s)
1 or 2 Soldering handpieces
Single or dual shaft blade tip
MATERIALS
Solder braid
Flux
Cleaner
PROCEDURE
This technique uses a blade tip with solder braid to draw old solder off the lands. The
blade tip used should be as long or a little longer than the row of lands. The braid
should also be sized to the lands, so that the braid width equals or is slightly less
than the land length.
CAUTION
Oversized braids are not to be used. Undersized braids may be drawn across the
surface of the land, but only with the grain of the land. Never draw solder off by
dragging the braid down a row of lands. The heat combined with the abrasive action
will lift the lands.
1. Choose the size of blade tip that best fits a single row of lands. (See Figure 1.)
2. Install tip.
3. Start with tip temperature of approximately 371°C and change as necessary.
4. Apply flux to the lands. (See Figure 2.)
5. Lay the trimmed end of the braid along the row of lands to be cleaned. (See Fig-
ure 3.)
6. Bring the beveled edge of the blade down on the centerline of the braid. Do not
move the braid across the lands in any direction. (See Figure 4.)
7. Remove braid and tip together, immediately after reflow.
8. Clean the flux residue from the lands.

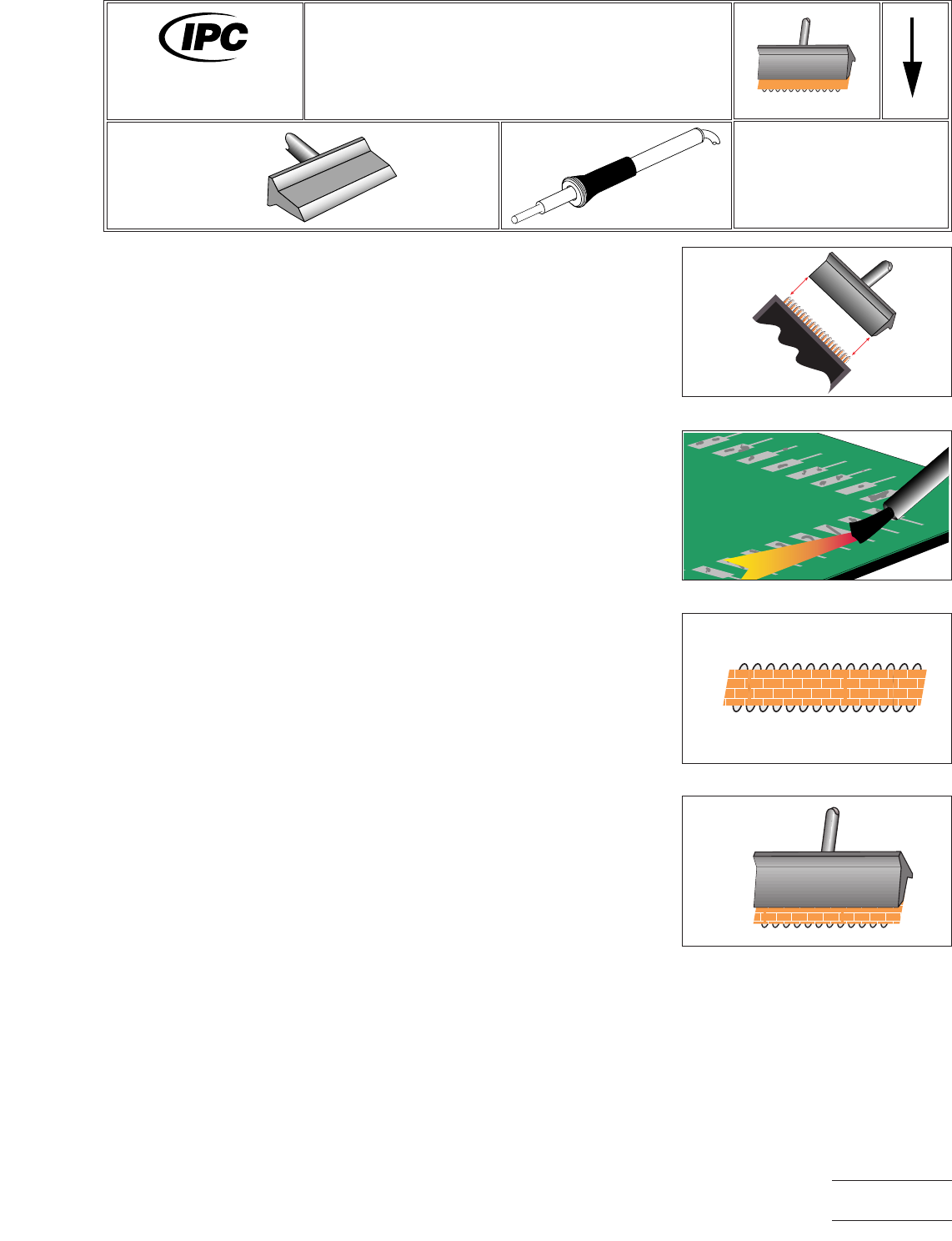

Figure 1 Choose Tip
Figure 2 Apply Flux
Figure 3
Figure 4
7711A
Rework of
Electronic Assemblies
Revision:
Date: 2/98
Cleaning SMT Lands
Using Blade Tip and Solder Braid
Number: 4.4.1
Product Class: R, F, W, C
Skill Level: Intermediate
Level of Conformance: High
