3.3 Using Only One channel (PR8112 Only)
26
When using only CH1, you can limit the instrument’s power consumption to the power necessarily to
drive one channel by setting the CH2 POWER switch on the rear of the instrument to OFF, thereby
turning off the CH2 power supply. When powering the instrument with batteries, doing so will
lengthen the batteries’ service lifetime compared to when the CH2 POWER switch is ON.
3.3 Using Only One channel (PR8112 Only)

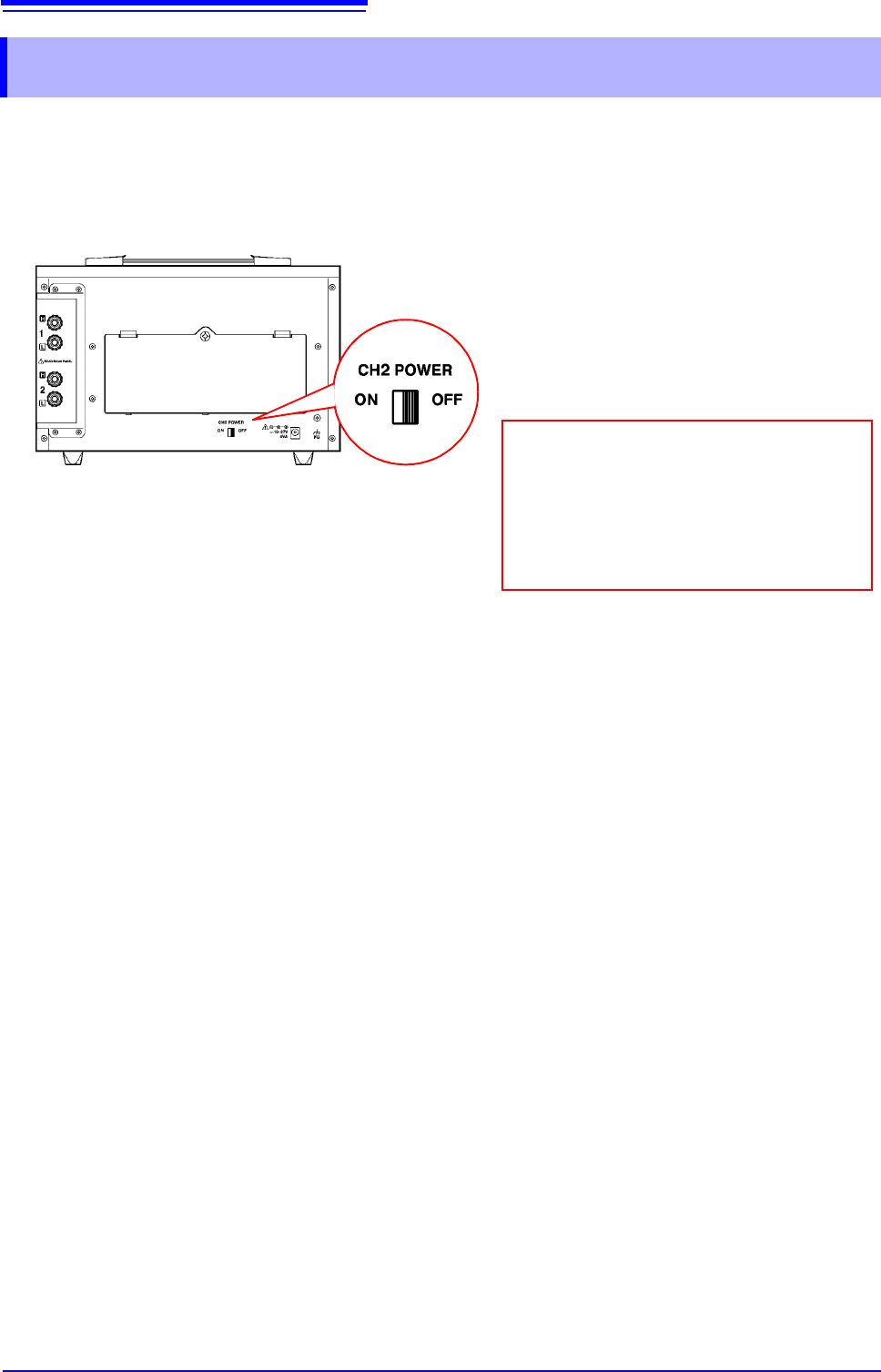

Move the CH2 POWER switch on the rear
of the instrument to the OFF position.
Only the CH1 pen will operate.
Cap the CH2 pen before starting measure-
ment. Taking measurements with the CH2
pen uncapped may cause the position of
the CH2 pen tip to be recorded on the re-
cording paper.
3.4 Example Printout
27
1
3.4 Example Printout
Indicates the amount of recording paper remaining (unit: cm).

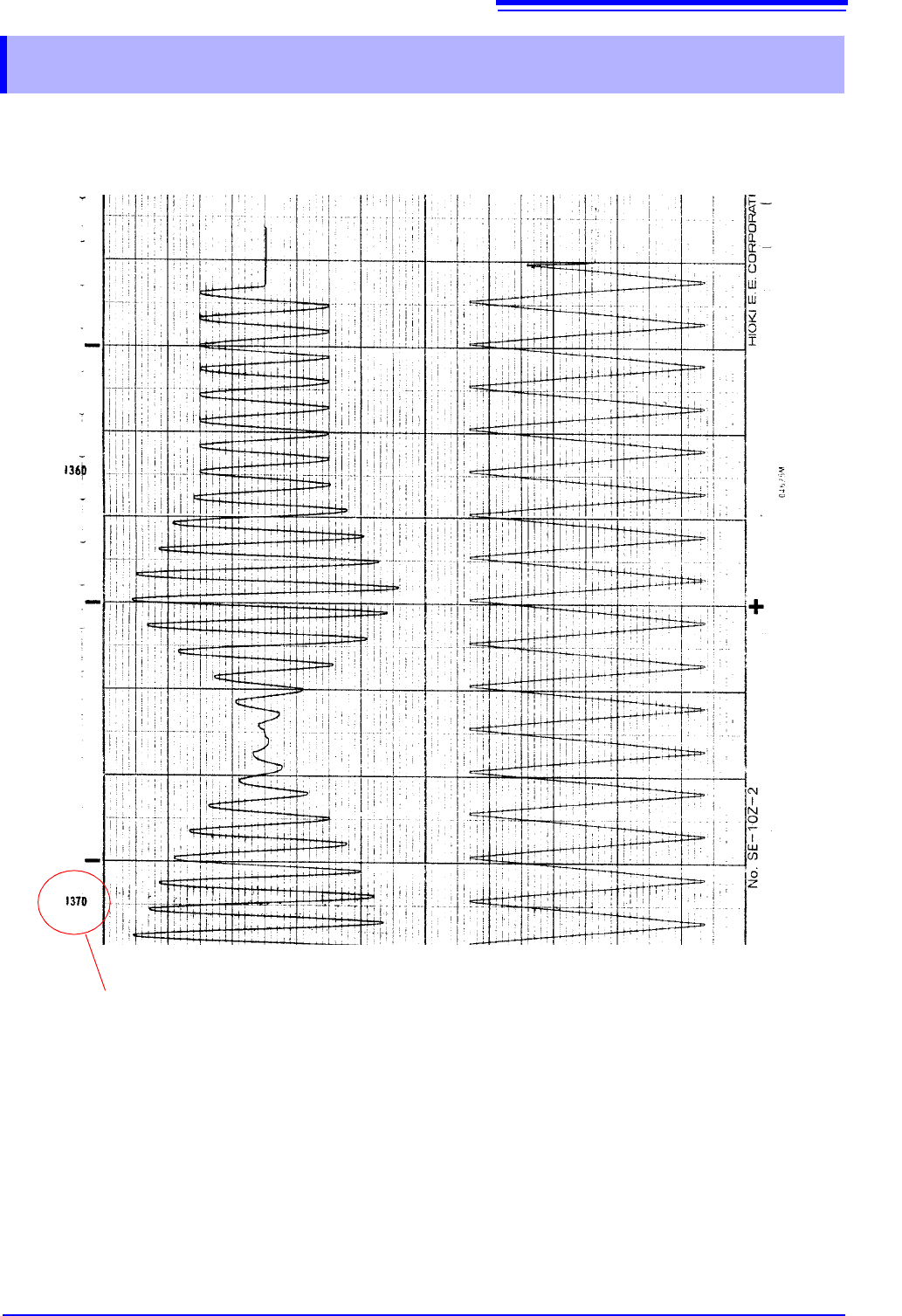

Example of data recorded with the PR8112
3.4 Example Printout
28
