11 The placeALL ® 610 L ha s a wide r asse mbly a rea th an th e place ALL ® 6 1 0. This e nab les t he provision of up to 2 8 4 feedi ng posit ions and a m a ximu m of 6 tr ays for the produc tion . A s an opt ion, t he…

Range of applications

Assembling and dispensing of low and medium volume SMT, up to 10500 components* per hour.

*with second pick & place head

Feeding units

Feeding of components from tape, stick, tape stripe, tray and loose components.

Component capability

Chips 0201 up to Fine Pitch 70 × 70 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and

custom parts like connectors, wired THT-LEDs etc.

Axis drive and control

X-Y Axis: Direct-current motors with contactless linear encoders, resolution 0.5 µm.

Z-Axis : Direct-current motors with encoders, resolution 8 µm.

R-Axis: Direct-current motors with encoders on assembling axis 0.0075°.

Economics

Modular system, fast changeover times, intelligent feeder concept, user friendly software.

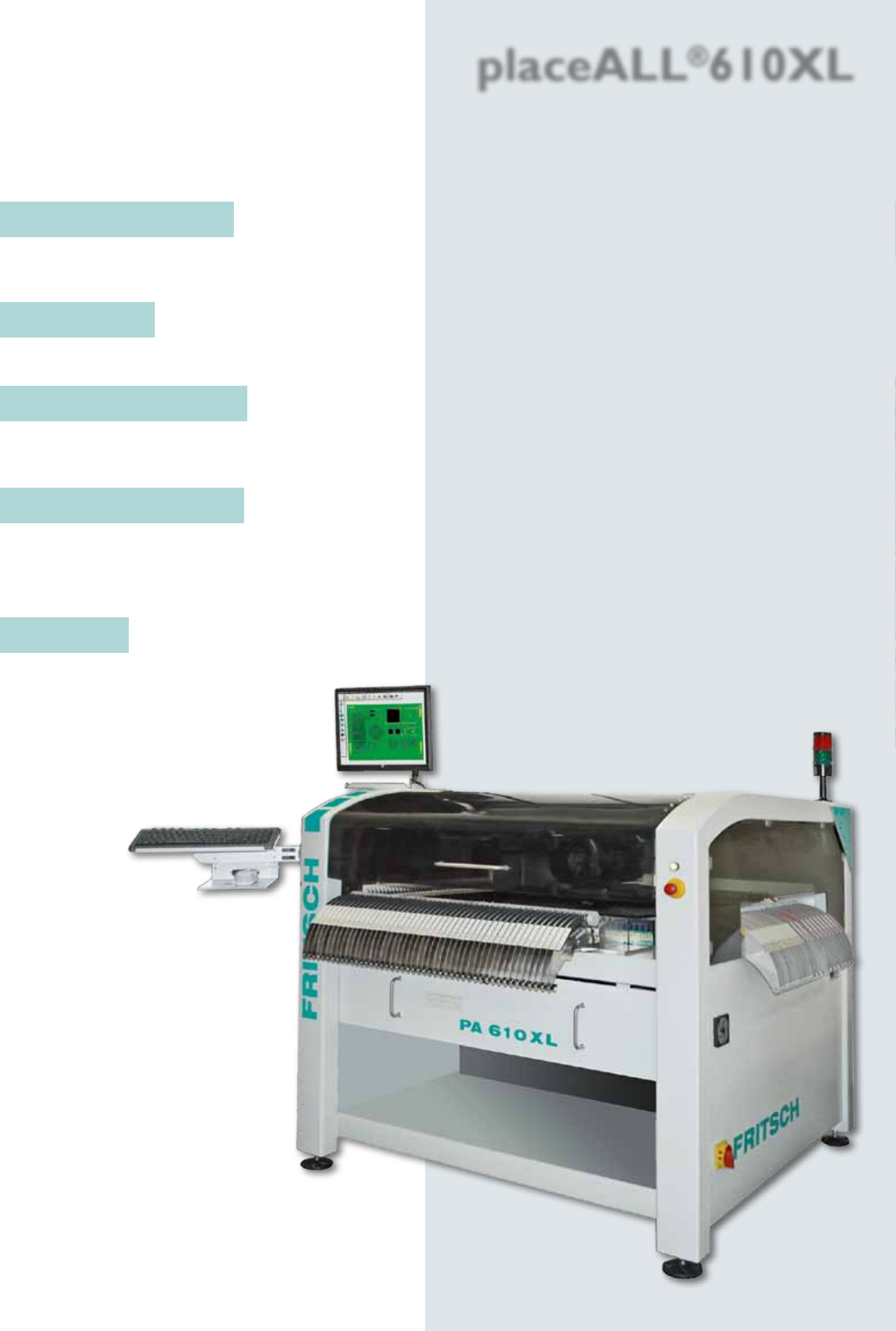

placeALL

610L

The placeALL

610L has a wider assembly area

than the placeALL

610. This enables the provision

of up to 284 feeding positions and a maximum of 6

trays for the production. As an option, the entire

assembly eld can be used to assemble large PC

boards (up to 1020 x 450 mm).

The available hardware options and software

modules (PAJobs, PAStorage etc.) as well as the

feeder are the same as for the placeALL

510/610.

This offers the simple possibility to work parallel

with several machines or to link them.

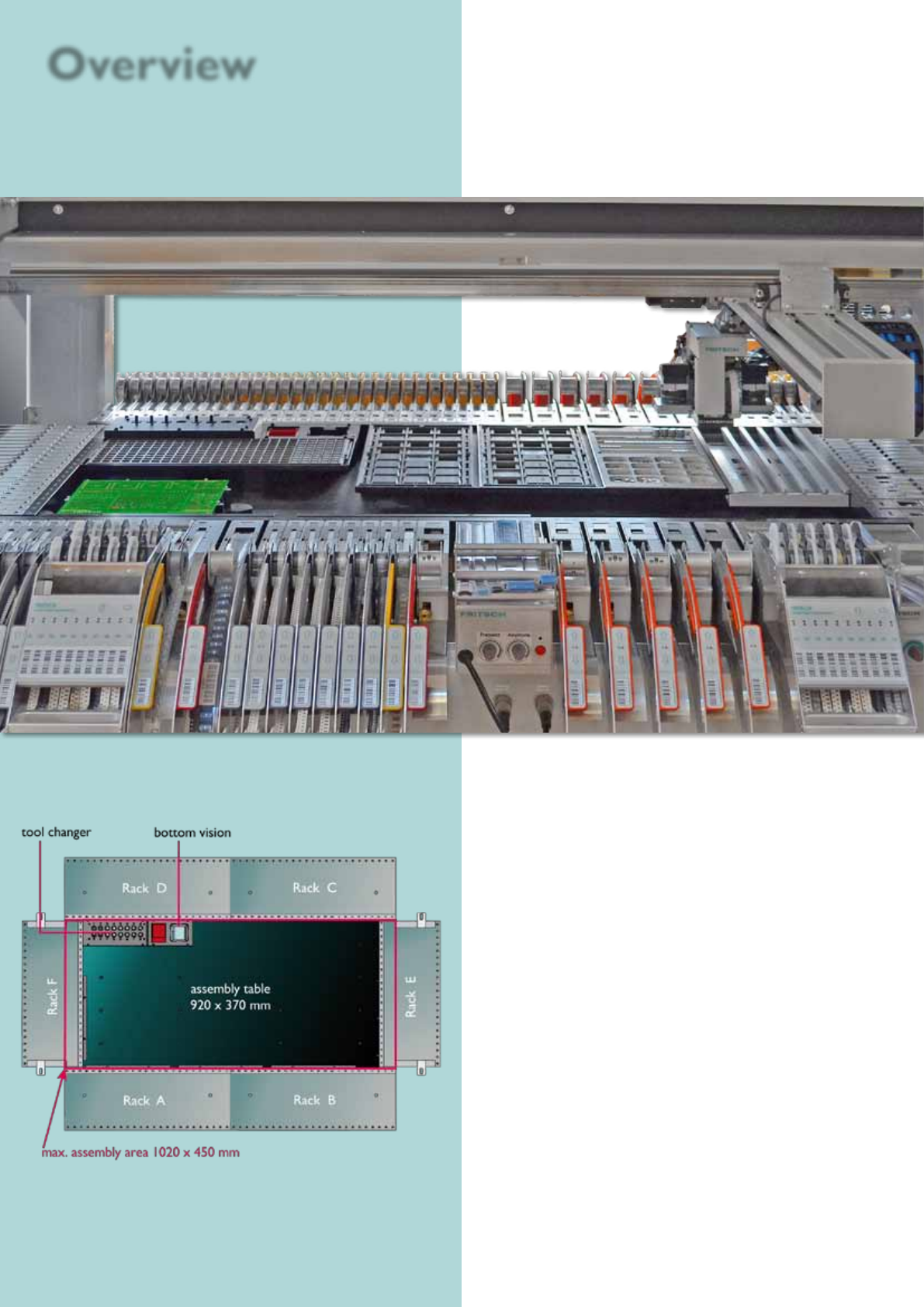

Overview
