7 The placeALL ® 510 is a modular Pick & Place system and especially useful to build pr ototypes and small series. It supports a large range of components (chips, FP-components and BGAs), so ev en the most complex ta…

placeALL

510

Image of placeALL

510 with

optional divided frame

Range of applications

Assembling and dispensing of prototypes and small series up to 4000 components per hour.

Feeding units

Feeding of components as loose components, tape, stick, tape stripe and tray.

Component capability

Chips 0201 up to ne pitch 70 × 70 mm and pitch 0.4 mm, BGAs, CSPs, µBGAs, QFNs and custom

parts like connectors, THT-LEDs etc.

Axis drive and control

X-Y Axis: Direct-current motors with contactless linear encoders, resolution 0.5 µm.

Z-Axis : Direct-current motors with encoder, resolution 8 µm.

R-Axis: Direct-current motors with encoder 0.005°.

Economics

Modular system, fast changeover times, user friendly software

The placeALL

510 is a modular Pick & Place

system and especially useful to build prototypes and

small series. It supports a large range of components

(chips, FP-components and BGAs), so even the most

complex tasks can be handled.

Up to 200 possible feeder positions and an intelligent

software reduce the changeover times which

increases productivity for small lot sizes.

There is always the possibility to integrate the full

automatic machine into a production line or to ret

other options.

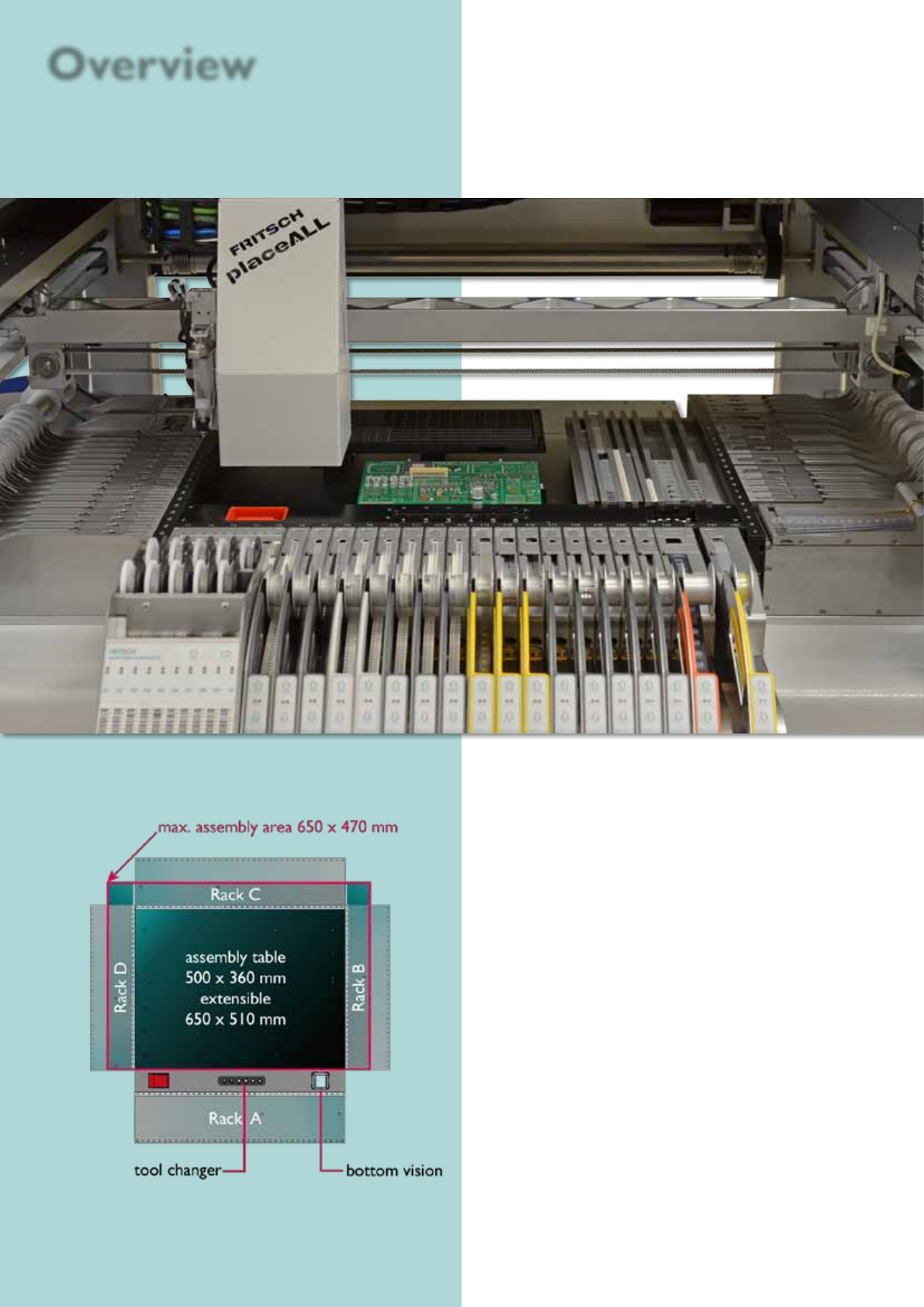

Overview

Range of applications

Assembling and dispensing of low and medium volume SMT, up to 10500 components* per hour.

*with second pick & place head

Feeding units

Feeding of components from tape, stick, tape stripe, tray and loose components.

Component capability

Chips 0201 up to Fine Pitch 70 × 70 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and

custom parts like connectors, wired THT-LEDs etc.

Axis drive and control

X-Y Achse: Direct-current motors with contactless linear encoders, resolution 0.5 µm.

Z-Achse : Direct-current motors with encoders, resolution 8 µm.

R-Achse: Direct-current motors with encoders on assembling axis 0.0075°.

Economics

Modular system, fast changeover times, intelligent

feeder concept, user friendly software.

placeALL

610
