9 The placeALL ® 610 h as a mod ular s tru ct ure and can b e used for t he asse mbly of p rotot yp es and sm all serie s. Wit h a wide r an ge of handl ed compone nt s , ra nging from chi ps mode l 020 1 up to F P-par t…
8
Range of applications
Assembling and dispensing of low and medium volume SMT, up to 10500 components* per hour.
*with second pick & place head
Feeding units
Feeding of components from tape, stick, tape stripe, tray and loose components.
Component capability
Chips 0201 up to Fine Pitch 70 × 70 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and
custom parts like connectors, wired THT-LEDs etc.
Axis drive and control
X-Y Achse: Direct-current motors with contactless linear encoders, resolution 0.5 µm.
Z-Achse : Direct-current motors with encoders, resolution 8 µm.
R-Achse: Direct-current motors with encoders on assembling axis 0.0075°.
Economics
Modular system, fast changeover times, intelligent
feeder concept, user friendly software.

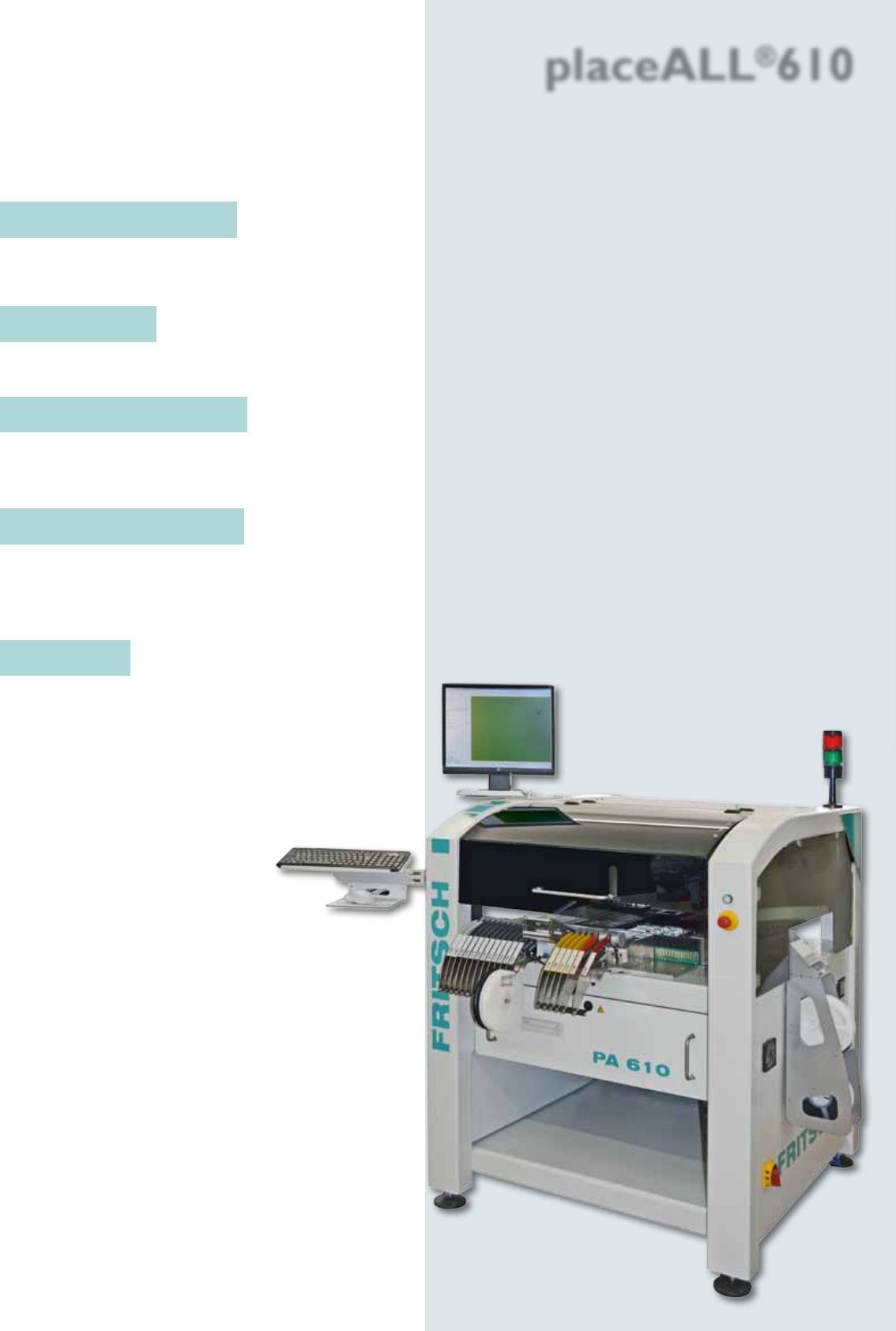

placeALL
®
610
9
The placeALL
®
610 has a modular structure and
can be used for the assembly of prototypes and small
series. With a wide range of handled components,
ranging from chips model 0201 up to FP-parts with a
pitch of 0.3 mm and BGAs, even complex tasks can
be exibly assembled.
With a maximum of 208 possible feeder positions
and a intelligent software, changeover times can be
reduced to a minimum.
Additionally the placeALL
®
machines can be integrated
into an assembly inline-system (like our smartLINE),
which can be operated according to the SMEMA
standard.

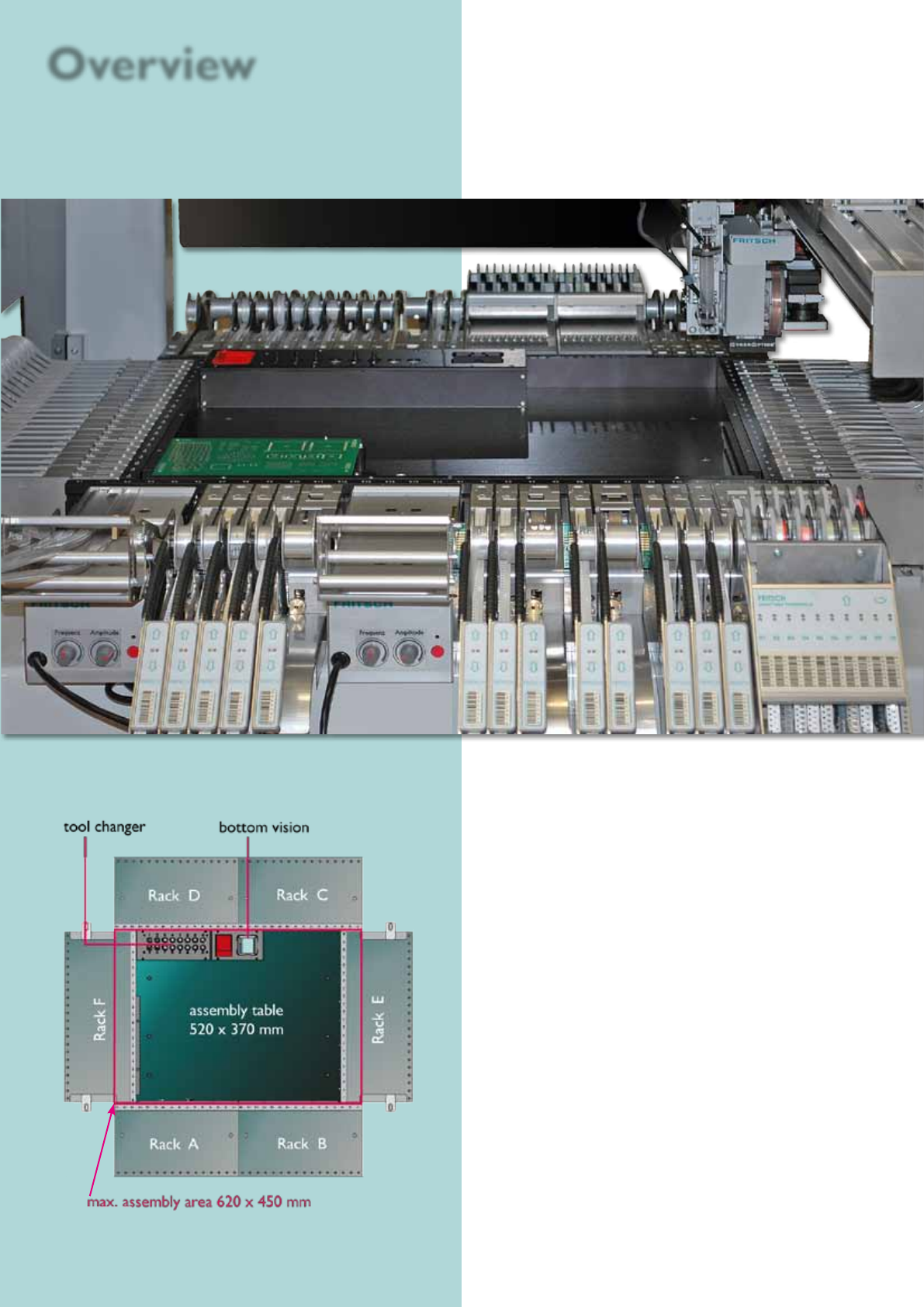

Overview
10
Range of applications
Assembling and dispensing of low and medium volume SMT, up to 10500 components* per hour.
*with second pick & place head
Feeding units
Feeding of components from tape, stick, tape stripe, tray and loose components.
Component capability
Chips 0201 up to Fine Pitch 70 × 70 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and
custom parts like connectors, wired THT-LEDs etc.
Axis drive and control
X-Y Axis: Direct-current motors with contactless linear encoders, resolution 0.5 µm.
Z-Axis : Direct-current motors with encoders, resolution 8 µm.
R-Axis: Direct-current motors with encoders on assembling axis 0.0075°.
Economics
Modular system, fast changeover times, intelligent feeder concept, user friendly software.

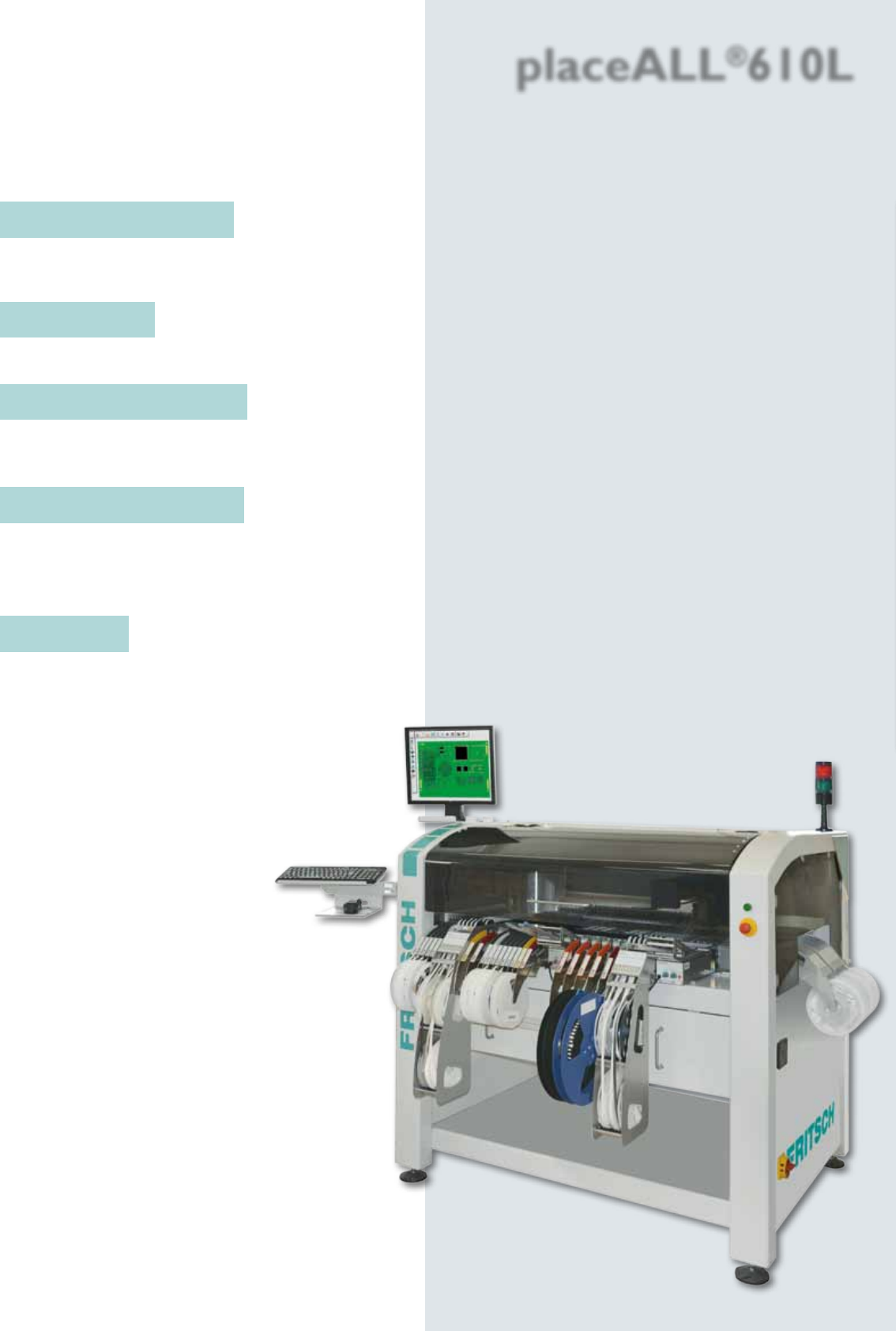

placeALL
®
610L
