Software options
PANetState
All machine messages are transferred to a separate
PC on the network and displayed there. The user is
informed i.e. if production is nished and can initiate
further steps.
PAAcoustics
The sound module PAAcoustics early informs the user
about the end of production. Needed preparations can
be started without stopping the process.
PALevel
For assembling of MID interconnect device the module
„Z-Level“ can be integrated. This module enables the
placing of components on different levels - on higher
and deeper levels. So the module is useful for placing
components on interconnect device like for example
Embedded Components in PCBs.
PAJob
As production setups or change-over times are the
most cost-intensive activities, PAJobs analyzes which of
the predened orders takes least time to set up and
suggests it to the user for production.
PA-LEDpairing
The optional software-module PA-LEDpairing has been
developped to combinate LED to resistor. So the manual
assignement isn’t longer necessary and errors can be
avoided.
25
The placeALL
®
range of fully automatic machines offers
the right feeder for every SMD model.
The feeder system includes feeders for rolls, sticks,
trays and for loose components and is available for all
automatic machines.
Coloured grips for
better distinction of
the tape width
Automatic recognition
When plugging in a smartFEEDER, the feeder is
automatically logged in to the system. In this event, not
only the data of components are automatically passed
on to the feeder but also the picking positions. The
system log-in takes only a few milliseconds. Thereby it
doesn’t matter which feeder slot or to which side of the
machine the smartFEEDER is plugged into.
The pick & place machine immediately knows the
picking position and its feeding program is automatically
adapted to the new feeder without intervention of the
operator. Empty feeders can thus be replaced during the
current feeding.
Automatic pick & place correction
The serial software module automatic pick&place
correction (APC) continuously monitors the picking
position from the feeders. In the event that the picking
position is not correctly calibrated or the picking
position of a belt changes slightly during assembly, then
this module will automatically adjust the picking
position and the stability of placement/assembly will be
signicantly increased.APC applies a statistical
procedure for the correction of the picking positions.
Therefore, individual outliers do not cause a faulty
correction. The APC is part of the software of the fully
automatic machine of the placeALL
®
-series.

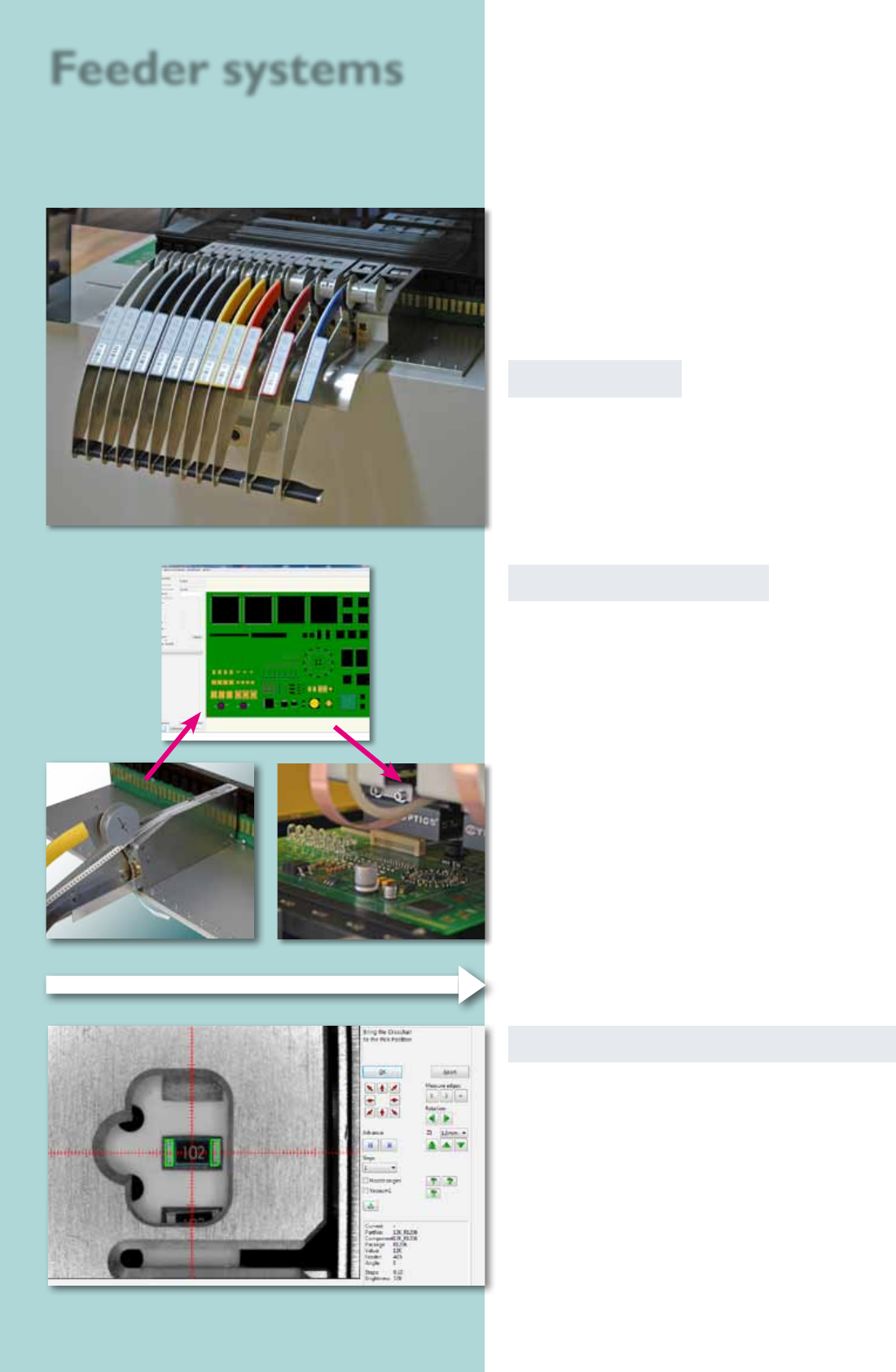

Feeder systems
smartFEEDER
Especially in the case of smaller and medium-sized lot
sizes, the feeder system has to be exible and absolutely
safe to guarantee high quality at low costs. All the
information about the assembled components is stored
in the smartFEEDER itself.
plug-in log in assemble
0ms 50 ms 100 ms
26

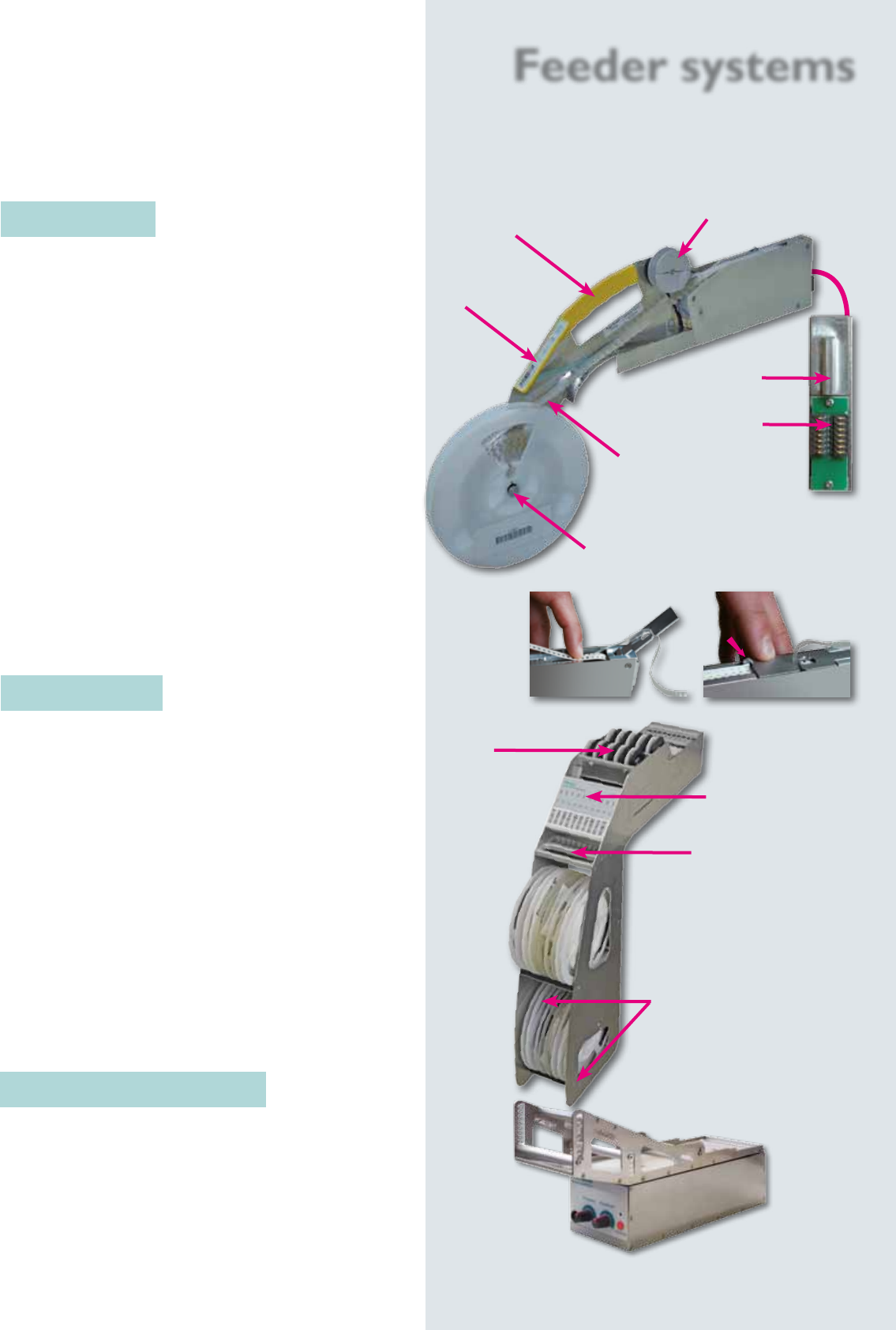

tapeFEEDER
All tapeFEEDER are smartFEEDER. They have
an easily accessible control panel for the manual
infeed and outfeed, a status indication with 2
LEDs as well as the series number with bar code,
through which the feeder can also be equipped
with a bar code scanner. The feeders can pick
up rolls up to 8” by default. With extensions 13“
rolls can be handled.
Technical details:
• 8 mm - 72 mm tape width
• for blister- and paper tapes
• direction change tapes Ø=64mm
• microprozessor controlled
• high speed communication
• redundant plug
blockFEEDER
The use of blockFEEDER can facilitate a space saving
set-up of the components to, for example, implement
a standard set-up, during which standard components
remain always mounted on the machine.
Only a few project specic components must be
retrotted.
• Processes 10 x 8 mm tapes with Ø 180 mm
optional 5 x Ø 180 mm and 5 x 330 mm
• max. thickness of the tape 1.1 mm; max. height of the
tape 1.6 mm
• Dimension from the tape to the border of the tape
min. 1 mm
vibrations tubeFEEDER
Both the amplitude as well as the frequency can be
adjusted on the stick feeder. This allows an optimal
adjustment of the infeed to the set-up components.
The vibration starts automatically by removing the
components and stops automatically after a set length of
time. This ensures that sufcient components are always
available.
Feeder systems
threading
control panel
roller support
seperable peel slot
empty tape fee-
ding
coloured grip for
better distinction
redundant
contacting
highly precise
base body
control
panel
roller support
peel slots
tape guide
