4

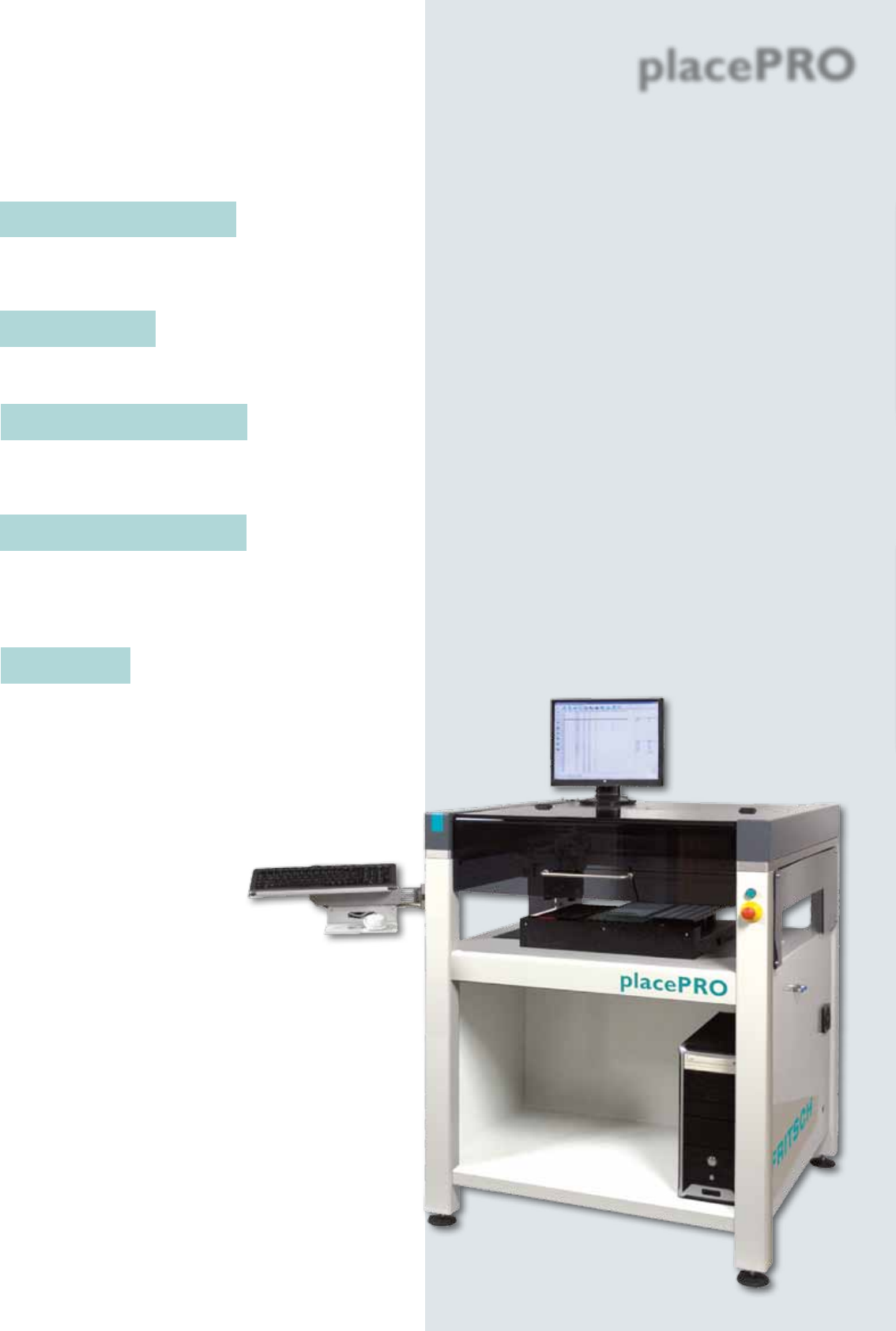

placePRO
Range of applications
Assembling and dispensing of prototypes and zero series up to 4000 components per hour. More than 60
components feeders and PALooseComponents for assembling of loose components included in base packet.
Feeding units
Feeding of components as loose components, tape, stick, tape stripe and tray.
Component capability
Chips 0201 up to ne pitch 70 × 70 mm and pitch 0.4 mm, BGAs, CSPs, µBGAs, QFNs and custom
parts like connectors, THT-LEDs etc.
Axis drive and control
X-Y Axis: Direct-current motors with contactless linear encoders, resolution 0.5 µm.
Z-Axis : Direct-current motors with encoder, resolution 8 µm.
R-Axis: Direct-current motors with encoder 0.005°.
Economics
Modular system, fast changeover times, user friendly software
