28 T ape-strip f eeder When assembling pr ototype runs, tape-strips ar e often used. With this feeder , up to elev en 8 mm strips (or fe wer , but wider strips) can be fed simultaneously . T ra y holder Mult iple t r ay …

domeFEEDER

For the production of keypads feeder for the support

of domes are available. The feeder are useable for all

standardized domes. We can also implement customized

solutions.

ledFEEDER

There are feeders for assembling THT LEDS available for

all machi nes of the placeALL

series. These feeders feed

the LEDs from stan dard reels, cut the wires and place

the LEDs in the right position for assembly. The length of

the wires can be adjusted with corresponding adapters

to any size.

FEEDERtyp Order number Slots Tape width

Tape depth



Rack-Position Notes

tapeFEEDER 908.121.008 1 8 mm 6 mm all

half step for

0402 / 0201

tapeFEEDER 908.120.008 1 8 mm 6 mm all

tapeFEEDER 908.120.012 1 12 mm 6 mm all

tapeFEEDER 908.120.013 2 12mm 13 mm all

tapeFEEDER 908.120.016 2 16 mm 13 mm all

tapeFEEDER 908.120.024 2 24 mm 13 mm all

tapeFEEDER 908.120.032 3 32 mm 13 mm all

tapeFEEDER 908.120.044 3 44 mm 13 mm all

tapeFEEDER 908.120.056 4 56 mm 13 mm all

tapeFEEDER 908.120.072 4 72 mm 13 mm all

blockFEEDER 908.160.008 5 8 mm 3 mm all

for 10×8 mm-

tape

tubeFEEDER 908.121.002 5 - - all for 10×SO08

trayFEEDER 908.170.410 13 - -

machine-specic

for 8 x JEDEC

Tr ay

 Please take note of the bending radius.

Feeder systems

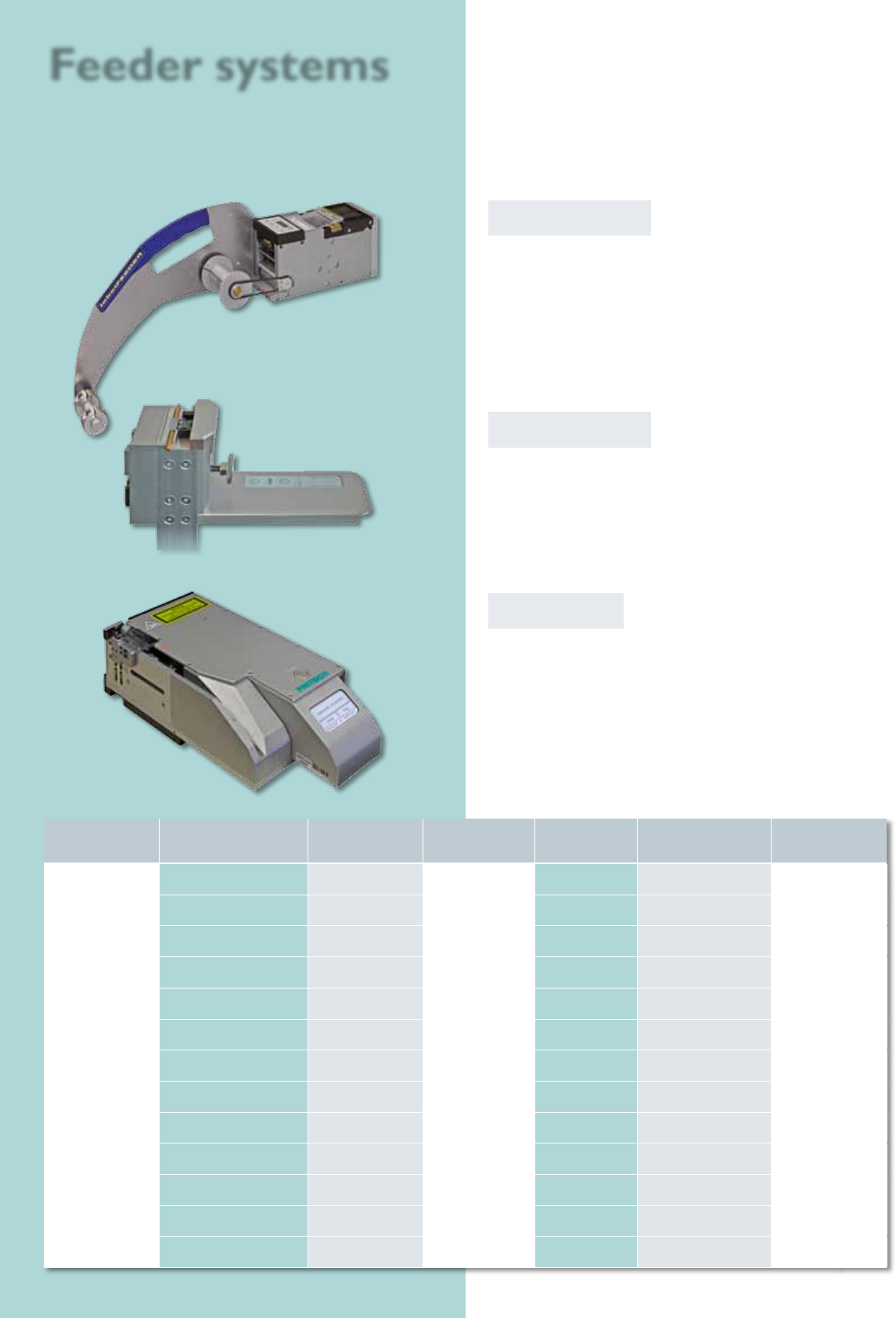

labelFEEDER

The FRITSCH labelFEEDER allows an exact label

transport to the picking position of the pick&place

machine. A fast setup is guaranteed by the well-arranged

four-button control panel and the wide range of label-

and tape sizes tting to the feeder. Together with the

compact dimensions of the unit a highly efcient labeling

solution was created.

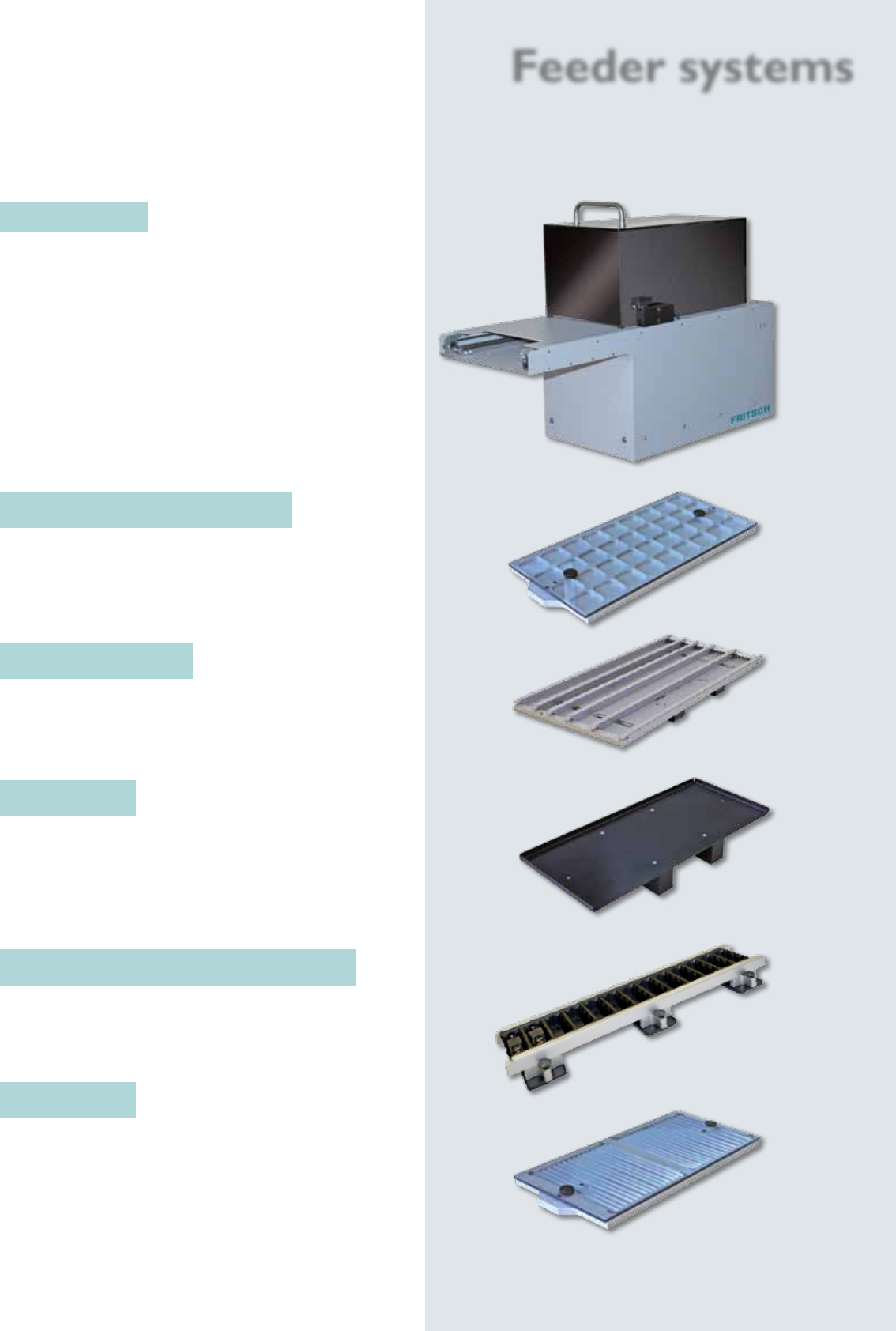

Tape-strip feeder

When assembling prototype runs, tape-strips are often

used. With this feeder, up to eleven 8 mm strips (or

fewer, but wider strips) can be fed simultaneously.

Tray holder

Multiple tray holder per one JEDEC tray can be used

inside the placement area.

Thus the placement area of the Pick & Place machine can

be adapted easily to different projects and tasks.

Tray for loose components

The loose-component feeder for the placeALL

includes

36 pickup positions.

Every tray has a clear cover, to keep the components

shield and clean from dust.

IC FEEDER

25 different ICs can be equipped on the IC feeder.

Therefore it has inserts with three different widths for

different applicable components.

These inserts can be adjusted on custom made projects.

Feeder systems

trayFEEDER

• up to 8 Jedec-Trays

• automatic supply of the right component while

assembling

• integration in the operating interface

• retrot at existing machines

• mechanical linked with the machine for solid taking

• operating of Trays in any order – no subscription

• integrated controller of axis for gentle motion of

the high-value components

All these feeders can be placed in the assembling area by magnetic bases.

Holder for high component tapes

The Universal-Tape-Strip-Holder is suitable for compo-

nent tapes up to 27 mm height. Built for the use of tapes

with a width from 8 to 56 mm.

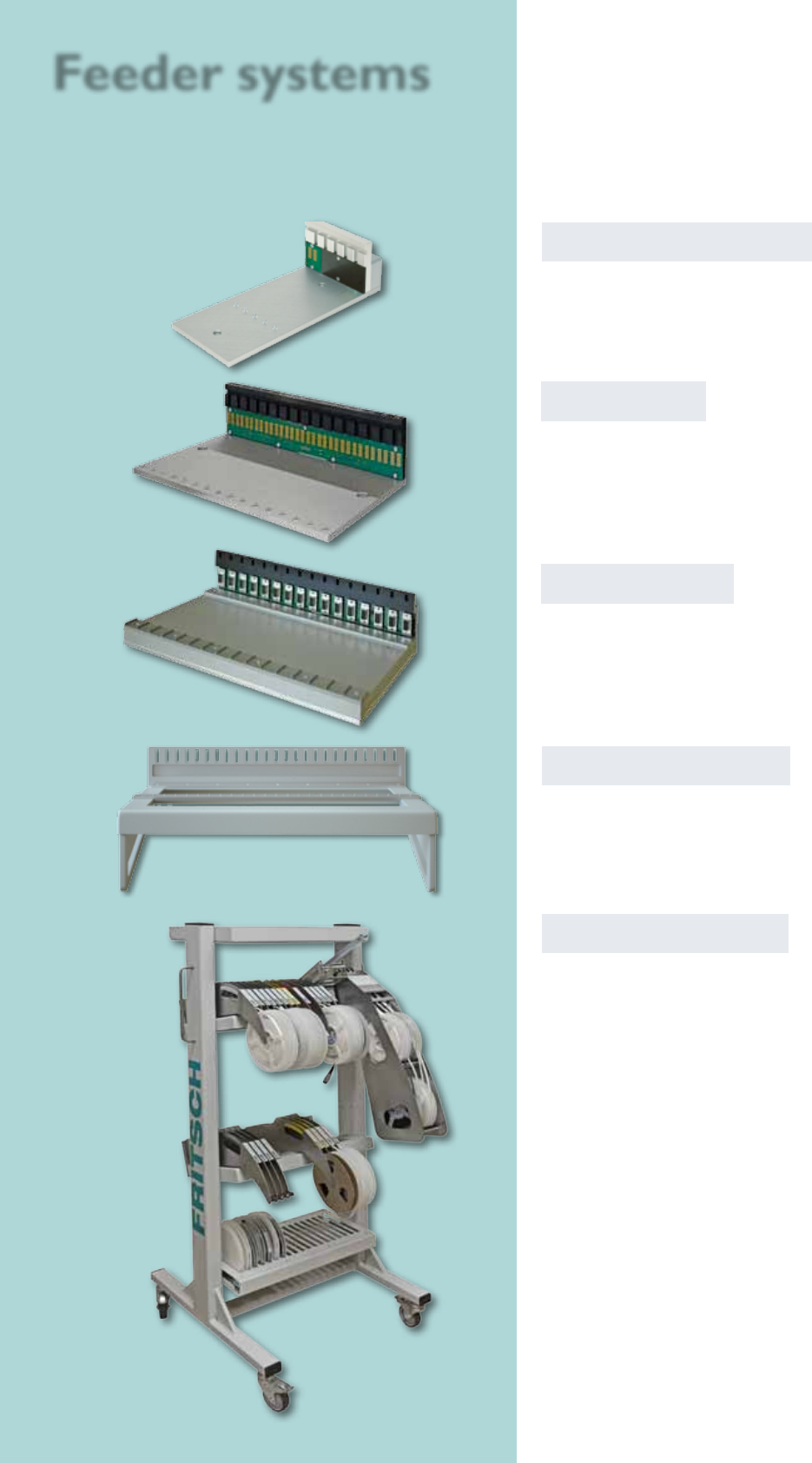

Feeder storage rack

The feeder trolley makes it possible to safely store all

feeder units that are not required for the current

assembly process near to the placement machine. Whilst

the machine is producing, the operator can already get

the feeders needed for the next project on the feeder

trolley. After product change the feeder are simple

plugged from the trolley to the machine.

The different racks make it possible to stock up all

materials, like rolls, tubes or small components needed

for production. The mounted wheels allow an easy and

smart moving of the trolley.

The feeder trolley has the following racks:

2 x racks with 25 slots for feeders

1 x rack for small parts

All in all, the routes to be made can be shortened,

flexibility increased and the operator relieved.

Table feeder storage

Portable or at the working place mountable feeder com-

partments enable the solid and vertical storage of feeder

which are not in use at the machine.

Feeder set-up stations

An external feeder set-up station enables a set-up of

feeders irrespective of the machine. Thereby the set-up of

a new project can be carried out at the same time as the

current project is still being assembled.

Feeder racks

Feeder racks are required to use tape or tube feeders

on the machine. Each rack ensures the communication to

the individual feeders. Depending on the type of

machine, different feeder racks can be mounted.

Feeder adapter

The feeder adapter allows the use of belt and bar

feeders using a sub-D connection on present machines.

The adapter allows the set-up of the feeders in the

software and thereby emulates the additional functions

on present machines.
