35 T est station for components The need to document the exact value of a component is omnipresent. Whether it is a 100% contr ol in the case of high grade mounting functions such as in the eld of medicine and in the e…

Accessory

PCB intake

The universal PCB quick-device allows easy xing of

single or double-sided PCBs with different shapes.

Therefore are various xed magnetic recordings.

• PCBs up to 1020 x 770 mm

• Clearance under the PCB 32 mm

• Clearance above the PCB 22 mm

• Single- and double-sided PCBs

• No tools for adjustment

• Free positioning of PCB support with a magnetic

• Components up to a height of 20 mm possible to

place

Vacuum table

For assembling of exible PCBs a vacuum table can be

integrated. There are variants for a complete vacuum

suction of PCBs as well as for a partial vacuum suction.

The attachement of the vacuum table is possible without

the use of tools. A changing from vacuum table to the

conventional PCB intake happens with the help of the

grips just in a few moments.

Auto-Blow-Option

To ensure the replacement of exible PCBs, blow-off-

option can be integrated. This device will be activated

just before the extension of the PCB carrier and brings

a minimum air lm between the substrate and vacuum

table for a clean separation and to ensure safe transport

of the PCB.

Assembling tools

The standard placeALL® system has ve different tools

per assembling head. With these standardized tools all

components up to a height of 20 mm can be picked &

placed. The tools are spring-loaded to equalize small dif-

ferences in the assembling heights. For cleaning the tools

are easily demountable.

The FRITSCH company offers a large portfolio of tools

for the full-automatic assembling system. But also custo-

mized versions are available. Please feel free asking us!

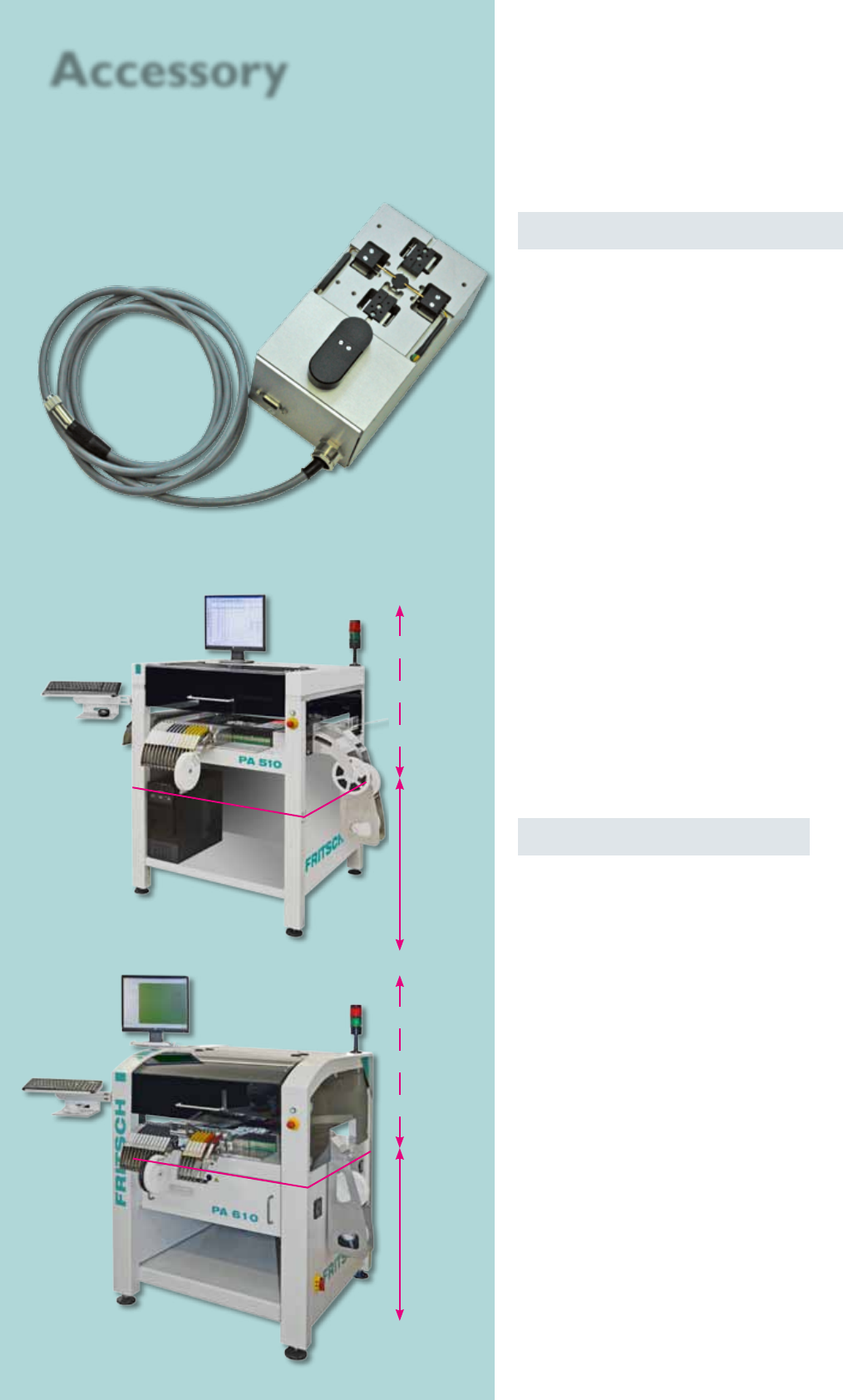

Test station for components

The need to document the exact value of a component

is omnipresent. Whether it is a 100% control in the case

of high grade mounting functions such as in the eld of

medicine and in the eld of astronautics or also the tra-

cing of a newly opened batch of components. The need

to document the value of components is given. And a

test station makes sense for particularly this purpose.

Dividable machine frame

To pass through door frames with less than 80 cm

in width, the placePRO, placeALL

510 and

placeALL

610/610L machine frames can be built

dividable, each part being smaller than 80 cm.

<80 cm

Accessory

Rack A

Rack B

Rack C

Rack D

Rack F

Rack A

Rack B

Rack C

Rack D

Rack A

Rack B

Rack C

Rack D

Rack F

Rack E

Rack A

Rack B

Rack C

Rack D

Rack E

Examples for conguration placeALL

510

Feeder slots 100 / 200

Feeder slots 50 / 100

Feeder slots 75 / 150

placeALL

610/700

108 / 208

64 / 124

86 / 166

Rack A

Rack C

Rack D

Rack A

Rack C

Rack A

Rack C

Rack D

Rack B

Rack A

Rack C

Rack B

Feeder slots single 8 mm or 12 mm tapeFEEDER / many 8 mm blockFEEDER

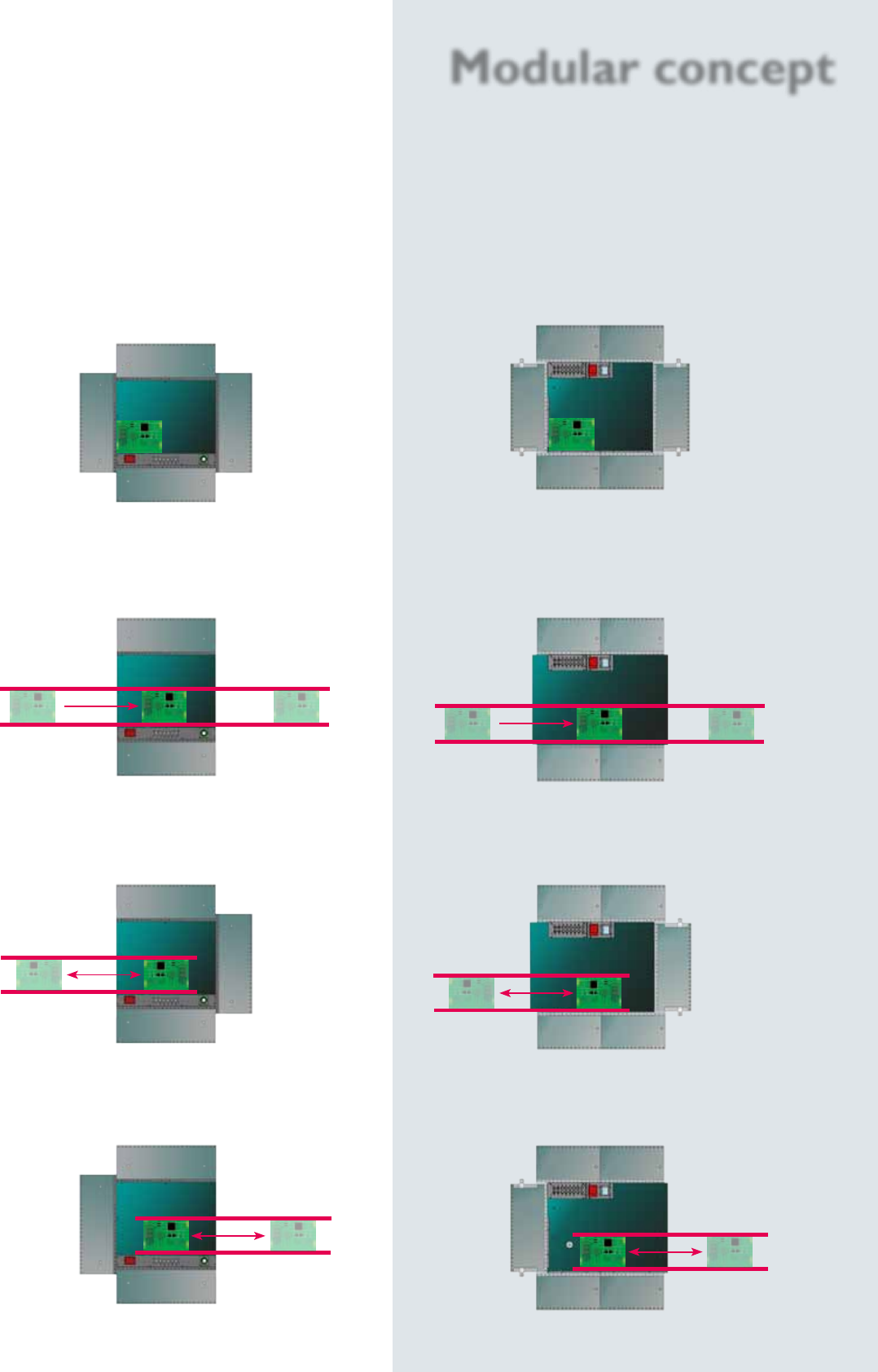

Modular concept
