5 Max. assembly ar ea with extension 650 x 510 mm. Inclu- ded in base pack et placePR O . Ov er vie w In pr ototype-pr oduction the pick & place machine is assigned to new tasks almost e v er y da y . The component r…

placePRO

Range of applications

Assembling and dispensing of prototypes and zero series up to 4000 components per hour. More than 60

components feeders and PALooseComponents for assembling of loose components included in base packet.

Feeding units

Feeding of components as loose components, tape, stick, tape stripe and tray.

Component capability

Chips 0201 up to ne pitch 70 × 70 mm and pitch 0.4 mm, BGAs, CSPs, µBGAs, QFNs and custom

parts like connectors, THT-LEDs etc.

Axis drive and control

X-Y Axis: Direct-current motors with contactless linear encoders, resolution 0.5 µm.

Z-Axis : Direct-current motors with encoder, resolution 8 µm.

R-Axis: Direct-current motors with encoder 0.005°.

Economics

Modular system, fast changeover times, user friendly software

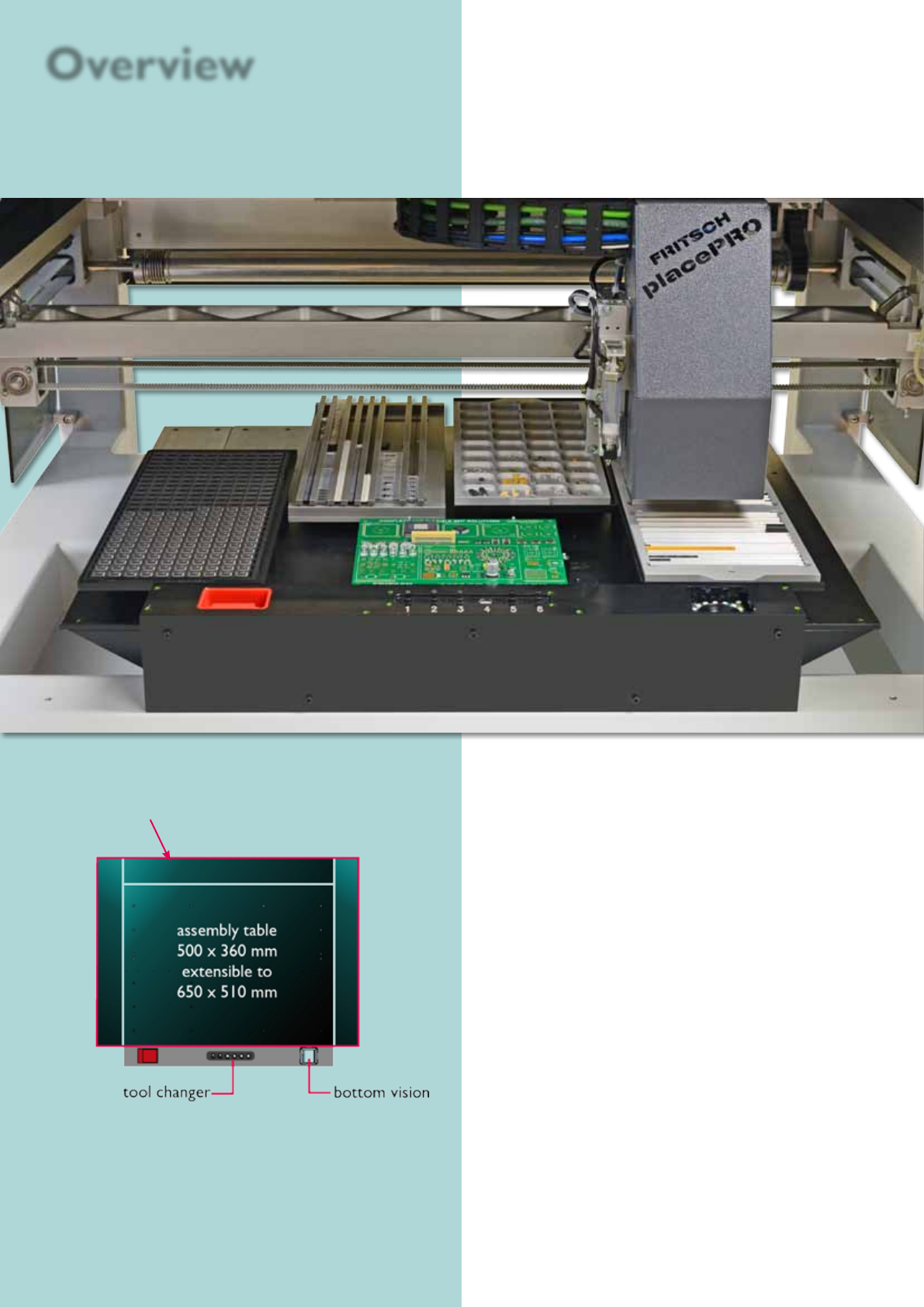

Max. assembly area with extension 650 x 510 mm. Inclu-

ded in base packet placePRO.

Overview

In prototype-production the pick & place machine

is assigned to new tasks almost every day. The

component range is almost unlimited capacious. The

structures are always getting ner and smaller on

rising demand of assembly quality.

QFPs, BGAs and QFNs are on order of the day, but

basic chip- and SO-components as well.

Especially for prototypes and zero series expensive

equipment is necessary.

The placePRO is with special equipment the link

between manual picking & placing and and exible

pick & place full automatic machines. For the rst

time it combines the advantages of these different

systems.

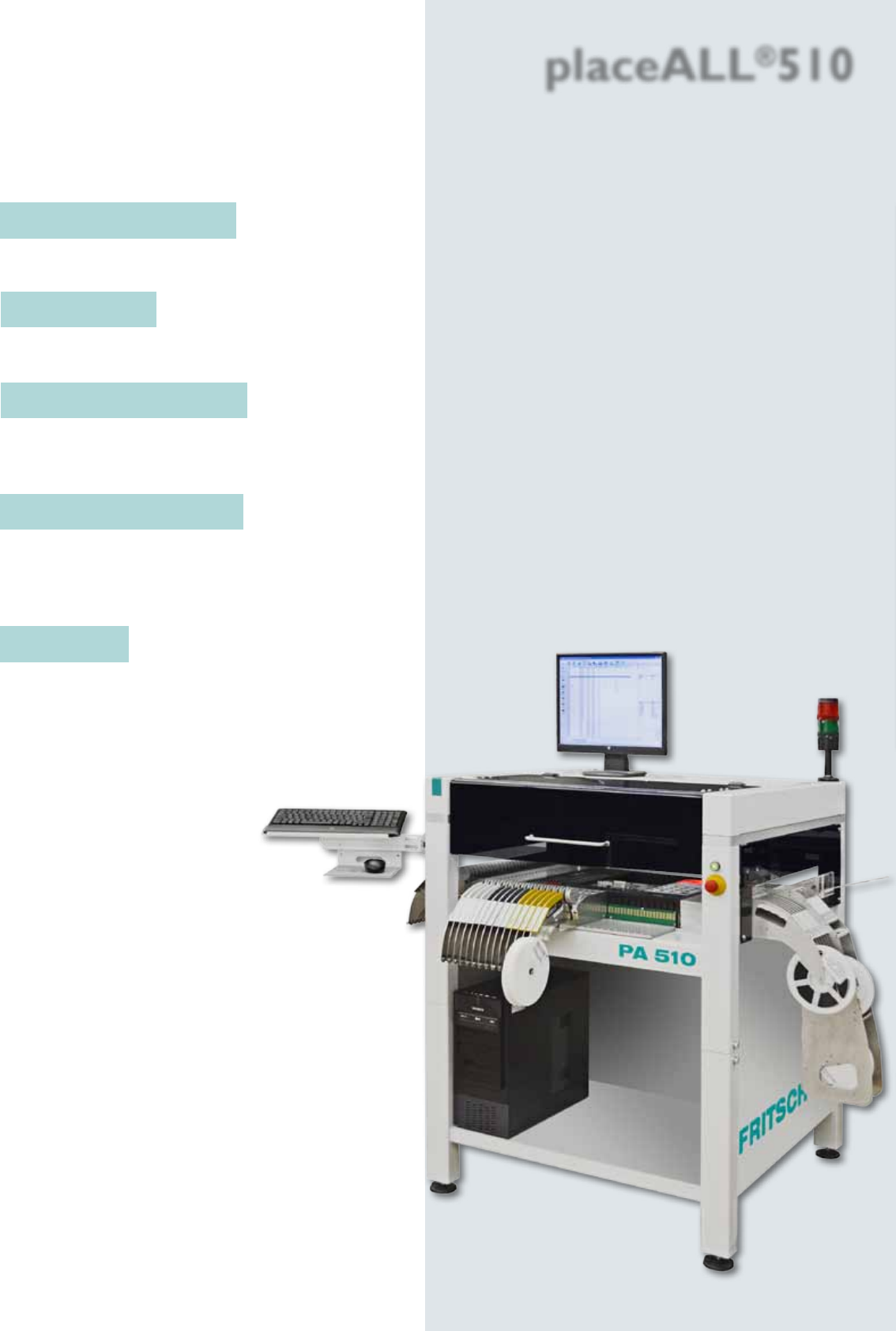

placeALL

510

Image of placeALL

510 with

optional divided frame
